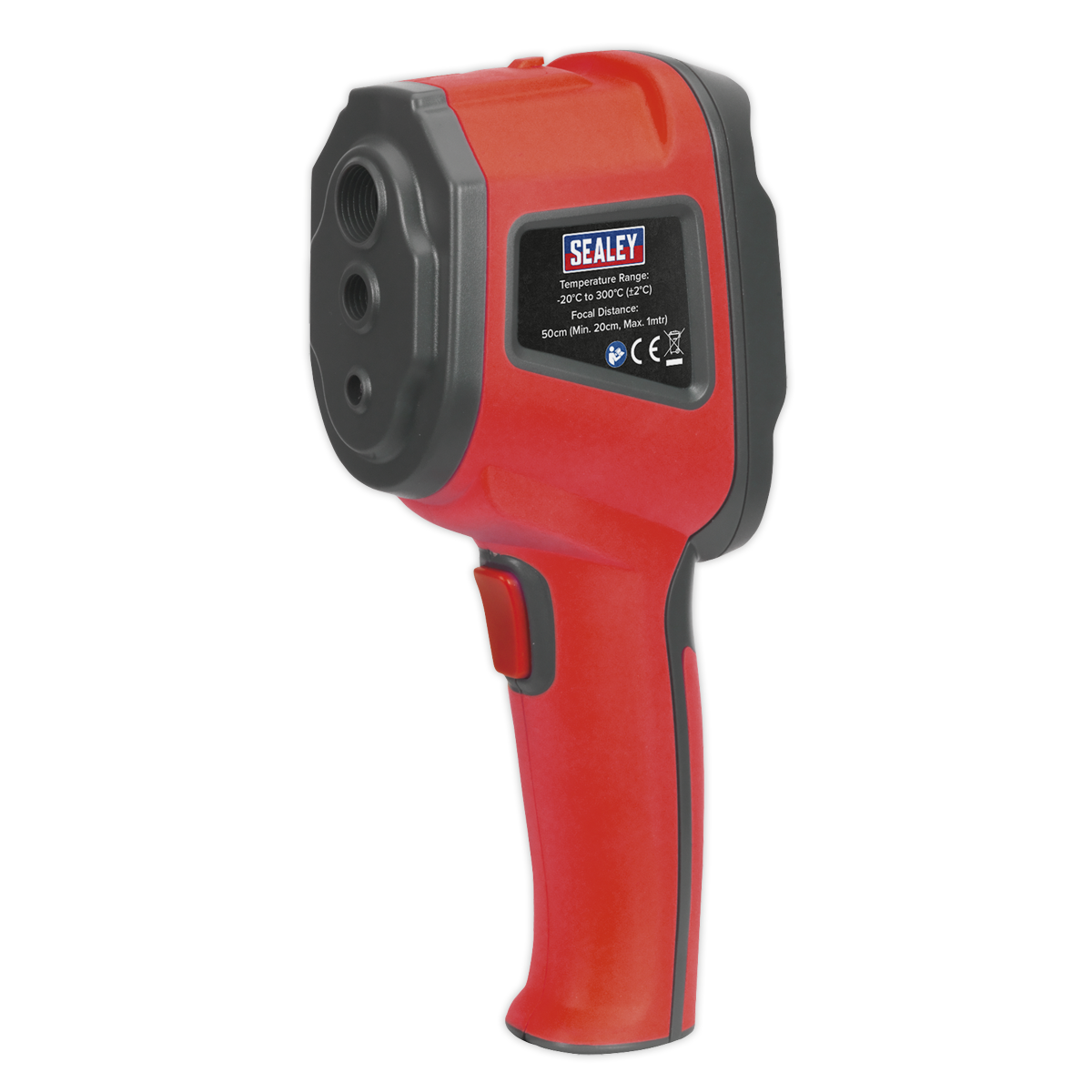

Product Number: VS912

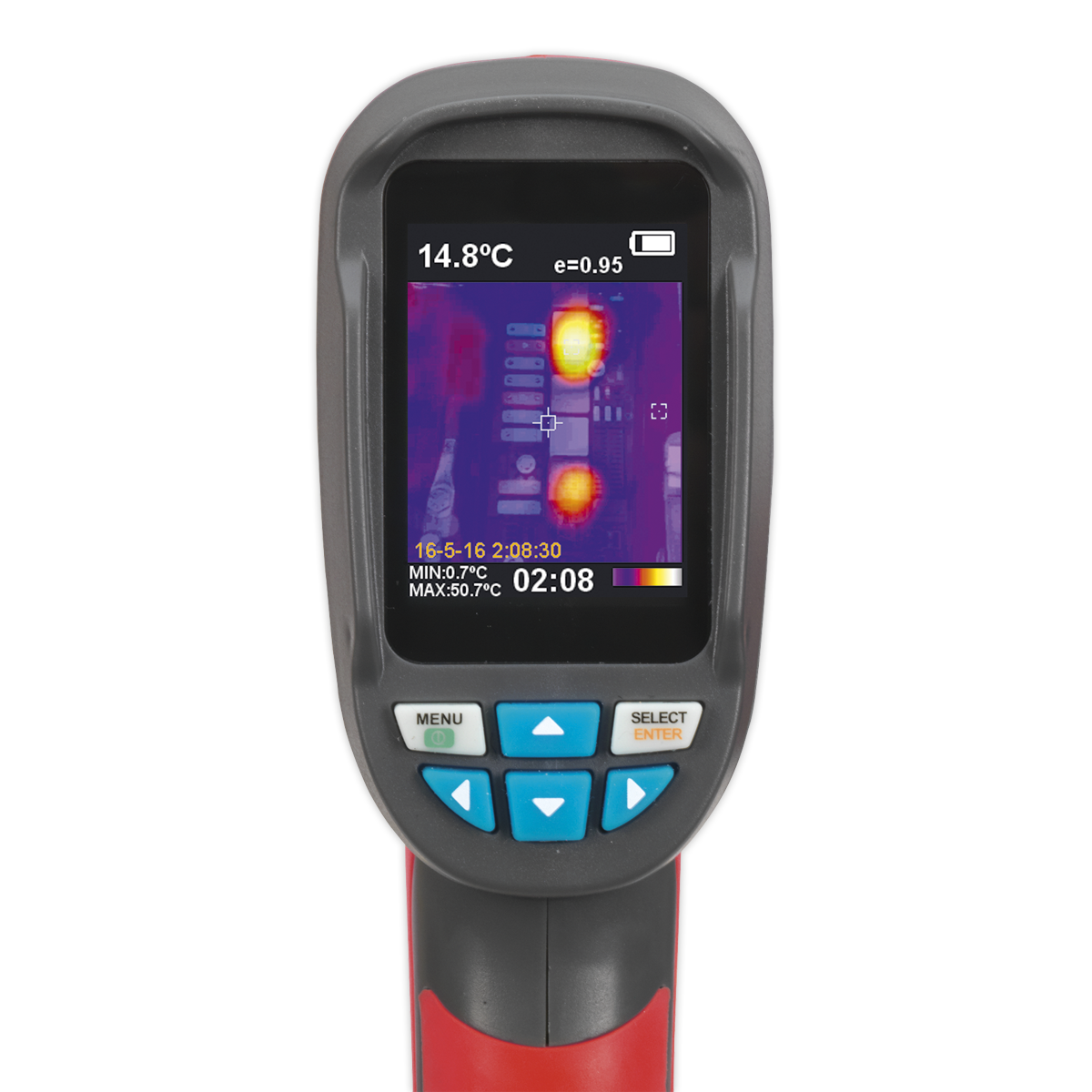

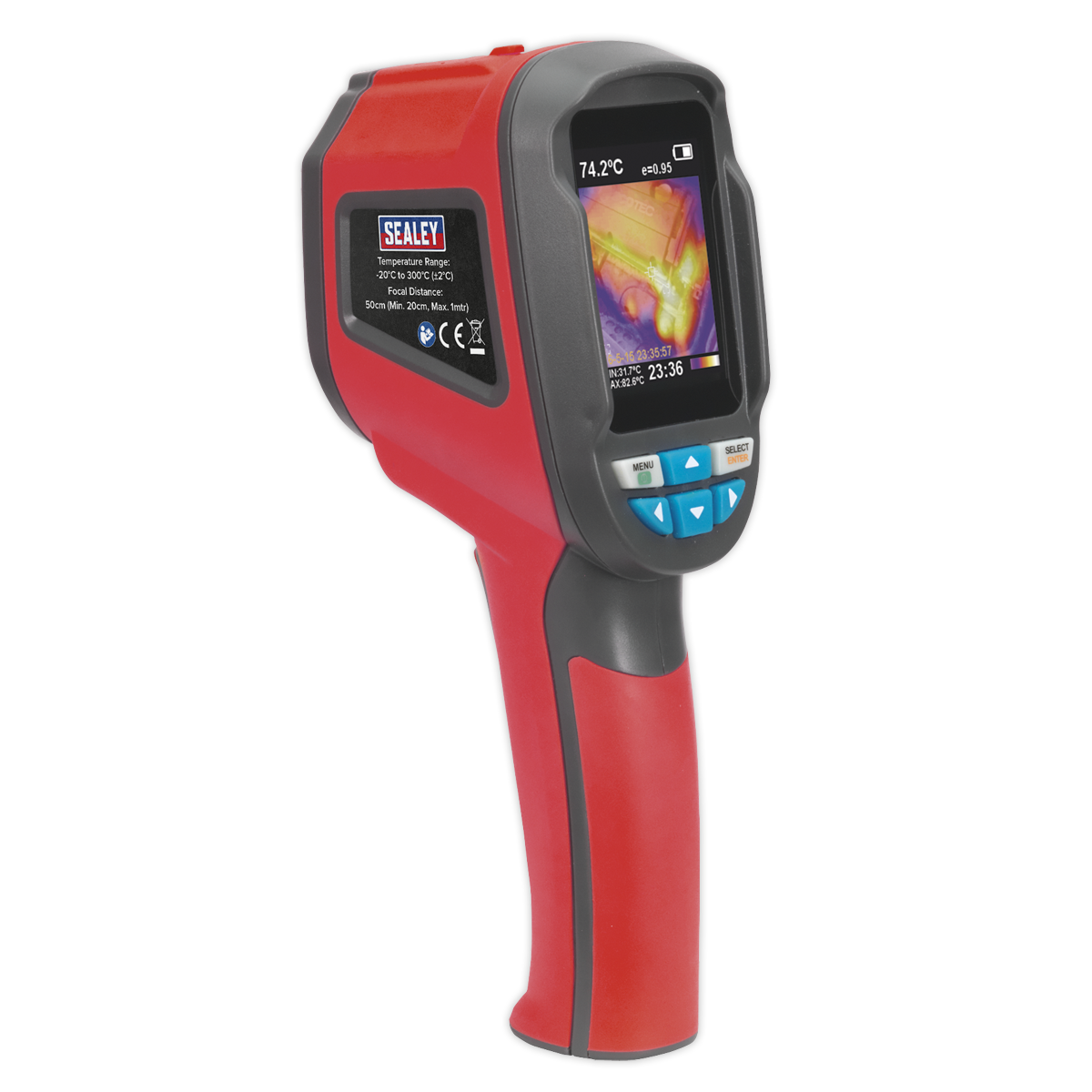

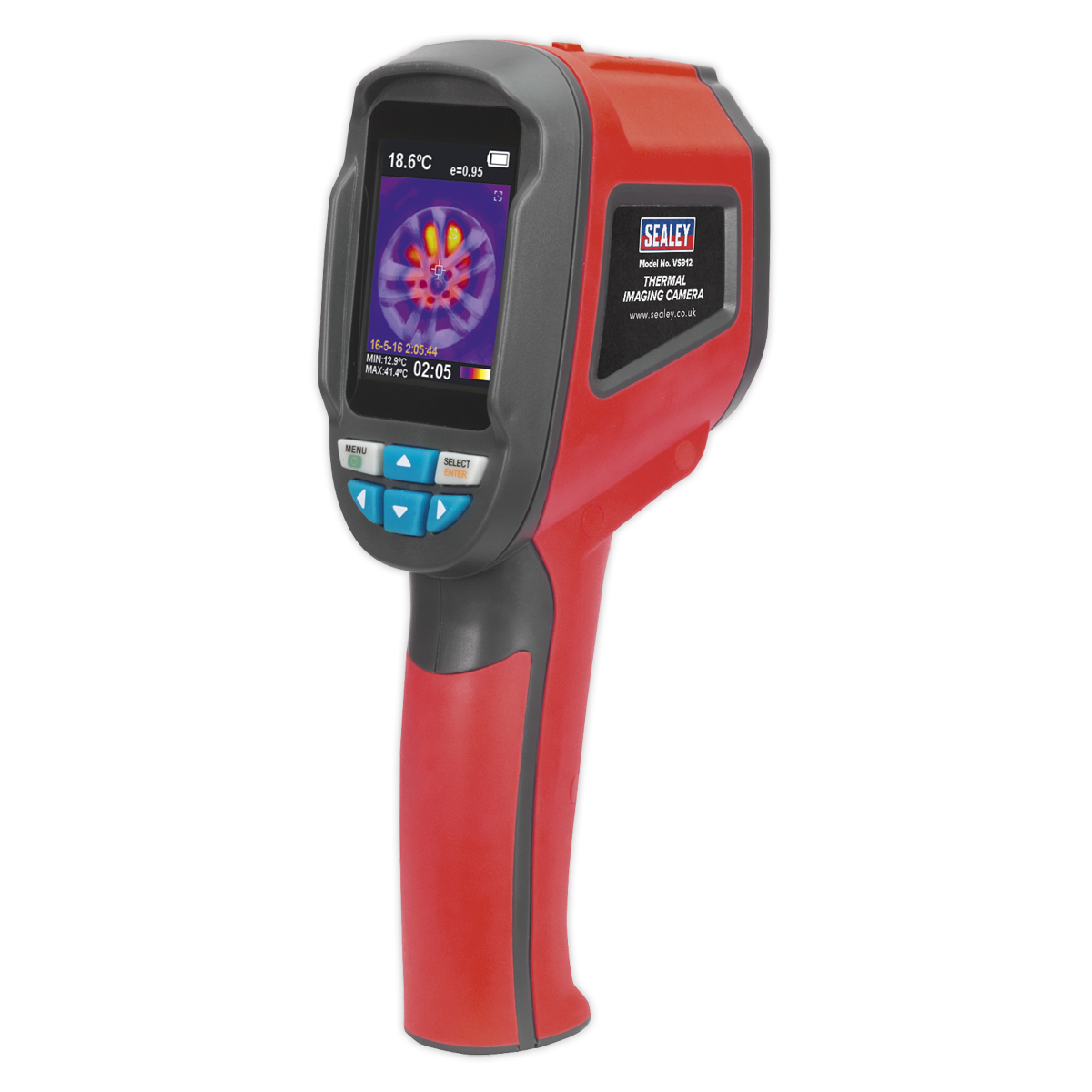

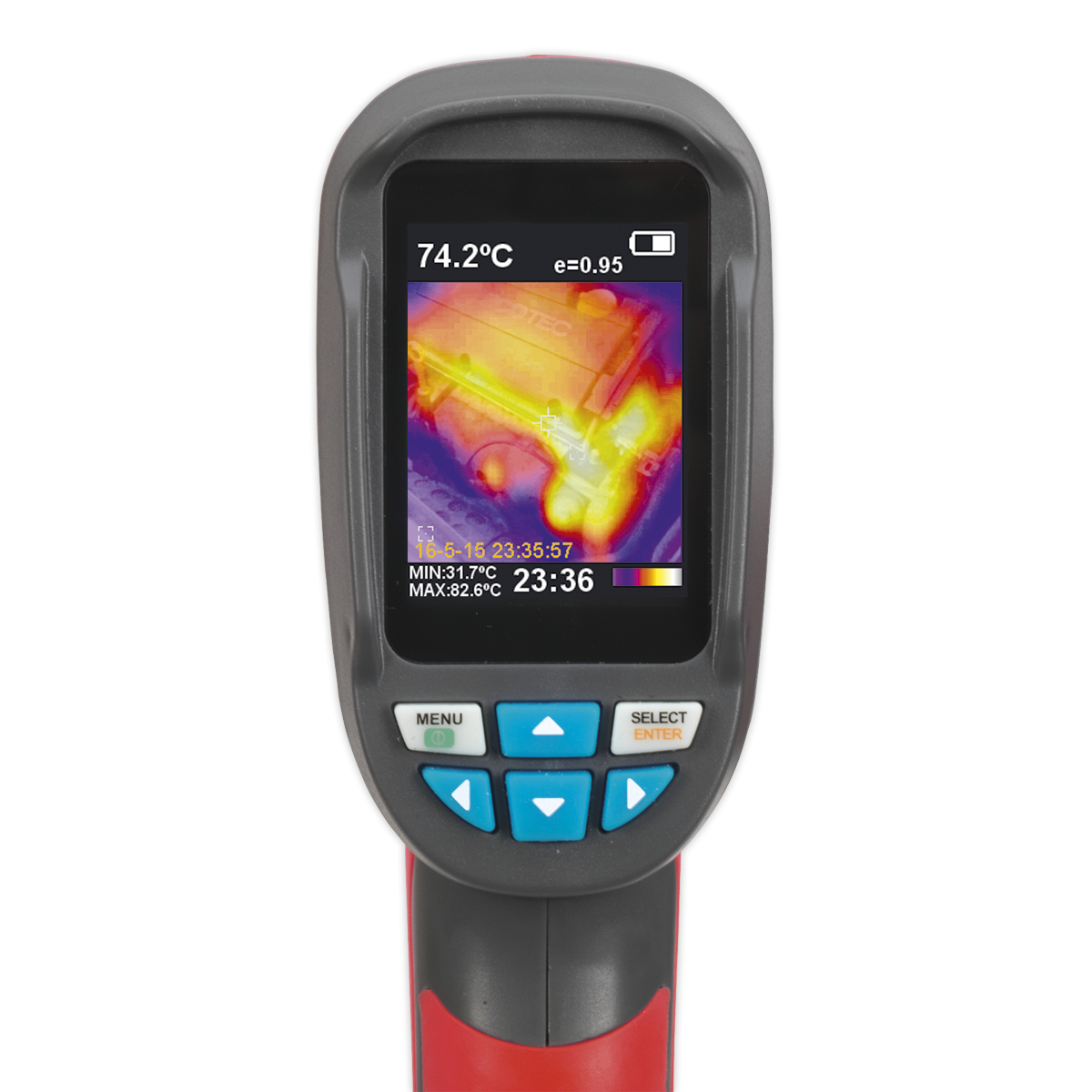

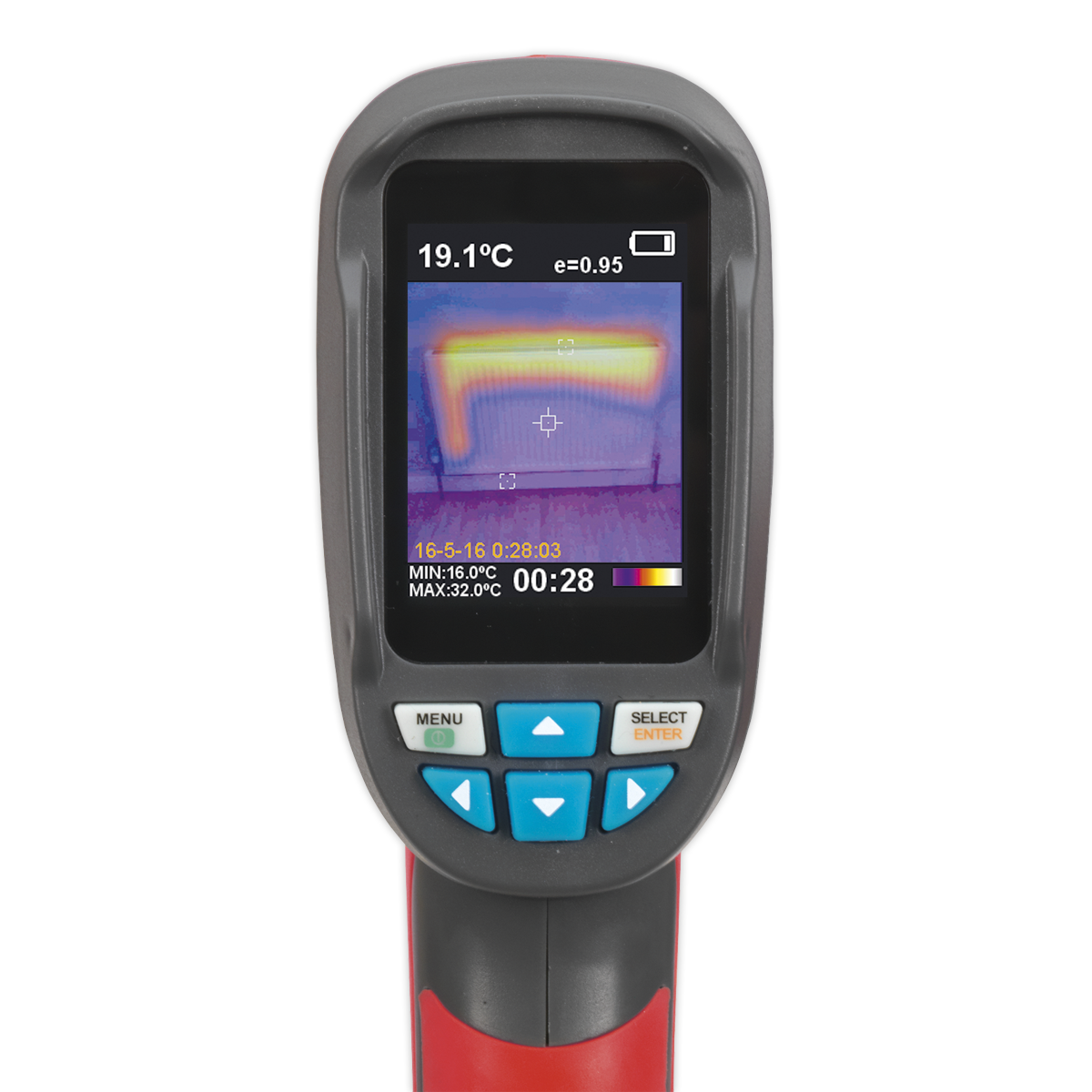

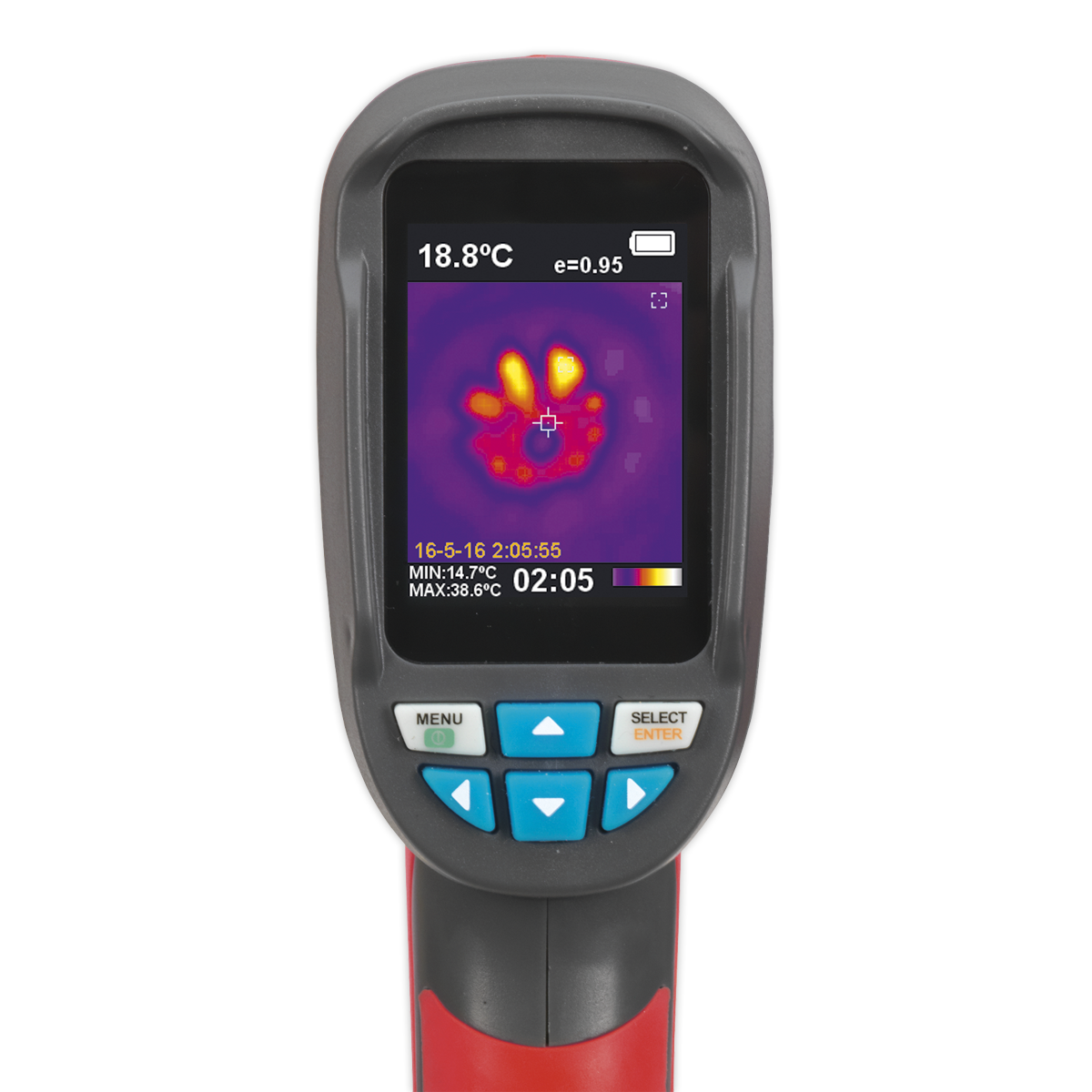

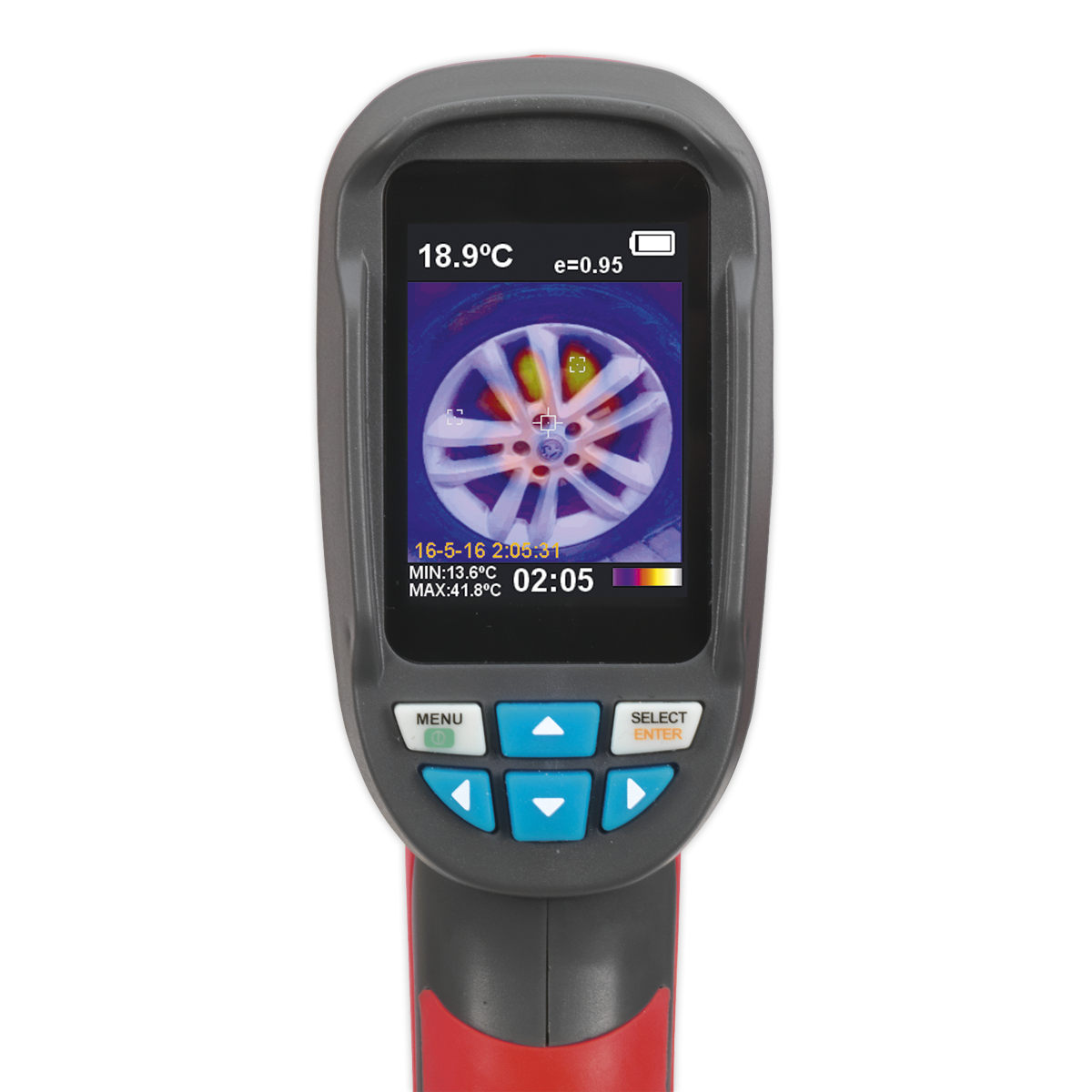

Chasing electrical faults, moisture ingress or heat loss with conventional tools means probing blindly and potentially missing the source of the problem entirely. The Sealey VS912 Thermal Imaging Camera lets you see exactly where heat is distributed, pinpointing hotspots and cold zones across systems and surfaces without disassembly. A 70mm TFT colour display delivers sharp visual feedback, and the on-screen cursor highlights precise temperature variations so you can act on what you find. The traditional camera overlays a thermal image at adjustable intensities switchable between 0%, 25%, 50%, 75% and 100% giving you a combined view that makes fault location faster. With a 26x19° field of view and a focal distance adjustable between 200-400mm from 3.2mm, you can cover broad areas or focus on close detail as the job demands. Infrared resolution is 120x90 pixels (10,800 pixels) with 3-megapixel visual imaging. Emissivity is adjustable from 0.1 to 1.0, and five colour palettes are available: Rainbow, Iron Oxide Red, Cold Colour, Black & White, and White & Black. The 2000mAh rechargeable battery delivers up to 3 hours of continuous use, and 3GB of internal memory means you can store images on site. Applications include diagnosing heated seats, power windows and wiring resistance, locating electrical overheating in fixings and connections, detecting damp and water ingress, inspecting radiators, plumbing and underfloor heating, and revealing insulation gaps around seals, frames and windows. Supplied in a storage case. Accuracy is ±2% or ±2°C/3.6°F above 0°C, and ±3°C/5.4°F below 0°C.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VS912 |
|---|---|
| Battery Run Time | 6hr |
| Brand | Sealey |
| Colour Palette | Iron Red, Rainbow, Rainbow High Contrast, Greyscale (White Glow), Greyscale (Black Glow) |
| Emissivity | 0.1 to 1 Adjustable |
| Field of Vision | 65° |
| Focal Distance | 50cm (Min. 20cm, Max. 1m) |
| Image Mix (Camera to Thermal) | 0%, 30%, 60%, 80%, 100% |
| Memory Capacity | Micro 4GB SD Card (Max. 25,000 Images) |
| Nett Weight | 320g |
| Power Source | 4 x AA (supplied) |
| Resolution | Infrared Image 60 x 60 (3600 Pixels)-Camera Image 0.3 Mega Pixels |
| Screen Size | 52mm |
| Temperature Range | -20°C to +300°C (±2°C) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey VS8233A Articulated Video Borescope 6mm with 70mm Display
£247.01
£242.17
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 92577 | 92580 | 44001 | 92578 | S0947 | VS8233A |
A. The VS912 features a 70mm TFT colour display.
A. The 2000mAh rechargeable battery provides up to 3 hours of continuous run time.
A. The infrared image resolution is 120x90 pixels (10,800 pixels). The visual camera captures at 3 megapixels.

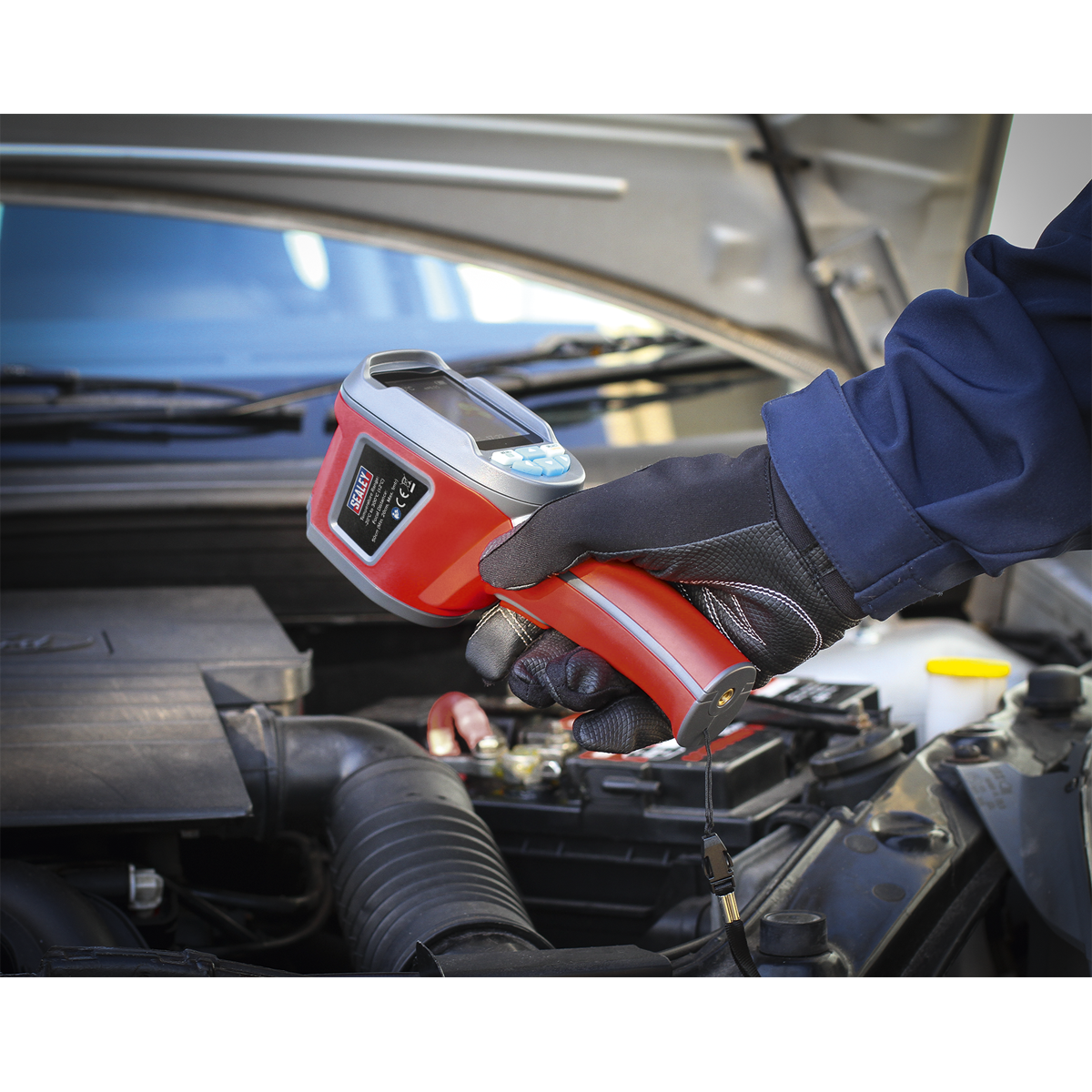

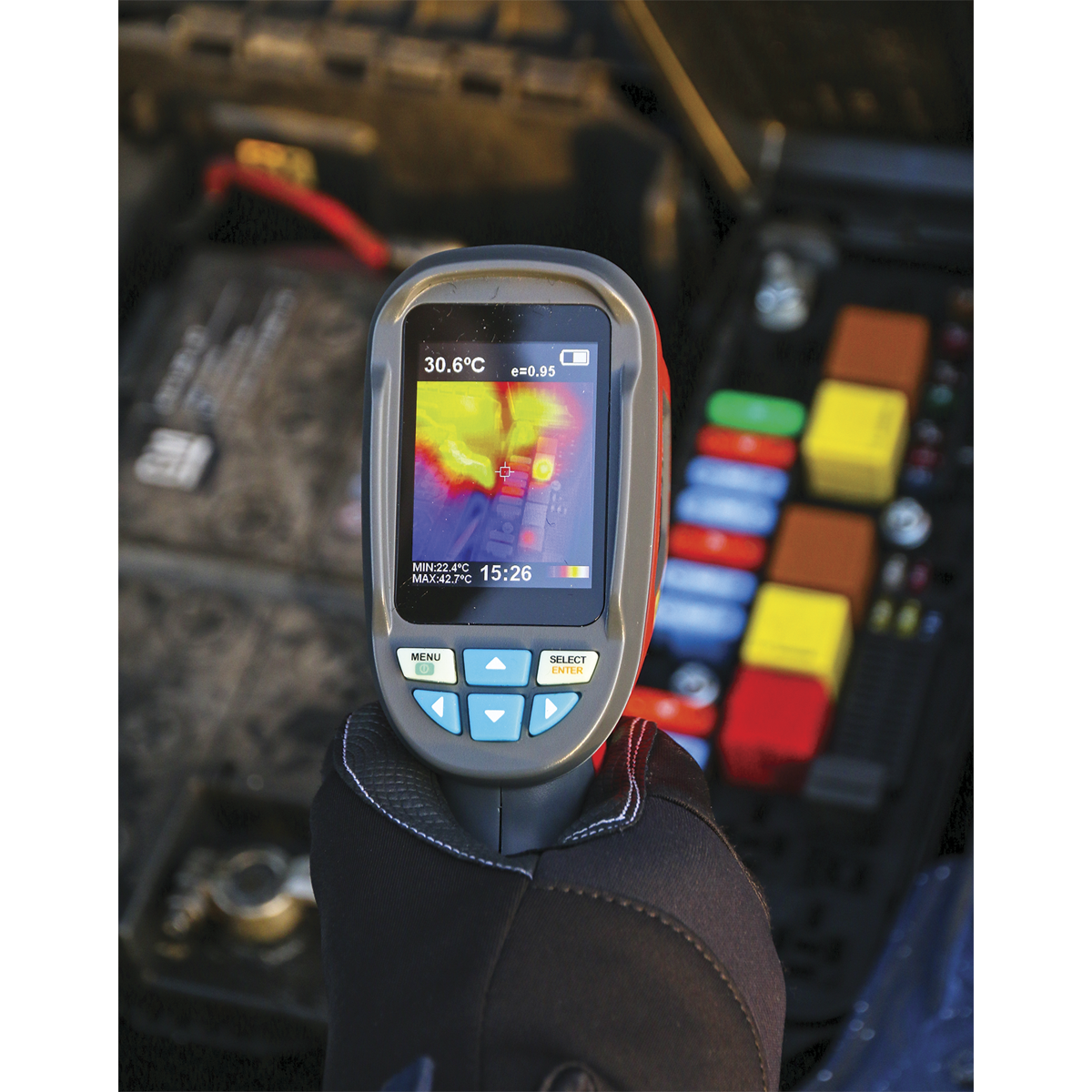

A. The VS912 can be used to diagnose faults with heated seats, power windows and wiring resistance, and to locate electrical overheating in fixings and connections.
A. Yes, it can highlight damp areas and potential water ingress, as well as reveal insulation gaps around seals, frames and windows.
A. Five colour palettes are available: Rainbow, Iron Oxide Red, Cold Colour, Black & White, and White & Black.
A. Above 0°C, accuracy is ±2% or ±2°C/3.6°F (whichever is greater). Below 0°C, accuracy is ±3°C/5.4°F.

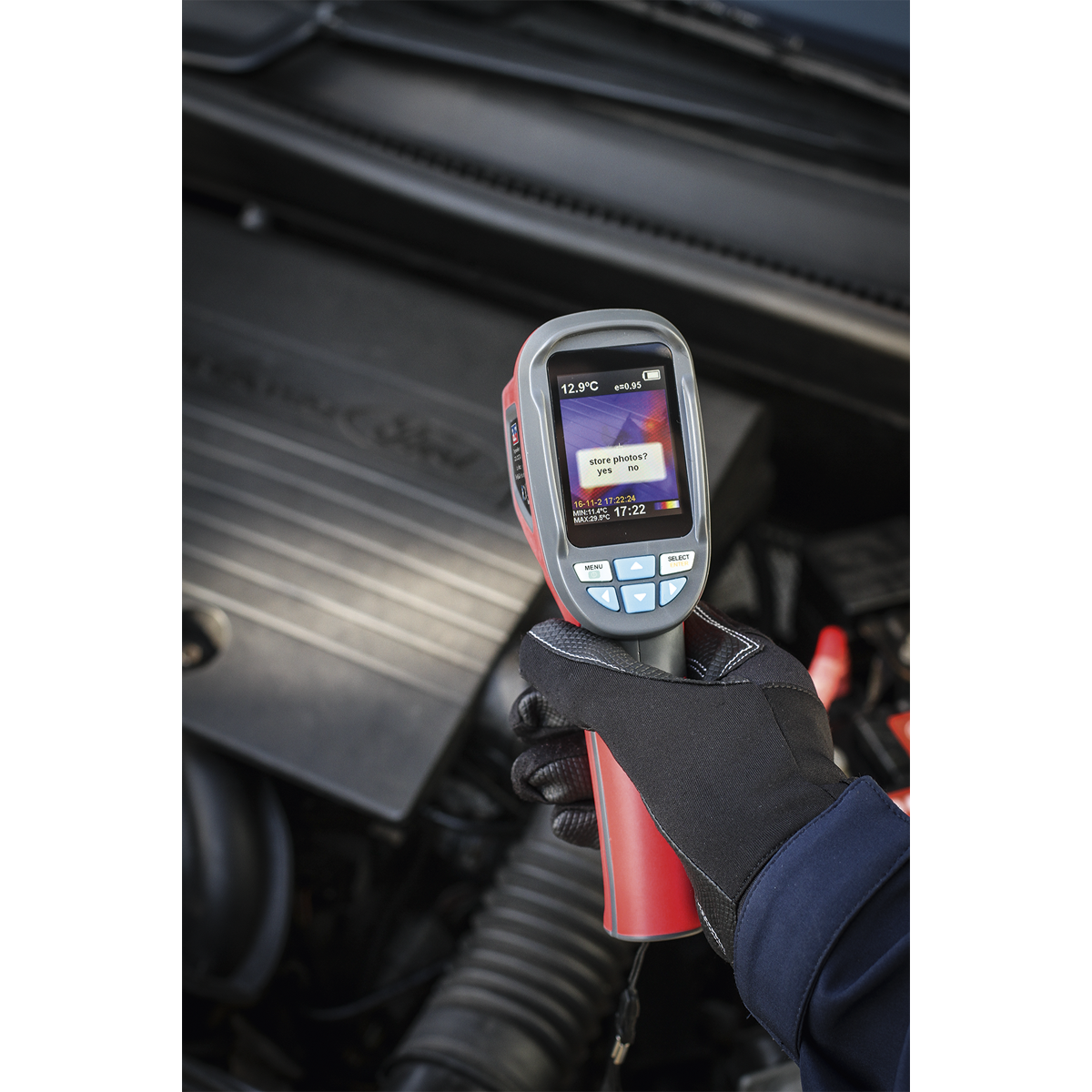

A. The VS912 has 3GB of internal memory for storing images.

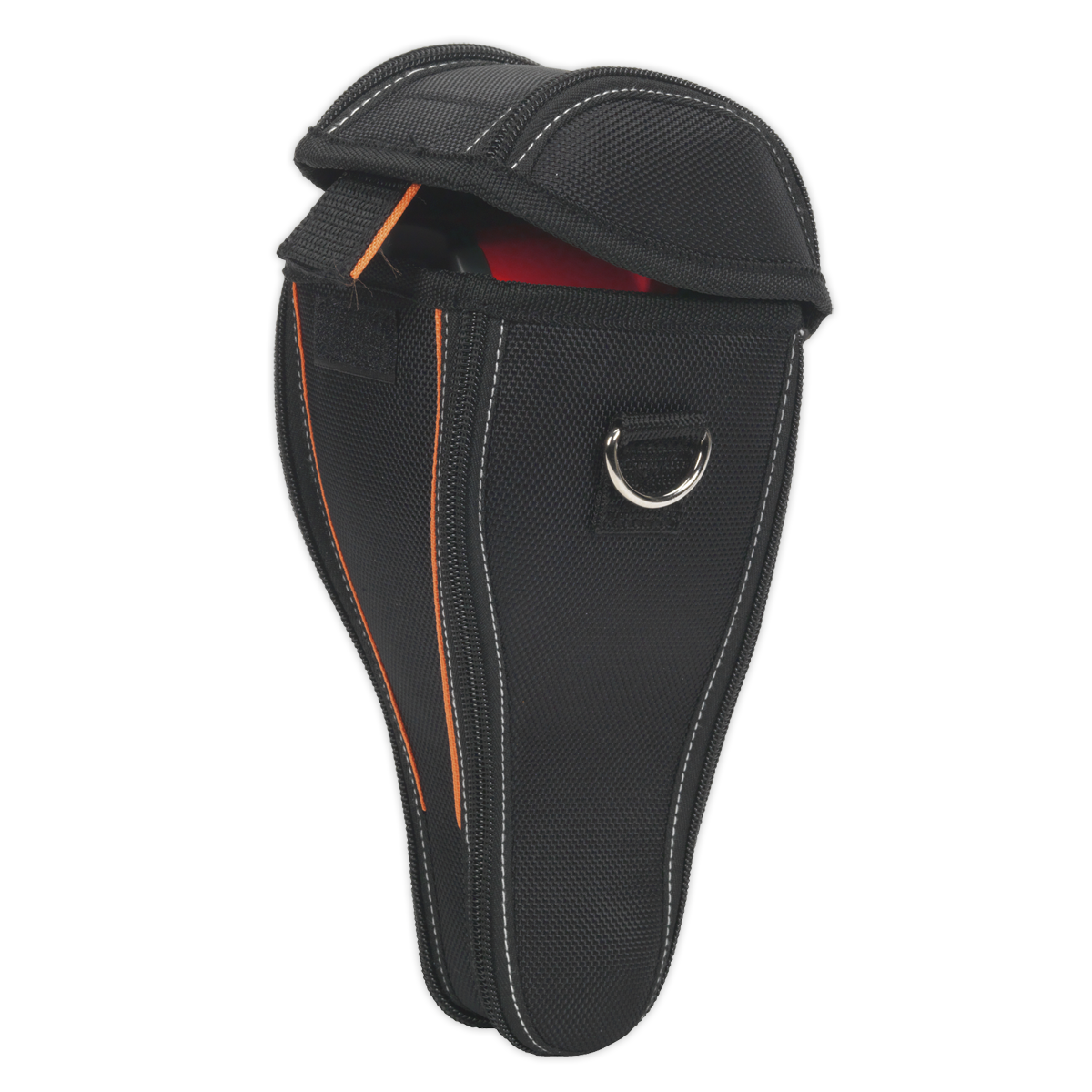

A. Yes, the VS912 is supplied in a storage case.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
