Product Number: TA319

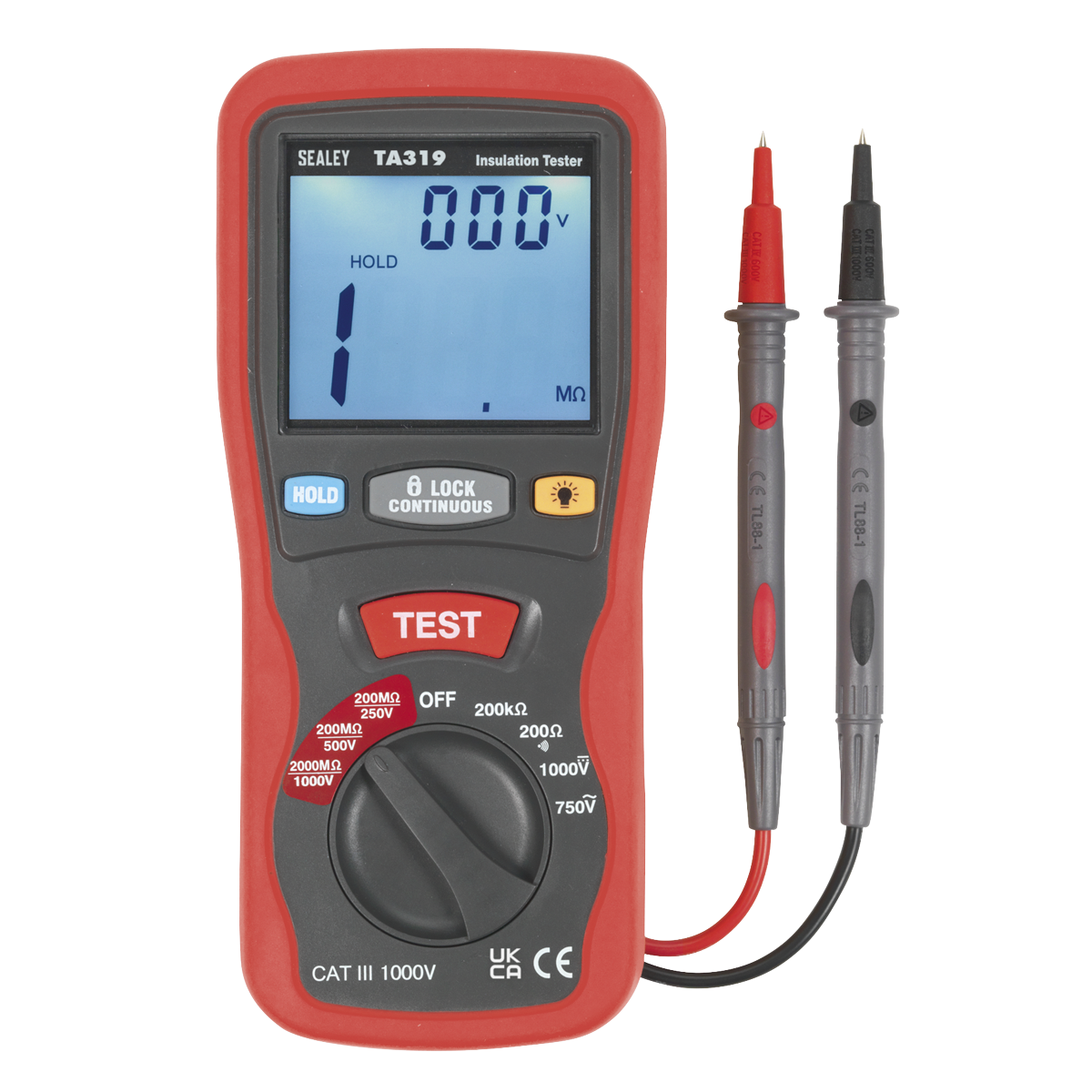

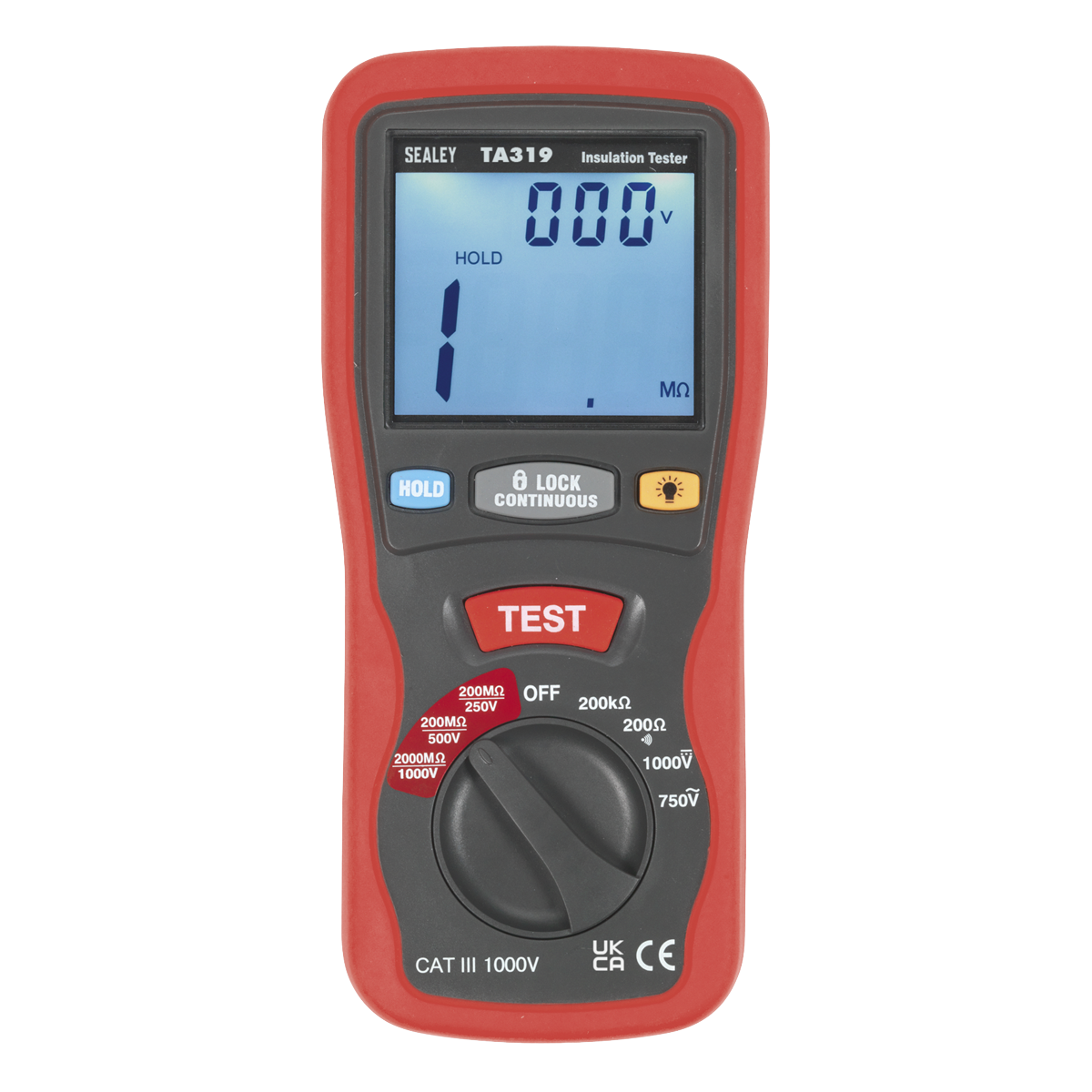

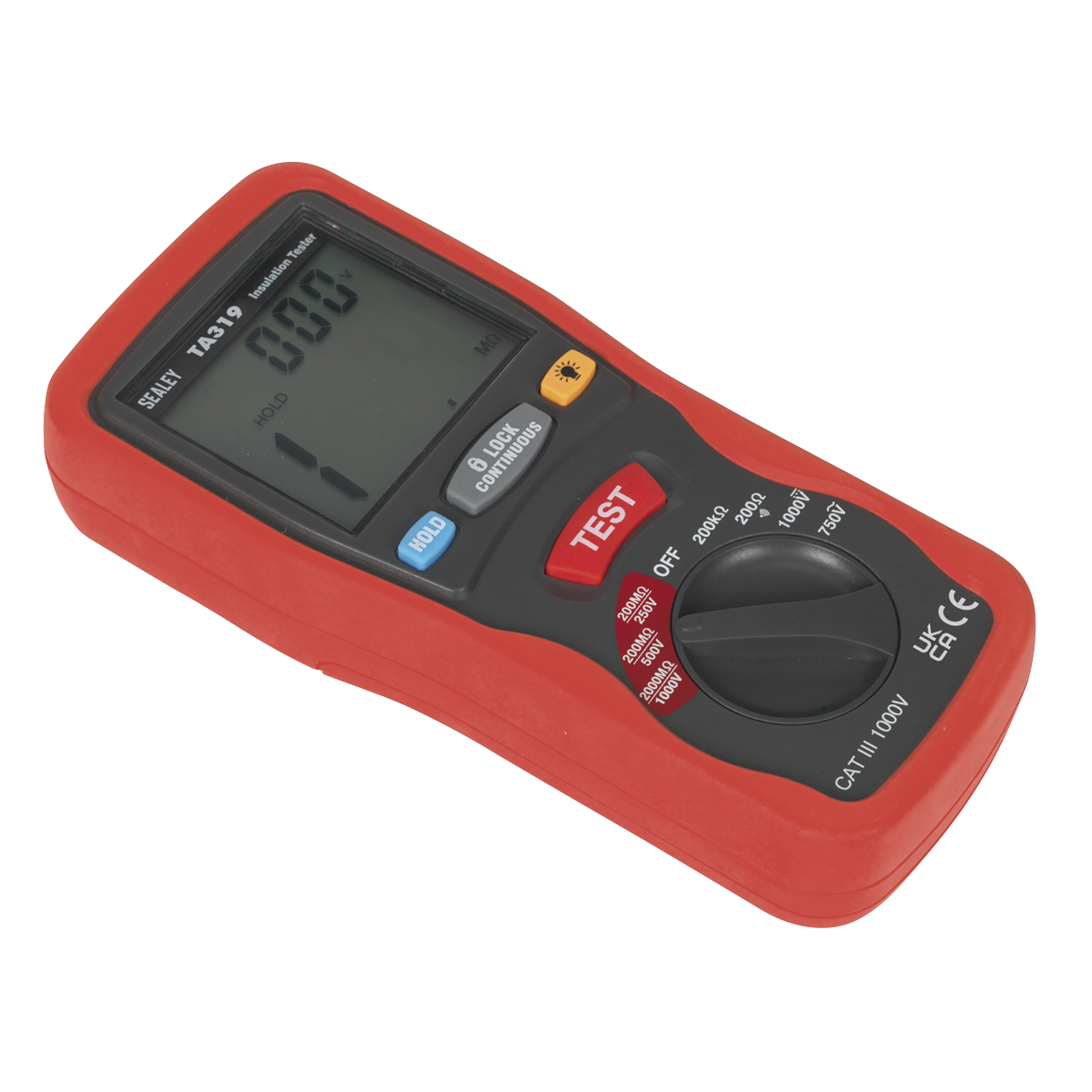

Testing insulation integrity on high voltage cables including those found in hybrid and electric vehicles demands a tester built to the correct safety and accuracy standards. The Sealey TA319 is a digital insulation tester specially designed for this purpose, conforming to EN61010 CAT III (1000V). It measures insulation resistance across two ranges, 200MΩ and 2000MΩ, with test voltages of 250V, 500V, and 1000V, and delivers accuracy to ±3.5% ±5-digits. For AC voltage, it measures up to 750V with 1V resolution and ±1.2% accuracy; for DC voltage, up to 1000V with 1V resolution and ±0.8% accuracy. Resistance measurement covers 200Ω and 2000Ω ranges. The continuity test function is active at or below 40Ω with a test current of up to 200mA. It operates in temperatures from 0°C to +40°C and is supplied complete with test leads, batteries (6 x 1.5V), and a storage case everything needed to get straight to work.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA319 |
|---|---|
| Brand | Sealey |
| Nett Weight | 1.29kg |
| Voltage AC | Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits) |
| Voltage DC | Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits) |
| Resistance | Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits) |
| Insulation Resistance | Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits) |
| Test Voltage | 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ |
| Continuity Test | Active Sound Level; ≤40Ω, Test Current; ≤200mA |
| Operating Temperature | 0ºC to +40ºC, (<80%R.H) |
| Storage Temperature | -10ºC to +60ºC, (<70%R.H) |
| Batteries | 6 x 1.5V (supplied) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey VS211 Fuel Injector Tester 12V - Petrol Vehicles
£63.45
£62.21
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | VS921 | VS925 | VS270 | 48325 | GO2100PRO | VS211 | GO2114 | 53400800 | PPX |
A. The TA319 is specially designed for testing insulation on high voltage cables and is suitable for use on hybrid and electric vehicles.
A. The TA319 conforms to EN61010 CAT III (1000V).
A. The TA319 provides test voltages of 250V (200MΩ range), 500V (200MΩ range), and 1000V (2000MΩ range).
A. The TA319 measures insulation resistance on two ranges: 200MΩ with a maximum resolution of 100kΩ, and 2000MΩ with a maximum resolution of 1MΩ, at an accuracy of ±3.5% ±5-digits.
A. For AC voltage, the TA319 measures up to 750V with 1V resolution and ±1.2% ±10-digit accuracy. For DC voltage, it measures up to 1000V with 1V resolution and ±0.8% ±3-digit accuracy.

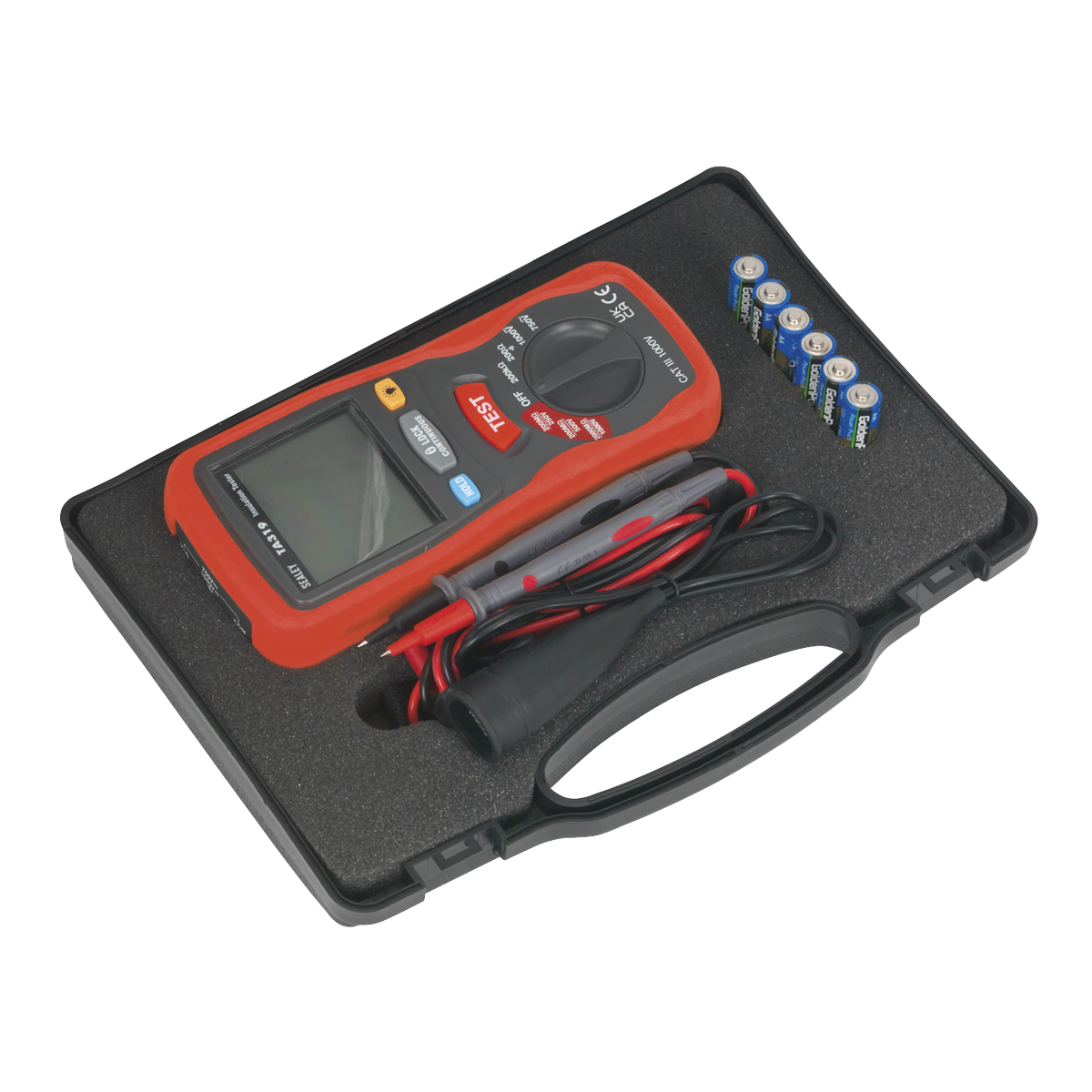

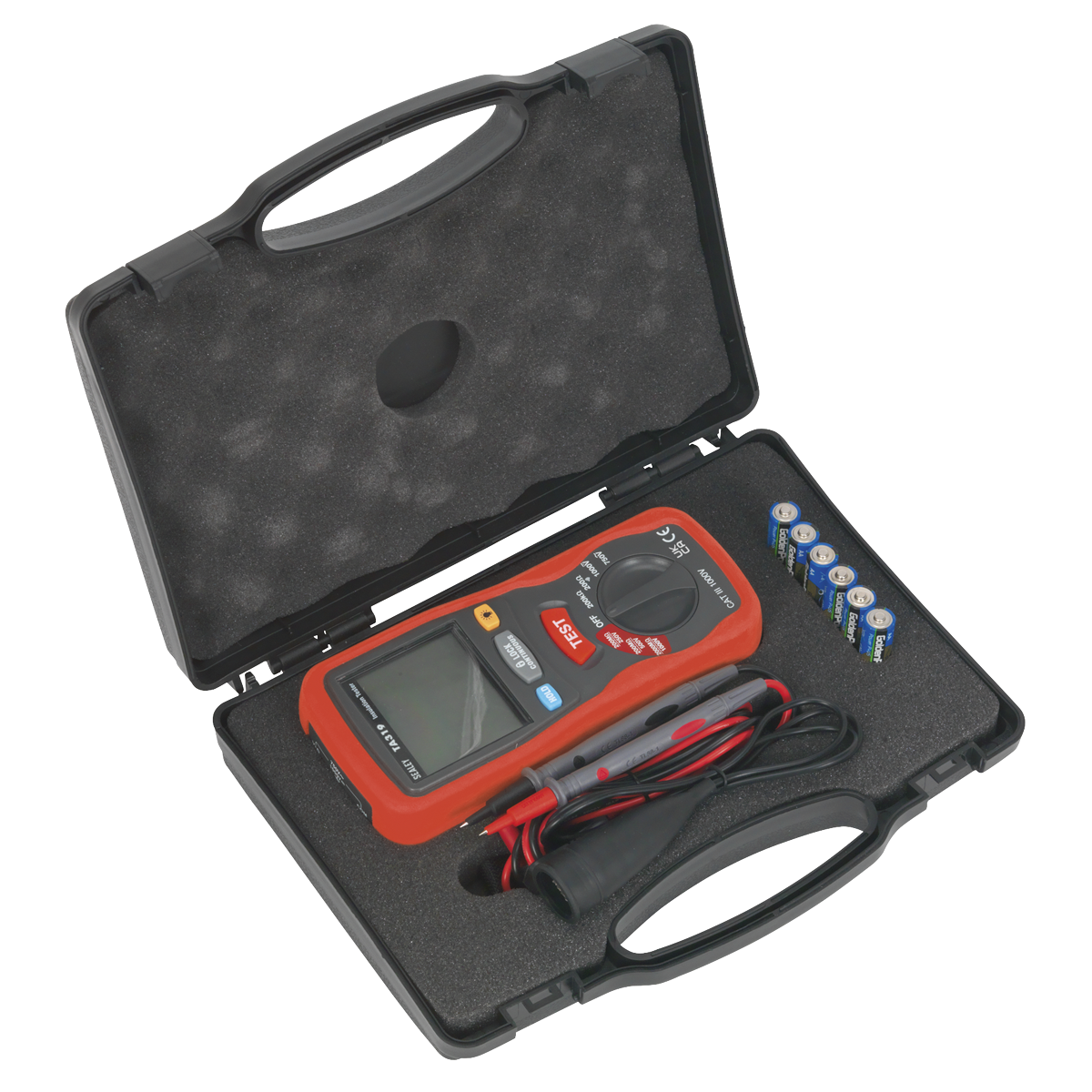

A. The TA319 is supplied with test leads, 6 x 1.5V batteries, and a storage case.
A. The continuity test is active at sound levels of 40Ω or below, with a test current of up to 200mA.
A. The TA319 operates between 0°C and +40°C at less than 80% relative humidity, and can be stored between -10°C and +60°C at less than 70% relative humidity.
A. Yes. Alternative products that perform a similar function include the AK500, VS270, VS921, and VS925. Check each listing on PartsForMachines.com for specification details to find the right tool for your needs.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
