Sealey TA202 Digital Automotive Analyser 14-Function

Q: What functions does the Sealey TA202 cover?

The TA202 is a 14-function analyser covering tachometer (2-stroke and 4-stroke), dwell angle, AC and DC voltage, AC and DC current, capacitance, frequency, duty cycle, pulse width, resistance, and continuity.

Q: What tachometer ranges does the TA202 support?

For 4-stroke engines it covers 600-4000rpm (x1) and 600-12000rpm (x10). For 2-stroke engines it covers 300-4000rpm (x1) and 300-6000rpm (x10).

Q: Can the TA202 measure fuel injector pulse width?

Yes. The TA202 features a millisecond pulse-width function measuring 1-10ms, designed for accurate measurement of fuel injection systems.

Q: What dwell angle cylinders does the TA202 support?

The TA202 covers dwell angle measurement for 4-cylinder (0-90°), 5-cylinder (0-72°), 6-cylinder (0-60°), and 8-cylinder (0-45°) engines.

Q: What is supplied in the box with the TA202?

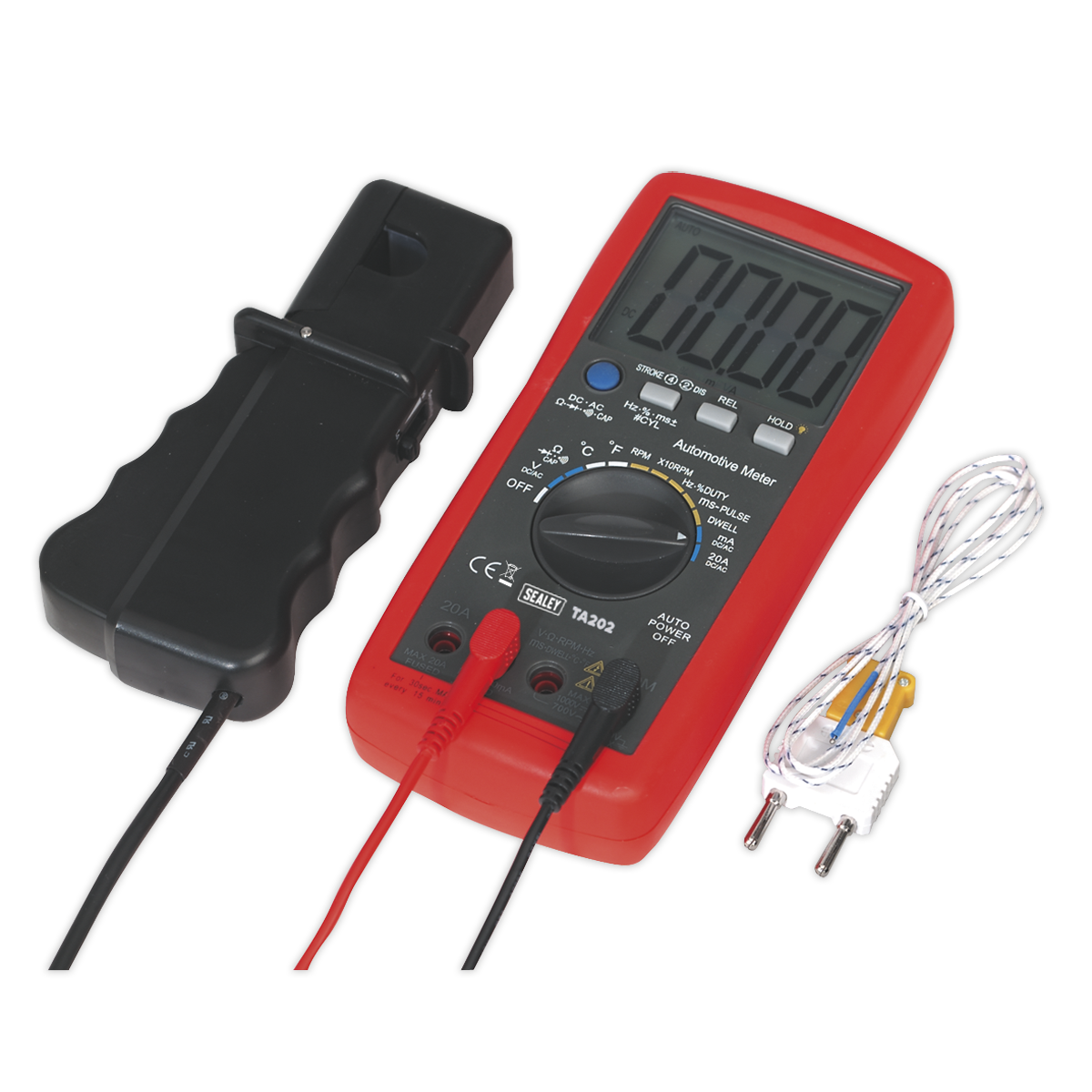

The TA202 is supplied with an inductive coupler (IC), test probes, thermocouple, and a storage case.

Q: Does the TA202 work on both AC and DC circuits?

Yes. It measures AC voltage up to 700V and DC voltage up to 1000V, and covers both AC and DC current up to 20A.

Q: Does the TA202 have auto-ranging?

Yes. Auto-ranging is included across most measurement functions, with the exception of the 400mV AC voltage range. Data-hold and auto-power-off are also included.

Q: Are there alternative multimeter or analyser options available?

Yes. Alternative products that perform a similar function include the MM01, MM03, MM102, and MM18. Each is a separate product - check individual listings for their specific features and measurement ranges.

Q: When will my order be dispatched?

In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.

Q: Is next-day delivery available for this product?

Next-day delivery is available on most products and will appear as an option at checkout where eligible.

Product Number: TA202

£106.29 £104.16

BUY NOW

ADD TO CART

Variations

TA102

Diagnosing faults across automotive electrical and ignition systems demands a tool that can handle everything from fuel injection timing to tachometer readings without switching between instruments. The Sealey TA202 Digital Automotive Analyser consolidates 14 functions into a single robust unit built for workshop use. The extra-large, high-contrast LCD display with 36mm high digital read-out and backlight ensures clear readings even in poor lighting conditions, while the durable case and integral stand keep it stable on the bench or floor in tough workshop environments. The millisecond pulse-width function (1-10ms) delivers accurate measurement of fuel injection systems, making it a practical choice for fuel system diagnostics. It handles both AC and DC circuits, with DC voltage measuring up to 1000V and AC voltage up to 700V. Tachometer coverage spans 4-stroke engines at 600-12000rpm (x10 cylinder) and 2-stroke engines at 300-6000rpm (x10), with dwell angle measurement for 4, 5, 6, and 8-cylinder engines. Auto-ranging, data-hold, and auto-power-off reduce manual adjustment and preserve battery life during extended sessions. Supplied complete with inductive coupler (IC), test probes, thermocouple, and storage case.

Key Features:

Sealey TA202 Digital Automotive Analyser 14 Function is presented as a model-specific workshop product, combining the supplied title, description and specifications for accurate catalogue use.
Key technical details include voltage 400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV), giving buyers clear specification data for accurate selection and comparison.
Safety-focused design includes purpose-built construction to support controlled, safer use in demanding work environments, helping users maintain control during setup, operation and handling.
It is suited to vehicle servicing, repair bays and maintenance tasks where dependable support or lifting is required, matching the product title and supplied description.
A key selling point is its nett weight 394g specification, giving this model a clear product-specific advantage for buyers comparing similar workshop options.
Operational details include nett weight 394g, weight 394g, supporting product setup, handling and internal catalogue accuracy for everyday workshop use.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	TA202
Brand	Sealey
Nett Weight	394g
Tach (rpm)	4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage	400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)
DC Voltage	400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
DC Current	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
Capacitance	40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Frequency	5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
Duty Cycle	0.1-99.9%
Pulse Width	1-10ms
Resistance	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity	<150Ω
Temperature	-20 to +760°C/-4 to +1400°F
IR Temperature	No
Diode Check	Yes (Typical Test Current 0.3mA)
Transistor Test	No
Back Light	Yes
Bar Graph Display	No
Display Hold	Yes
Auto-Ranging	Yes
Inductive Coupler	Yes
PC Interface	No
Digits Height	36mm
Auto Power Off	Yes
Low Battery Indicator	Yes
Batteries (supplied)	9V (PP3)
Hi-Impact Case	Yes
Size (L x W x D)	195 x 92 x 36mm
Weight	394g
