Product Number: TA102
Variations

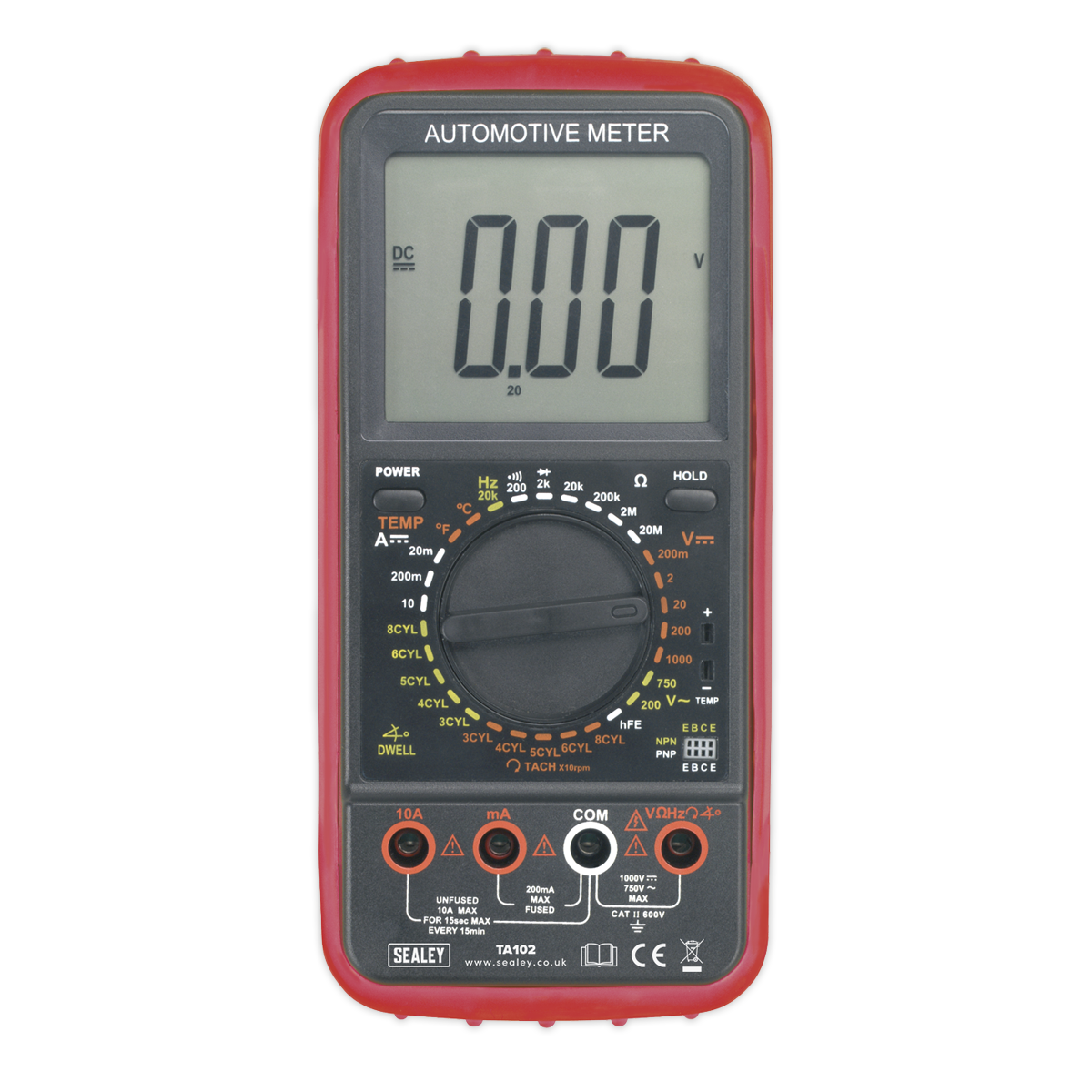

Diagnosing ignition and electrical faults across a wide range of vehicles demands a reliable, multi-function tool that can keep pace with a busy workshop. The Sealey TA102 Digital Automotive Analyser delivers 11 functions in a durable case with integral stand, built to withstand the toughest workshop conditions. The large, high-contrast LCD display features a 34mm high digital read-out for easy reading in poor light, while over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions reduce errors and downtime. Tachometer coverage spans 3, 4, 5, 6 and 8-cylinder engines from 180-10,000 rpm, with dwell angle measurement across the same cylinder configurations. DC voltage ranges run from 200mV up to 1000V, AC voltage from 200V to 750V, and DC current is covered at 20mA, 200mA and 10A. Resistance measurement extends from 200Ω through to 20MΩ, with continuity detection below 30Ω, and frequency measurement up to 20kHz. Supplied with capped test probes and a K-type thermocouple for immediate use straight from the box.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA102 |
|---|---|
| Brand | Sealey |
| Nett Weight | 495g |
| Tach (rpm) | 3/4/5/6/8Cyl 180-10000 (x10)rpm |
| Dwell | 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage | 200-750V |
| DC Voltage | 200mV, 2V, 20V, 200V, 1000V |
| AC Current | No |
| DC Current | 20mA, 200mA, 10A |
| Capacitance | No |
| Frequency | 20kHz |
| Duty Cycle | No |
| Pulse Width | No |
| Resistance | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Continuity | <30Ω |
| Temperature | -20 to +750°C/-4 to +1382°F |
| IR Temperature | No |
| Diode Check | Yes (Typical Test Current 1mA) |
| Transistor Test (hFE) | Vce=3V, Ib=10µA |
| Back Light | No |
| Bar Graph Display | No |
| Display Hold | Yes |
| Auto-Ranging | No |
| Inductive Coupler | No |
| PC Interface | No |
| Digits Height | 34mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 200 x 97 x 48mm |
| Weight | 495g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sealey TA203 Digital Automotive Multimeter 15-Function with Bar Graph & PC Link
£176.59
£173.06
2% OFF
Free delivery in UK Mainland
|
Sealey TA304 Digital Automotive Analyser 15-Function with Inductive Coupler & IR Probe
£219.87
£215.47
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 48325 | 53400800 | GO2114 | GO2100PRO | TA203 | TA304 |
| Type | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester |
| Brand | Sealey | Sealey | ||||
| Model No | TA203 | TA304 | ||||
| Nett Weight | 605g | 360g | ||||
| Voltage (V) | 12 | 24 | 40 | 40 | ||
| Weight (kg) | 605g | |||||
A. The TA102 tachometer supports 3, 4, 5, 6 and 8-cylinder engines, measuring from 180 to 10,000 rpm (x10).
A. Dwell angle ranges are: 3-cylinder 0-120°, 4-cylinder 0-90°, 5-cylinder 0-72°, 6-cylinder 0-60°, and 8-cylinder 0-45°.
A. For DC voltage the TA102 measures at 200mV, 2V, 20V, 200V and 1000V ranges. For AC voltage it covers 200V to 750V.
A. Resistance ranges are 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ and 20MΩ. Continuity is detected below 30Ω.

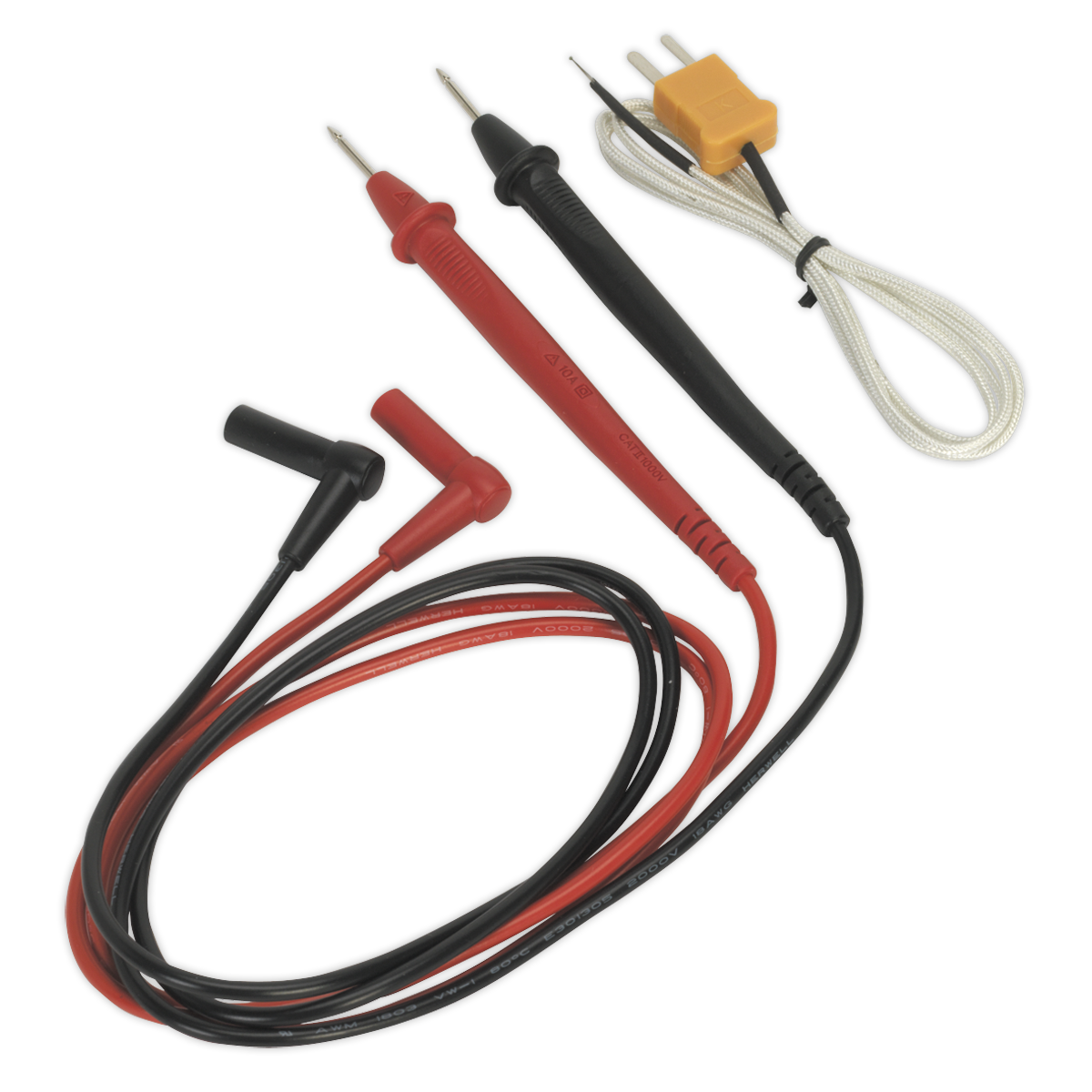

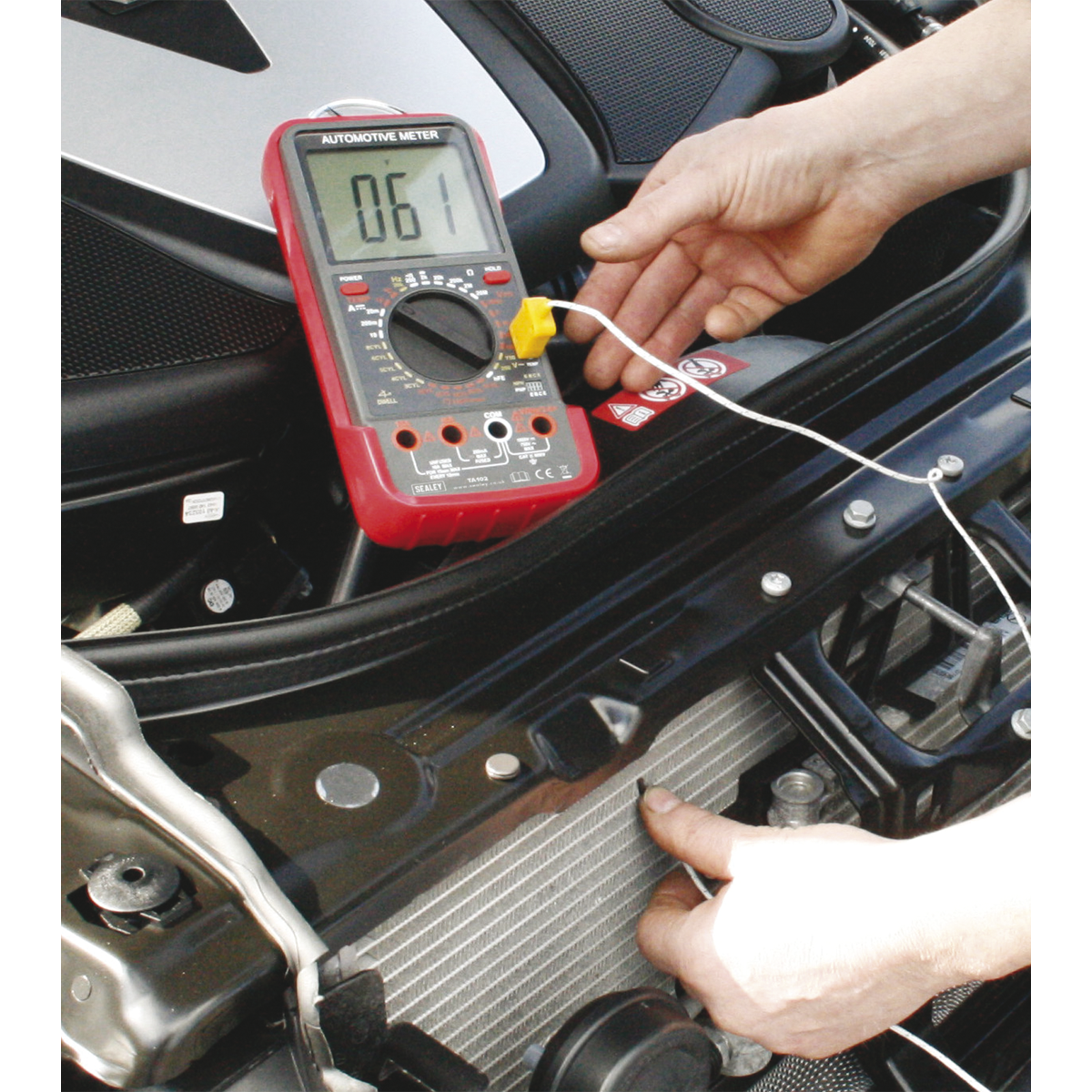

A. The TA102 is supplied with capped test probes and a K-type thermocouple.
A. Yes. The TA102 includes auto-power-off, data-hold, auto-zeroing, auto-polarity, over-range indication and low battery display as standard functions.
