Product Number: TA201
Variations

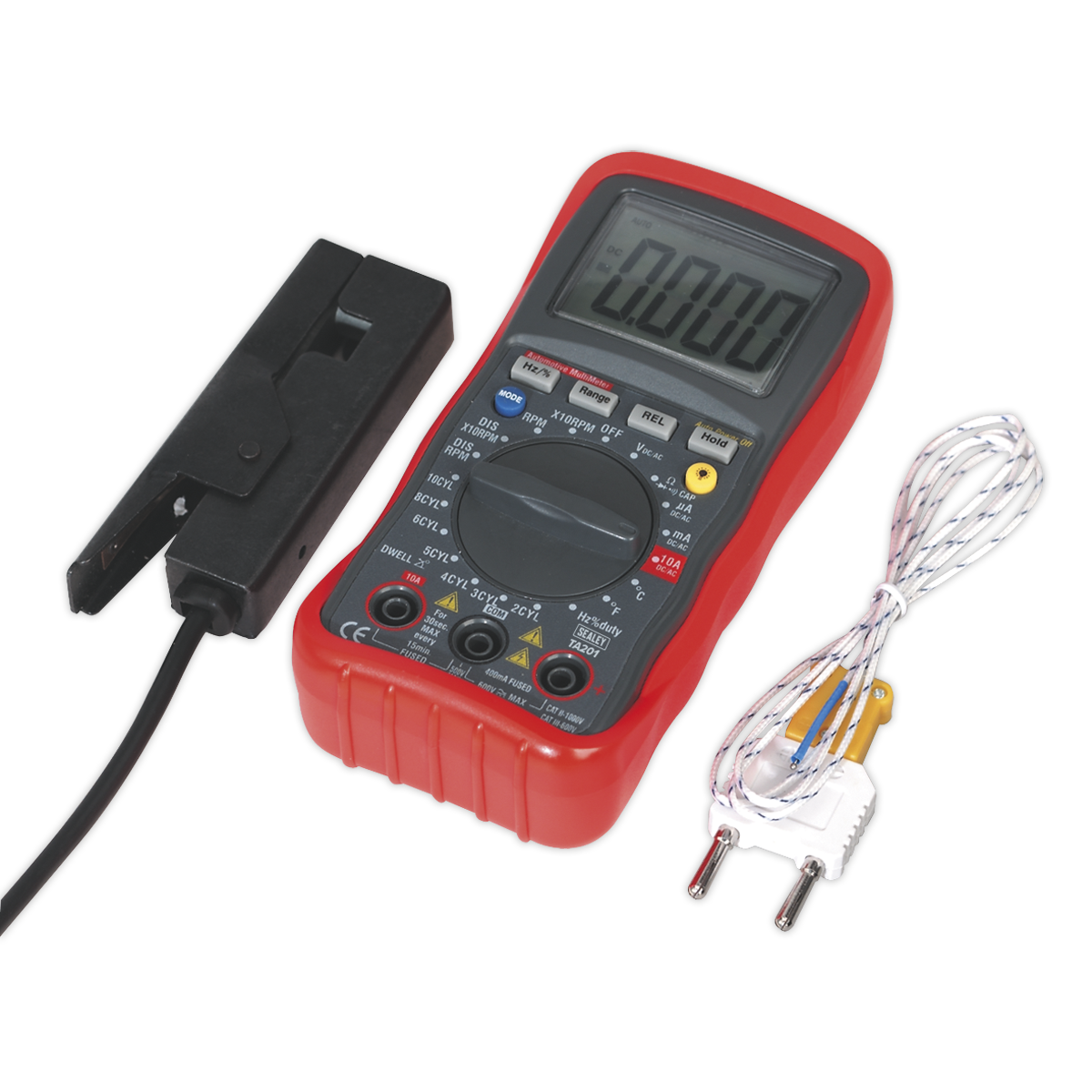

Diagnosing engine and electrical faults without the right test equipment means guesswork and wasted time. The Sealey TA201 Digital Automotive Analyser gives you 13 functions in a single compact unit, covering the key measurements needed for automotive diagnostics. The 4-digit, 22mm high-contrast LCD display with backlight makes readings easy to see in workshop conditions. Auto-ranging takes care of range selection across AC and DC voltage, current, resistance, capacitance and frequency, while data-hold and auto-power-off keep things practical. An inductive coupler is included for fast, non-intrusive engine RPM readings on both 4-stroke engines (600-4000 rpm at x1, 600-12000 rpm at x10) and 2-stroke engines (300-4000 rpm at x1, 300-6000 rpm at x10). Dwell angle is covered for 2 through to 10 cylinders, and duty cycle measurement runs from 0.1 to 99.9%. The unit comes supplied with probe, crocodile clip and thermocouple leads for straightforward hook-up. AC and DC voltage range up to 600V, resistance to 40MΩ, and capacitance to 100µF.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA201 |
|---|---|
| Brand | Sealey |
| Nett Weight | 330g |
| Tach (rpm) | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell | 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° |
| AC Voltage | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) |
| DC Voltage | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging) |
| AC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| DC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency | 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz |
| Duty Cycle | 0.1-99.9% |
| Pulse Width | No |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity | <150Ω |
| Temperature | -20 to +760°C/-4 to +1400°F |
| IR Temperature | No |
| Diode Check | Yes (Typical Test Current 0.3mA) |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | No |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | No |
| Digits Height | 22mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 146 x 66.2 x 41.5mm |
| Weight | 330g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
Sealey TA304 Digital Automotive Analyser 15-Function with Inductive Coupler & IR Probe
£217.15
£212.89
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM102 | MM18 | TA304 | 48325 | 53400800 | 41821 | GO2114 | GO2100PRO |
| Brand | Sealey | Sealey | Sealey | |||||
| Length (mm) | 14 | 11 | ||||||
| Model No | MM102 | MM18 | TA304 | |||||
| Nett Weight | 160g | 101g | 360g | |||||
| Voltage (V) | 40 | 12 | 20 | 24 | ||||
| Weight (kg) | 160g | 101g | 319g (approx.) | |||||
A. The TA201 covers 13 functions including AC and DC voltage, AC and DC current, resistance, capacitance, frequency, duty cycle, dwell angle, and tachometer for both 4-stroke and 2-stroke engines.
A. Yes. Using the included inductive coupler, it measures RPM on 4-stroke engines from 600-4000 rpm (x1) and 600-12000 rpm (x10), and on 2-stroke engines from 300-4000 rpm (x1) and 300-6000 rpm (x10).
A. Dwell angle is supported for 2, 3, 4, 5, 6, 8 and 10 cylinder engines, with corresponding ranges of 0-180°, 0-120°, 0-90°, 0-72°, 0-60°, 0-45° and 0-36° respectively.

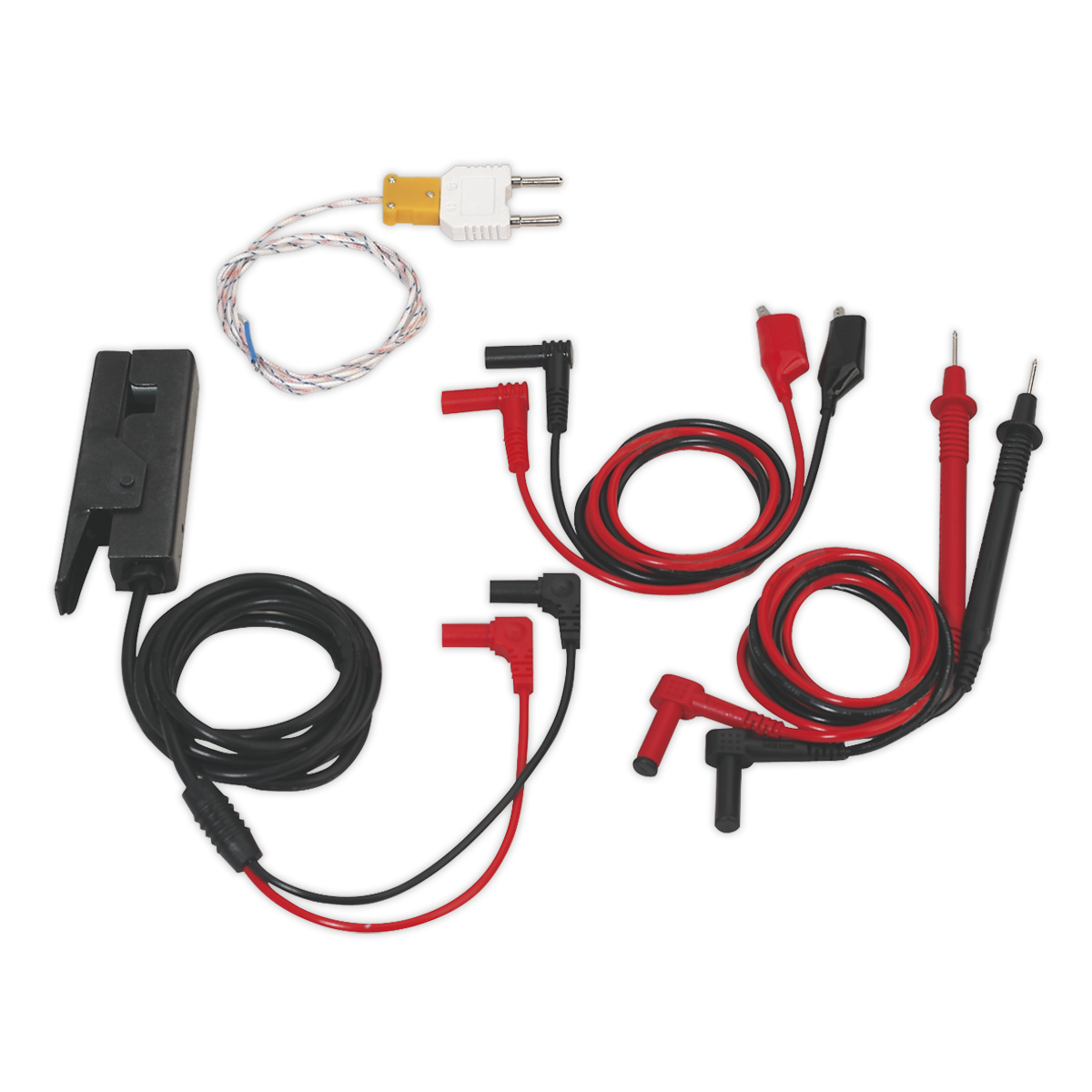

A. The unit is supplied with a probe, crocodile clip and thermocouple leads, plus an inductive coupler for engine RPM measurement.
A. Yes. The TA201 features auto-ranging across AC and DC voltage, AC and DC current (µA and mA ranges), resistance, capacitance and frequency, making it quicker to use without manual range selection.
A. It features a compact 4-digit, 22mm high-contrast LCD display with backlight for clear readings in varying light conditions.
A. The TA201 measures AC and DC voltage up to 600V.
A. Yes. Alternative products that perform similar functions include MM01, MM03, MM102 and MM18. Please check those product listings or contact Parts for Machines to find the right option for your needs.
A. No. Pulse width measurement is not a feature of the TA201.
A. Standard UK mainland delivery is 3-5 working days.
