Product Number: TA302

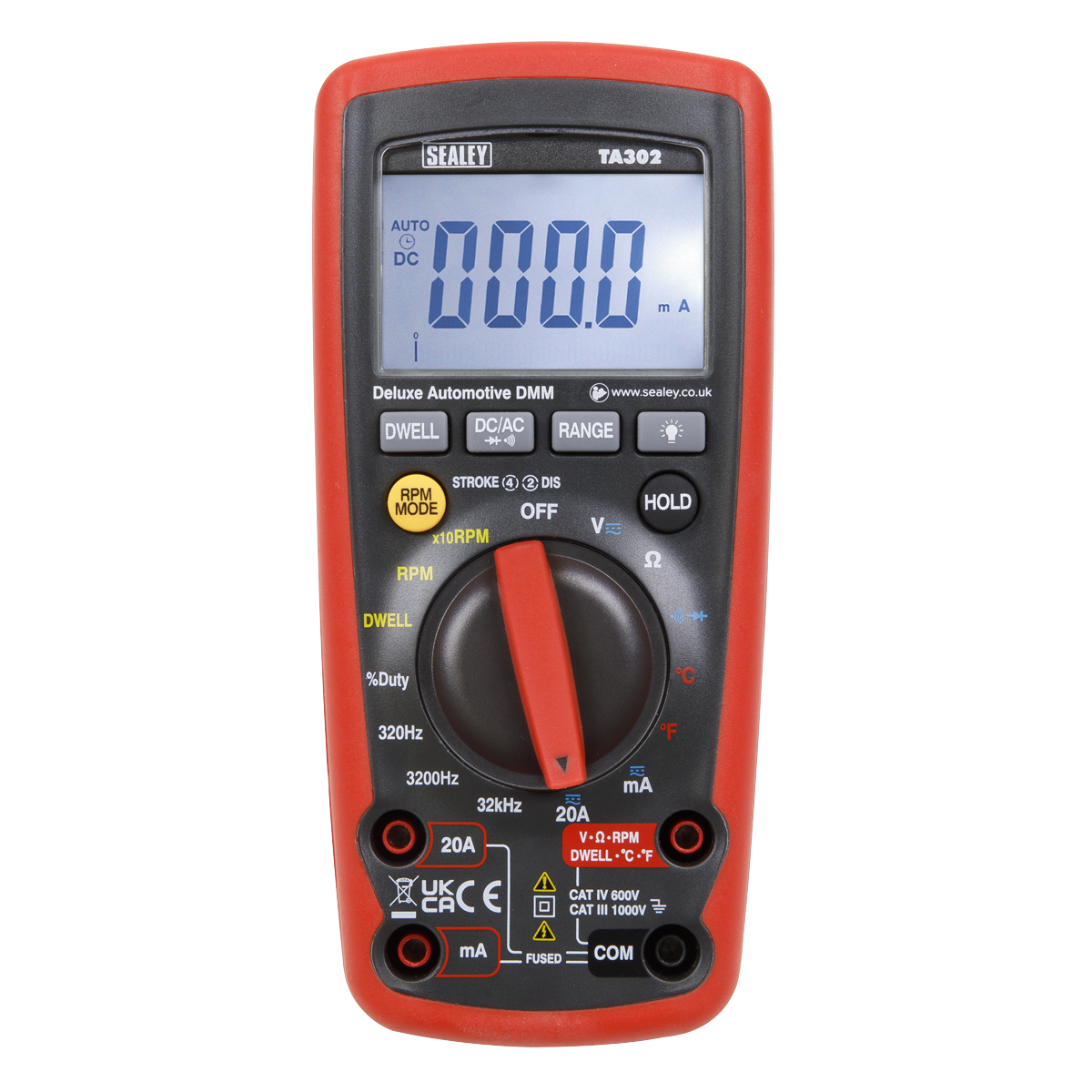

Diagnosing faults across a wide range of automotive electrical and engine parameters demands a reliable, multi-function instrument that is both accurate and robust enough for the workshop environment. The Sealey TA302 is a 12-function, auto-ranging automotive diagnostic multimeter that covers the key parameters a technician needs, including tachometer readings for 4- to 8-cylinder engines on 2- and 4-stroke cycles, dwell angle for 4, 5, 6, and 8-cylinder applications, duty cycle from 0.1 to 99.9%, AC and DC voltage up to 600V, AC and DC current up to 10A, resistance up to 32MΩ, frequency up to 32kHz, and continuity with a 2kHz buzzer activating below 35Ω. The combination digital and bar graph display provides accurate, at-a-glance readings, backed by a large, high-contrast backlit screen for clear visibility in varied workshop lighting. Auto-ranging and data-hold functions reduce operator effort, and overload protection is included on all ranges. The workshop-tough, durable case features an integral stand for hands-free use. The TA302 is supplied complete with an inductive coupler, test probes, and thermocouple, giving technicians everything required to begin testing immediately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA302 |
|---|---|
| Brand | Sealey |
| Nett Weight | 366g |
| Tach (rpm) | 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell | 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage | 3.2V, 32V, 320V, 600V (Auto-Ranging) |
| DC Voltage | 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging) |
| AC Current | 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
| DC Current | 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
| Capacitance | No |
| Frequency | 320Hz, 3200Hz, 32kHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Pulse Width | No |
| Resistance | 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging) |
| Continuity | <35Ω Continuity Buzzer 2kHz |
| Temperature | -20 to +760°C, -4 to +1400°F |
| IR Temperature | No |
| Diode Check | Yes |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | No |
| Digits Height | 18mm |
| Auto Power Off | n/a |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 167 x 79 x 50mm |
| Weight | 366g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 94078 Expert Turbo Smoke Diagnostic Machine Pipe Vacuum Leak Detector
£397.52
£389.73
2% OFF
Free delivery in UK Mainland
|
Draper 94079 Expert Turbo/EVAP Smoke Diagnostic Machine Pipe Vacuum Leak Detector
£545.61
£534.91
2% OFF
Free delivery in UK Mainland
|
Sealey VS216 Diesel High Pressure Pump Test Kit
£1,084.48
£1,062.79
2% OFF
Free delivery in UK Mainland
|
Sealey TA319 Digital Insulation Tester for HV & EV Cables
£204.44
£200.35
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 32667 | 41821 | 48216 | 54818 | 99752 | 94078 | 94079 | 36583 | PPVT | VS216 | TA319 | HBS2010 | VS900 | VS213 | VS2131 |
| Type | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Tester | Tester | |
| Brand | Sealey | Sealey | Sealey | Sealey | |||||||||||
| Model No | PPVT | VS216 | TA319 | HBS2010 | VS900 | ||||||||||
| Nett Weight | 5.56kg | 1.29kg | 48.24kg | 0.17kg | |||||||||||
| Voltage (V) | 24 | 20 | 24 | 24 | 12 | 12 | 24 | ||||||||
| Weight (kg) | 052 | 319g (approx.) | 171 | 180 | 15.5g | 4.0 | 4.5 | 150 | 47 | 56 | 29 | 24 | 17 | ||
A. The TA302 is a 12-function automotive analyser covering tachometer (RPM), dwell angle, AC voltage, DC voltage, AC current, DC current, frequency, duty cycle, resistance, and continuity. It is supplied with an inductive coupler and thermocouple for expanded testing capability.
A. The tachometer supports 4-, 5-, 6-, and 8-cylinder engines on both 2- and 4-stroke cycles, with ranges of 600-4000rpm (x1) and 600-12000rpm (x10).
A. Yes. The TA302 measures duty cycle from 0.1% to 99.9%.
A. DC voltage ranges are 320mV, 3.2V, 32V, 320V, and 600V (auto-ranging). AC voltage ranges are 3.2V, 32V, 320V, and 600V (auto-ranging).

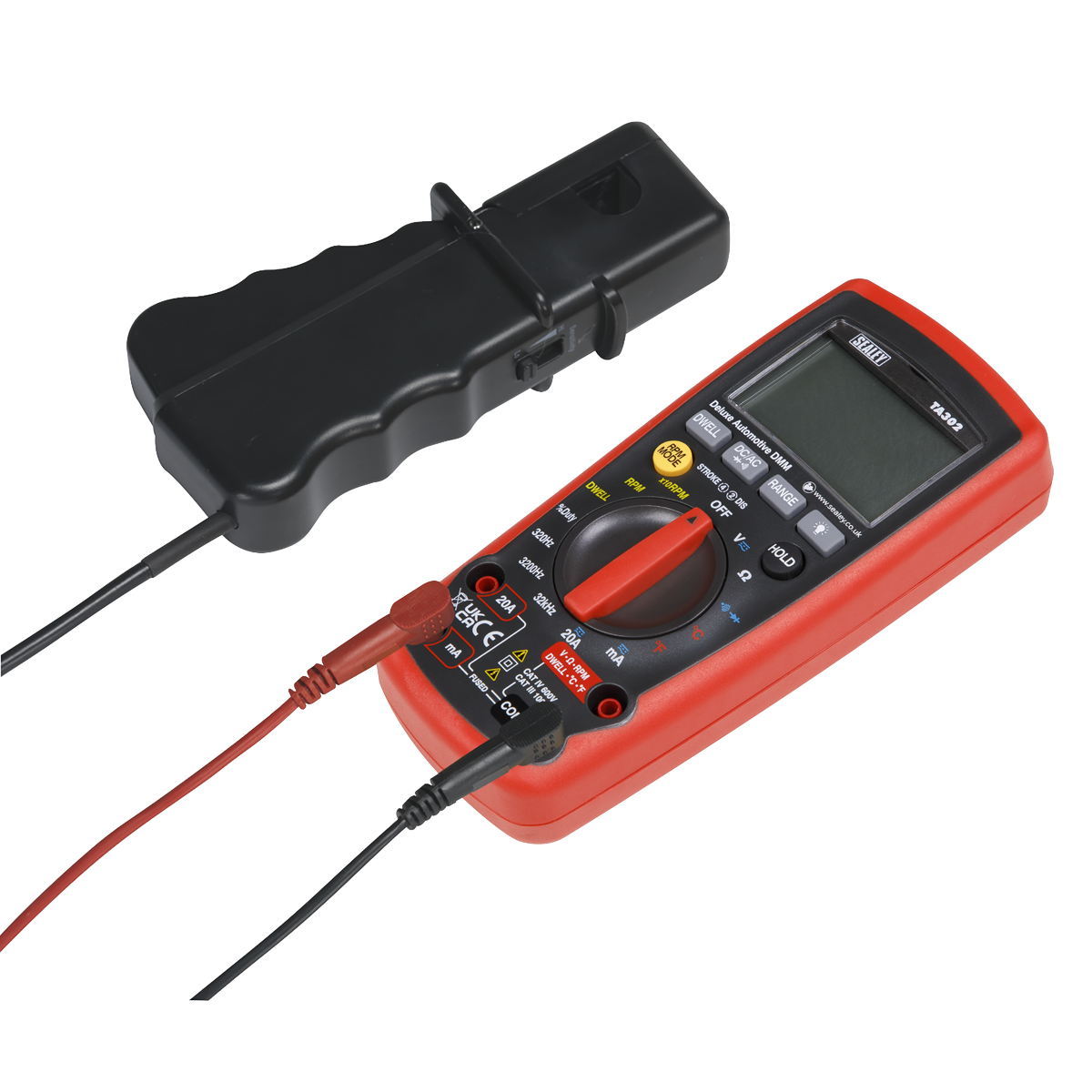

A. The TA302 is supplied with an inductive coupler, test probes, and a thermocouple.
A. Yes. The TA302 features both auto-ranging and data-hold functions, with overload protection on all ranges.
A. No. Capacitance and pulse width measurement are not featured on the TA302.
A. Yes, there are alternative products that carry out similar diagnostic functions. The MM01, MM03, MM102, and MM18 are listed as alternatives - please refer to those listings on Parts for Machines or contact Parts for Machines for confirmation of which best suits your requirements.
A. The TA302 measures resistance across six auto-ranging steps: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, and 32MΩ.
