Product Number: TA304

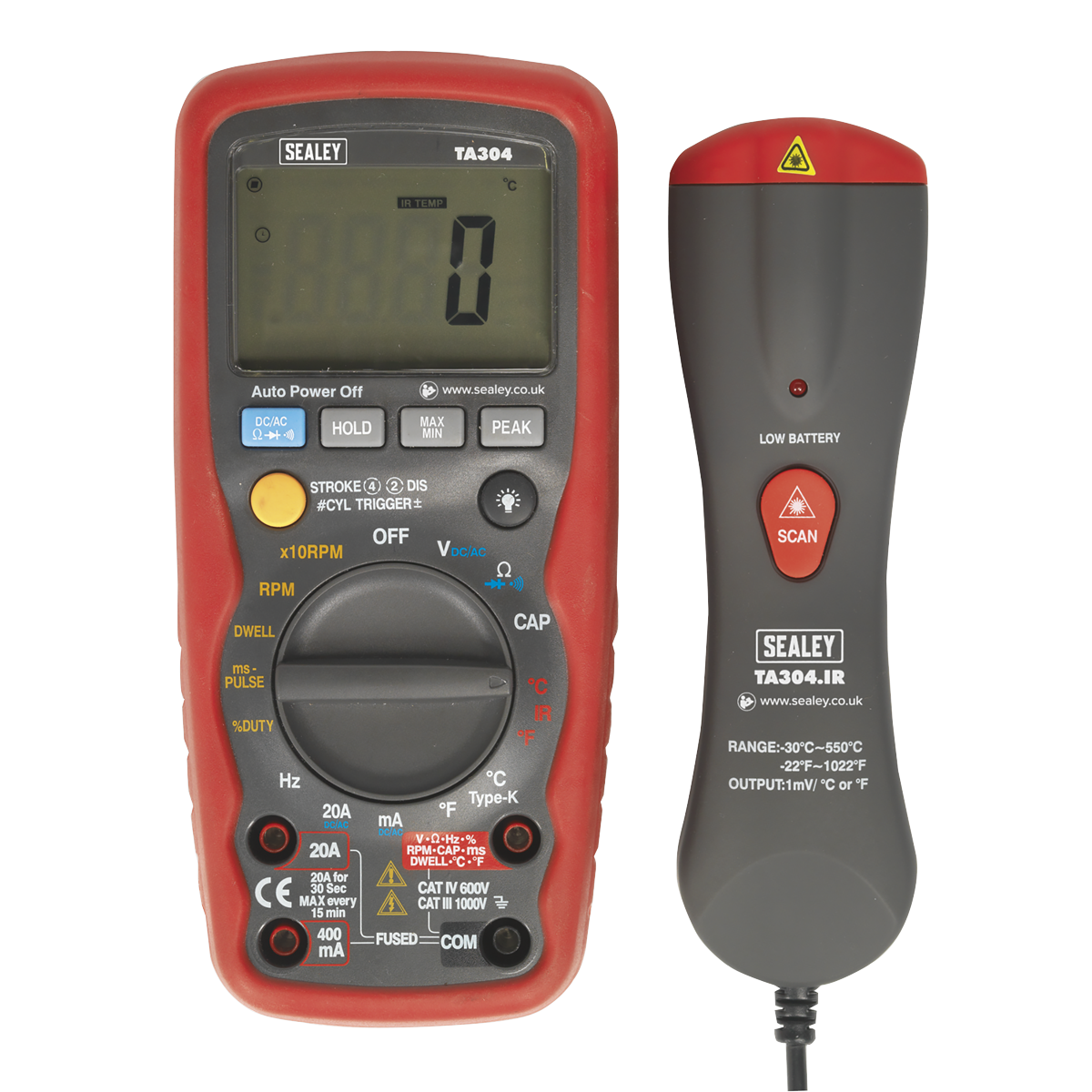

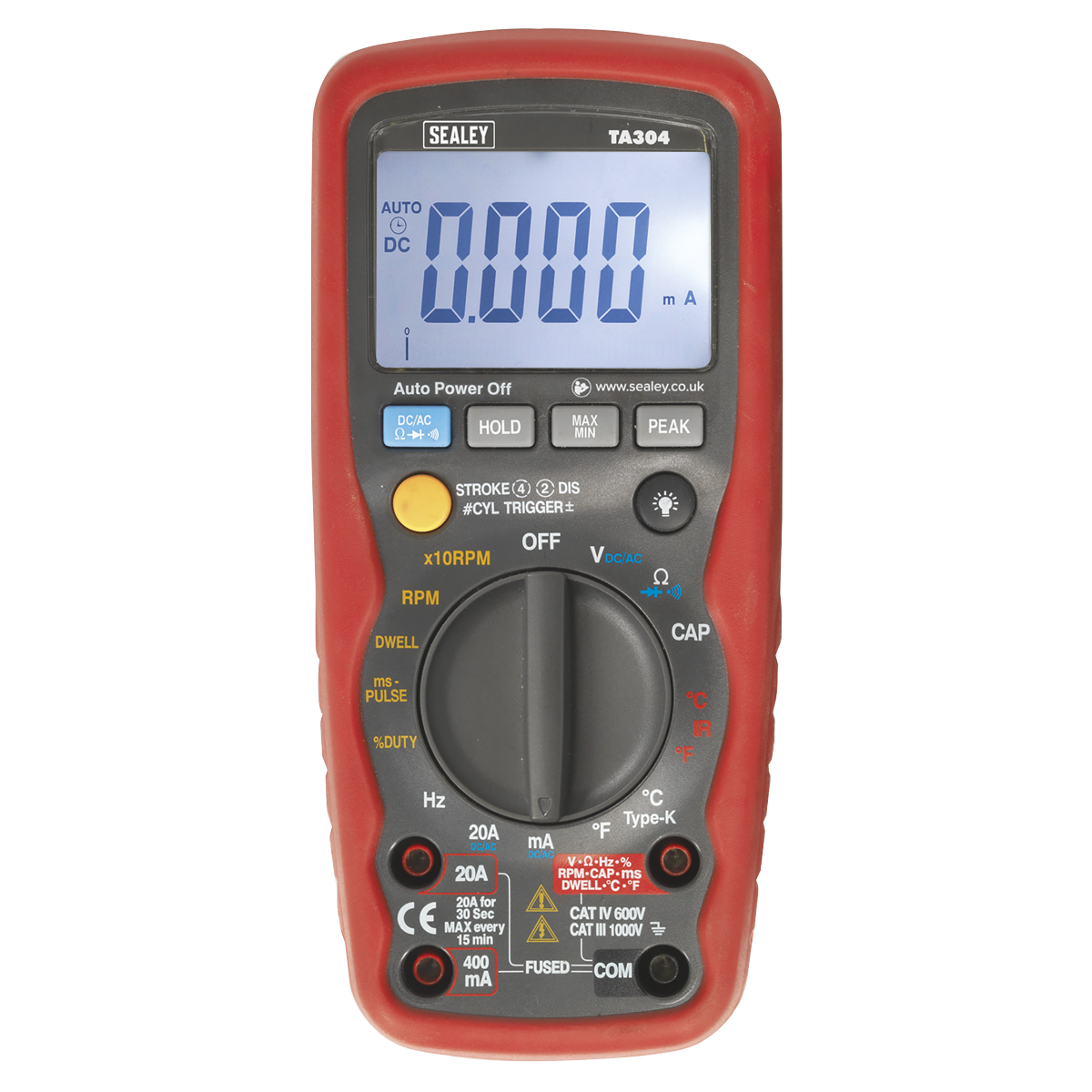

Diagnosing faults across modern vehicle systems requires a tool that goes well beyond basic voltage checks. The Sealey TA304 is a 15-function auto-ranging automotive diagnostic multimeter with an infrared thermometer attachment, designed to handle the full range of standard automotive parameters in a single instrument. High-speed processing circuitry reads duty cycle (0.1-99.9%) and pulse width (0.1-10ms), making it particularly well suited to testing fuel injection systems. The tachometer covers 2- to 10-cylinder 4-stroke engines across two ranges: 600-4000rpm (x1) and 600-12000rpm (x10). Dwell angle is covered for 4-, 5-, 6-, and 8-cylinder configurations. AC and DC voltage ranges extend to 700V and 1000V respectively, while resistance measurement reaches 40MΩ and capacitance covers up to 40mF all auto-ranging. A combination digital and bar graph display with high-contrast, backlit screen gives clear readings in workshop conditions. The workshop-tough case features an integral stand and auto power shut-off. Min/max, peak hold, data hold, and overload protection are included across all ranges. Supplied complete with inductive coupler, infrared temperature probe, test probes, and thermocouple in a storage case.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA304 |
|---|---|
| Brand | Sealey |
| Nett Weight | 360g |
| Tach (rpm) | 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell | 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage | 400mV, 4V, 40V, 400V, 700V (Auto-Ranging) |
| DC Voltage | 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| AC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| DC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging) |
| Frequency | 0.001Hz-9.99MHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Pulse Width | 0.1-10ms |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity | <30Ω Continuity Buzzer 2kHz |
| Temperature | -20 to +760°C, -4 to +1400°F |
| IR Temperature | -20 to +280°C, -4 to +536°F |
| Diode Check | Yes |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | No |
| Digits Height | 20mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 182 x 82 x 55mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 32620100 Wireless Pressure Probes x2
£361.65
£354.56
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 32620200 Wireless Pipe Clamp Probes x2
£303.31
£297.36
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 32620100 | 32620200 | TA201 | 48325 | 53400800 | GO2114 |
| Type | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester |
| Brand | Sealey | |||||
| Model No | TA201 | |||||
| Nett Weight | 330g | |||||
| Voltage (V) | 40 | 12 | ||||
| Weight (kg) | 0.4 | 0.3 | 330g | |||
A. The TA304 is a 15-function automotive analyser covering tachometer, dwell angle, AC and DC voltage, AC and DC current, capacitance, frequency, duty cycle, pulse width, resistance, and continuity, alongside an infrared thermometer via the included probe.
A. Yes. The TA304 features high-speed processing circuitry that reads duty cycle (0.1-99.9%) and pulse width (0.1-10ms), which are the key parameters needed for fuel injection system testing.
A. The tachometer covers 2- to 10-cylinder 4-stroke engines. On the x1 range it reads 600-4000rpm, and on the x10 range it reads 600-12000rpm.
A. AC voltage ranges are 400mV, 4V, 40V, 400V, and 700V (auto-ranging). DC voltage ranges are 400mV, 4V, 40V, 400V, and 1000V (auto-ranging).

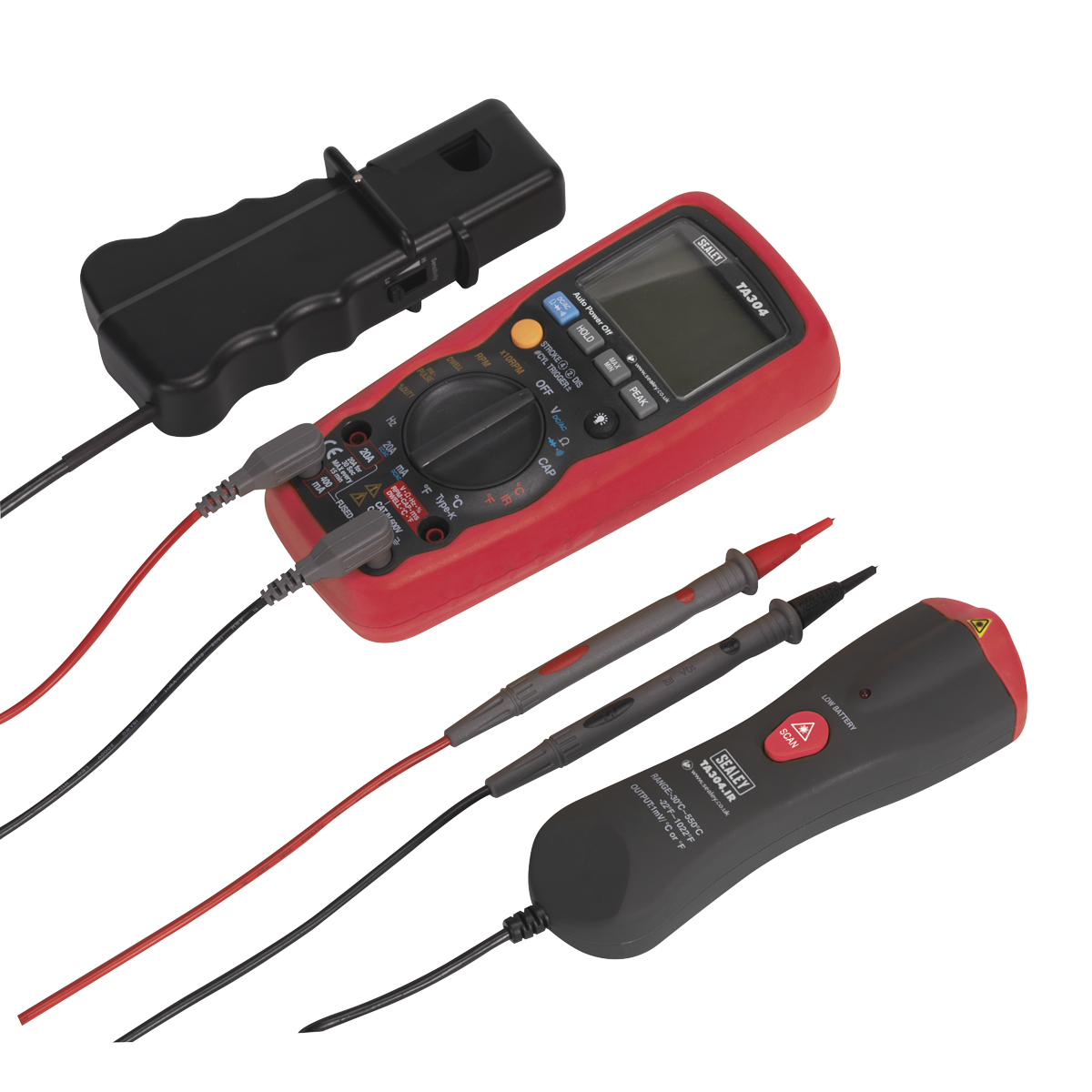

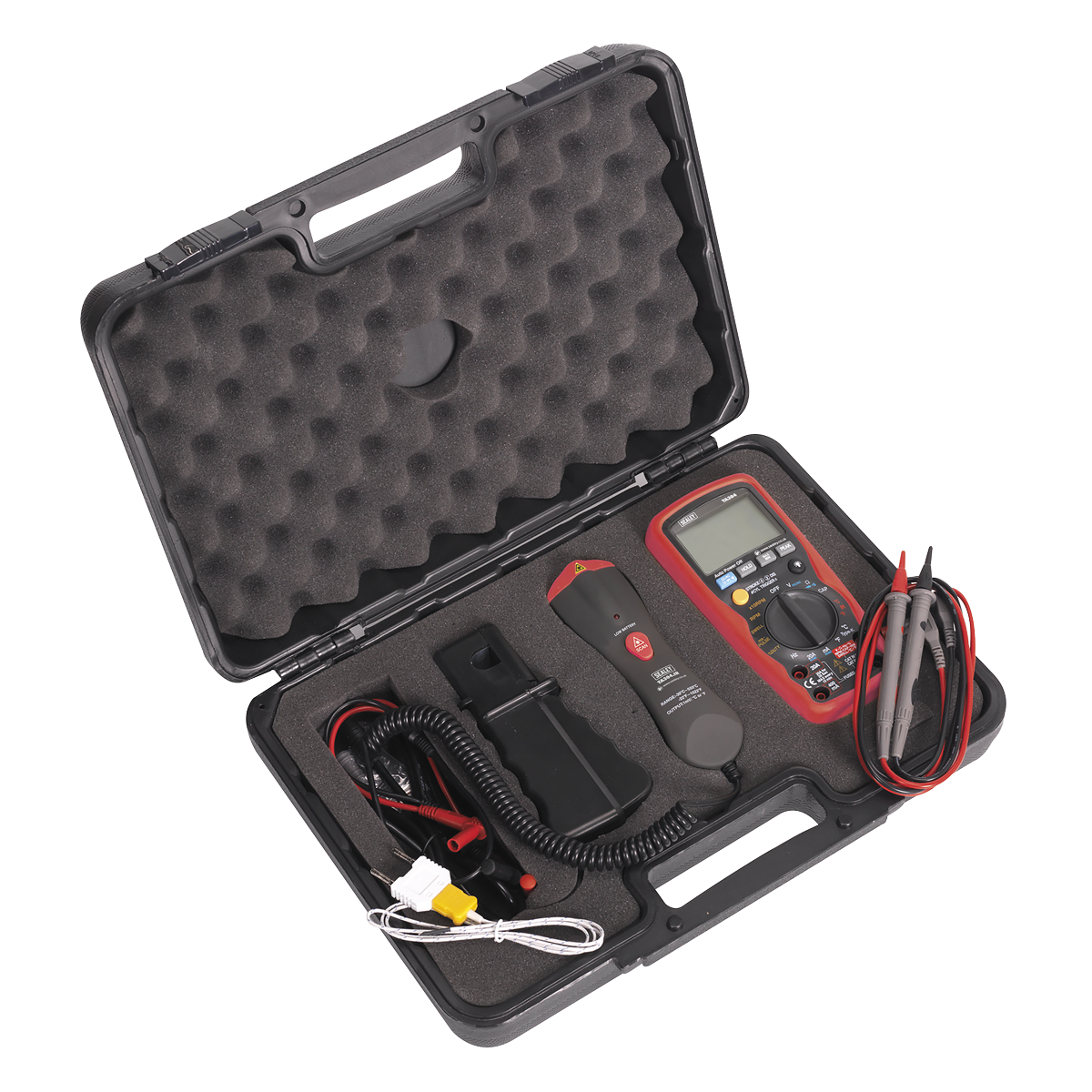

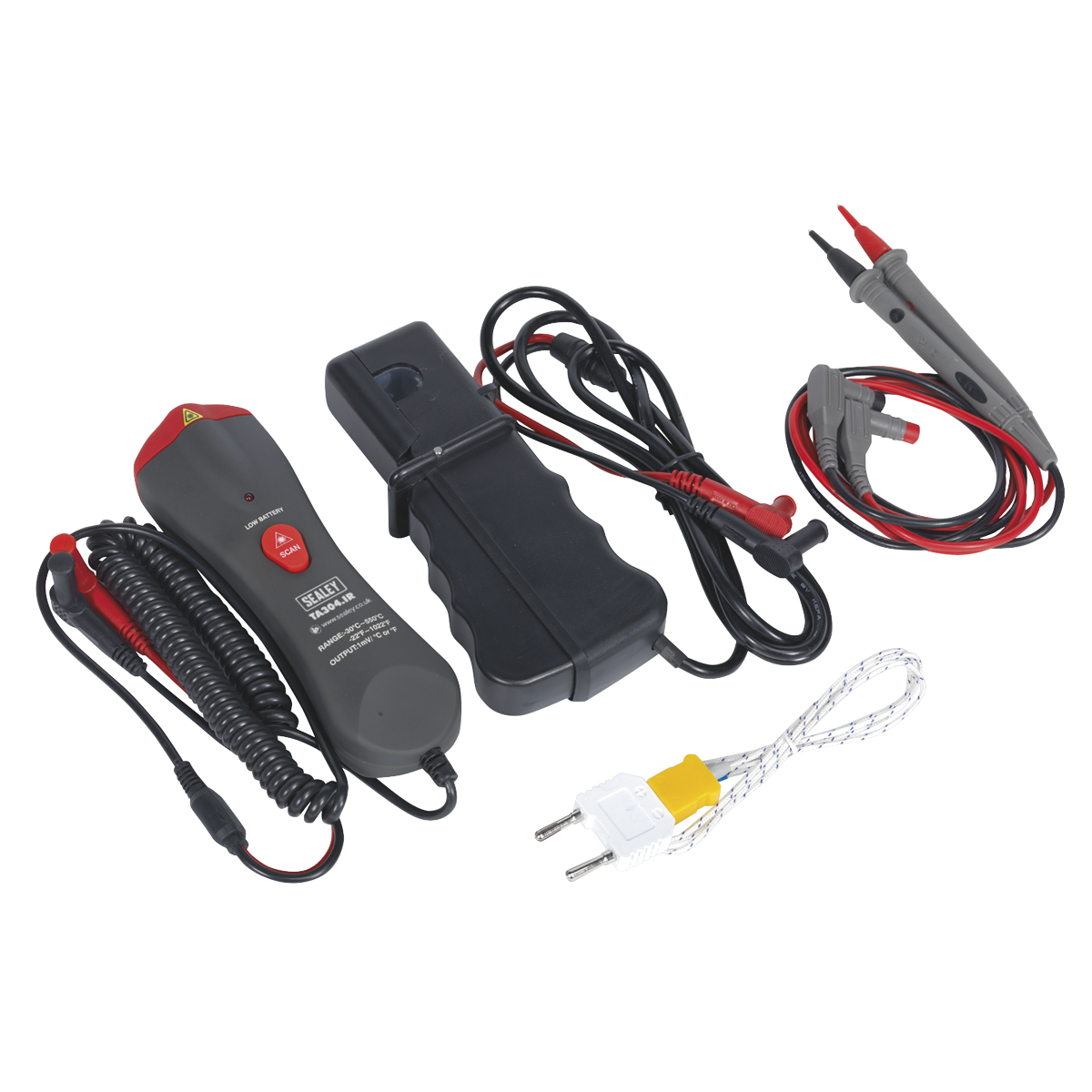

A. The TA304 is supplied with an inductive coupler, infrared temperature probe, test probes, and a thermocouple, all housed in a storage case.
A. Yes. The TA304 includes data hold, min/max, and peak hold functions, as well as overload protection on all ranges.
A. Alternative automotive analysers and multimeters available from Parts for Machines include the MM01, MM03, MM102, and MM18. Each is a different product covering similar diagnostic functions - check individual listings to compare specifications and select the best fit for your needs.
A. Yes. The TA304 features a large high-contrast display with a bright white backlight for easy reading in workshop conditions.
A. Yes. The workshop-tough case includes an integral stand and auto power shut-off function.
