Product Number: TA203

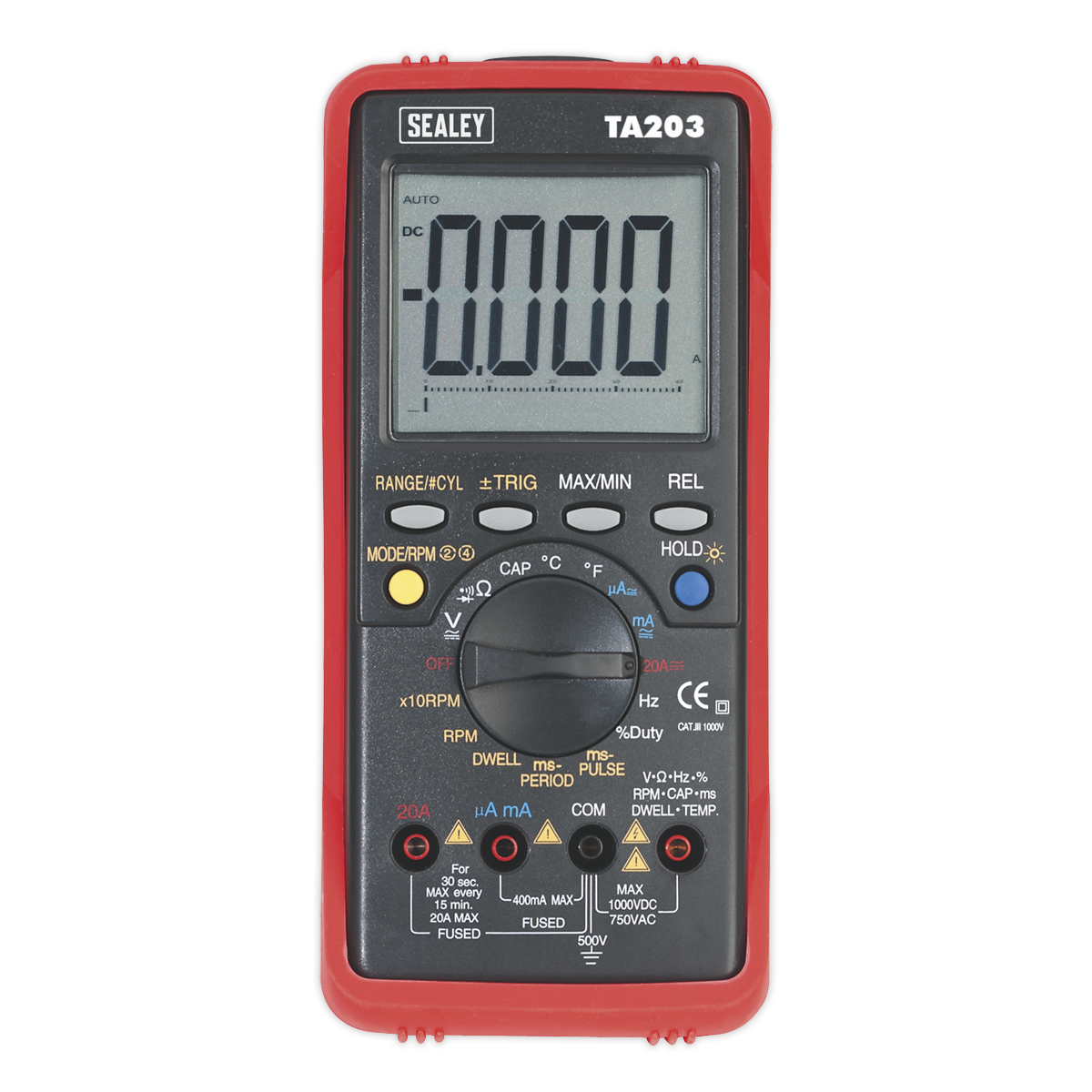

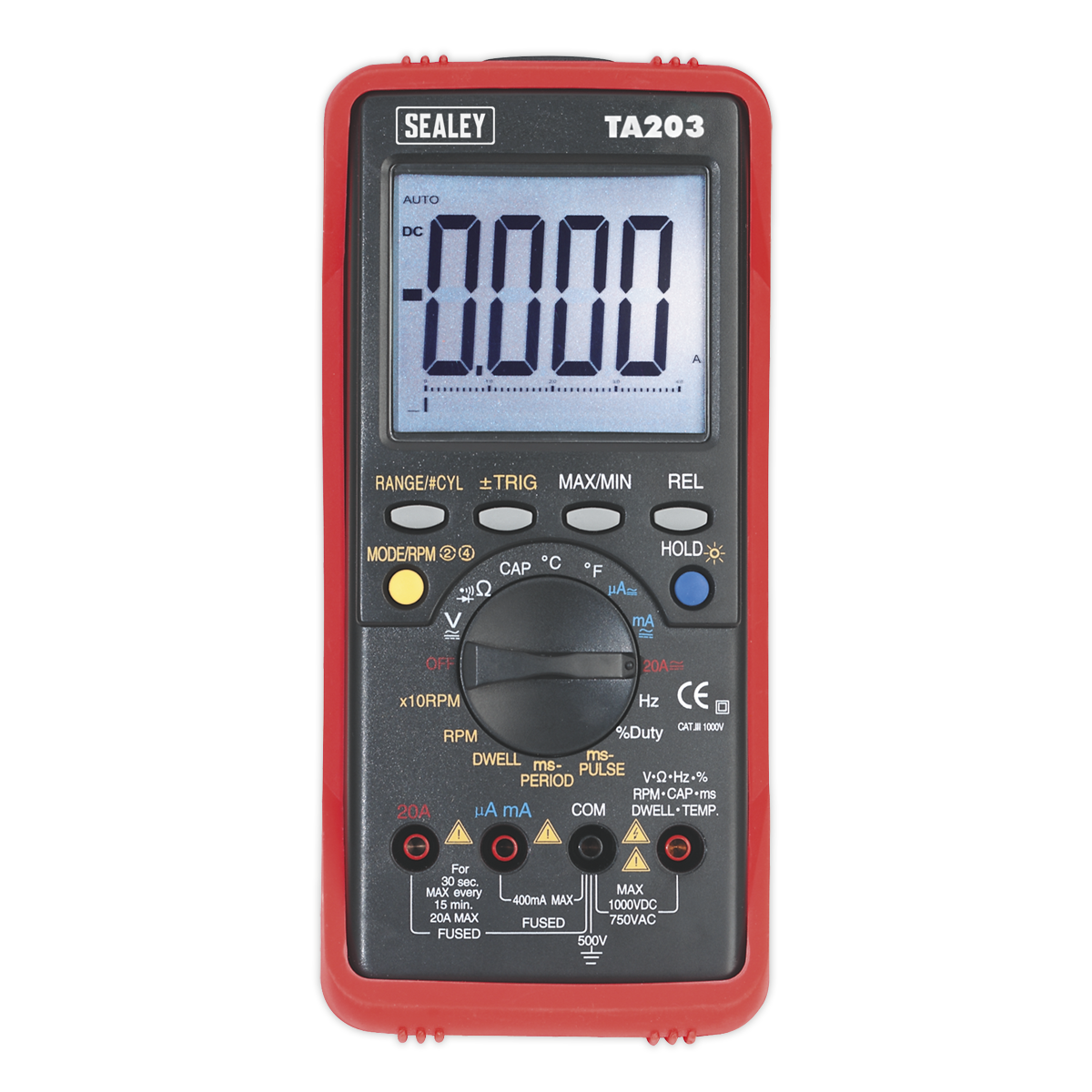

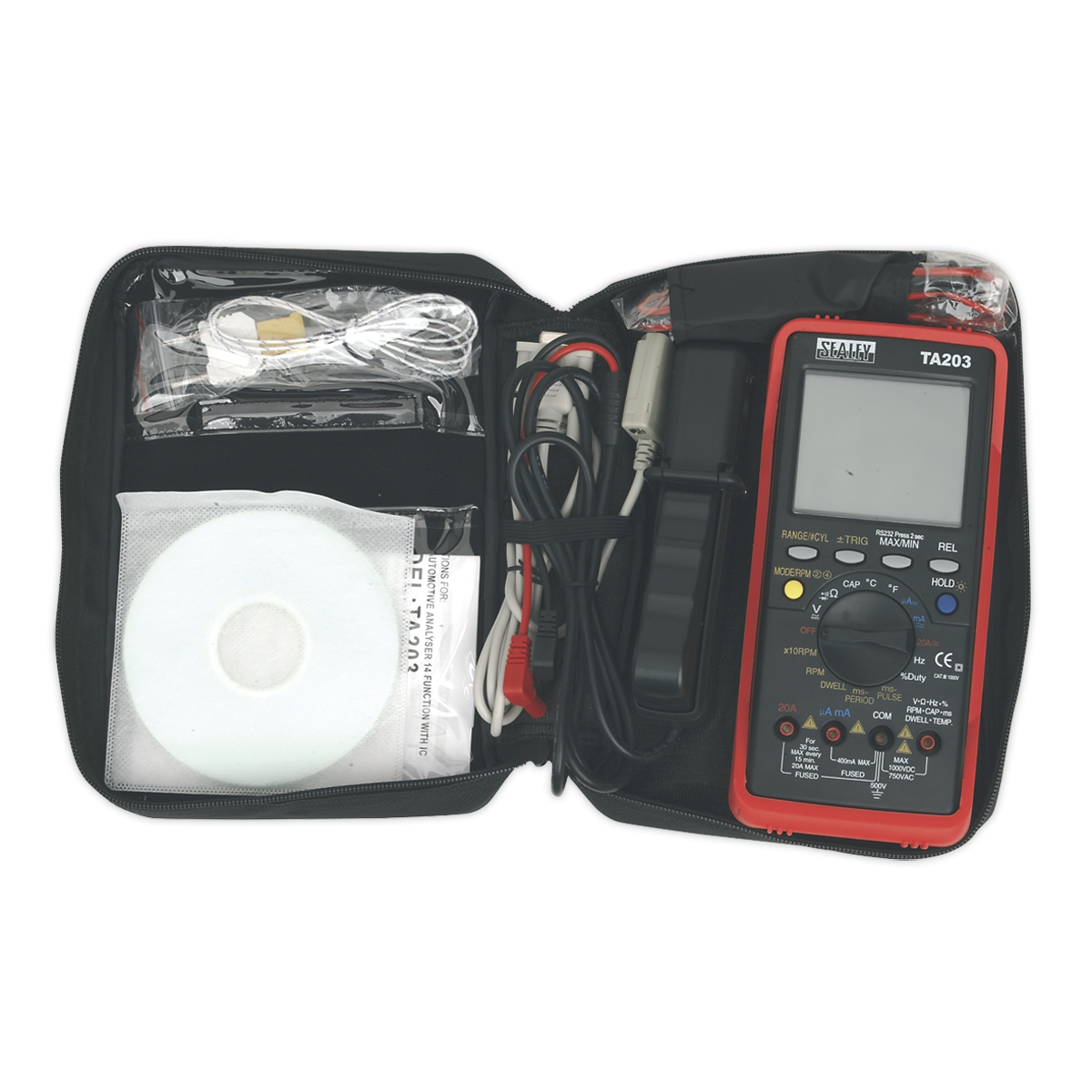

Diagnosing modern vehicle electrical systems demands a multimeter that goes well beyond basic voltage readings. The Sealey TA203 is a 15-function digital automotive multimeter built for workshop use, featuring an extra-large, high-contrast LCD with a 36mm digital read-out, bar graph display, and backlight for clear readings in all conditions. A dedicated millisecond pulse-width function enables accurate measurement of fuel injection systems, while the bar graph is essential for correctly testing lambda sensors two capabilities that set this metre apart from general-purpose units. It handles AC and DC voltage up to 1000V and 750V respectively, AC and DC current up to 20A, resistance, capacitance, frequency, duty cycle, period, dwell angle across 1 to 12 cylinders, and engine RPM for both 2-stroke and 4-stroke engines including DIS systems. Auto-ranging, data-hold, and auto-power-off keep operation efficient. The durable case includes probe storage, an integral stand, and is built for the toughest workshop conditions. Supplied with an inductive coupler with adjustable sensitivity, test leads with probe and clip, thermocouple, USB interface cable, and Windows ME/XP/Vista compatible software for downloading data to PC.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA203 |
|---|---|
| Brand | Sealey |
| Nett Weight | 605g |
| Tach (rpm) | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell | 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30° |
| AC Voltage | 400mV, 4V, 40V, 400V, 750V (Auto-Ranging, except 400mV) |
| DC Voltage | 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| AC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| DC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Period | 2-20ms |
| Pulse Width | 2-10ms |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity | <150Ω |
| Temperature | -20 to +760°C/-4 to +1400°F |
| IR Temperature | No |
| Diode Check | Yes (Typical Test Current 0.3mA) |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | Yes |
| Digits Height | 36mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 215 x 100 x 60mm |
| Weight | 605g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sealey TA320 Digital Automotive Analyser/Insulation Tester - Hybrid Vehicles
£350.63
£343.75
2% OFF
Free delivery in UK Mainland
|
Sealey TA102 Digital Automotive Analyser 11-Function
£60.50
£59.31
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM102 | MM18 | 48325 | 53400800 | GO2114 | GO2100PRO | TA320 | TA102 |
| Brand | Sealey | Sealey | Sealey | Sealey | ||||
| Length (mm) | 14 | 11 | ||||||
| Model No | MM102 | MM18 | TA320 | TA102 | ||||
| Nett Weight | 160g | 101g | 700g | 495g | ||||
| Voltage (V) | 12 | 24 | 40 | 20 | ||||
| Weight (kg) | 160g | 101g | 700g | 495g | ||||
A. The TA203 covers 15 functions including AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, period, pulse width, dwell angle, engine RPM (tachometer), and temperature via thermocouple.
A. Yes. The TA203 features a millisecond pulse-width function specifically for accurate measurement of fuel injection systems, with a pulse width range of 2-10ms.
A. Yes. The bar graph display is described as essential for the correct testing of lambda sensors, as it allows real-time fluctuation to be clearly observed.
A. For 4-stroke engines it measures 600-4000rpm (x1) and 600-12000rpm (x10). For 2-stroke and DIS engines it measures 300-4000rpm (x1) and 300-6000rpm (x10).
A. Dwell angle is supported for 1 through 12 cylinders, ranging from 0-360° for a single cylinder down to 0-30° for a 12-cylinder engine.

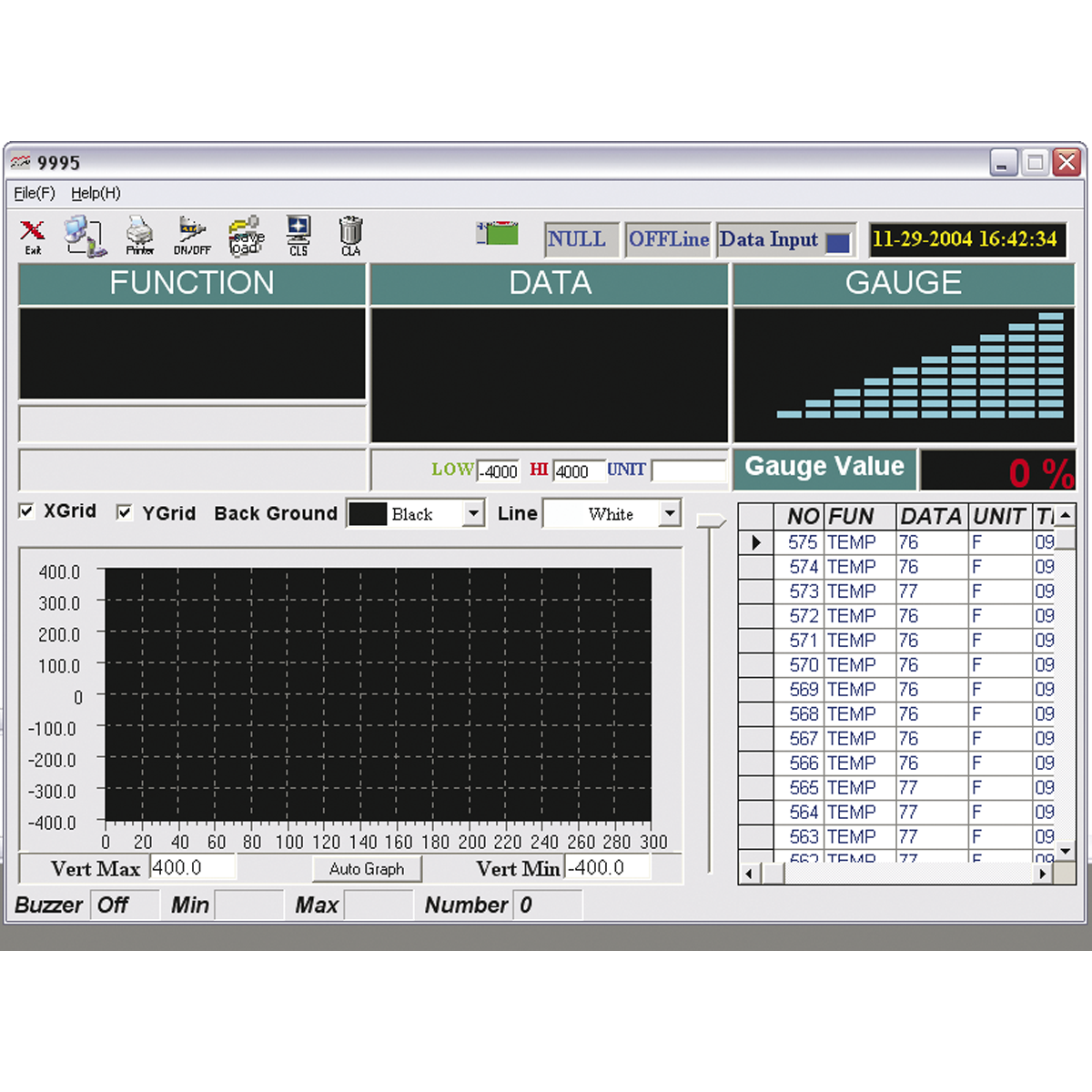

A. Yes. It is supplied with a USB interface cable and Windows ME/XP/Vista compatible software for downloading data to a PC.
A. The TA203 measures DC voltage up to 1000V, with ranges of 400mV, 4V, 40V, 400V, and 1000V.

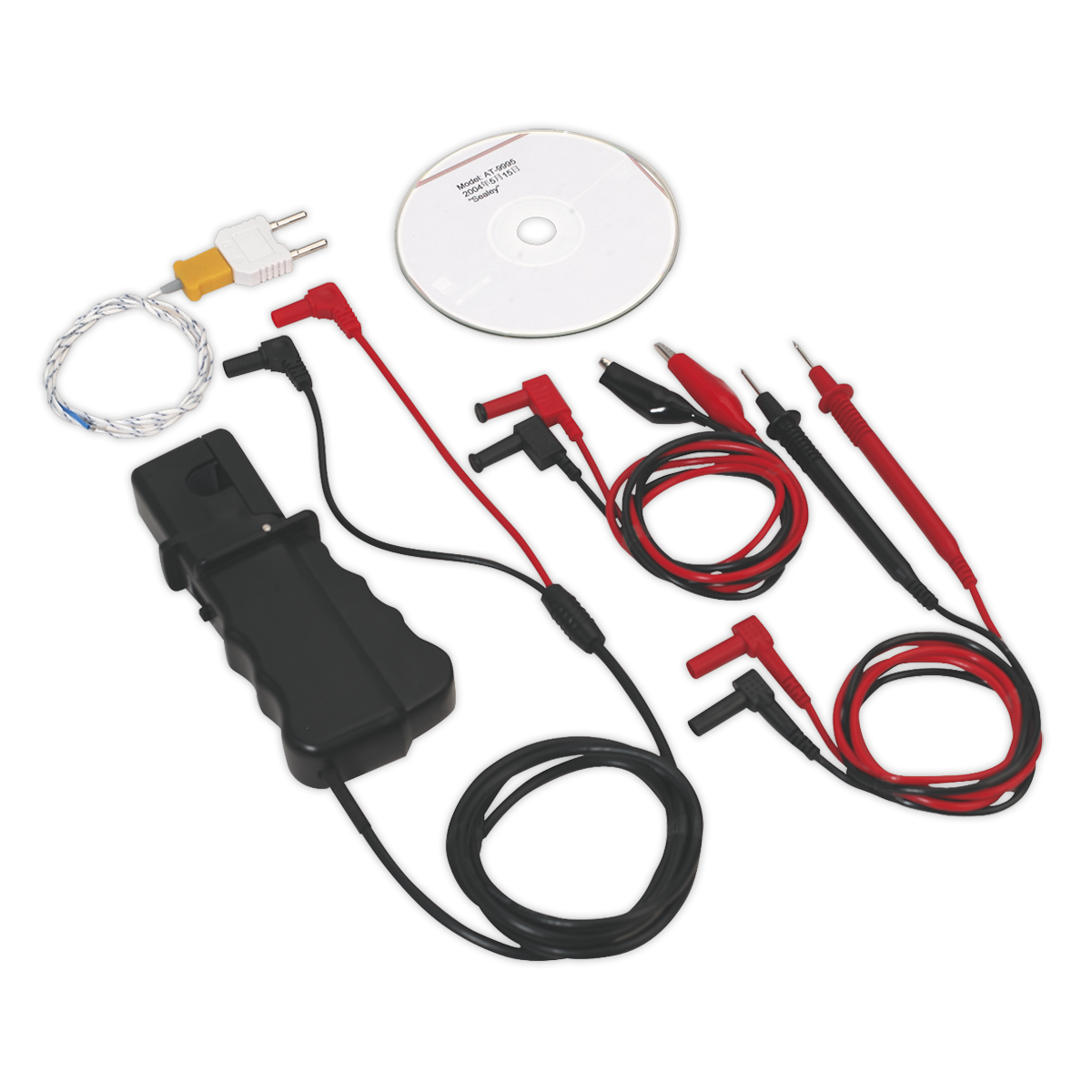

A. The TA203 is supplied with an inductive coupler with adjustable sensitivity, test leads (probe and clip), a thermocouple, a USB interface cable, and Windows ME/XP/Vista software.
A. Yes. Alternative multimeters available include MM01, MM03, MM102, and MM18, each offering different functions or specifications to suit different diagnostic requirements.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
