Product Number: 70043
Synergic control takes the guesswork out of MIG setup.
IGBT Inverter technology. MIG/MMA/TIG. Additional features include synergic wire feed, digital display, digital volt/amp display.
Supplied with:
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature. For operators comparing TIG welders for steel and stainless steel, the 70043 delivers DC TIG output with lift or HF arc start. TIG welding produces the cleanest, most precise welds — ideal for visible joints and thin materials. TIG mode requires tungsten electrodes and shielding gas (Argon or Argon/Helium mix) for clean, precise welds on steel and stainless steel. Replacement consumables including contact tips, nozzles, and electrodes for the 70043 are available at PartsForMachines.com. Refer to the operating manual for full setup instructions, safety information, and recommended maintenance intervals.
Additional Information:
Highly versatile multi-function 3-in-1 welder (MIG/MMA/TIG) that can be used as a gas/gasless welder. Its compact design features powerful IGBT inverter technology to create a very efficient machine that is optimised for improved productivity and ease of use. Lightweight and portable design, with carry handle.
Product Key Feature:About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Amperage range | 30-200A (MIG), 20-200A (MMA), 20-200A (TIG) |
|---|---|
| Power supply | 230V |
| Plug Fitted | NO (32A PLUG REQUIRED) |
| MMA Electrode size | 1.6-5.0mm |
| MIG Wire size | 0.6-1.2mm |
| Flux core wire | 0.6-1.2mm |
| Duty cycle | 60% @200A / 100% @160A |
| Dimensions | 420 x 205 x 300mm |
| Weight (net) | 13.7kg |
| IGBT Tech | YES |
| Euro Torch Connector/Dinse Type Coupling | 45931 |
| Includes MIG & TIG Torches & Electrode Holder | YES |
| IGBT Inverter Technology | YES |
| Anti-Spatter Feature | YES |
| DTi | YES |
| Digital Display | YES |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
94861 | Draper 94861 CONTROL BOARD | 1 Unit |
£143.17
£140.36
|
Add |
|
|
94863 | Draper 94863 DISPLAY METER | 1 Unit |
£32.36
£31.73
|
Add |
|
|
94864 | Draper 94864 EUROPE SOCKET | 1 Unit |
£28.92
£28.35
|
Add |
|
|
94866 | Draper 94866 WIRE FEEDER | 1 Unit |
£65.44
£64.16
|
Add |
|
|
94867 | Draper 94867 PCB BOARD ASSEMBLY | 1 Unit |
£291.02
£285.31
|
Add |
|
|
94872 | Draper 94872 WIRE SPOOL | 1 Unit |
£10.86
£10.65
|
Add |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A
£907.82
£890.02
2% OFF
Free delivery in UK Mainland
|

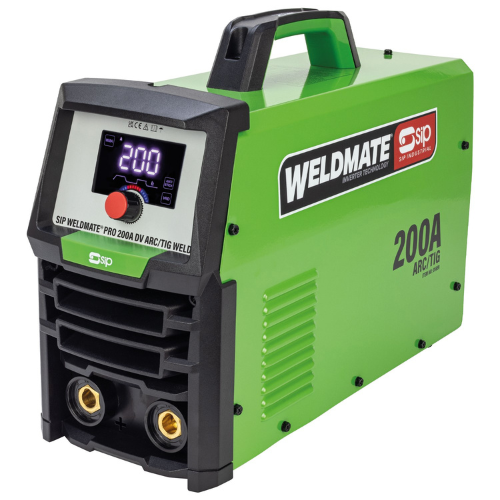

SIP 05691 WELDMATE® PRO 200A DV ARC/TIG Inverter Welder
£253.64
£248.67
2% OFF
Free delivery in UK Mainland
|

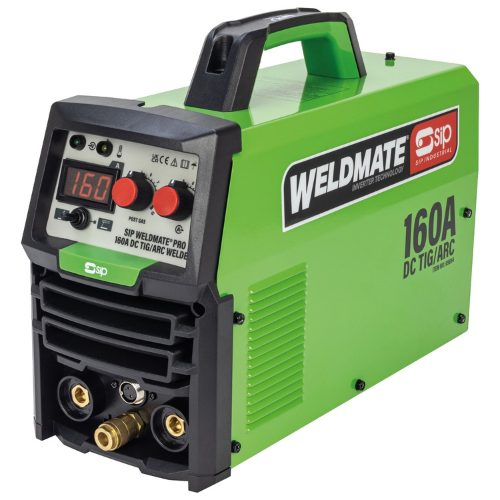

SIP 05694 WELDMATE® PRO 160A DC TIG/ARC Inverter Welder
£297.75
£291.91
2% OFF
Free delivery in UK Mainland
|
Draper 70049 Gasless MIG Inverter Multi-Welder Dti, 120A
£171.75
£168.38
2% OFF
Free delivery in UK Mainland
|
Draper 70047 Gas/Gasless MIG Inverter Multi-Welder Dti, 160A
£257.69
£252.64
2% OFF
Free delivery in UK Mainland
|
Clarke MIG270DVMULTI 220A/270A Dual Voltage Welder (230V/400V)
£738.43
£723.95
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 70057 | 70052 | 08204 | 05691 | 05694 | 70049 | 70047 | MINIMW120i | 6015609 | 05731 | MIGHTYMIG100 |
A. The 70043 supports multiple welding processes. Output spans 30-200A (MIG), 20-200A (MMA), 20-200A (TIG) across all modes. Suitable for mild steel.
A. The 70043 requires a 230V supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 70043 has a duty cycle of 60% @200A / 100% @160A. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 70043 is supplied with TIG torch, Cable, 3m, Electrode holder, 200A, Earth clamp, 300A, Contact tips, 0.8mm. Additional consumables are available separately through PartsForMachines.com.
A. The 70043 weighs 13.7kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.
A. The 70043 is primarily suited to mild steel.
A. Yes. The 70043 is fitted with automatic thermal overload protection that cuts output if the machine exceeds safe operating temperature. It will restart automatically once it has cooled. Operating within the rated duty cycle minimises the frequency of thermal interruptions.
A. The 70043 is primarily designed for workshop use. For outdoor or site use, protect the machine from rain and dust. IP21S rating provides limited splash resistance but not weatherproofing.
A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. MIG is faster for general fabrication and thicker sections. ARC/MMA suits outdoor or on-site work. The 70043 supports multiple processes so you select the right one for each job without needing separate machines.
