Product Number: 70047

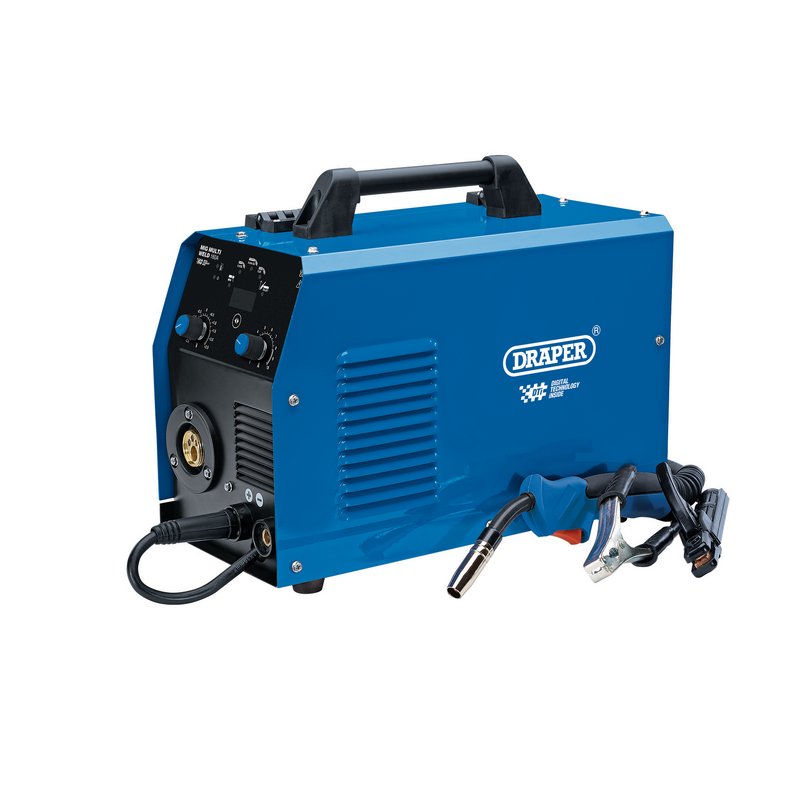

Professional welders face the challenge of switching between processes and gas setups on demanding jobs. The Draper 70047 addresses this directly as a highly versatile, compact multi-function welder capable of MIG, MAG, fluxed cored, MMA and TIG-Lift processes, and operable as either a gas or gasless welder from a single 230V supply. At the heart of the machine is IGBT inverter technology optimised for improved productivity and synergic operation. A synergic wire feed system automatically coordinates wire feed speed with other parameters while one-touch setting and a clear digital display make configuration immediate and straightforward. The DTi (Digital Technology interface) delivers superior performance and precision control and minimal splatter is cited as a direct result of this optimised process management. The amperage range runs from 20 to 160A with a duty cycle of 60% at 160A and 100% at 120A making it suitable for sustained workshop use. Electrode sizes from 1.6 to 4.0mm are supported and the machine accepts welding wire spools of 1kg and 5kg. Connection is via a Euro Torch Connector with Dinse type coupling (10/25) and the unit is compatible with a regular gas bottle for shielded MIG/MAG work. Supplied as a complete ready-to-weld kit including a MIG torch 3m cable 200A electrode holder 200A earth clamp 2m gas hose two 0.8mm contact tips a chipping hammer/wire brush and a face mask. The unit measures 420 x 205 x 300mm and weighs 12kg with a carry handle for portability between workstations. Note: a 16A plug is required and is not supplied.
Highly versatile compact multi-function welder (MIG/MAG/Fluxed cored/MMA/TIG-Lift) that can be used as a gas/gasless welder. Powerful IGBT inverter technology that is optimised for improved productivity and synergic operation. Easy-to-use with simple and immediate one touch setting and digital display. Minimal splatter providing a perfect welding result. Lightweight and portable design, with carry handle.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Amperage range | 20-160A |
|---|---|
| Power supply | 230V |
| Plug Fitted | NO (16A PLUG REQUIRED) |
| Electrode size | 1.6-4.0mm |
| Welding wire spool size | 1kg and 5kg |
| Duty cycle | 60% @160A / 100% @120A |
| Dimensions | 420 x 205 x 300mm |
| Weight (net) | 12kg |
| IGBT Tech | YES |
| Euro Torch Connector/Dinse Type Coupling | 45931 |
| Synergic Wire Feed | YES |
| Compatible with Regular gas Bottle | YES |
| Suitable for MMA welding | YES |
| TIG-Lift | YES |
| DTi | YES |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
02489 | Draper 2489 HANDLE | 1 Unit |
£11.74
£11.51
|
Add |
|
|
02490 | Draper 2490 HINGE | 1 Unit |
£9.13
£8.95
|
Add |
|
|
02492 | Draper 2492 MAIN PCB BOARD | 1 Unit |
£143.01
£140.21
|
Add |
|
|
02493 | Draper 2493 WIRE FEEDER | 1 Unit |
£74.60
£73.14
|
Add |
|
|
02494 | Draper 2494 CONTROL PCB BOARD | 1 Unit |
£57.51
£56.38
|
Add |
|
|
02497 | Draper 2497 FOOTING | 1 Unit |
£9.13
£8.95
|
Add |
