Product Number: 25288
Variations
Consistent, repeatable spot welds for body repair and sheet metal work. Semi-automatic electronic timing calculates the optimum weld duration from material thickness, reducing operator guesswork and producing consistent results.
Microprocessor-controlled; fuzzy logic for. Built-in thermal protection.
Suitable for welding mild steel.
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature. Covered by SIP's 2-Year Standard Silver Warranty. Bodyshop and fabrication operators comparing spot welders will find the 25288 rated for its specified sheet thickness. Spot welding is the standard joining method for automotive body panels — faster and less distortion than MIG for sheet-to-sheet joints. Open-circuit voltage: 2.5v. Replacement consumables including contact tips, nozzles, and electrodes for the 25288 are available at PartsForMachines.com. Refer to the operating manual for full setup instructions, safety information, and recommended maintenance intervals. Compliant with EU Regulation 2019/1784 for eco-design of welding equipment. PartsForMachines.com stocks the full SIP welding range — browse by brand or search by SKU.
Additional Information:

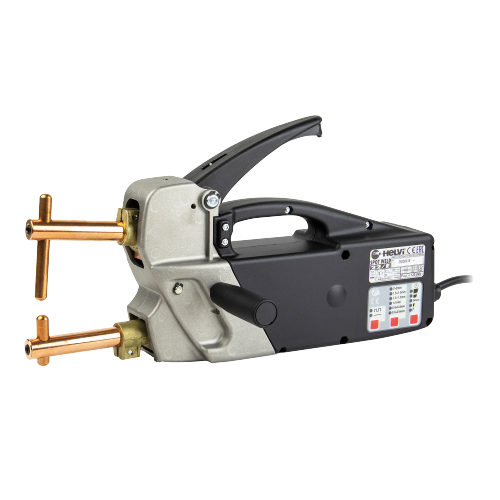

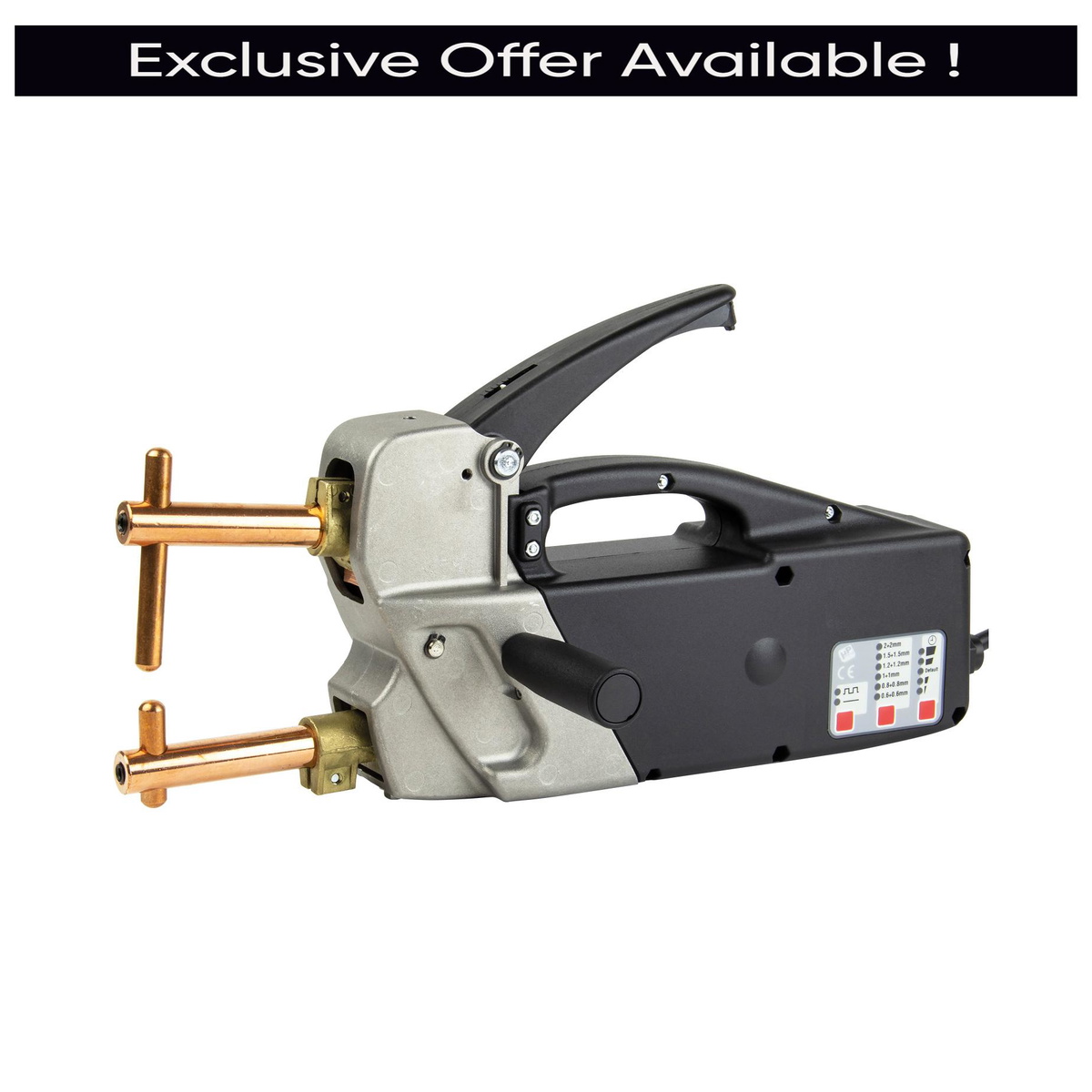

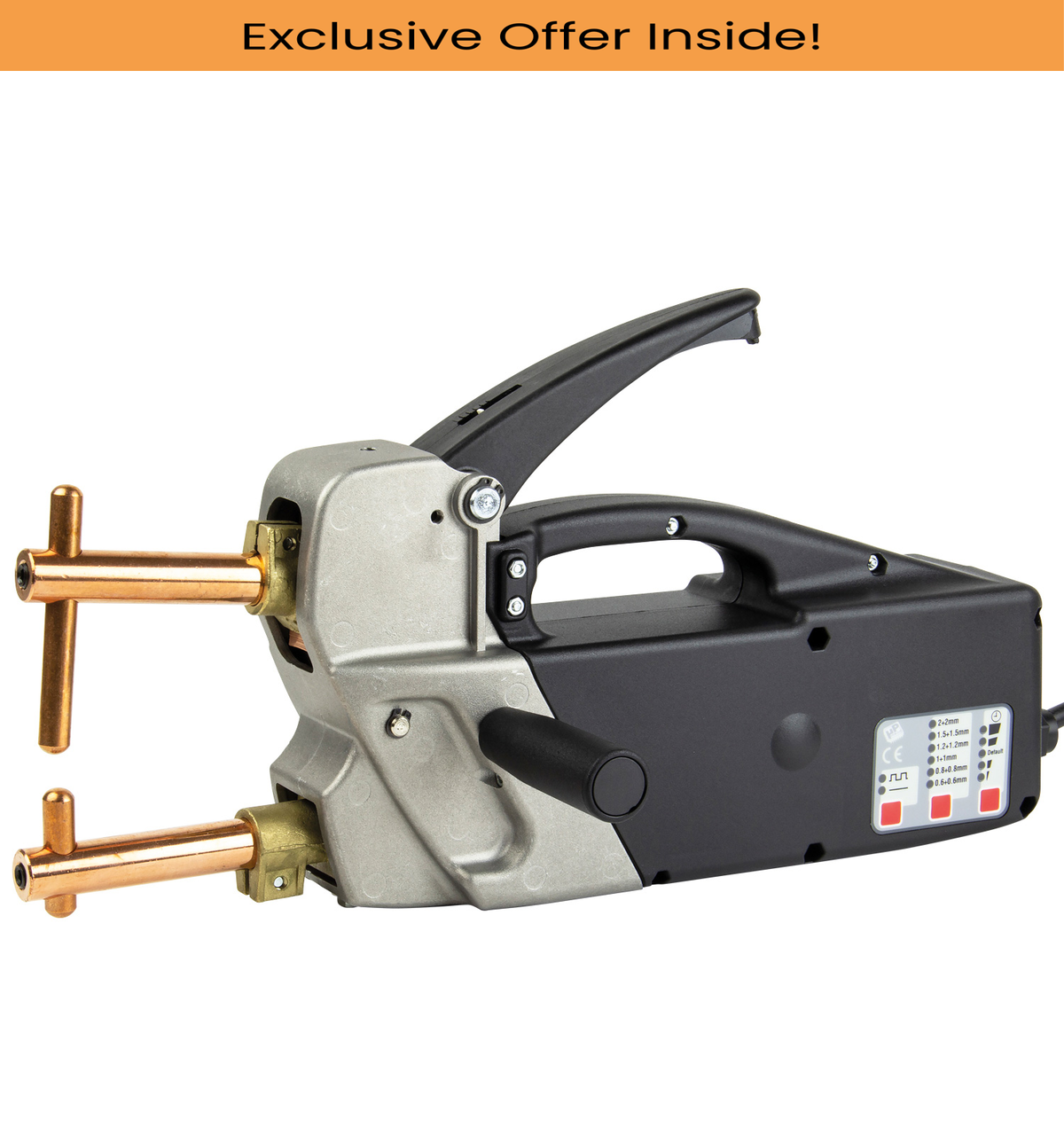

The HELVI Professional Spotweld 22E is a handheld spot welder fitted with a heavy-duty transformer. Ideal for automotive and light sheet metal applications where space is limited.
• 230v (25A) supply, 2.3kW max power
• Powerful 6300A max. welding current
• Utilises a heavy-duty welding transformer
• Suitable for automotive and light sheet metal
• 2+2mm (mild steel) / 6+6mm welding capacity
• 120mm arm, 40-120kg adjustable pressure
• 100mm (top) / 50mm (bottom) electrodes
• Microprocessor-controlled; fuzzy logic for
• simple operation and better weld quality
• Automatic welding current time control
• Fully adjustable tip pressure
• Built-in thermal protection
• 3 year warranty / Made in Italy
• This product is sold without Welding Leads.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 25288 |
|---|---|
| Input Supply | 230v (25A) |
| Max. Input Power | 2.3kW |
| Open Circuit Voltage | 2.5v |
| Max. Welding Current | 6300A |
| Max. Welding Capacity | 2+2mm (mild steel) / 6+6mm ø |
| Electrode Length | (top) 100mm / (bottom) 50mm |
| Operation | Electronic welding current, welding time Arm |
| Length | 120mm |
| Arm Pressure | 40-120kg adjustable |
| Pack Height (mm) | 170 |
| Pack Width (mm) | 340 |
| Pack Depth (mm) | 450 |
| Pack Gross (g) | 11100 |
| Warranty | 2 Year |
More Info
|
Open Now |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25299 WELDMATE® PRO SW200 Spot Welder with Timer & Pulse
£760.94
£746.02
2% OFF
Free delivery in Channel Island
|
SIP 25298 WELDMATE® PRO SW150 Spot Welder with Timer
£650.66
£637.90
2% OFF
Free delivery in UK Mainland
|
SIP 25113 25KVA Pneumatic Column Spot Welder, Input Supply - 400V, Single Phase
£4,463.18
£4,375.67
2% OFF
Free delivery in Channel Island
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 25299 | 25298 | 25113 | 6030010 | 6030005 |
| Input Supply | 400 | ||||
| Warranty | 24 | ||||
| Input current | 50 | ||||
| Electrode Size (max) | 20 | ||||
| Electrode Size (min) | 20 | ||||
A. The 25288 is rated for 2+2mm (mild steel) / 6+6mm ø. Maximum welding current is 6300A. It is designed for automotive body panel repairs, general sheet metal fabrication, and light industrial production.
A. The 25288 requires a 230V / 25A supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 25288 is fitted with thermal overload protection that cuts output automatically if the machine exceeds its rated temperature. Welding at lower amperages extends the continuous run time available before a cool-down period is needed.
A. The 25288 is supplied with the accessories needed to start welding — check the product listing for the complete included items. Additional consumables for the 25288 are available at PartsForMachines.com.
A. The 25288 weighs 120kg. It is intended as a fixed workshop machine. Adequate assistance should be available for initial positioning.
A. The 25288 is primarily suited to mild steel.
A. The 25288 is covered by SIP's 2-Year Standard Silver Warranty, covering manufacturing defects under normal use conditions. Register the product with SIP at time of purchase to activate the warranty.
A. Spot welding galvanised steel is possible but produces zinc fumes — adequate ventilation or fume extraction is essential. Zinc coatings also accelerate electrode wear, so check electrode condition regularly when welding zinc-coated materials.
A. Yes, but with precautions. Zinc coating produces fumes during spot welding — adequate ventilation or fume extraction is essential. Zinc also accelerates electrode tip wear, so inspect tips more frequently when welding galvanised material. Test on scrap of the same gauge first to confirm the weld schedule.
