Product Number: 25113
Click on the button below to find the right welding equipment
Welder Finder

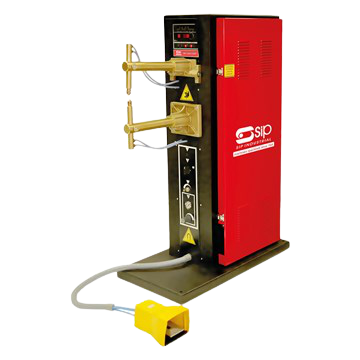

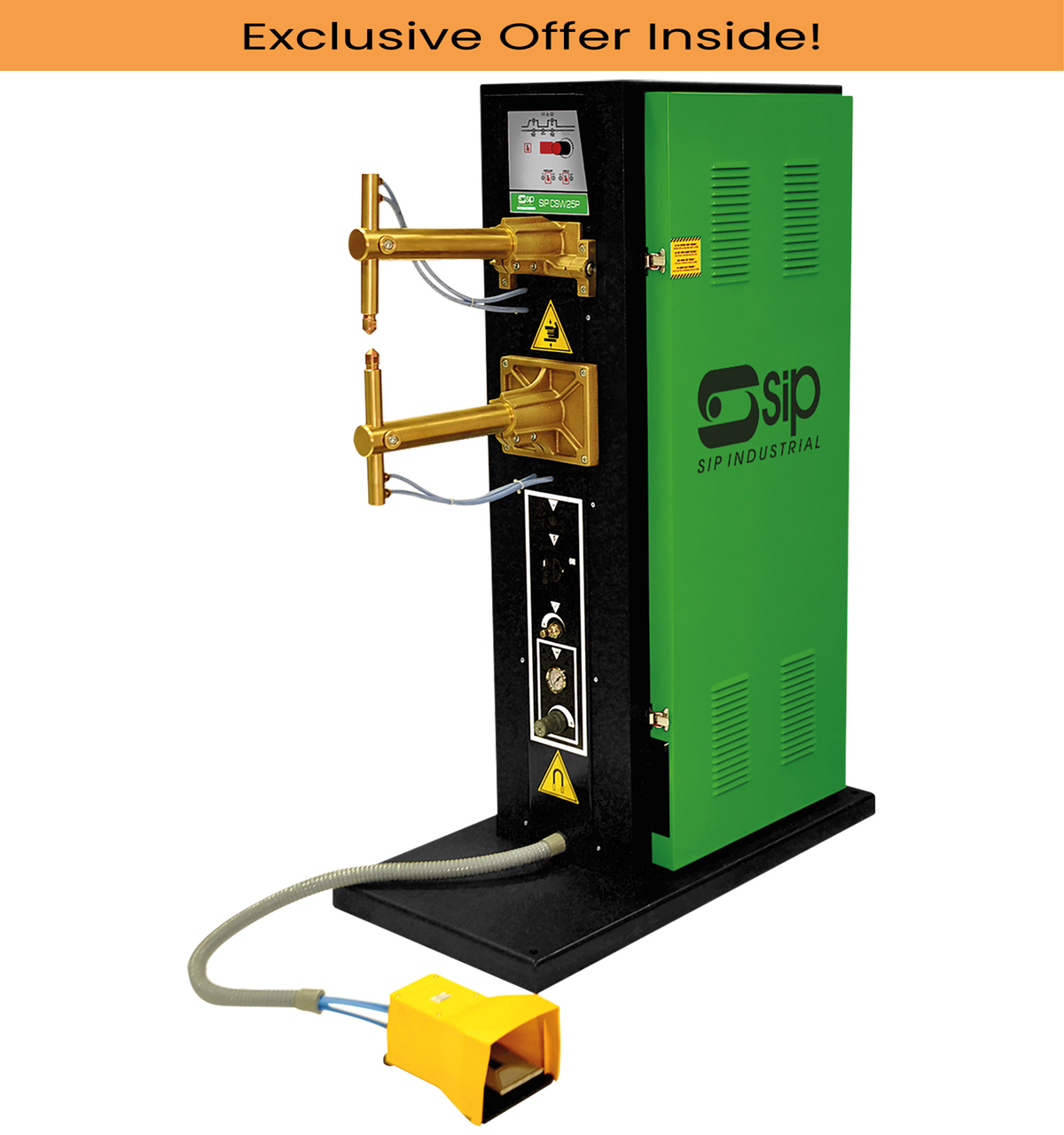

The SIP 25KVA Pneumatic Column Spot Welder is operated through a foot pedal control and an electronic controller which features a 5-step welding sequence and an easy user interface.
SIP Industrial are machinery specialists, with the SIP catalogue of products including welding, metalwork, air compressors and tools, power, cleaning, charging, heating, automotive, and more.
| Input Supply | 400v (50A) 1PH |
|---|---|
| Max. Welding Power | 50KVA |
| Duty Cycle @ 50% | 25KVA |
| Welding Capacity | Mild Steel 5+5mm (flat) / 20+20mm (bar) |
| Stainless Steel | 3+3mm (flat) / 12+12mm (bar) |
| No Load Voltage | 1.4v |
| Short Circuit Current | 13.8KA |
| Max. Electrode Force | 204kgF @ 340mm 140kgF @ 450mm |
| Distance Between Arms | 200mm (standard) 320mm (optional) |
| Arms Length | 340 to 480mm (standard) 200 to 1000mm (optional) |
| Electrode Throat Size | 100mm |
| Electrode Holder â | 25mm |
| Electrode Size â | 20mm |
| Arms â | 45mm |
| Noise Level | < 70dB |
| Air Pressure | 70psi (4.8bar) |
| Water Flow | 4litres/min |
| Gross Weight | 178kg Packaged |
| Dimensions | 1450(H) x 520(W) x 1070mm(D) |
| Warranty | 2 Year |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
