Product Number: 41733

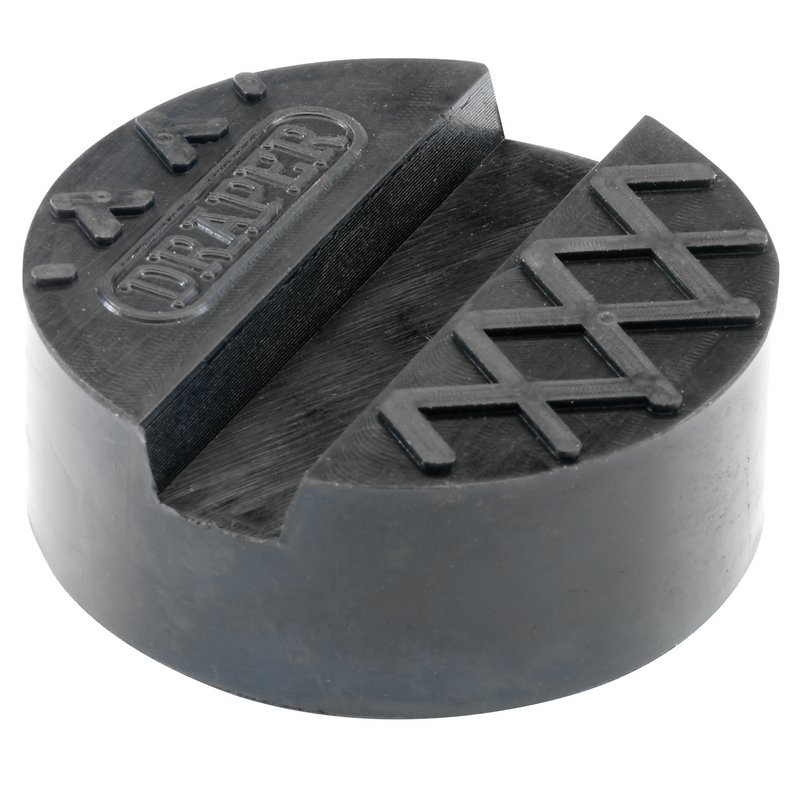

When lifting a vehicle with a compact light-duty trolley jack, unprotected metal saddles risk denting or collapsing car sills and damaging the underside of the vehicle. The Draper 41733 Trolley Jack Rubber Pad, Small addresses this directly with a chamfered base design engineered specifically for compact light-duty trolley jacks, providing a secure, protective interface between the jack saddle and the vehicle. The pad is constructed from durable and robust rubber throughout. Its slotted rubber feature is central to its function: the slot allows the pad to seat correctly on car sills and distribute load in a way that prevents the sill from collapsing under pressure during a lift. The chamfered base further ensures the pad seats flush and stably on the jack saddle rather than rocking or shifting during use. The pad is compatible with trolley jacks fitted with saddles measuring between 38mm and 55mm in diameter. Key dimensions are: pad diameter 65mm (approx.), pad cup diameter 38mm (approx.), pad total height 33mm (approx.), pad height 25mm (approx.), pad cup height 8mm (approx.), slot height 8mm (approx.), and slot width 15mm (approx.). The rated capacity is 2 tonne (2,000 kg). Supplied as a single unit, this pad is a straightforward, practical accessory for any workshop or garage where light-duty trolley jacking is performed regularly. Its compact dimensions and rubber construction make it equally suited to professional workshop environments and home garage use where sill protection is a priority.
Chamfered base design for compact light-duty trolley jacks. Designed to avert damage to the sill and underside of a vehicle when in use. Made from durable and robust rubber. The slotted rubber feature enables the pad to be used on car sills whilst stopping the sills from collapsing under pressure. For use with trolley jacks with 38 - 55mm diameter saddles.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 2 Tonne (2,000kg) |
|---|---|
| Jack Pad Cup Diameter | 38mm (Approx.) |
| Jack Pad Cup Height | 8mm (Approx.) |
| Jack Pad Diameter | 65mm (Approx.) |
| Jack Pad Height | 25mm (Approx.) |
| Jack Pad Slot Height | 8mm (Approx.) |
| Jack Pad Slot Width | 15mm (Approx.) |
| Jack Pad Total Height | 33mm (Approx.) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 960400SP Venom Induction Heater Deluxe Kit
£897.36
£879.76
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 08786500 PRESS & PULL SLEEVE KIT - MASTER XS
£510.43
£500.42
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 08797500 PRESS & PULL SLEEVE KIT - MASTER XL
£1,632.52
£1,600.51
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 081235170 62mm REMOVAL RING (2 Pieces)
£109.77
£107.62
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 07670000 BRAKE DISC MEASURING TOOL
£88.38
£86.65
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 18797300 SHELL 3 (68mm) - MAN Front Spring
£56.54
£55.43
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 18797400 SHELL 4 (66mm) - IVECO Eurostar
£56.54
£55.43
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 18797500 SHELL 5 (65mm) - MERCEDES BENZ Actros / Atego
£56.54
£55.43
2% OFF
Free delivery in UK Mainland
|
|||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03869 | 02347 | 960400SP | 08512800 | 08786500 | 08797500 | 081235170 | 081235970 | 081255370 | 07670000 | 18797200 | 03280000 | 18797300 | 18797400 | 18797500 |
A. The Draper 41733 Trolley Jack Rubber Pad, Small is designed for use with trolley jacks fitted with saddles measuring between 38mm and 55mm in diameter.
A. The pad has a rated capacity of 2 tonne (2,000 kg).
A. The pad diameter is approximately 65mm, pad cup diameter approximately 38mm, pad total height approximately 33mm, pad height approximately 25mm, pad cup height approximately 8mm, slot height approximately 8mm, and slot width approximately 15mm.
A. The slotted rubber feature enables the pad to be positioned correctly on car sills, distributing the load in a way that prevents the sill from collapsing under pressure during a lift.
A. The chamfered base design is specifically suited to compact light-duty trolley jacks, helping the pad seat stably on the jack saddle and averting damage to the sill and underside of the vehicle when in use.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
