Product Number: AC21S
Worn or incompatible hose terminations cause air leaks and reduce tool performance. The PCL AC21S is a hose tailpiece from the Airflow coupling series, designed to accept 7.9 mm (5/16 in) internal-diameter hose and connect it securely into the Airflow quick-release system. PCL have manufactured Airflow couplings in Sheffield since 1938 as part of HORNGROUP.
As a series-level rating, the Airflow range operates to a maximum pressure of 14 bar (200 psi) and across a temperature range of -40 °C to 100 °C, with a bore of 4.8 mm and a rated flow of 43 cfm at 100 psi. The AC21S is catalogue-listed with an 8 mm / 5/16 in hose tail designation, consistent with the master short description of 7.9 mm (5/16 in) internal-diameter hose. The Airflow series is rated as interchangeable with Cejn 295 and Rectus 19 couplings.
The AC21S is suited to workshop compressed-air systems where a reliable hose termination is required at the hose end of an Airflow airline assembly. It pairs with the corresponding Airflow female or male body couplings to complete the connection.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Thread Type | Hose Tailpiece |
| Thread Size | 8 mm (5/16 in) |
| Nominal Bore | 4.8 mm |
| Flow Rate | 43 cfm @ 100 psi |
| Maximum Working Pressure | 14 bar (200 psi) |
| Temperature Range | -40°C to 100°C |
| Interchange | Cejn 295 / Rectus 19 |
| EAN | 5014875331157 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

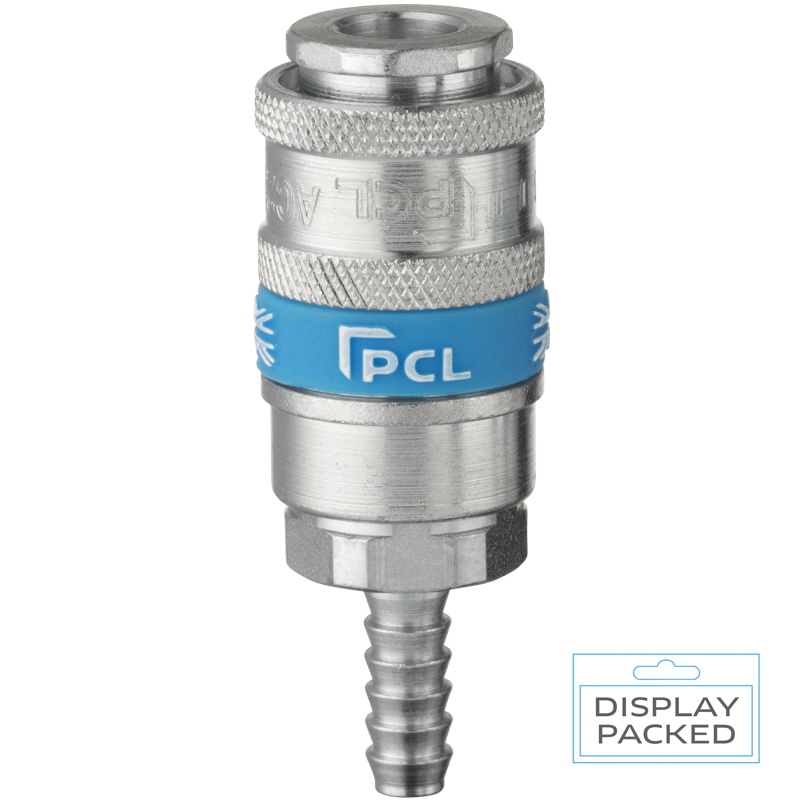

| PRODUCT NUMBER | AC21R05 | AC21S05 | AC21T05 | AC61R | AC61S |
| Maximum Pressure (psi) | 100 | 100 | 100 | ||
| Air Consumption(CFM) | 43 | 43 | 43 | ||
| Connection Type | Quick-Release Coupling | Quick-Release Coupling | Quick-Release Coupling | Quick-Release Coupling | Quick-Release Coupling |
| Coupling Series | Airflow | Airflow | Airflow | ||
A. The AC21S is the PCL Airflow Coupling 7.9mm (5/16) i/d Hose Tailpiece. The PCL AC21S is a hose tailpiece from the Airflow coupling series, designed to accept 7.9 mm (5/16 in) internal-diameter hose and connect it securely into the Airflow quick-release system.
A. Hose Tailpiece.
A. 8 mm (5/16 in).
A. 4.8 mm.
A. 43 cfm @ 100 psi.
A. 14 bar (200 psi).
A. -40°C to 100°C.
A. Cejn 295 / Rectus 19.
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
