Product Number: 04141

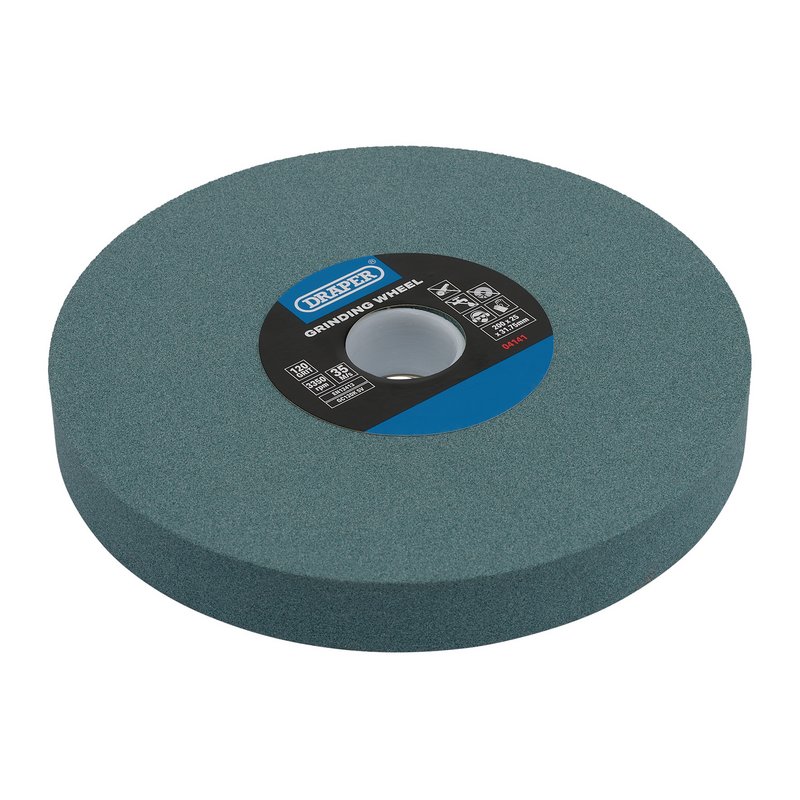

Sharpening tungsten carbide tip (TCT) tools and grinding non-ferrous metals demands an abrasive wheel engineered for the task. Draper's silicon carbide bench grinding wheel delivers an ultra fine 120G grit surface specifically suited to these applications, offering hard-wearing performance across dry-cutting use only — it must not be used with coolants or cutting fluids. The wheel measures 200mm in diameter by 25mm thick and is rated to a maximum speed of 3,350rpm (35 metres per second). Wheel hardness is grade K, and the approved abrasive wheel marking code is GC120K 5V. The wheel is certified to EN12413, confirming it meets the required safety standard for bonded abrasive products. Fitment is straightforward: the wheel is manufactured with a 31.75mm bore and is supplied with five reduction rings to accommodate bore sizes of 25.30, 19.05, 15.90, and 12.70mm, enabling the wheel to fit most bench grinders with a bore between 12.7 and 31.75mm. Net weight is 1.5kg. Supplied as one silicon carbide bench grinding wheel with reduction rings included.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Diameter | 200mm |
|---|---|
| Thickness | 25mm |
| Grit | 120G (ultra fine) |
| Metres per second | 35m/s |
| Maximum speed | 3,350rpm |
| Bore | 31.75mm |
| Reduction ring sizes | 25.30, 19.05, 15.90, 12.70mm |
| Wheel hardness | K |
| Approved abrasive wheel marking code | GC120K 5V |
| Certification | EN12413 |
| Weight (net) | 1.5kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Abracs Multi-Purpose 3 in 1 Cut/Grind Discs, 115 x2.5 x 22mm - Pack of 25, HY11525DM
£43.81
£42.95
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 04142 | 99571 | 94793 | 82961 | HY11525DM |
| Type | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel |
| Size | 25mm | 25mm | 23mm | 23mm | 22mm |
| Material | Multi-material | ||||
| Bore | 25mm | 25mm | 22.23mm | 22.23mm | 22mm |
| Grit | 40 | ||||
| Pack Qty | 25 | ||||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Suitable For | Metal | ||||
| Show More | |||||
A. The Draper 4141 silicon carbide bench grinding wheel is suitable for sharpening tungsten carbide tip (TCT) tools and for grinding non-ferrous metals including alloys. It is not intended for use on ferrous metals.
A. This wheel is rated 120G, which is classified as ultra fine grit. An ultra fine grit is best suited to precision sharpening and finishing work on TCT tools and non-ferrous metals rather than aggressive stock removal.
A. The maximum rated speed is 3,350rpm, equivalent to 35 metres per second. Never exceed this speed in operation.
A. The wheel is manufactured with a 31.75mm bore and is supplied with five reduction rings, allowing it to fit most bench grinders with a bore size between 12.7mm and 31.75mm. The available reduction ring sizes are 25.30, 19.05, 15.90, and 12.70mm.
A. No. This wheel is specified for dry-cutting use only.
A. The wheel conforms to EN12413, the European standard for safety requirements of bonded abrasive products. The approved abrasive wheel marking code is GC120K 5V.
