Product Number: 01713

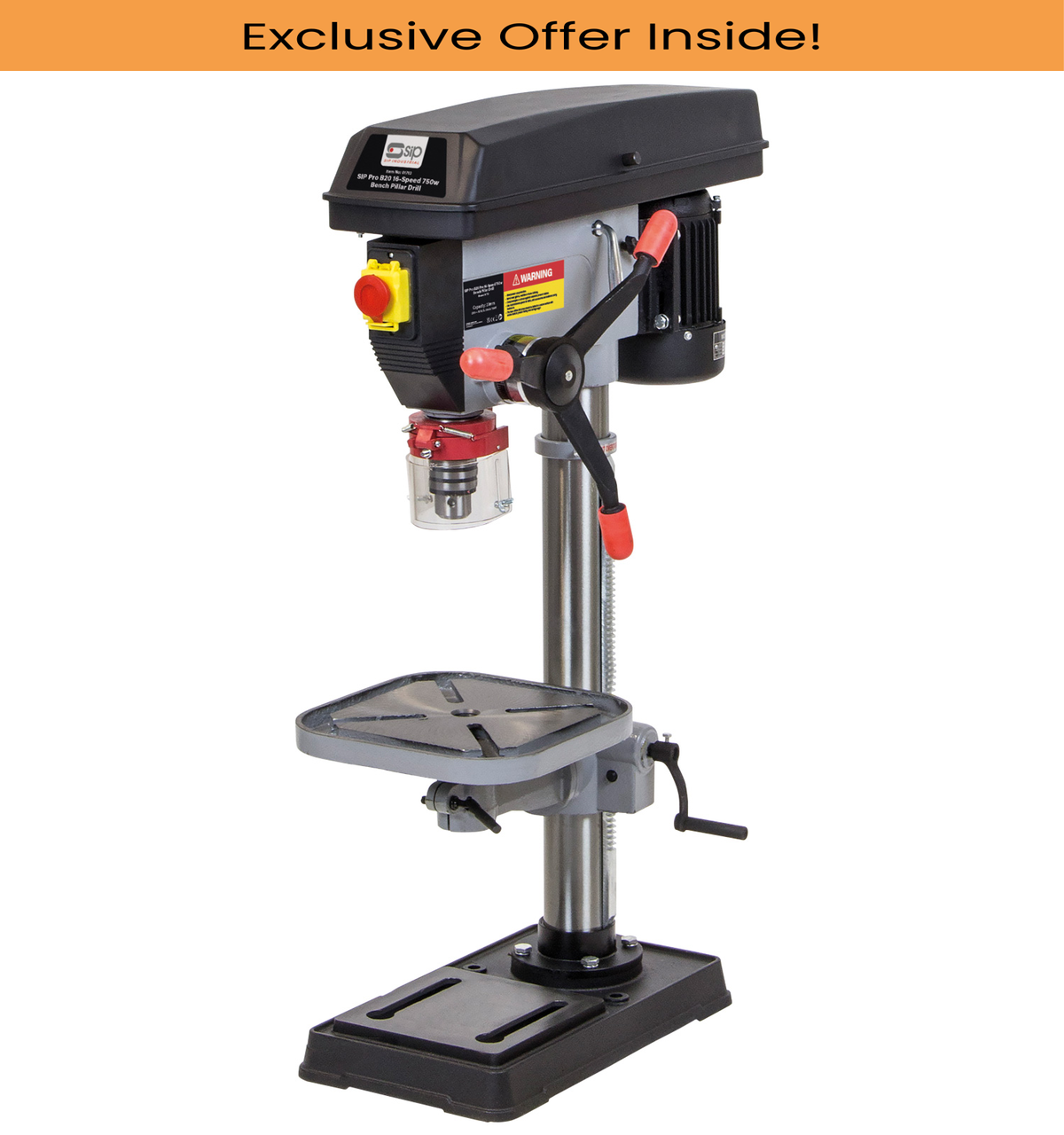

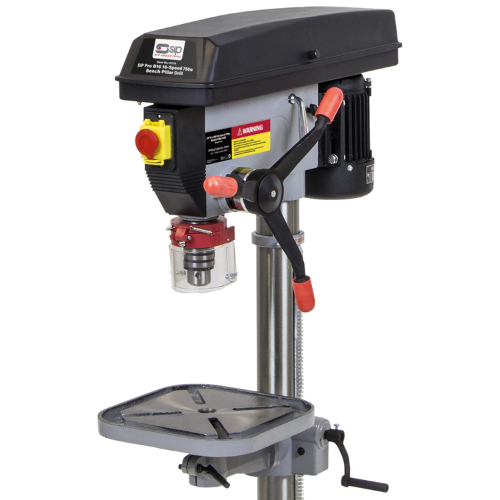

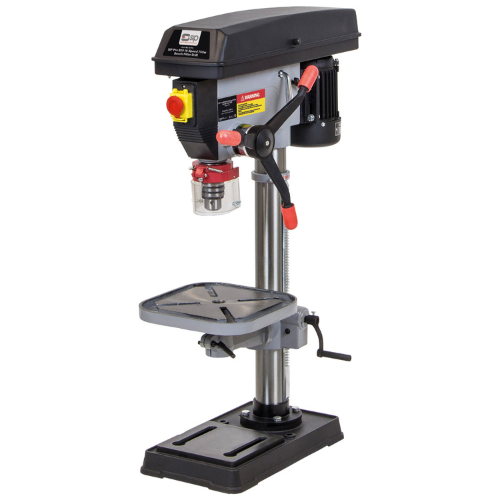

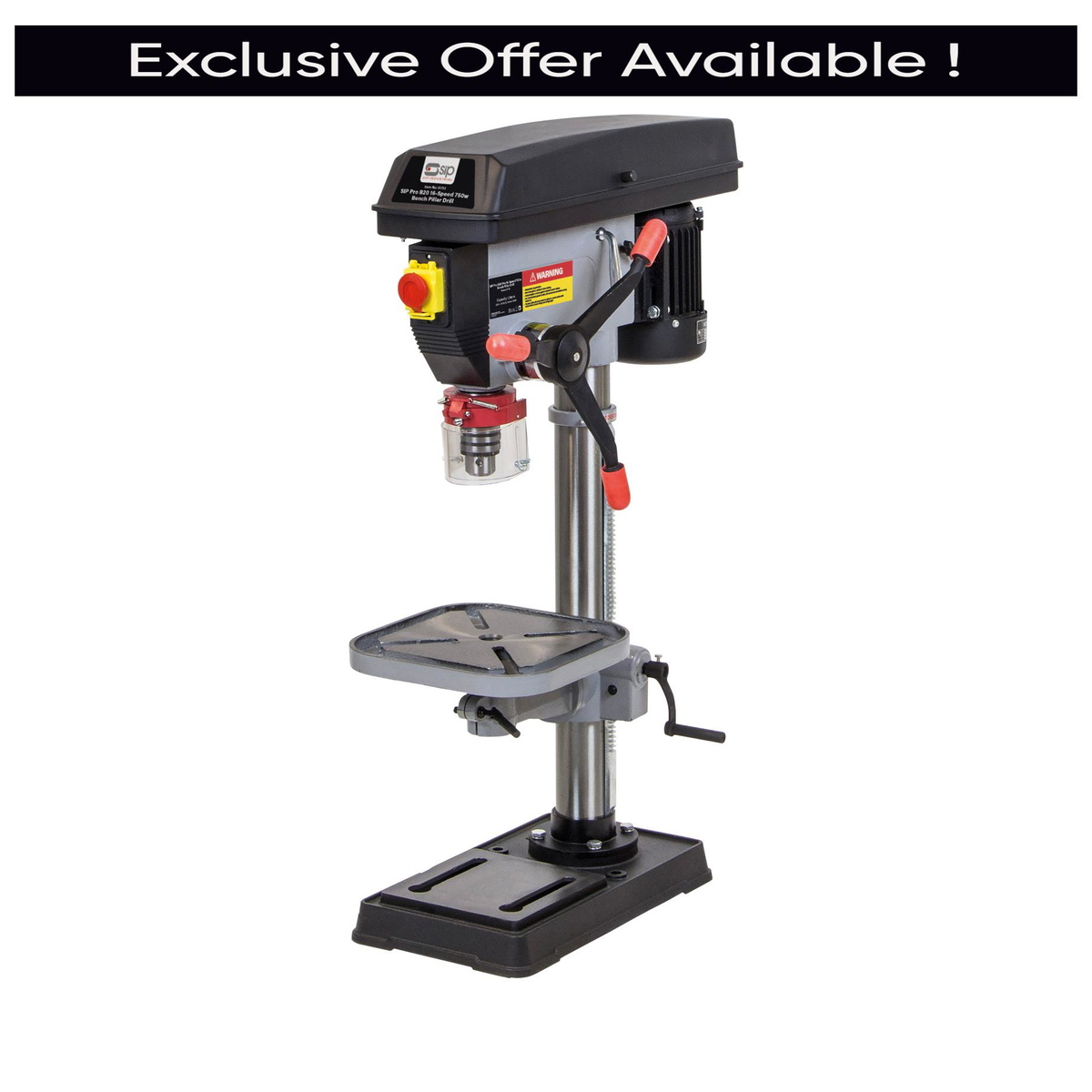

The SIP Pro B20 Bench Pillar Drill (SKU 01713) is a 750W, 16-speed bench-mounted pillar drill designed to make light work of preparing and finishing a variety of workpiece materials, including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics. Operating on a standard 230V (13A) supply, it delivers a speed range of 200–2800rpm across 16 selectable speeds, making it equally capable across pilot, blind, batch, and general drilling applications in manufacturing, metalwork, and woodwork environments.

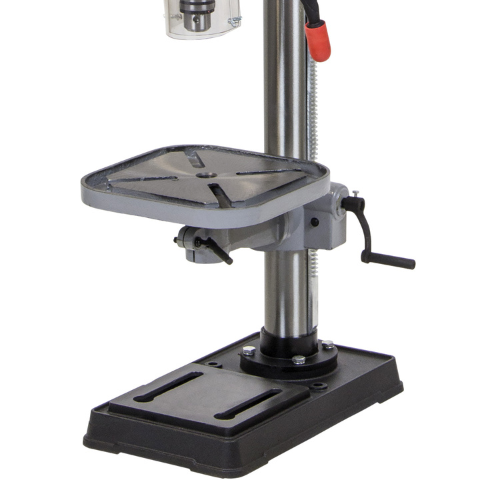

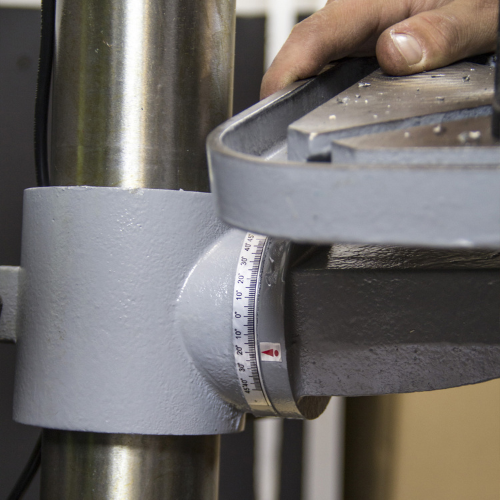

At the heart of the machine is a high-power brushless induction motor that delivers consistent, high-quality drilling performance. The adjustable tilting table and tilt scale allow precise workpiece positioning for accurate drilling, while a three-lever handle ensures smooth, controlled drilling force. A fitted drilling depth stop maintains repeatable blind and through-hole accuracy, helping to minimise material wastage, and a safety interlock switch allows belt adjustment with confidence, preventing accidental start-up. Integrated chuck guards further reduce user risk during operation.
The Pro B20 accepts drill bits from 3mm to 16mm and offers a maximum drilling capacity of 20mm, with an MT2 spindle taper and 80mm of spindle travel. The generously sized 285mm × 285mm table and a maximum chuck-to-table distance of 320mm (510mm to base) accommodate a wide range of workpiece sizes. The 460mm × 270mm cast iron base provides the robust stability required for sustained professional use, and at 1000mm in height the bench-mounted configuration suits workshops where floor space is at a premium.

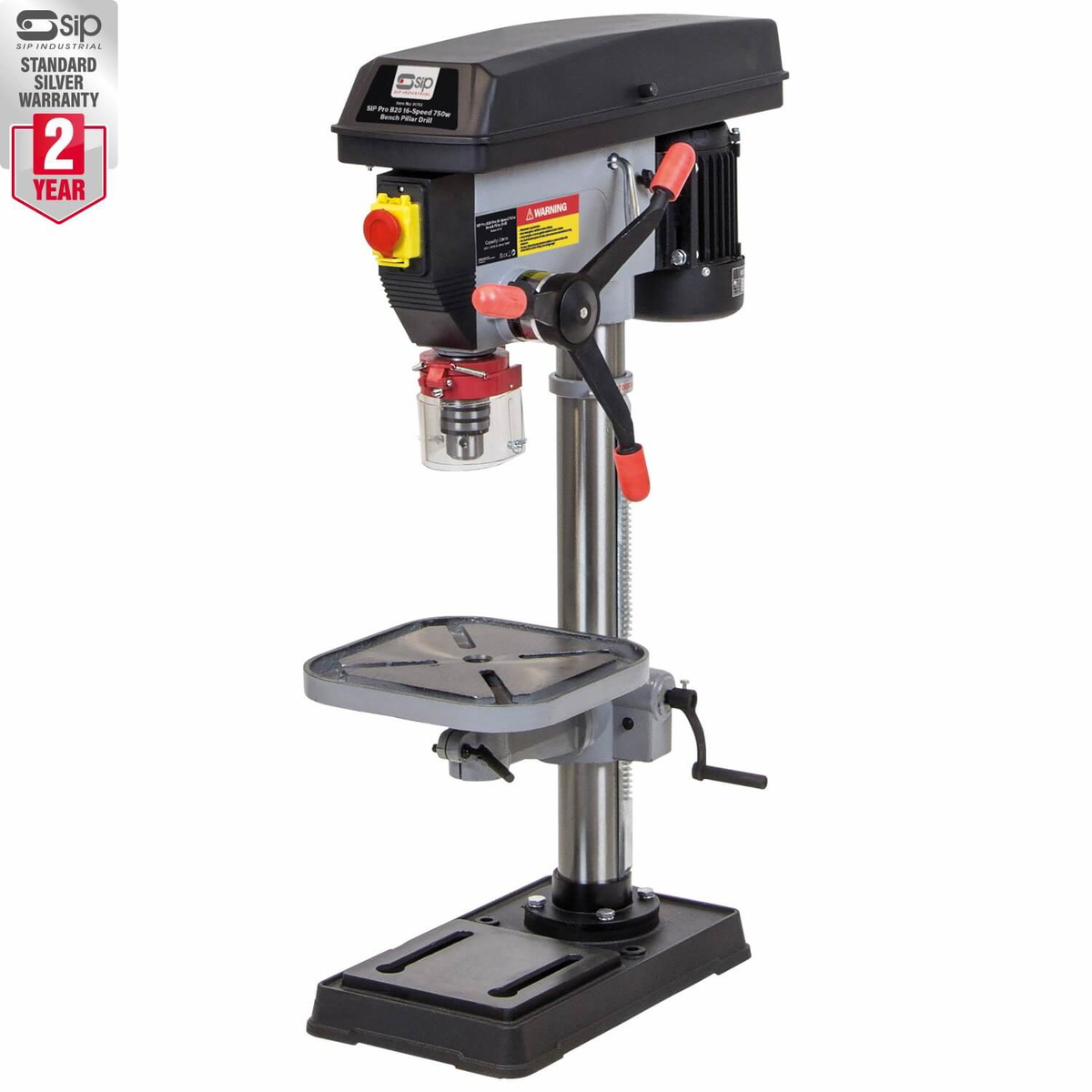

The SIP 01713 is backed by SIP's 2-Year Standard Silver Warranty. Net weight is 48.50kg; gross weight 50.50kg. Product dimensions are 1000(H) × 290(W) × 460mm(D). Manufactured by SIP.
Additional Information:
The SIP Pro B20 16-Speed 750w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of professional applications with limited floor space. Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01713 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 750w |
| No. of Speeds | 16 speeds |
| Speed Range | 200rpm - 2800rpm |
| Drill Bit Size | 3mm - 16mm |
| Max. Drilling Capacity | 20mm |
| Spindle Taper | MT2 |
| Table Size | 285mm x 285mm |
| Base Size | 460mm x 270mm |
| Column Diameter | Ø 72mm |
| Swing | 360mm |
| Height | 1000mm |
| Spindle Travel | 80mm |
| Collar Diameter | Ø 72mm |
| Max. Distance | 320mm (chuck to table), 510mm (chuck to base) |
| Net Weight | 48.50kg |
| Gross Weight | 50.50kg |
| Product Dimensions | 1000(H) x 290(W) x 460mm(D) |
| Packaged Dimensions | 275(H) x 810(W) x 490mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01715 Pro F20 16-Speed 750w Floor Pillar Drill
£395.71
£387.95
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01715 | GDM92B | ||
| Input Supply | 230 | |||
| Motor Power | 220 | |||
| Drilling Capacity | 16 | |||
| Table Size | 160 x 180 | |||
| Spindle Speed max. | 2580 | |||
| Spindle Speed min. | 210 | |||
| Speed Options | 12 | |||
| Swing | 254 | |||
| Show More | ||||
A. The Pro B20 is designed for use with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, supporting pilot, blind, batch, and general drilling applications across metalwork, woodwork, and manufacturing environments such as gates, rails, and trailers.
A. The drill provides 16 selectable speeds spanning 200rpm to 2800rpm, allowing precise control of drilling speed to suit different materials and hole sizes across the full drilling spectrum.
A. The maximum drilling capacity is 20mm. The machine accepts drill bits from 3mm to 16mm and is fitted with an MT2 spindle taper.

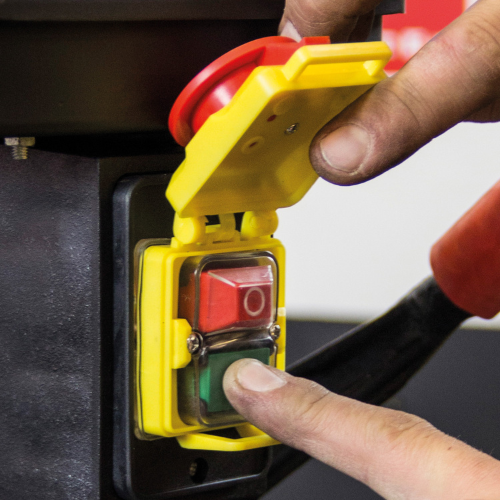

A. The drill is fitted with a safety interlock switch that allows motor belt adjustment with the confidence that the drill cannot start accidentally. Integrated chuck guards are also incorporated to reduce user risk during operation.
A. Yes. The machine is fitted with a drilling depth stop that accurately maintains the depth of repetitive or blind hole drilling, helping to minimise material wastage and ensure consistent results across batch work.
A. The machine stands 1000mm tall with product dimensions of 1000(H) × 290(W) × 460mm(D). The table measures 285mm × 285mm and the cast iron base measures 460mm × 270mm. The maximum chuck-to-table distance is 320mm (510mm to base), spindle travel is 80mm, and the column diameter is 72mm. Net weight is 48.50kg.
A. The SIP 01713 is covered by SIP's 2-Year Standard Silver Warranty.
