Product Number: MAG60230VHD

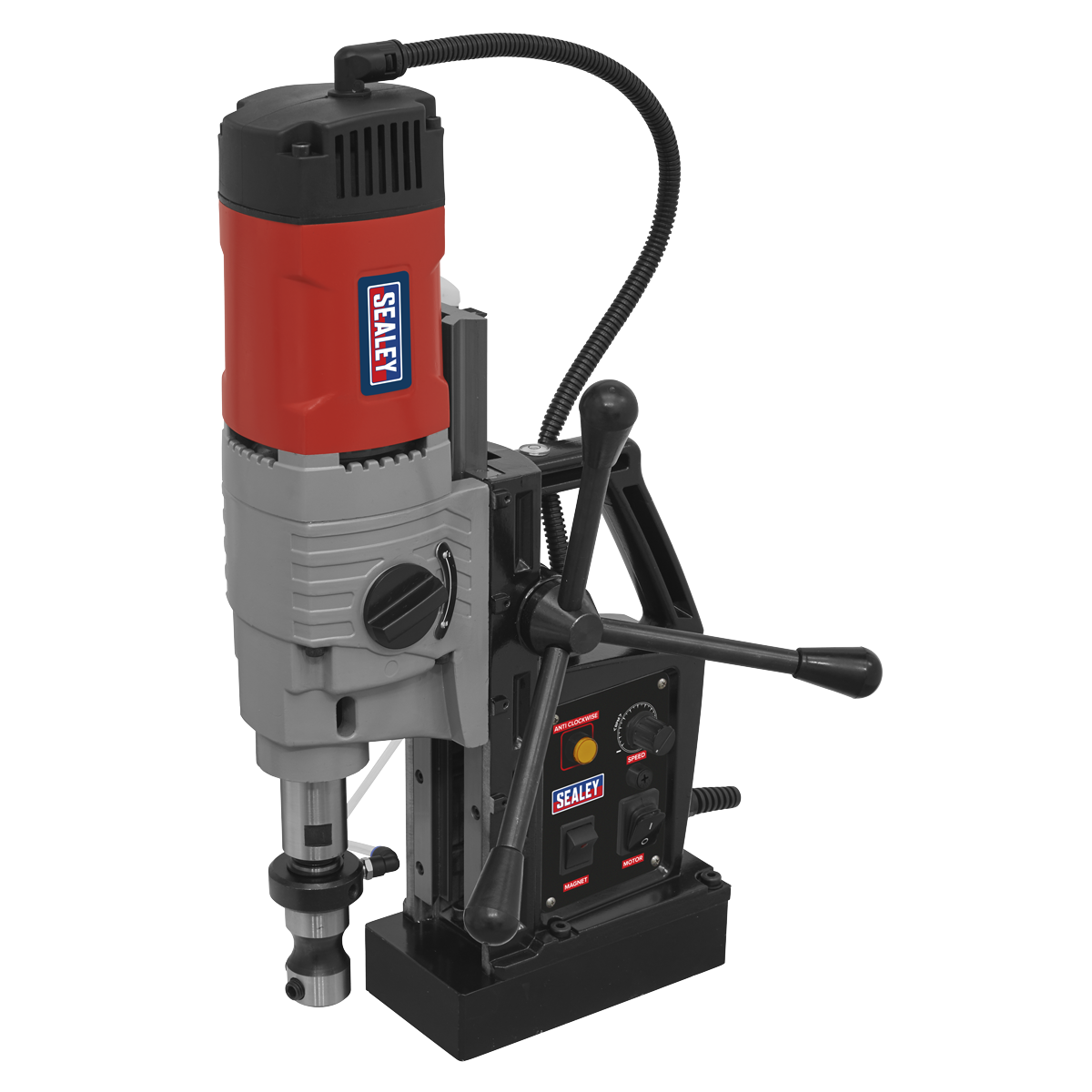

Drilling or tapping large-diameter holes in ferrous metal on-site or in a fabrication environment demands a machine that can stay firmly in position and deliver consistent power at the point of cut. The Sealey MAG60230VHD is a heavy-duty magnetic drilling machine built for exactly these conditions. Its magnet delivers 17,000N of adhesion, keeping the unit fixed at any angle on ferrous surfaces throughout the cut. The die-cast magnesium alloy body houses a 1,880W motor with a variable speed gearbox running at up to 380rpm no-load, giving you the control needed for accurate work. A double dovetail groove increases stroke length, and the maximum annular cutter capacity is 60mm with a maximum cutter depth of 50mm. It also accepts a 16mm twist drill chuck for twist drills up to 23mm diameter, and M8 to M20 tapping chucks for tapping operations. An integrated coolant system keeps cutting temperatures in check, and a safety fixing strap is included. The MAG60230VHD runs on 220V-50Hz and is suited to fabrication, construction, and any application requiring drilling or tapping in ferrous metal.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MAG60230VHD |
|---|---|
| Brand | Sealey |
| Magnet Adhesion | 17000N |
| Maximum Annular Cutter Capacity | Ø60mm |
| Maximum Cutter Depth | 50mm |
| Motor Power | 1880W |
| Nett Weight | 22.50kg |
| No-Load Speed | 220/380rpm |
| Core Drill Diameter | Ø60mm |
| Twist Drill Diameter | 23mm |
| Tapping Drill Diameter | M8 - M20 |
| Power Supply | 220V - 50Hz |
| Motor Power | 1880W |
| Magnetic Adhesion | 17000N |
| No-Load Speed | 0-380rpm |
| Cutting Depth | 50mm |
| Morse taper | MT3 |
| Stroke Length | 220mm |
| Supply | 230V~50Hz |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MAG230V Magnetic Drilling Machine 35mm 230V 1500W
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Sealey MAG60110V Magnetic Drilling Machine 60mm 110V
£533.18
£522.73
2% OFF
Free delivery in UK Mainland
|
Draper 56404 230V SDS+ Rotary Hammer Drill, 1500W, 4.9kg
£77.29
£75.77
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MAG230V | MAG60110V | 62880 | 66090 | 20229 | 56404 |
| Brand | Sealey | Sealey | ||||
| Length (mm) | 35 | 60 | 35 | 12 | 32 | |
| Model No | MAG230V | MAG60110V | ||||
| Voltage (V) | 230 | 110 | 230 | |||
| Weight (kg) | 10 | 15.2 | 4.9 | |||
A. The maximum annular cutter capacity is Ø60mm with a maximum cutter depth of 50mm. For twist drilling, the maximum diameter is 23mm, and for tapping the range is M8 to M20.
A. The magnetic adhesion is 17,000N, which holds the unit securely to ferrous metal surfaces at any angle during operation.
A. It operates on 220V-50Hz. If you require a 110V version, the MAG60110V is an alternative worth considering.
A. Yes. It accepts M8 to M20 tapping chucks in addition to a 16mm twist drill chuck, making it suitable for both drilling and tapping operations in ferrous metal.
A. The body is made from heavy-duty die-cast magnesium alloy.
A. Yes, an integrated coolant system is included, along with a safety fixing strap.
A. No. The MAG60230VHD is a magnetic drilling machine designed to attach directly to ferrous metal surfaces for on-site or positional drilling and tapping, rather than a static pillar drill mounted to a bench.
A. The MAG60230V is a variant in the same product family. Please contact Parts for Machines for confirmation of the specific differences between variants.
A. Alternative magnetic drilling machines include the MAG110V, MAG230V, and MAG60110V - each offering a different power supply or specification to suit different site requirements.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
