Product Number: MAG60110V
Variations

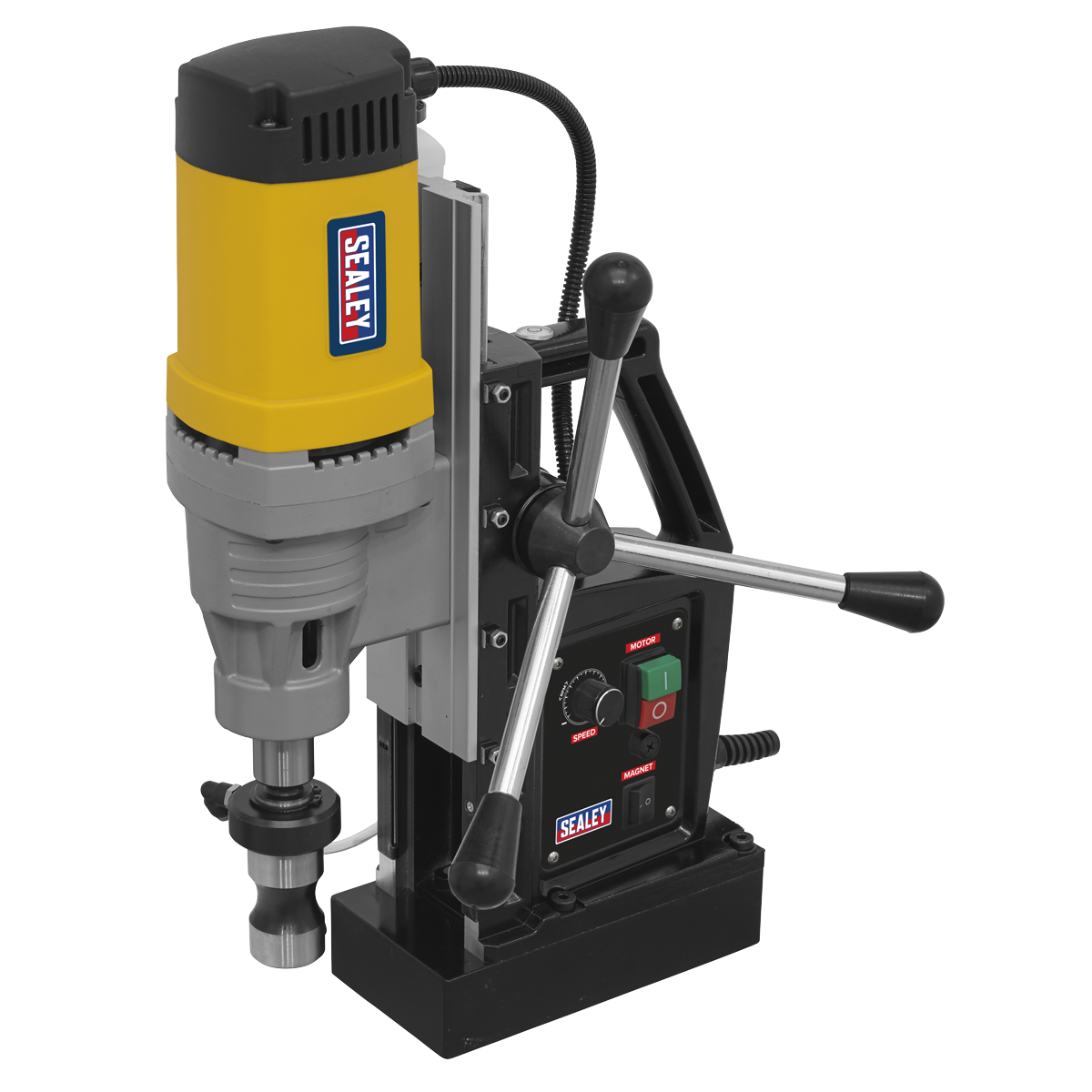

Drilling into ferrous metal at awkward angles or on-site demands a machine that stays put and delivers consistent results. The Sealey MAG60110V Magnetic Drilling Machine answers that need with a 15800N magnet that holds firm at any angle, so the unit stays securely adhered to the workpiece throughout the cut. Built from heavy-duty die-cast magnesium alloy and driven by a 1680W motor, it handles annular cutters up to 60mm diameter with a maximum cutting depth of 50mm. The variable speed gearbox gives you precise control across a no-load speed range of 100-470rpm, making it suitable for a wide range of ferrous metal drilling tasks in fabrication, construction and related applications. An integrated coolant system helps manage heat during extended cutting, while the Morse Taper MT2 arbor provides a secure tool interface. The machine also accepts a 16mm twist drill chuck for versatility. A safety fixing strap is included for additional security. Powered at 110V 50Hz, the MAG60110V is suited to site use where 110V supply is standard.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MAG60110V |
|---|---|
| Brand | Sealey |
| Magnet Adhesion | 15800N |
| Maximum Annular Cutter Capacity | 60mm |
| Maximum Cutter Depth | 50mm |
| Motor Power | 1680W |
| Nett Weight | 15.2kg |
| No-Load Speed | 100-470rpm |
| Core Drill Diameter | 60mm |
| Power Supply | 110V- 50Hz |
| Motor Power | 1680W |
| Magnetic Adhesion | 15800N |
| No-Load Speed | 100-470rpm |
| Cutting Depth | 50mm |
| Morse Taper | MT2 |
| Stroke Length | 210mm |
| Supply | 110V~50Hz |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MAG110V Magnetic Drilling Machine 35mm 110V 1500W
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Sealey MAG230V Magnetic Drilling Machine 35mm 230V 1500W
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Draper 55338 D20 20V Brushless Combi Drill (Sold Bare)
£65.11
£63.83
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MAG110V | MAG230V | 62880 | 66090 | 20229 | 55338 |
A. The MAG60110V has a magnetic adhesion rating of 15800N, which is designed to keep the unit firmly adhered to the workpiece at any angle during drilling.
A. The maximum annular cutter capacity is 60mm, with a maximum cutting depth of 50mm. The arbor uses a Morse Taper MT2 interface.
A. Yes. The MAG60110V can be used with a 16mm twist drill chuck, giving additional versatility beyond annular cutter use.
A. The MAG60110V is designed for use when drilling ferrous metal and is suited to fabrication, construction and similar applications.
A. The MAG60110V operates on a 110V 50Hz power supply, making it suitable for site environments where 110V is the standard supply.
A. The variable speed gearbox delivers a no-load speed range of 100-470rpm, allowing greater accuracy across different cutter sizes and materials.
A. Yes. The machine is fitted with an integrated coolant system to help manage heat during use.
A. Yes. Related variants include MAG110V, MAG230V, and MAG60230V, which differ in voltage or specification. Check each product listing for their specific details.
A. The MAG60230V is an alternative from the same product family rated for 230V use. The MAG60230VHD is also available as a heavy-duty alternative - see its listing for full specification details.
