Product Number: MAG230V
Variations

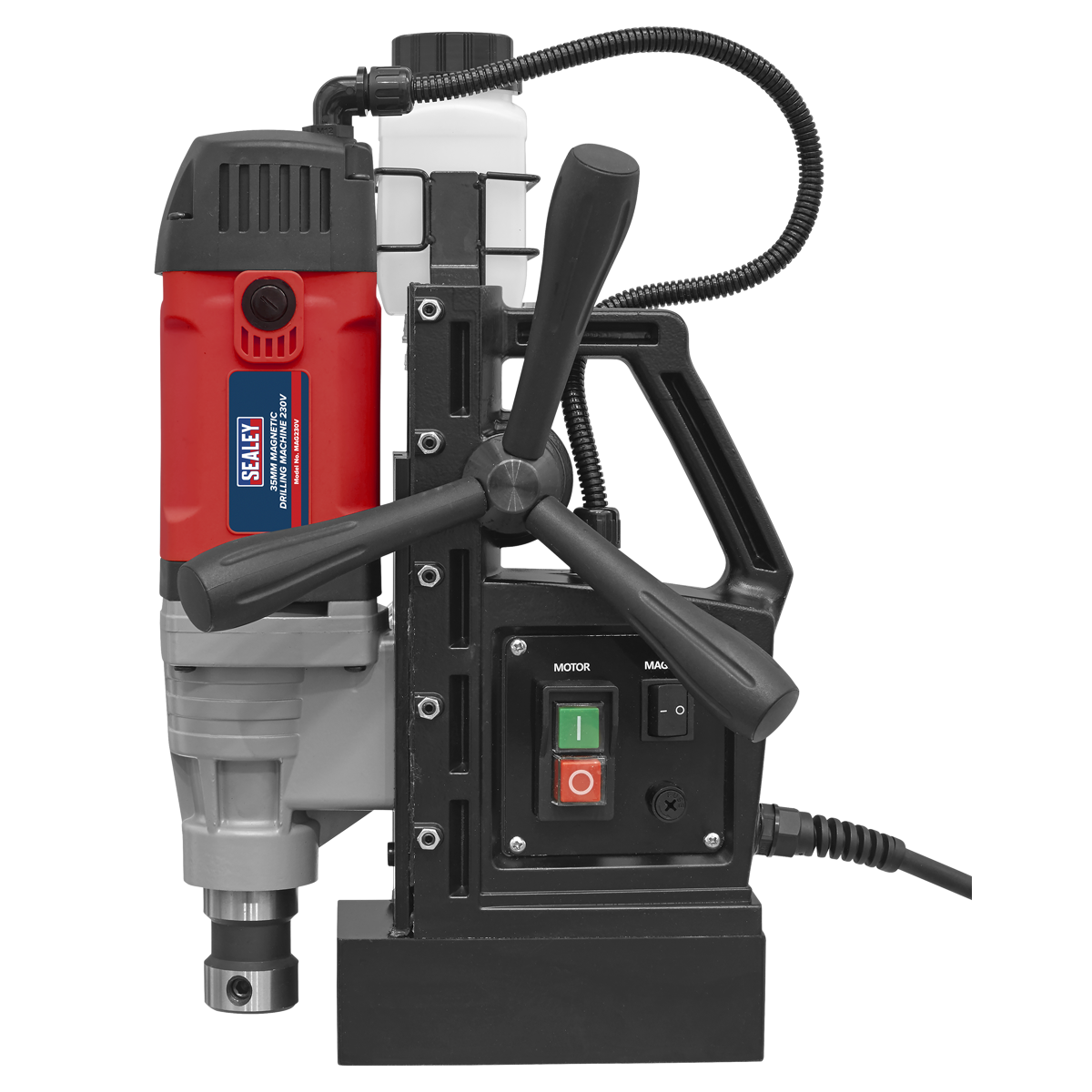

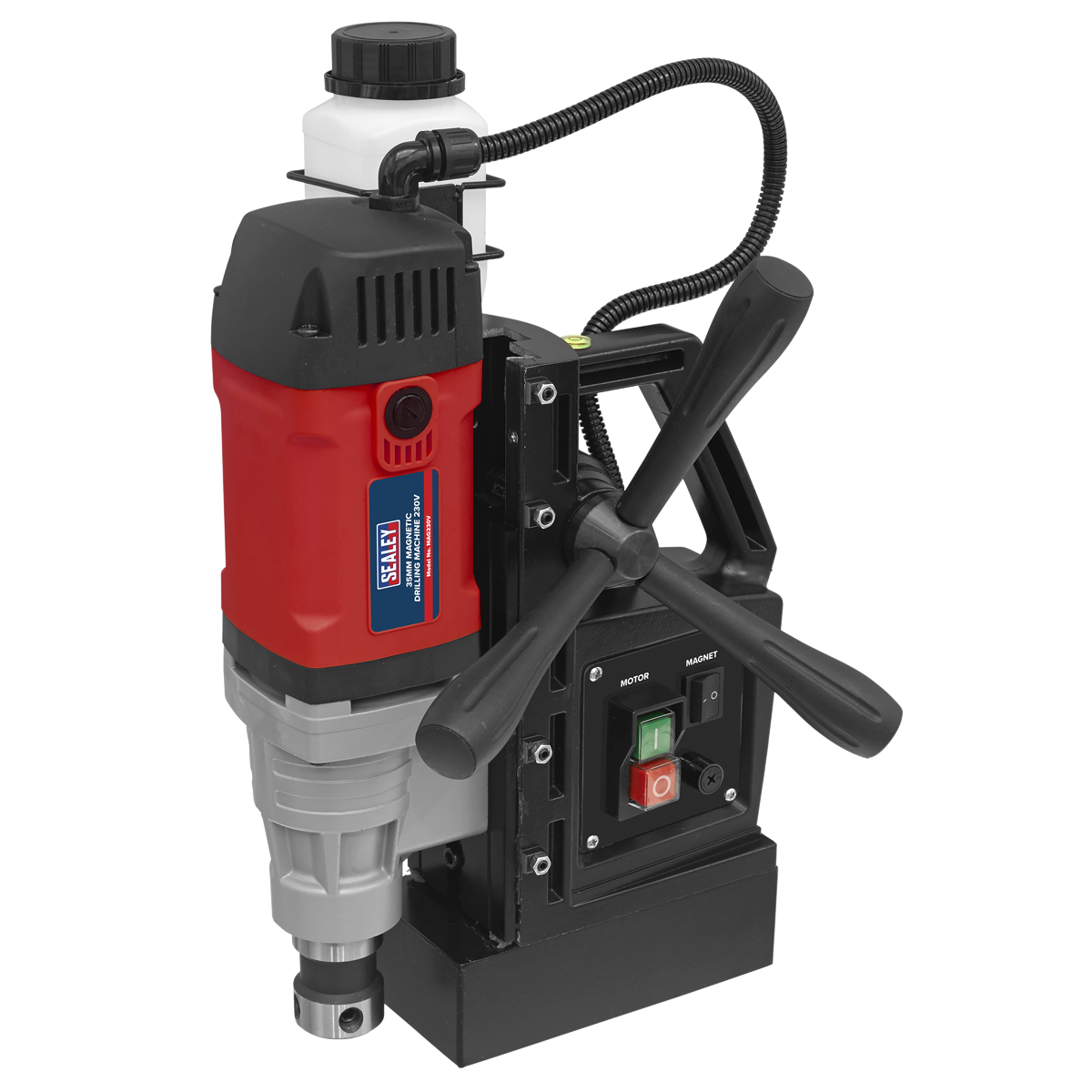

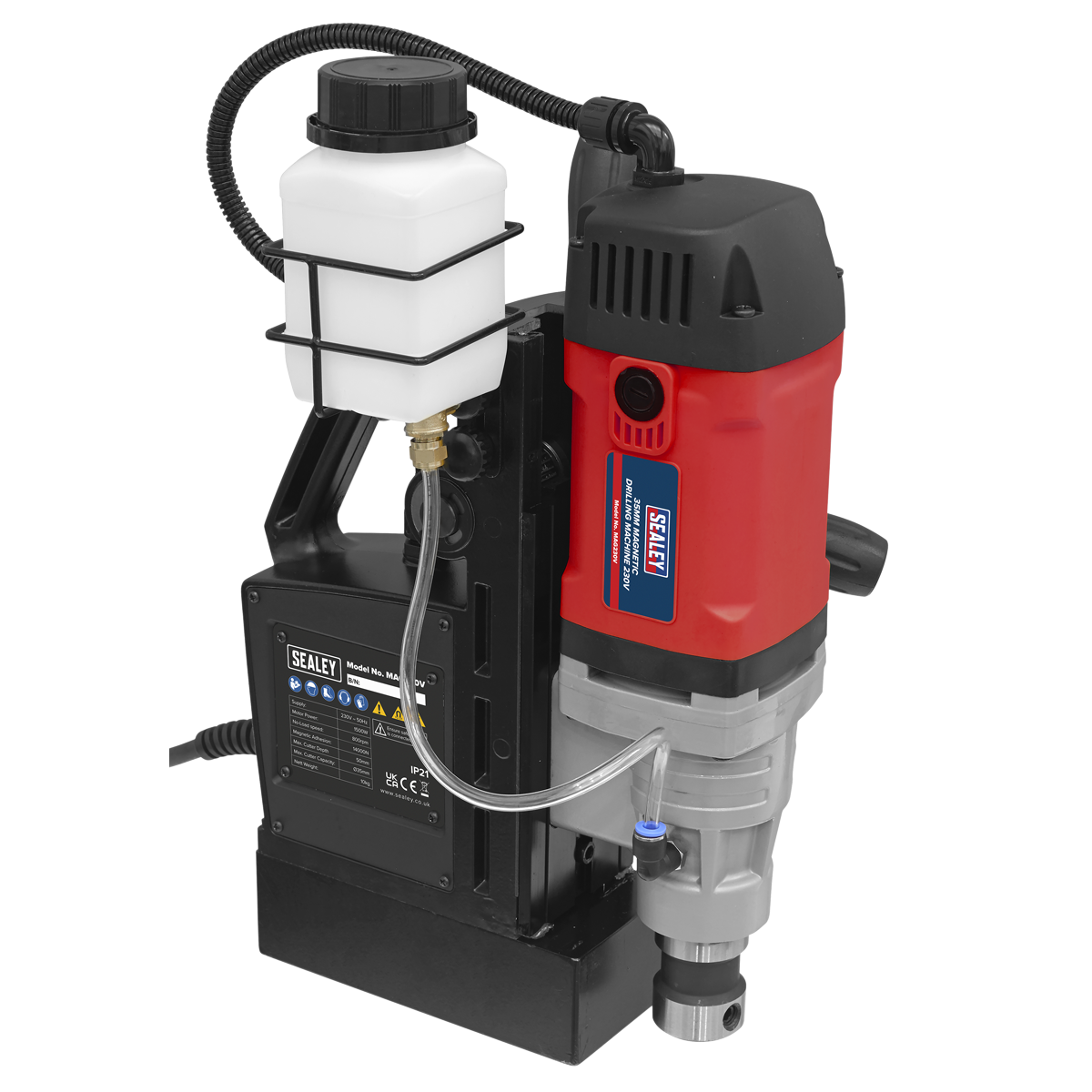

Drilling precise holes in ferrous metal in fabrication or construction environments requires a machine that stays firmly in place, even at awkward angles the Sealey MAG230V Magnetic Drilling Machine is built to do exactly that. The unit is constructed from heavy-duty die-cast magnesium alloy, keeping the overall weight down without compromising rigidity. A powerful integrated magnet delivers 14,000N of adhesion force, holding the machine securely to the workpiece at any angle throughout the operation. The 1500W motor drives annular cutters up to 35mm in diameter and up to 50mm in depth at a no-load speed of 800rpm, producing clean, accurate holes in ferrous metal. The integrated coolant system extends cutter life and improves cut quality. Included in the package are a safety fixing strap, a 10mm twist drill chuck, and the coolant system as standard. The machine runs on 230V~50Hz with a 2.5m cable for comfortable working reach. Suitable for use in fabrication, construction, and related applications involving ferrous metal.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MAG230V |
|---|---|
| Brand | Sealey |
| Cable Length | 2.5m |
| Magnet Adhesion | 14000N |
| Maximum Annular Cutter Capacity | 35mm |
| Maximum Cutter Depth | 50mm |
| Motor Power | 1500W |
| Nett Weight | 10kg |
| No-Load Speed | 800rpm |
| Supply | 230V~50Hz |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MAG60230VHD Heavy-Duty Magnetic Drilling Machine 60mm 230V
£729.11
£714.81
2% OFF
Free delivery in UK Mainland
|
Sealey MAG110V Magnetic Drilling Machine 35mm 110V 1500W
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Draper 56404 230V SDS+ Rotary Hammer Drill, 1500W, 4.9kg
£77.29
£75.77
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MAG60230VHD | MAG110V | 62880 | 66090 | 56404 | 20229 |
A. The MAG230V has a maximum annular cutter capacity of Ø35mm and a maximum cutter depth of 50mm.
A. The magnet adhesion force is 14,000N, holding the unit securely to ferrous metal surfaces at any angle.
A. The motor produces 1500W and runs at a no-load speed of 800rpm.
A. The MAG230V includes a safety fixing strap, a 10mm twist drill chuck, and an integrated coolant system.
A. The MAG230V is designed for use when drilling ferrous metal, and is suited to fabrication, construction, and similar applications.
A. The MAG230V operates on 230V~50Hz with a 2.5m cable.
A. Yes, variants in the same product family include MAG110V (110V version), MAG60110V, and MAG60230V. These are different versions of the magnetic drilling machine range - please check each listing for their specific specifications.
A. Yes, the MAG60230VHD is listed as an alternative product that performs a similar function. Please refer to that product's listing for its specifications.
A. No - the MAG230V is a magnetic drilling machine, not a welding unit. It is designed for drilling holes in ferrous metal using annular cutters or a twist drill chuck.
A. Standard UK mainland delivery is 3-5 working days.
