Product Number: 06357

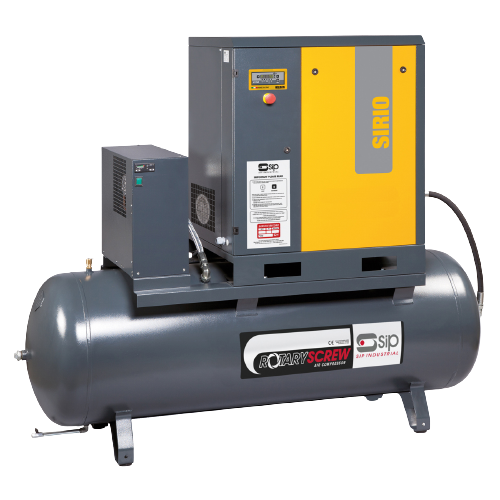

SIP 06357 SIRIO 15-13-500ES Screw Compressor is a high-pressure 13bar rotary screw and dryer package designed for continuous operation in demanding industrial applications. A 20hp (15kW) IE3 motor on 400v 40A 3‑phase supply drives an Italian FS26 TF air end delivering 53.00CFM (1501ltr/min) Free Air Delivery at up to 189psi (13bar) into a 500 litre receiver. An ETM II controller with digital display provides easy access to pressure, hours and temperature information, while a star delta starter system controls motor inrush current. The integrated refrigeration dryer, powered by 230v 13A, supplies cooler, drier air to protect downstream equipment and improve process quality. A silenced cabinet enclosure, POLY‑V belt drive and heavy-duty cooling fan support efficient, quiet running at 70dB(A) and 100% duty. Front and rear access panels simplify maintenance. Built in Italy and fully UK tested by SIP, the SIRIO 15‑13‑500ES is ideal where high-pressure, high-volume compressed air is critical.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 06357 |
|---|---|
| Input Supply | 400v (40A) 3-PHASE |
| Motor Power | 20hp (15kW) IE3 |
| Receiver Size | 500ltr |
| Controller Type | ETM II |
| Starter System Type | Star Delta |
| Refrigeration Dryer | 230v (13A) |
| Free Air Delivery (FAD) | 53.00CFM (1501ltr/min) |
| Max. Air Pressure | 189psi (13bar) |
| Connection Size | 3/4" |
| Noise Level | 70dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 08265 VSDD Rotary Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£4,515.82
£4,427.27
2% OFF
Free delivery in Channel Island
|
SIP 08272 VSDD/RD Rotary Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£5,460.99
£5,353.91
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | 08265 | 08272 |
| Capacity (L) | 500 | 500 |
| Drive Size (Inch) | 3/4 | 3/4 |
| Maximum Pressure (bar) | 10 | 10 |
| Power (kW) | 14 | 14 |
| Receiver Size | 500ltr | 500ltr |
A. It is a 20hp, 500 litre rotary screw compressor with integrated dryer, delivering continuous industrial air at up to 13bar.
A. It delivers around 53CFM free air, or approximately 1501 litres per minute, suitable for high-pressure, high-demand industrial applications.
A. It is powered by a 20hp, 15kW IE3 motor on a 400V, 40A three-phase supply, with a separate 230V, 13A supply for the dryer.
A. An ETM II electronic controller with digital display provides easy, reliable control and shows vital information such as pressure, hours and temperature.
A. It cools and dries the compressed air, reducing moisture and improving air quality for sensitive industrial processes and equipment.
A. An Italian-manufactured FS26 TF air end is used to deliver high-quality, constant airflow at elevated pressures of up to 13bar.
A. The silenced enclosure and cooling system keep noise around 70dB(A) and stabilise internal temperatures, improving equipment life and operator comfort.
A. A 500 litre receiver is fitted, giving substantial storage to support multiple users and pressure-critical processes.
A. It reduces power transmission losses and offers durable, low-maintenance drive between the motor and air end.
A. The IE3 motor enhances energy efficiency, lowering running costs and environmental impact during continuous operation.
A. Front and rear access panels allow technicians to reach internal components quickly, making routine maintenance faster and less disruptive.
