Product Number: PS-V91TC97PWSB80
Variations
Click on the button below to find the right air compressor

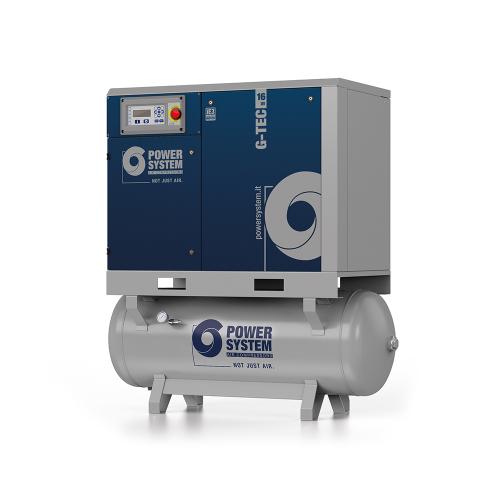

Air Compressor FinderPower Systems New G-TEC 1610-270 DF DV (Variable) Screw Compressor PS-V91TC97PWSB80 is a 15 kW, 10 bar variable speed screw compressor on a 270 litre receiver, delivering 32-72 CFM of dry compressed air for busy workshops and light industrial plants. The DF DV design combines a refrigerated dryer and twin oil-removing filters with the compressor and receiver, giving an all-in-one air station that can be installed quickly with a single power connection. Variable output between 920 and 2050 L/min allows the unit to match air production to demand, supporting lower energy use during part-load operation. Quiet at around 67 dB(A) and compact at 1600 x 740 x 1580 mm, this power systems compressor can be positioned near the point of use. An advanced programmable controller offers flexible scheduling, monitoring and networking with additional compressors, while a poly V drive, efficient motor and simple maintenance access keep running costs under control. It is an ideal 10 bar, 270 litre compressor with dryer for growth-oriented workshops.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 15 |
|---|---|
| Power (Hp) | 20 |
| Air Displacement (L/min) | 920 - 2050 |
| m3/h | 0.95 - 2.05 |
| Air Displacement (c.f.m) | 32 - 72 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 67 |
| Product L x W x H (mm) | 1600 x 740 x 1580 |
| Kg | 424 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 270Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini PLUS 1510-500 ES Screw Compressor, 15 kW, 500 Litre, 10 Bar, 65.3 CFM
£6,614.61
£6,484.91
2% OFF
Free delivery in UK Mainland
|
Phazair 5.510-270 VSD-DF Variable Speed Receiver Mounted Screw Compressor, 5.5 kW, 270 Litre, 10 Bar, 24 CFM
£7,034.76
£6,896.82
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | F-V83NQ92FNM801 | K-183042024 | ||
| Input Supply | 230 | |||
| Motor Power | 15000 | 5500 | ||
| Maximum Pressure (bar) | 10 | 10 | ||
| Tank Size | 500 | 270 | ||
| Noise Level | 70 | 69 | ||
| Maximum Pressure (psi) | 145 | 145 | ||
| Air displacement | 65.3 | 24 | ||
| Show More | ||||
A. This compressor provides 920–2050 L/min, corresponding to approximately 32–72 CFM, allowing adjustable output at 10 bar.
A. The 32–72 CFM range and DV label demonstrate the ability to vary airflow so supply better tracks system consumption.
A. A 270Lt receiver is integrated, giving 270 litres of storage in a 1600 x 740 x 1580 mm package.
A. The technical sheet shows a 67 dB(A) noise level, consistent with controlled G-TEC acoustic performance.
A. It is supplied with a refrigerated dryer and two oil-removing filters, ensuring variable airflow is always dry and clean.
A. Combining compressor, receiver, dryer and filtration under one power supply simplifies installation and reduces project complexity even for DV applications.
A. Fully programmable advanced controls can adapt performance to system needs and coordinate up to four additional compressors via network connectivity.
A. Thirty years’ design experience are used to make maintenance simple and cost-effective, helping to minimise machine downtime.
A. A high efficiency motor, advanced drive system and high performance air end contribute to reduced energy consumption across the 32–72 CFM operating band.
A. A long life poly V belt drive is fitted, engineered for efficient, low-loss power transmission.
A. It is manufactured in Europe at an advanced facility and proven in thousands of installations, underlining its dependable nature.
A. It uses 400 V three-phase supply, weighs about 424 kg, measures 1600 x 740 x 1580 mm and has a 3/4" outlet on a 270 litre receiver.
