Product Number: PS-V91ST92PWSB80

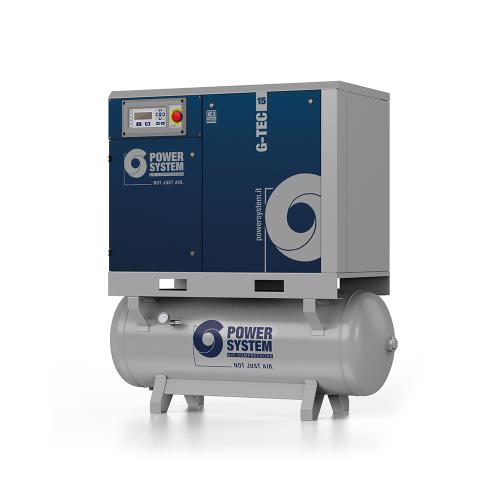

Power Systems New G-TEC 1513-270 DF Screw Compressor PS-V91ST92PWSB80 is a 15 kW, 13 bar screw compressor on a 270 litre receiver, supplying 55 CFM of clean, dry air for high-pressure industrial applications. The DF configuration includes a refrigerated dryer and oil-removing filters, so treated air is delivered directly to the system from one compact unit. Operating at just 65 dB(A) with a 1560 x 700 x 1580 mm footprint, this power systems compressor can be installed close to the point of use. A high-efficiency motor and long-life poly V drive support economical, reliable running. The advanced controller is fully programmable, network-ready and can coordinate several compressors for optimised operation. Service components are laid out for fast access, helping to minimise downtime. This 13 bar, 270 litre screw compressor with dryer is ideal for workshops and process areas needing high-pressure, high-quality air in a compact package.
Key Features:
| Power (kW) | 15 |
|---|---|
| Power (Hp) | 20 |
| Air Displacement (L/min) | 1550 |
| m3/h | 93 |
| Air Displacement (c.f.m) | 55 |
| Maximum Pressure (Bar) | 13 |
| Maximum Pressure (Psi) | 188 |
| dB(A) | 65 |
| Product L x W x H (mm) | 1560 x 700 x 1580 |
| Kg | 376 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 270Lt |
| Type (Oil-Free/ Lubricated + Electric/Petrol) | Three Phase |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
A. The unit supplies 1550 L/min, 93 m³/h or 55 CFM at 13 bar from a 15 kW, 20 Hp motor.
A. It is equipped with a 270 litre receiver, as indicated in the technical data.
A. The recorded noise level is 65 dB(A), which is low for a 15 kW, 13 bar compressor.
A. A refrigerated dryer and two oil-removing filters are built in, supplying dry, clean compressed air.
A. With primary components integrated and powered from a single supply, installation is simplified and total system cost can be reduced.
A. The technical data lists 400 V and notes that it is a three-phase unit, suitable for industrial electrical supplies.
A. Fully programmable advanced controls can adapt to many systems and coordinate up to four additional compressors on a network.
A. The design emphasises simple, cost-effective maintenance developed from thirty years’ experience, helping minimise service downtime.
A. A high efficiency motor, advanced drive system and high performance air end collectively reduce energy consumption and emissions.
A. It uses a long life poly V drive system, designed to minimise power losses and improve belt durability.
A. Manufactured in Europe at a modern facility and proven across many installations, it is presented as robust and dependable.
A. It weighs roughly 376 kg, measures 1560 x 700 x 1580 mm, operates at 400 V and uses a 3/4" outlet with a 270 litre receiver.
