Product Number: PS-V91SG92PWSB80
Variations
Click on the button below to find the right air compressor

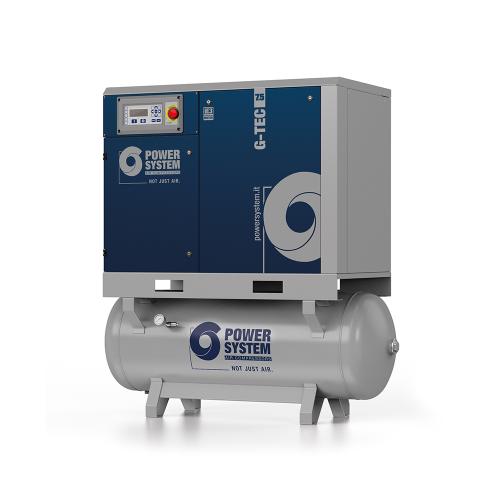

Air Compressor FinderPower Systems New G-TEC 7.508-270 DF Screw Compressor PS-V91SG92PWSB80 is a 7.5 kW, 8 Bar screw compressor package with a 270 litre receiver, refrigerated dryer and dual oil-removing filters, delivering 44 CFM of clean, dry compressed air. This all-in-one power systems compressor is designed for continuous-duty use in workshops and small industrial plants, with a very low operating noise of just 62 dB(A) allowing installation near the point of use. The compact 1560 x 700 x 1580 mm footprint saves floor space, while a high-efficiency motor and long-life poly V drive system minimise energy losses. An advanced programmable controller offers adaptable operation, monitoring and the ability to network with and control up to four other compressors. Maintenance is simple thanks to well-planned access to service components. This 8 Bar, 270 litre screw compressor with dryer is ideal for users wanting a quiet, efficient, fully featured compressed air station.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 7.5 |
|---|---|
| Power (Hp) | 10 |
| Air Displacement (L/min) | 1250 |
| m3/h | 75 |
| Air Displacement (c.f.m) | 44 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 62 |
| Product L x W x H (mm) | 1560 x 700 x 1580 |
| Kg | 326 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 270Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1110-500 DF Screw Compressor, 11 kW, 500 Litre, 10 Bar, 53 CFM
£7,039.22
£6,901.20
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1113-500 DF Screw Compressor, 11 kW, 500 Litre, 13 Bar, 41 CFM
£7,431.67
£7,285.95
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1613-500 DF Screw Compressor, 15 kW, 500 Litre, 13 Bar, 62 CFM
£7,867.62
£7,713.35
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1513-500 DF Screw Compressor, 15 kW, 500 Litre, 13 Bar, 55 CFM
£8,121.11
£7,961.87
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 808-270 ES Screw Compressor, 7.5 kW, 270 Litre, 8 Bar, 44.1 CFM
£5,528.90
£5,420.49
2% OFF
Free delivery in UK Mainland
|
Phazair 5.508 VSD-DF Variable Speed Floor Mounted & Dryer Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£6,343.06
£6,218.69
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PS-V83SP92PWSB80 | PS-V83SQ92PWSB80 | PS-V83TD92PWSB80 | PS-V83ST92PWSB80 | F-V91NG92FNM801 | K-183041022 |
| Input Supply | 400 | 400 | 400 | 400 | 230 | |
| Motor Power | 11000 | 11000 | 15000 | 15000 | 7500 | 5500 |
| Maximum Pressure (bar) | 10 | 13 | 13 | 13 | 8 | 8 |
| Tank Size | 500 | 500 | 500 | 500 | 270 | 270 |
| Noise Level | 65 | 63 | 67 | 65 | 68 | 69 |
| Maximum Pressure (psi) | 145 | 188 | 188 | 188 | 116 | 116 |
| Air displacement | 53 | 41 | 62 | 55 | 44.1 | 27.51 |
| Show More | ||||||
A. This Power Systems G-TEC 7.508-270 DF delivers 1250 L/min, 75 m³/h or 44 CFM at 8 bar working pressure from a 7.5 kW, 10 Hp drive.
A. The technical data lists a receiver size of 270Lt, indicating a 270 litre integrated air receiver.
A. The technical information records a 62 dB(A) noise level, and the features describe the G-TEC series as offering very low operating noise.
A. The G-TEC DF models include a fully integrated air treatment system with refrigerated dryer and two oil-removing filters, supplying continuous dry and clean compressed air.
A. The features describe the G-TEC as an instantly installable “All in One” solution with single power supply, making the electrical installation convenient and economical.
A. It is fully programmable with advanced controls, adaptable to many systems, and can control up to four other compressors using its network-capable controller.
A. The design draws on thirty years of experience to provide simple, cost-effective maintenance, helping to reduce service complexity and associated costs.
A. A high efficiency motor, advanced drive system and in-house high performance compressor air end work together to reduce energy consumption and CO₂ production.
A. An advanced drive system with long life poly V design is used, minimising energy losses compared with less efficient drive arrangements.
A. It is produced in Europe at a highly advanced production facility and has been proven across many thousands of installations, emphasising dependability.
A. The range covers 7.5 kW to 22 kW with 270 or 500 litre receivers and operating pressures of 8, 10 or 13 bar depending on model.
A. TRUST 5 Year Warranty is available on all G-TEC models, subject to the stated terms and conditions in the product programme.
