Product Number: PS-V83TC97PWSB80
Variations
Click on the button below to find the right air compressor

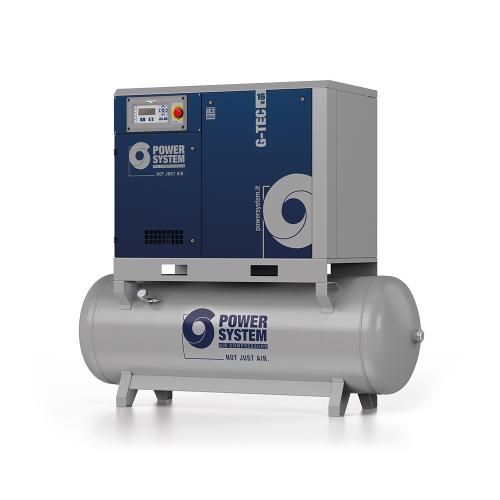

Air Compressor FinderPower Systems New G-TEC 1610-500 DF DV (Variable) Screw Compressor PS-V83TC97PWSB80 is a 15 kW, 10 bar variable speed screw compressor with a 500 litre receiver, delivering 32-72 CFM of clean, dry air for demanding workshops and light industrial sites. The DF DV package integrates the compressor, large receiver, refrigerated dryer and oil-removing filters to create a compact, easy-to-install air station that needs only a single power connection. Variable output between 920 and 2050 L/min enables the compressor to respond to fluctuating demand, improving energy efficiency. A 2000 x 740 x 1666 mm footprint and approximately 67 dB(A) noise level make it suitable for installation in the production area. Advanced programmable controls offer monitoring, scheduling and networking with other compressors, while a poly V drive, efficient motor and grouped service points reduce running and maintenance costs. This 10 bar, 500 litre power systems compressor with dryer is ideal where capacity, pressure and energy performance are all key.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 15 |
|---|---|
| Power (Hp) | 20 |
| Air Displacement (L/min) | 920 - 2050 |
| m3/h | 0.95 - 2.05 |
| Air Displacement (c.f.m) | 32 - 72 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 67 |
| Product L x W x H (mm) | 2000 x 740 x 1666 |
| Kg | 458 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 500Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1113-270 DF Screw Compressor, 11 kW, 270 Litre, 13 Bar, 41 CFM
£7,108.07
£6,968.70
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 7.508-270 DF Screw Compressor, 7.5 kW, 270 Litre, 8 Bar, 44 CFM
£6,134.54
£6,014.25
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1510-500 ES Screw Compressor, 15 kW, 500 Litre, 10 Bar, 65.3 CFM
£6,614.61
£6,484.91
2% OFF
Free delivery in UK Mainland
|
Phazair 5.510-270 VSD-DF Variable Speed Receiver Mounted Screw Compressor, 5.5 kW, 270 Litre, 10 Bar, 24 CFM
£7,034.76
£6,896.82
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | PS-V91SQ92PWSB80 | PS-V91SG92PWSB80 | F-V83NQ92FNM801 | K-183042024 |
| Input Supply | 400 | 400 | 230 | |
| Motor Power | 11000 | 7500 | 15000 | 5500 |
| Maximum Pressure (bar) | 13 | 8 | 10 | 10 |
| Tank Size | 270 | 270 | 500 | 270 |
| Noise Level | 65 | 62 | 70 | 69 |
| Maximum Pressure (psi) | 188 | 116 | 145 | 145 |
| Air displacement | 41 | 44 | 65.3 | 24 |
| Show More | ||||
A. This 15 kW compressor provides between 920 and 2050 L/min, corresponding to approximately 32–72 CFM at 10 bar working pressure.
A. The 32–72 CFM range and DV label indicate that airflow can be modulated significantly, helping match compressed air supply with varying 10 bar usage.
A. It is fitted with a 500Lt receiver, giving 500 litres of compressed air storage within a 2000 x 740 x 1666 mm footprint.
A. The technical specification records a 67 dB(A) noise level, supporting relatively quiet operation for a large variable-output machine.
A. A refrigerated dryer and two oil-removing filters are integrated, ensuring the variable-flow air remains dry and clean at all times.
A. Compressor, receiver, dryer and filtration are combined under one power supply, making installation faster and more economical despite the DV capability.
A. Fully programmable advanced controls adapt to system needs and, with network capability, can coordinate up to four additional compressors.
A. The design, built on thirty years’ experience, focuses on straightforward, cost-effective maintenance that minimises service downtime.
A. A high efficiency motor, advanced drive system and high performance air end reduce energy consumption across the 32–72 CFM operating band.
A. The machine uses a long life poly V drive, chosen for efficient, low-loss power transmission in variable-load conditions.
A. It is manufactured in Europe at a sophisticated facility and proven in many thousands of installations, emphasising robust, dependable performance.
A. It runs on 400 V three-phase supply, weighs about 458 kg, measures 2000 x 740 x 1666 mm and uses a 3/4" outlet on a 500 litre receiver.
