Product Number: PS-V83TB97PWSB80
Variations
Click on the button below to find the right air compressor

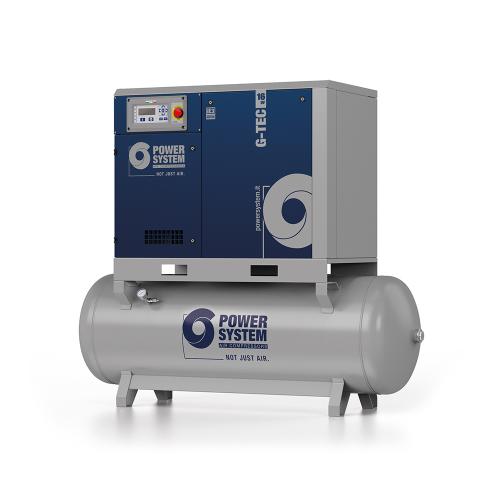

Air Compressor FinderPower Systems New G-TEC 1608-500 DF DV (Variable) Screw Compressor PS-V83TB97PWSB80 is a 15 kW, 8 bar variable speed screw compressor with a 500 litre receiver, delivering 37-83 CFM of dry compressed air for high-demand workshops and small industrial plants. The DF DV configuration combines compressor, large receiver, refrigerated dryer and oil-removing filters in a single package, simplifying installation and providing clean, dry air straight from the outlet. Variable output from 1050 to 2350 L/min allows the unit to match air production to system demand, supporting significant energy savings. With a 2000 x 740 x 1666 mm footprint and a noise level around 67 dB(A), this power systems compressor can be installed close to the point of use. Advanced programmable controls, long-life poly V drive, high-efficiency motor and easy service access all help to reduce operating and maintenance costs. It is an excellent 8 bar, 500 litre air station for users focused on capacity, air quality and efficiency.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 15 |
|---|---|
| Power (Hp) | 20 |
| Air Displacement (L/min) | 1050 - 2350 |
| m3/h | 1.05 - 2.35 |
| Air Displacement (c.f.m) | 37 - 83 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 67 |
| Product L x W x H (mm) | 2000 x 740 x 1666 |
| Kg | 458 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 500Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1110-270 DF DV (Variable) Screw Compressor, 11 kW, 270 Litre, 10 Bar, 21-53 CFM
£9,360.82
£9,177.27
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1110-270 DF Screw Compressor,11 kW, 270 Litre, 10 Bar, 53 CFM
£6,456.75
£6,330.15
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1113-270 DF Screw Compressor, 11 kW, 270 Litre, 13 Bar, 41 CFM
£7,108.07
£6,968.70
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | PS-V91SP97PWSB80 | PS-V91SP92PWSB80 | PS-V91SQ92PWSB80 | |
| Input Supply | 400 | 400 | 400 | |
| Motor Power | 11000 | 11000 | 11000 | |
| Maximum Pressure (bar) | 10 | 10 | 13 | |
| Tank Size | 270 | 270 | 270 | |
| Noise Level | 65 | 65 | 65 | |
| Maximum Pressure (psi) | 145 | 145 | 188 | |
| Air displacement | 21 - 53 | 53 | 41 | |
| Show More | ||||
A. This 15 kW DV model provides between 1050 and 2350 L/min, equivalent to roughly 37–83 CFM at 8 bar working pressure.
A. The 37–83 CFM range and DV designation show it can modulate output significantly, better aligning air supply with changing 8 bar system requirements.
A. The technical data lists a 500Lt receiver, providing 500 litres of storage within a 2000 x 740 x 1666 mm package.
A. The compressor has a recorded sound level of 67 dB(A), giving controlled acoustic performance for a large, variable-output screw compressor.
A. It includes a refrigerated dryer and two oil-removing filters, ensuring the variable airflow is always delivered as dry, clean compressed air.
A. Compressor, 500 litre receiver, dryer and filtration are factory-integrated and fed from a single power supply, streamlining installation even when variable capacity is needed.
A. Fully programmable advanced controls can adapt performance to system demands and are network-capable, allowing control of up to four additional compressors.
A. The design, based on thirty years’ experience, focuses on simple, cost-effective maintenance to limit downtime and keep servicing efficient.
A. A high efficiency motor, advanced drive system and high performance air end combine to reduce energy consumption across the 37–83 CFM operating range.
A. A long life poly V belt drive is used, engineered for low transmission losses and durable service under varying load conditions.
A. It is built in Europe at a leading production facility and has been proven across many thousands of installations, emphasising dependable long-term performance.
A. It operates from 400 V three-phase, weighs about 458 kg, measures 2000 x 740 x 1666 mm and uses a 3/4" outlet on a 500 litre receiver.
