Product Number: PS-V83SR92PWSB80

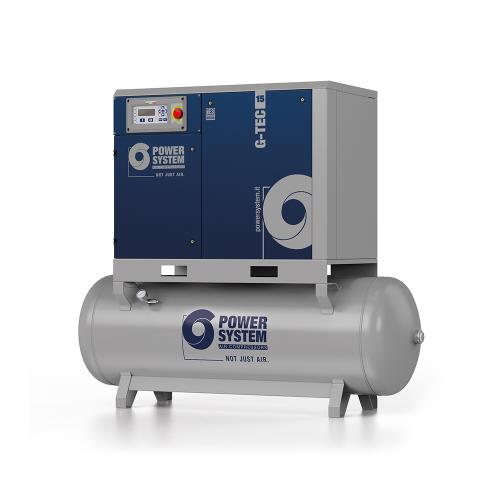

Power Systems New G-TEC 1508-500 DF Screw Compressor PS-V83SR92PWSB80 is a 15 kW, 8 bar screw compressor package with a 500 litre receiver, refrigerated dryer and dual oil-removing filters, delivering 76 CFM of clean, dry compressed air. The larger receiver capacity helps to smooth demand peaks and provides additional reserve for air-hungry tools and equipment. Despite this, the unit remains compact with a 1560 x 700 x 1580 mm footprint and quiet at about 65 dB(A), making it suitable for installation in the work area. A high-efficiency motor and poly V drive system promote efficient, reliable operation. The advanced controller is fully programmable, supports system networking and can manage multiple compressors for optimum plant performance. Service-friendly design keeps maintenance straightforward and quick. This 8 bar, 500 litre power systems compressor with dryer is a strong choice for workshops needing a quiet, all-in-one air station with extra storage.
Key Features:
| Power (kW) | 15 |
|---|---|
| Power (Hp) | 20 |
| Air Displacement (L/min) | 2150 |
| m3/h | 129 |
| Air Displacement (c.f.m) | 76 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 65 |
| Product L x W x H (mm) | 1560 x 700 x 1580 |
| Kg | 376 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 500Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1608-270 DF Screw Compressor, 15 kW, 270 Litre, 8 Bar, 83 CFM
£7,273.83
£7,131.21
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1510-500 ES Screw Compressor, 15 kW, 500 Litre, 10 Bar, 65.3 CFM
£6,614.61
£6,484.91
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | PS-V91TB92PWSB80 | F-V83NQ92FNM801 |
| Capacity (L) | 270 | 500 |
| Drive Size (Inch) | 3/4 | |
| Maximum Pressure (bar) | 8 | 10 |
| Power (kW) | 15 | 15 |
| Receiver Size | 270Lt | 500Lt |
A. This 15 kW compressor delivers 2150 L/min, 129 m³/h or 76 CFM at 8 bar operating pressure.
A. It features a 500 litre receiver, paired with a package footprint of 1560 x 700 x 1580 mm.
A. The technical information records a noise level of 65 dB(A), reflecting controlled acoustic performance.
A. A refrigerated dryer and two oil-removing filters are integrated, providing continuous dry, clean compressed air.
A. With key components pre-installed and a single power supply, installation time and complexity are significantly reduced.
A. It utilises fully programmable controls that adapt to many systems and can supervise up to four additional compressors.
A. The design draws on thirty years’ experience to keep maintenance simple and cost-effective, reducing downtime.
A. A high efficiency motor, advanced drive system and high performance air end are combined to reduce energy demand and emissions.
A. A long life poly V drive is fitted, ensuring efficient power transfer with low losses.
A. Built in Europe at an advanced plant and proven in thousands of installations, it is positioned as extremely dependable.
A. It is a 15 kW, 8 bar, 500 litre variant within the wider 7.5–22 kW G-TEC range.
A. It runs at 400 V, weighs about 376 kg, measures 1560 x 700 x 1580 mm and uses a 3/4" outlet on a 500 litre receiver.
