Product Number: PS-V83SP92PWSB80

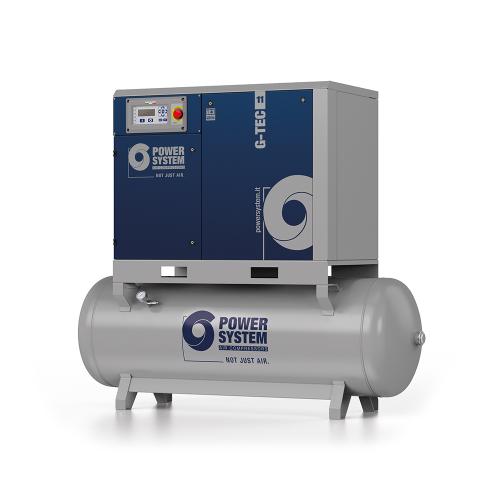

Power Systems New G-TEC 1110-500 DF Screw Compressor PS-V83SP92PWSB80 is an 11 kW, 10 bar screw compressor on a 500 litre receiver, delivering 53 CFM of dry, treated compressed air for demanding workshops and light industrial sites. The integrated refrigerated dryer and two oil-removing filters ensure a continuous supply of clean air, protecting downstream tools and equipment. With a low 65 dB(A) operating noise and a compact 1980 x 700 x 1670 mm footprint, this power systems compressor can be installed in the work area, reducing pipe runs and pressure losses. A high-efficiency motor and poly V belt drive improve energy efficiency and reliability, while the advanced controller offers programmable operation, system monitoring and the ability to manage multiple compressors in a network. Service components are arranged for easy access, keeping maintenance fast and predictable. This 10 bar, 500 litre screw compressor with dryer is an excellent choice where capacity, air quality and space efficiency matter.
Key Features:
| Power (kW) | 11 |
|---|---|
| Power (Hp) | 15 |
| Air Displacement (L/min) | 1500 |
| m3/h | 90 |
| Air Displacement (c.f.m) | 53 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 65 |
| Product L x W x H (mm) | 1980 x 700 x 1670 |
| Kg | 410 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 500Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1108-500 DF DV (Variable) Screw Compressor, 11 kW, 500 Litre, 8 Bar, 23-58 CFM
£9,873.80
£9,680.20
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1110-270 ES Screw Compressor, 11 kW, 270 Litre, 10 Bar, 53 CFM
£5,799.95
£5,686.23
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1110-270 Screw Compressor, 11 kW, 270 Litre, 10 Bar, 53 CFM
£4,793.27
£4,699.28
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1110-500 Screw Compressor, 11 kW, 500 Litre, 10 Bar, 53 CFM
£5,087.80
£4,988.04
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1110-500 ES Screw Compressor, 11 kW, 500 Litre, 10 Bar, 53 CFM
£6,091.53
£5,972.09
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1108-500 Screw Compressor, 11 kW, 500 Litre, 8 Bar, 58.2 CFM
£5,087.80
£4,988.04
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PS-V83SN97PWSB80 | F-V91NM92FNM801 | F-V91NM92FNM701 | F-V83NM92FNM701 | F-V83NM92FNM801 | F-V83NL92FNM701 |
| Type | Variable Speed | |||||
| Capacity (L) | 500 | 270 | 270 | 500 | 500 | 500 |
| Drive Size (Inch) | 3/4 | |||||
| Maximum Pressure (bar) | 8 | 10 | 10 | 10 | 10 | 8 |
| Power (kW) | 11 | 11 | 11 | 11 | 11 | 11 |
| Receiver Size | 500Lt | 270Lt | 270Lt | 500Lt | 500Lt | 500Lt |
A. This model offers 1500 L/min, 90 m³/h or 53 CFM at 10 bar, powered by an 11 kW, 15 Hp motor.
A. The receiver size is specified as 500 litres, within a 1980 x 700 x 1670 mm package.
A. The technical document lists a noise level of 65 dB(A), consistent with low-noise G-TEC characteristics.
A. It includes a refrigerated dryer and two oil-removing filters, enabling delivery of dry, clean compressed air without external treatment units.
A. All main components are pre-installed and powered from a single supply, which simplifies installation and reduces initial project costs.
A. The fully programmable controller can adapt to many systems and can coordinate up to four other compressors within a networked arrangement.
A. A design based on three decades of experience focuses on quick, cost-effective maintenance to minimise service time and associated costs.
A. A high efficiency motor, advanced drive system and high performance air end jointly reduce energy consumption and CO₂ output.
A. A long life poly V drive system is employed, chosen for low energy losses and extended belt life.
A. It is European-built at a modern facility and has been proven across many thousands of installations, supporting its reliability.
A. It belongs to the 7.5–22 kW G-TEC range, which spans 270 and 500 litre receivers with various pressure options.
A. It runs on 400 V, weighs approximately 410 kg, measures 1980 x 700 x 1670 mm and uses a 3/4" outlet on its 500 litre receiver.
