Product Number: PS-V83SG92PWSB80
Variations
Click on the button below to find the right air compressor

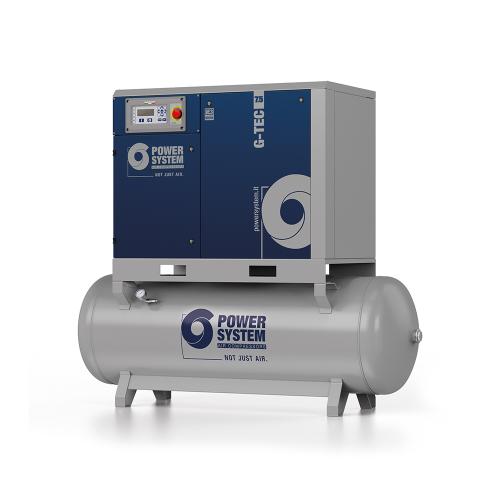

Air Compressor FinderPower Systems New G-TEC 7.508-500 DF Screw Compressor PS-V83SG92PWSB80 is a 7.5 kW, 8 Bar screw compressor with a 500 litre receiver, refrigerated dryer and oil-removing filters, providing 44 CFM of clean, dry compressed air for workshops and light industry. The larger 500 litre receiver increases storage, helping to cover demand peaks and improve system stability. Despite this, the unit operates at only 62 dB(A) and has a compact 1980 x 700 x 1670 mm footprint, making it suitable for installation near the point of use. A high-efficiency motor and poly V drive system minimise energy losses, while the advanced controller is fully programmable and capable of managing up to four other compressors in a network. Service-friendly design keeps maintenance straightforward. This 8 Bar, 500 litre screw compressor with dryer is an excellent option for users wanting a quiet, efficient, all-in-one air station with extra storage.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 7.5 |
|---|---|
| Power (Hp) | 10 |
| Air Displacement (L/min) | 1250 |
| m3/h | 75 |
| Air Displacement (c.f.m) | 44 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 62 |
| Product L x W x H (mm) | 1980 x 700 x 1670 |
| Kg | 386 |
| Volt | 400 |
| Outlet G (") | 3/4" |
| Receiver Size | 500Lt |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Power Systems New G-TEC 1110-270 DF Screw Compressor,11 kW, 270 Litre, 10 Bar, 53 CFM
£6,456.75
£6,330.15
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1113-270 DF Screw Compressor, 11 kW, 270 Litre, 13 Bar, 41 CFM
£7,108.07
£6,968.70
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | PS-V91SP92PWSB80 | PS-V91SQ92PWSB80 | ||
| Input Supply | 400 | 400 | ||
| Motor Power | 11000 | 11000 | ||
| Maximum Pressure (bar) | 10 | 13 | ||
| Tank Size | 270 | 270 | ||
| Noise Level | 65 | 65 | ||
| Maximum Pressure (psi) | 145 | 188 | ||
| Air displacement | 53 | 41 | ||
| Show More | ||||
A. It supplies 1250 L/min, equivalent to 75 m³/h or 44 CFM at 8 bar, using a 7.5 kW, 10 Hp motor.
A. The technical data specifies a 500 litre receiver, giving substantial on-board storage within a compact 1980 x 700 x 1670 mm footprint.
A. The noise level is stated as 62 dB(A), and the G-TEC series is described as having very low operating noise suitable for workshop environments.
A. DF models include fully integrated air treatment, comprising a refrigerated dryer and two oil-removing filters for continuous supply of dry, clean compressed air.
A. This model includes all components needed for dry, clean compressed air and uses a single power supply, making installation faster and more economical.
A. It uses advanced, fully programmable controls that can adapt to different systems and even control up to four additional compressors on a network.
A. The design reflects thirty years’ experience, aiming for simple, cost-effective maintenance to minimise downtime and service complexity.
A. A high efficiency motor, advanced drive system and proprietary high performance air end combine to reduce energy usage and CO₂ production.
A. An advanced poly V drive system with long life design is fitted, helping minimise energy losses compared to less efficient drive types.
A. It is produced in Europe at a highly advanced facility and has been proven across many thousands of installations, emphasising durability and dependability.
A. It forms part of the 7.5–22 kW G-TEC series, available with 270 or 500 litre receivers and operating pressures of 8, 10 or 13 bar.
A. It operates from 400 V three-phase supply, weighs about 386 kg, and measures 1980 x 700 x 1670 mm with a 3/4" outlet and 500 litre receiver.
