Product Number: F-V91JW92FNM801

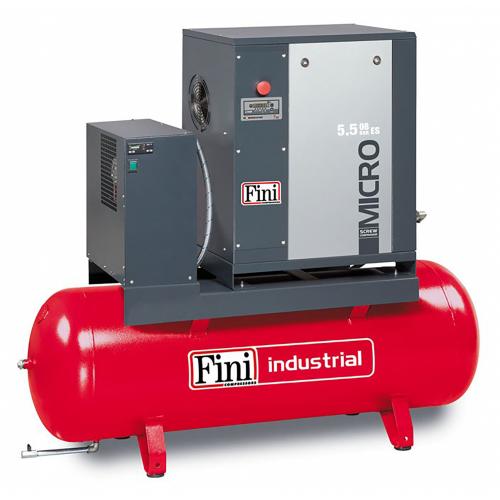

Fini MICRO 5.508-270 ES Screw Compressor is a 5.5 kW, 8 bar compressed-air station combining a rotary screw module, refrigerated dryer and 270 litre air receiver in one compact package. It delivers 720 L/min (25.4 CFM) at 8 bar while maintaining a low 64 dB(A) noise level, making it suitable for installation close to the work area. POLY-V belt drive technology provides up to three times the life of standard V-belts and improves drive efficiency, while IE3 high-efficiency motors reduce running costs. The advanced cooling system, with thermostatically controlled centrifugal fan and large surface coolers, ensures reliable operation even at higher ambient temperatures. With dimensions of 1560 x 570 x 1390 mm and a weight of 215 kg, this unit offers a powerful yet space-efficient solution for workshops needing clean, dry and continuous 8 bar air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 5.5 |
|---|---|
| Power (Hp) | 7.5 |
| Air Displacement (L/min) | 720 |
| m3/h | 48.2 |
| Air Displacement (c.f.m) | 25.4 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 64 |
| Outlet G (") | 1/2" |
| Kg | 215 |
| Receiver Size | 270Lt |
| Product L x W x H (mm) | 1560 x 570 x 1390 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini MICRO 5.508-270 Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 25.4 CFM
£4,066.65
£3,986.91
2% OFF
Free delivery in UK Mainland
|
Fini MICRO 5.508-500 ES Screw Compressor, 5.5 kW, 500 Litre, 8 Bar, 25.4 CFM
£5,342.09
£5,237.34
2% OFF
Free delivery in UK Mainland
|
Phazair 5.508-270 VSD-DF Variable Speed Receiver Mounted Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£7,034.76
£6,896.82
2% OFF
Free delivery in UK Mainland
|
Phazair 230 5.508 VSD Floor Mounted Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£5,346.64
£5,241.80
2% OFF
Free delivery in UK Mainland
|
Phazair 5.508 VSD-DF Variable Speed Floor Mounted & Dryer Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£6,343.06
£6,218.69
2% OFF
Free delivery in UK Mainland
|
Phazair 5.508-270-VSD Variable Speed Receiver Mounted Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£5,556.02
£5,447.08
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | F-V91JW92FNM701 | F-V83JW92FNM801 | K-183041024 | K-183041021 | K-183041022 | K-183041023 |
| Type | Variable Speed | With Dryer | Variable Speed | |||
| Capacity (L) | 270 | 500 | 270 | 270 | 270 | 270 |
| Drive Size (Inch) | 1/2 | 1/2 | ||||
| Maximum Pressure (bar) | 8 | 8 | 8 | 8 | 8 | 8 |
| Power (kW) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Receiver Size | 270Lt | 500Lt | 270Lt | Floor Mounted | Floor Mounted | 270Lt |
A. It is a 5.5 kW, 8 bar screw compressor delivering about 25.4 CFM, mounted on a 270 litre receiver and supplied as an ES model.
A. The data lists 720 litres per minute displacement, approximately 25.4 CFM, at a maximum pressure of 8 bar.
A. It incorporates a 270 litre receiver and weighs about 215 kilograms.
A. It operates at 64 dB(A) and measures roughly 1560 x 570 x 1390 mm.
A. The features describe compact design and very quiet operation, suitable for direct installation in the working environment.
A. It employs simple electro-mechanical automatic control, described as user friendly and safe with easy access to operating values.
A. A thermostatically controlled centrifugal fan and large cooler surfaces reduce noise, save energy and keep operating temperatures low even at higher ambient conditions.
A. A POLY-V belt drive is used, providing three times the life of normal V-belts and improved drive efficiency.
A. IE3 high efficiency motors are used, helping to cut energy consumption.
A. The MICRO range notes that ES models include on board refrigerated dryers, ensuring dry compressed air benefits your system.
A. The range is described as benefiting from advanced manufacturing, long experience and in-house component design, providing long life and reliability.
A. It is a 5.5 kW, 8 bar, 270 litre receiver-mounted ES screw compressor complementing freestanding, 500 litre and non-ES MICRO options.
