Product Number: F-V77JT72FNM701
Variations
Click on the button below to find the right air compressor

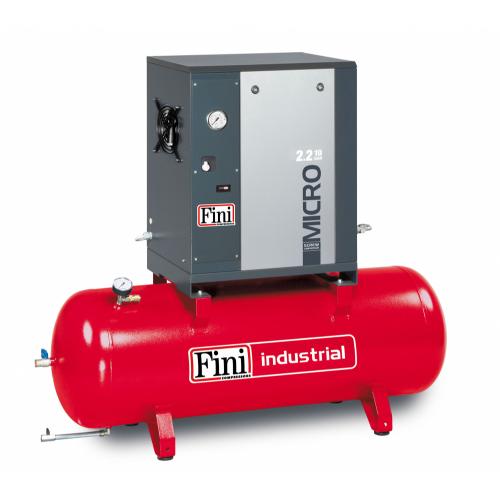

Air Compressor FinderFini MICRO SE 2.210-200 400V Screw Compressor is a 2.2kW, 10 bar receiver-mounted system offering 290L/min (10.2 CFM) and very low 58 dB(A) noise. Its 200 litre air receiver provides additional buffer for fluctuating demand. POLY-V belt transmission ensures long belt life and high efficiency, while the IE3 motor reduces energy consumption. With a robust 1440 x 510 x 1280mm frame and 144kg weight, it suits workshops needing quiet, reliable 10 bar air with reserve capacity.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 2.2 |
|---|---|
| Power (Hp) | 3 |
| Air Displacement (L/min) | 290 |
| m3/h | 17.4 |
| Air Displacement (c.f.m) | 10.2 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 58 |
| Outlet G (") | 1/2" |
| Kg | 144 |
| Receiver Size | 200Lt |
| Product L x W x H (mm) | 1440 x 510 x 1280 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05374 Mercury Mech4.0-10-200 Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,538.70
£3,469.31
2% OFF
Free delivery in Channel Island
|
Clarke CXR5R 17.1cfm 200 Litre 5.5HP Industrial Screw Compressor (400V)
£3,118.84
£3,057.69
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 05374 | 2456550 | ||
| Input Supply | 400 | 400 | ||
| Motor Power | 4 | 4000 | ||
| Warranty | 24 | 12 | ||
| Maximum Pressure (bar) | 10 | 10 | ||
| Free AirDelivery (FAD) | 17 | 17.1 | ||
| Tank Size | 0 | 200 | ||
| Noise Level | 60 | 0 | ||
| Maximum Pressure (psi) | 145 | 145 | ||
| Show More | ||||
A. It is a 2.2 kW, 200 litre receiver-mounted screw compressor rated 10 bar and around 10.2 CFM, supplied for 400 volt operation.
A. The data indicates 290 litres per minute displacement, about 10.2 CFM, at a maximum pressure of 10 bar or 145 psi.
A. It incorporates a 200 litre receiver and weighs approximately 144 kilograms.
A. It is rated at 58 dB(A), giving very quiet operation.
A. The product length, width and height are around 1440 x 510 x 1280 mm.
A. The features emphasise compact design and very quiet operation, making it suitable for direct installation close to workstations.
A. It uses simple electro-mechanical automatic control, providing user friendly access to operating values and safe operation.
A. The thermostatically controlled centrifugal fan and generous cooler surfaces reduce noise, save energy and keep air and oil temperatures under control.
A. It employs a POLY-V belt drive, offering extended belt life and higher efficiency than normal V-belts.
A. IE3 high efficiency motors are used, contributing to reduced energy consumption.
A. The key features state that MICRO is available with on-board refrigerated dryer in ES models to provide dry compressed air.
A. The range benefits from advanced manufacturing and decades of experience, with many components made in-house to support durability and reliability.
