Product Number: F-V51PC60FNM017
Variations
Click on the button below to find the right air compressor

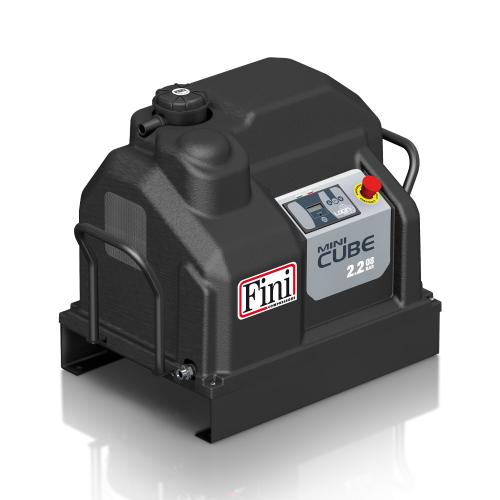

Air Compressor FinderFini Mini CUBE 2.208M is a 2.2kW floor-mounted screw compressor that offers the same 292L/min (10.3 CFM) at 8 bar performance as the 400V version but with a 230V supply, making it ideal for sites without three-phase power. Operating at 65 dB(A), it can be installed directly in the working area without causing excessive noise. The compact 780 x 460 x 600mm chassis and 68kg weight support easy handling and installation. This plug & play unit is supplied pre-filled with RotarECOFLUID oil and features a reliable, compact design with simplified maintenance access. Mini CUBE 2.208M suits workshops, bodyshops and light industrial users who need continuous 8 bar air from a quiet, efficient rotary screw compressor but only have 230V power available.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 2.2 |
|---|---|
| Power (Hp) | 3 |
| Air Displacement (L/min) | 292 |
| Receiver Size | Floor |
| Air Displacement (c.f.m) | 10.3 |
| Maximum Pressure (Bar) | 8 |
| Maximum Pressure (Psi) | 116 |
| dB(A) | 65 |
| Outlet G (") | 1/2" |
| Kg | 68 |
| Product L x W x H (mm) | 780 x 460 x 600 |
| Volt | 230 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 2456290 | |||
| Input Supply | 230 | |||
| Motor Power | 2200 | |||
| Warranty | 12 | |||
| Maximum Pressure (bar) | 10 | |||
| Free AirDelivery (FAD) | 8.5 | |||
| Tank Size | 200 | |||
| Maximum Pressure (psi) | 145 | |||
| Show More | ||||
A. The 2.208M shares the same 2.2 kW, 8 bar, 10.3 CFM performance but is configured for 230 volt supply instead of 400 volt.
A. Yes, it is likewise a floor mounted rotary screw compressor, offering compact, silenced performance without an integrated receiver tank beneath the unit.
A. It is described as an advanced, silenced rotary screw compressor suitable for high usage applications requiring continuous, reliable air output.
A. Yes, like other Mini CUBE models it is PLUG&PLAY, delivered prefilled with RotarECOFLUID mineral oil so installation mainly requires electrical and air connections.
A. The quoted noise level is about 65 dB(A), enabling installation close to work areas without imposing excessive noise on operators.
A. It uses a 2.2 kW, 3 horsepower motor to deliver approximately 292 litres per minute, around 10.3 CFM, at 8 bar working pressure.
A. The compact cabinet simplifies siting in restricted spaces and, combined with easy transport, makes it more flexible than larger screw compressor packages.
A. The design highlights simplified maintenance, with service points arranged for straightforward access and the use of dedicated screw compressor oil for reliability.
A. It suits facilities where 230 volt three phase supply is available but 400 volt is not, yet a compact screw compressor is still required.
A. Yes, it is promoted as efficient and cost effective, using optimised screw technology and cooling to minimise energy consumption.
A. It uses an internal cooling arrangement appropriate for a silenced cabinet, aiding reliability during continuous operation within its rated conditions.
A. The 2.208M represents an entry level Mini CUBE floor mounted screw compressor, sitting below larger CUBE and PLUS screw models in power and capacity.
