Product Number: F-V51JO92FNM760
Variations
Click on the button below to find the right air compressor

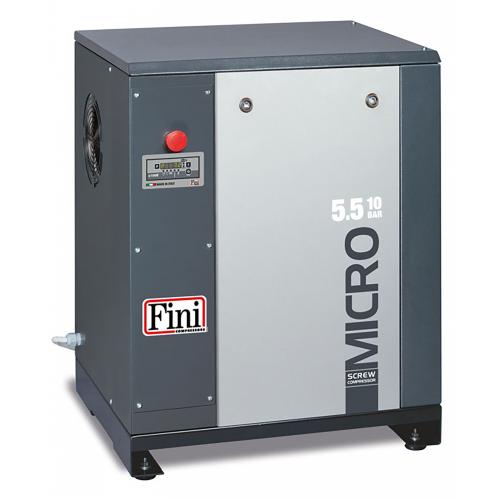

Air Compressor FinderFini MICRO 5.510 Screw Compressor is a compact 5.5 kW, 10 bar air system producing 650 L/min (23 CFM) at 64 dB(A). Designed for workshop and industrial environments requiring continuous-duty operation, it uses POLY-V belt drive and IE3 motor technology for high efficiency and durability. With its robust cooling system and compact 600 x 520 x 780 mm frame, this unit is ideal for space-restricted sites.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 5.5 |
|---|---|
| Power (Hp) | 7.5 |
| Air Displacement (L/min) | 650 |
| m3/h | 0.65 |
| Air Displacement (c.f.m) | 23 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 64 |
| Outlet G (") | 1/2" |
| Kg | 125 |
| Product L x W x H (mm) | 600 x 520 x 780 |
| Receiver Size | Floor Mounted |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini NEW CUBE 410-270 Screw Compressor, 4 kW, 10 Bar, 16.2 CFM
£3,602.52
£3,531.88
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 5.510-270 Screw Compressor, 5.5 kW, 270 Litre, 10 Bar, 24.9 CFM
£3,636.05
£3,564.75
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 5.510 Floor Mounted Screw Compressor, 5.5 kW, 10 Bar, 24.9 CFM
£3,093.44
£3,032.78
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 410 Floor Mounted Screw Compressor, 4 kW, 10 Bar, 16.2 CFM
£3,059.89
£2,999.89
2% OFF
Free delivery in UK Mainland
|
SIP 08253 VSDD Rotary Screw Compressor, Tank Capacity - 160 Litre, Max. Air Pressure - 10 Bar
£2,995.85
£2,937.11
2% OFF
Free delivery in Channel Island
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | F-V91PD92FNM201 | F-V91PE92FNM201 | F-V51PE92FNM443 | F-V51PD92FNM443 | 08253 | 2456290 |
| Input Supply | 400 | 400 | 400 | 230 | ||
| Motor Power | 4000 | 5500 | 5500 | 4000 | 2200 | |
| Warranty | 12 | |||||
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 0 | 10 |
| Free AirDelivery (FAD) | 0 | 8.5 | ||||
| Tank Size | 270 | 0 | 200 | |||
| Noise Level | 63 | 68 | 68 | 63 | 0 | 0 |
| Maximum Pressure (psi) | 145 | 145 | 145 | 145 | 0 | 145 |
| Air displacement | 16.2 | 24.9 | 24.9 | 16.2 | ||
| Show More | ||||||
A. It is a 5.5 kW screw compressor rated 10 bar and about 23 CFM, supplied in a floor mounted cabinet without integrated receiver.
A. The technical information lists 650 litres per minute displacement, around 23 CFM, at a maximum pressure of 10 bar or 145 psi.
A. It runs at 64 dB(A), weighs about 125 kilograms and measures roughly 600 x 520 x 780 mm.
A. The receiver size is described as floor mounted, indicating a freestanding cabinet without a separate receiver tank beneath it.
A. It has compact design and very quiet operation, suitable for direct installation in the working environment.
A. It utilises simple electro-mechanical automatic control, described as user friendly and safe with simple access to operating values.
A. A thermostatically controlled centrifugal fan and large coolers reduce noise, save energy and help maintain low air and oil temperatures even at higher ambient conditions.
A. A POLY-V belt drive is fitted, providing three times the service life of standard V-belts and higher efficiency.
A. IE3 high efficiency motors are used, supporting reduced energy consumption.
A. The features note that MICRO is available with on board refrigerated dryer in ES versions, supplying dry compressed air when selected.
A. It is described as benefiting from advanced manufacturing, long experience and in-house component design, providing long life and reliability.
A. It is a 5.5 kW, 10 bar freestanding screw compressor complementing 8 bar and receiver-mounted MICRO options.
