Product Number: C-SC002069/EL/300/FA
Variations

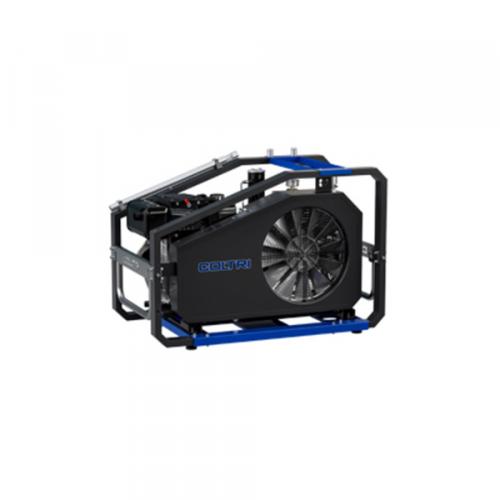

Coltri ERGO 280 DY FA Yanmar Diesel Compressor 300 Bar is a high‑pressure breathing air system built for rugged field use where diesel power and 300 bar output are required. Its 6.8kW (9.1Hp) Yanmar engine provides 270 L/min (9.5 CFM), enabling a 10L cylinder to be filled from empty to 200 bar in about 7.1 minutes. The ERGO FA package adds electric start with battery, automatic condensate drain, AutoStop with adjustable pressure switch, rotation direction control and interstage pressure gauges on a clear monitoring panel. Twin high‑pressure outlets and a Maxifilter system support consistent, clean BA filling. Housed in a robust 1120 x 630 x 770mm frame and weighing 180kg, it suits vehicle, skid or static installation at remote dive sites, industrial facilities or emergency response bases needing diesel‑driven 300 bar air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 6.8 |
|---|---|
| Power (Hp) | 9.1 |
| Air Displacement (c.f.m) | 9.5 |
| Air Displacement (L/min) | 270 |
| Maximum Pressure (Psi) | 4350 |
| Maximum Pressure (Bar) | 300 |
| Lp(A) | 72 |
| Charge Time | 7.1 |
| Kg | 180 |
| Product W x D x H (mm) | 1120 x 630 x 770 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke SD26KE150 25cfm 150 Litre 8.4HP Electric Start Diesel Stationary Air Compressor
£3,633.81
£3,562.56
2% OFF
Free delivery in UK Mainland
|
Clarke SD26K150 25cfm 150 Litre 8.4HP Diesel Stationary Air Compressor
£3,295.35
£3,230.74
2% OFF
Free delivery in UK Mainland
|
Clarke XPPH15/50 15cfm 50 Litre 6.5HP Portable Petrol Air Compressor with Cage
£1,079.52
£1,058.35
2% OFF
Free delivery in UK Mainland
|
Clarke XPP15/50 15cfm 50 Litre 6.5HP Portable Petrol Air Compressor
£1,001.43
£981.79
2% OFF
Free delivery in UK Mainland
|
Coltri ERGO 315 ET Compressor, 5.5 kW, 300 Bar, 11.1 CFM
£8,900.93
£8,726.40
2% OFF
Free delivery in UK Mainland
|
Coltri Mark III Silent 315 ET Compressor, 5.5 kW, 300 Bar, 11.1 CFM
£9,040.01
£8,862.75
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 2085291 | 2085281 | 2092565 | 2092560 | C-SC002009/300 | C-SC002047/300 |
| Warranty | 12 | 12 | 12 | 12 | ||
| Type | Electric | Diesel | Petrol | Petrol | ||
| Maximum Pressure (Bar) | 300 | 300 | ||||
| Maximum Pressure (bar) | 300 | 300 | ||||
| Power (Hp) | 7.5 | 7.5 | ||||
| Power (kW) | 5.5 | 5.5 | ||||
| Weight (kg) | 144 | 142 | 67 | 61 | 6.2 | 6.2 |
| Show More | ||||||
A. The 300bar version provides the same 270L/min output but operates at higher pressure, suitable for 300bar breathing-air cylinder systems.
A. Operations using 300bar SCBA or scuba cylinders in remote or mobile environments choose this higher-pressure diesel configuration.
A. Yes, it still uses the Yanmar diesel with electric start and onboard battery, offering reliable remote power.
A. Charging time to 200bar remains around 7.1 minutes for a 10-litre cylinder, with additional time to reach 300bar if required.
A. Operators must adhere to high-pressure procedures, regularly inspecting fittings, hoses and relief devices to mitigate risk.
A. Yes, it can supply manifolds and storage banks rated for 300bar breathing air on mobile or fixed installations.
A. Noise levels remain similar, with low-speed operation keeping sound around 72dB(A) in typical duty cycles.
A. Fire services, industrial rescue teams and remote-site operations that rely on 300bar breathing air often choose this model.
A. Yes, it retains interstage gauges, AutoStop, automatic condensate drain and rotation direction control for safe operation.
A. Secure mounting, adequate ventilation, exhaust routing and access for service must be carefully planned for mobile installations.
A. Robust mechanical design, diesel drive and low-speed pumping all contribute to durability when maintained according to Coltri guidance.
A. Operators should inspect hoses, confirm fuel and oil levels, check filters and verify safety devices before starting the unit.
