Product Number: SEXT1822430

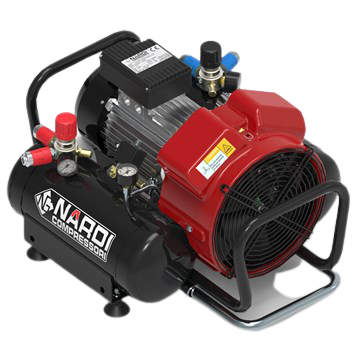

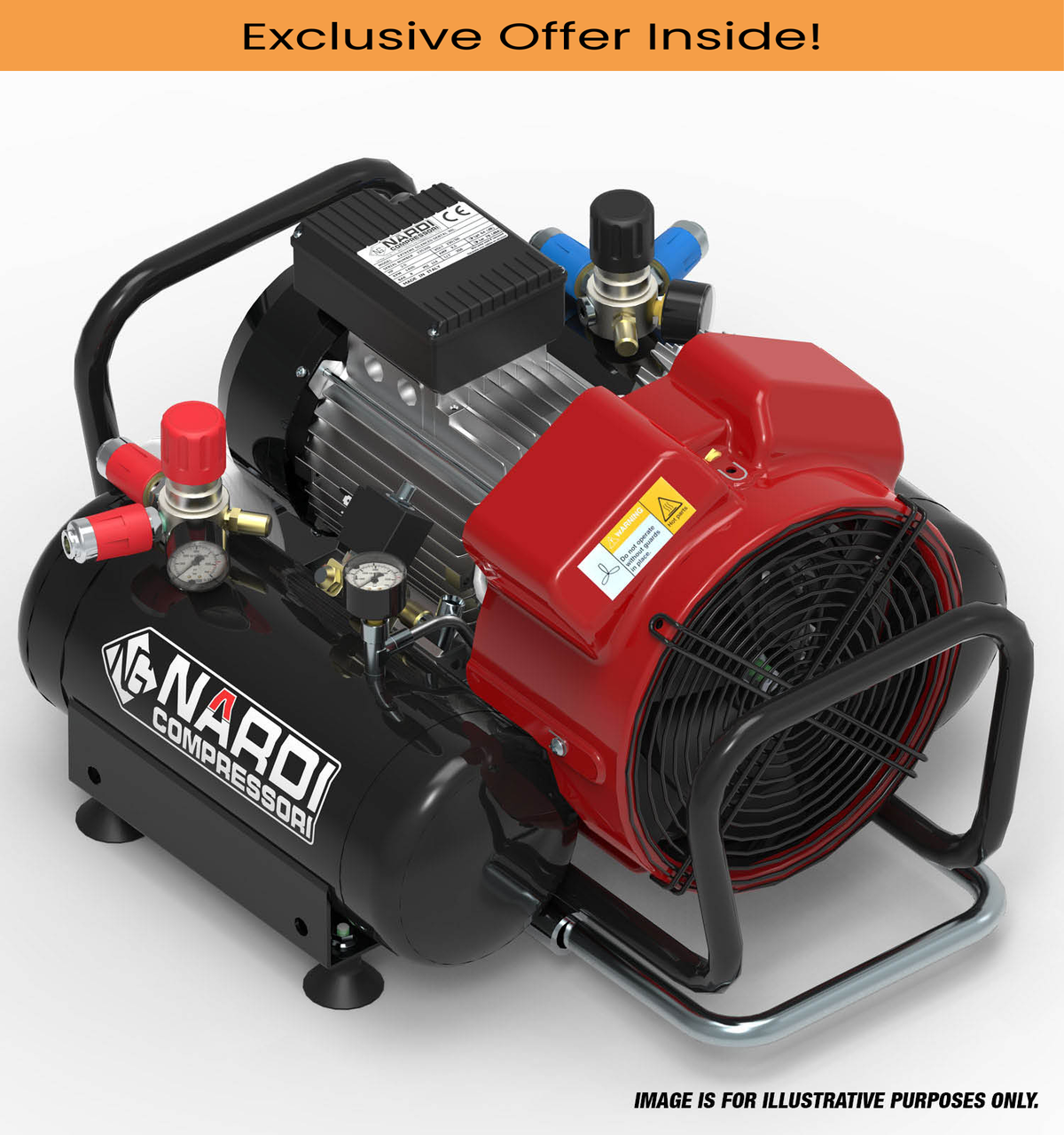

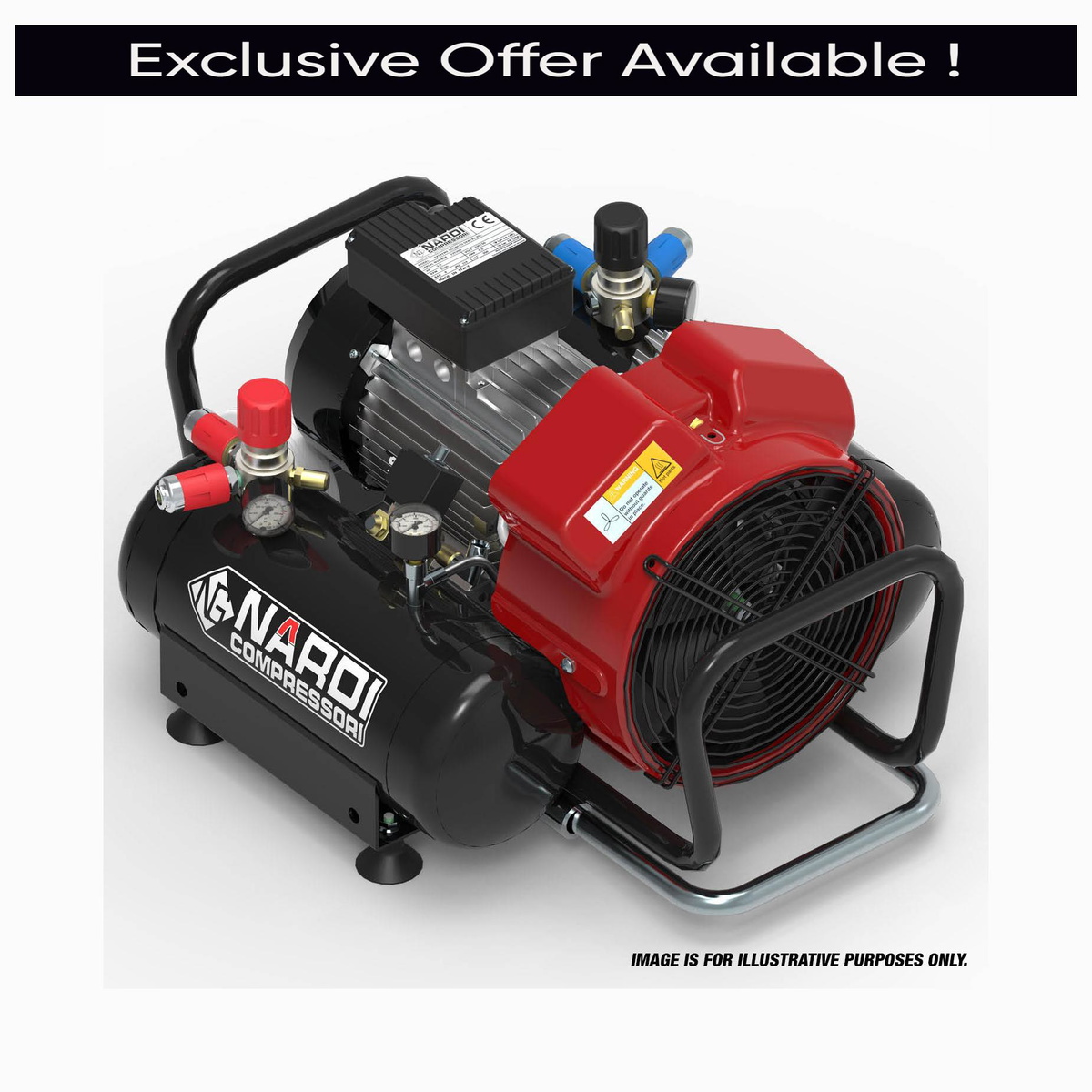

SIP SEXT1822430 NARDI Super Extreme TN1 Compressor is a versatile 2.20hp, 18L high-pressure unit providing dual-output capability up to 30bar. A 1.60kW 4‑pole slow‑running motor on 230v (13A) drives a 2‑cylinder 2‑stage oil‑free pump delivering 4.60CFM (130L/min) piston displacement and 3.22CFM (92L/min) Free Air Delivery at up to 435psi (30bar). Twin 9L receivers mounted on anti‑vibration feet offer 18L total capacity. Colour‑coded outlets provide variable 10bar and 30bar connections for different applications. Technopolymer piston rings, concentric big end bearings and crankcase air intake particle diffusion reduce wear, vibration and contamination, while fan‑shaped stainless steel valves and a heavy-duty mid-stage intercooler enhance durability and cooling. Fan ducted air cooling extends runtime and lowers noise to 72dB(A). This Super Extreme TN1 compressor is ideal for specialist industrial tasks requiring both standard 10bar and high-pressure 30bar oil-free air from a compact, quiet package.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | SEXT1822430 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.60kW (2.20hp) 4-POLE 1400rpm |
| Receiver Size | 2x 9ltr |
| Piston Displacement | 4.60CFM (130ltr/min) |
| Free Air Delivery (FAD) | 3.22CFM (92ltr/min) |
| Max. Air Pressure | 435psi (30bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT100754 NARDI Extreme 1 Compressor, Tank Capacity - 10 Litre, Max. Air Pressure - 10 Bar
£643.23
£630.62
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT100754 |
| Capacity (L) | 10 |
| ITEM NO | EXT100754 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 72dB(A) |
A. It is a versatile 30bar, 18 litre compressor with twin receivers and colour-coded outlets for 10bar and 30bar use.
A. A 1.60kW (2.20hp) four-pole slow-running motor at 1400rpm, supplied from 230v, drives the two-cylinder pump.
A. It offers 4.60CFM piston displacement and 3.22CFM free air, about 130 and 92 litres per minute respectively.
A. It is rated to 435psi, equivalent to 30bar maximum working pressure.
A. The outlets are colour-coded to provide variable 10bar and 30bar supplies, allowing different tools or systems to be served from the same unit.
A. The two-stage pump uses technopolymer piston rings and stainless valves, providing oil-free air and reduced maintenance in high-pressure duties.
A. The heavy-duty intercooler reduces air temperature between stages, improving efficiency and protecting downstream components in the high-pressure circuit.
A. They lower vibration and mechanical stress on the crankshaft, enhancing pump durability under 30bar duty.
A. It reduces contamination in the crankcase, helping maintain valve plate performance and consistent compressed-air output.
A. Its low-noise design and fan air ducting cooling provide extended runtime with a noise level around 72dB(A), suitable for sensitive sites.
A. Two 9ltr receivers give 18 litres total, providing stable pressure and compact footprint for high-pressure applications.
