Product Number: EXTN50254

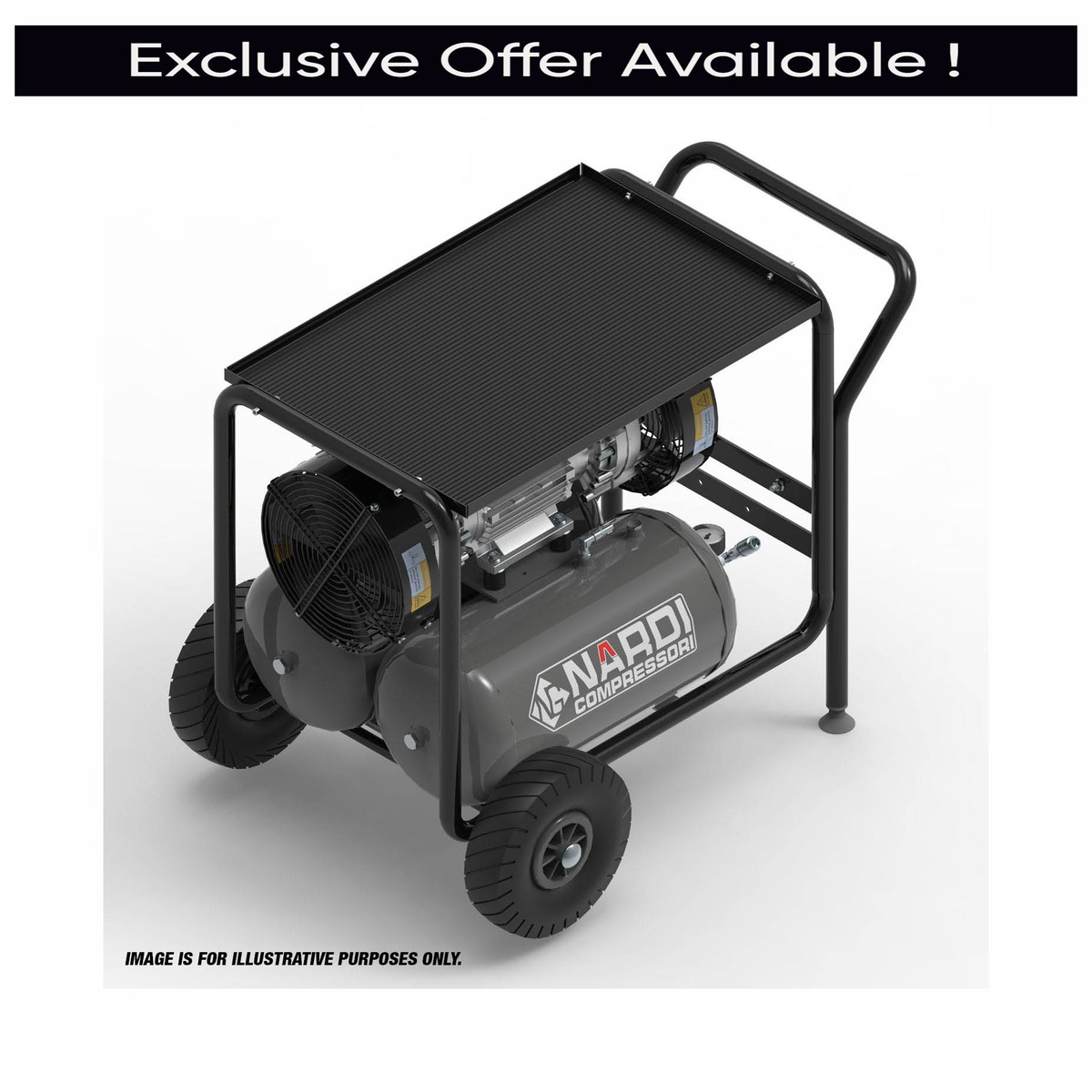

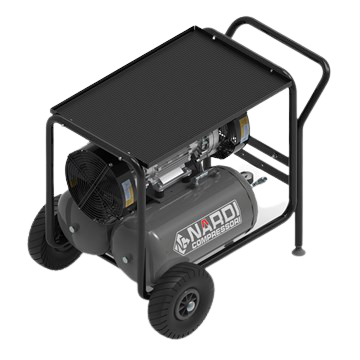

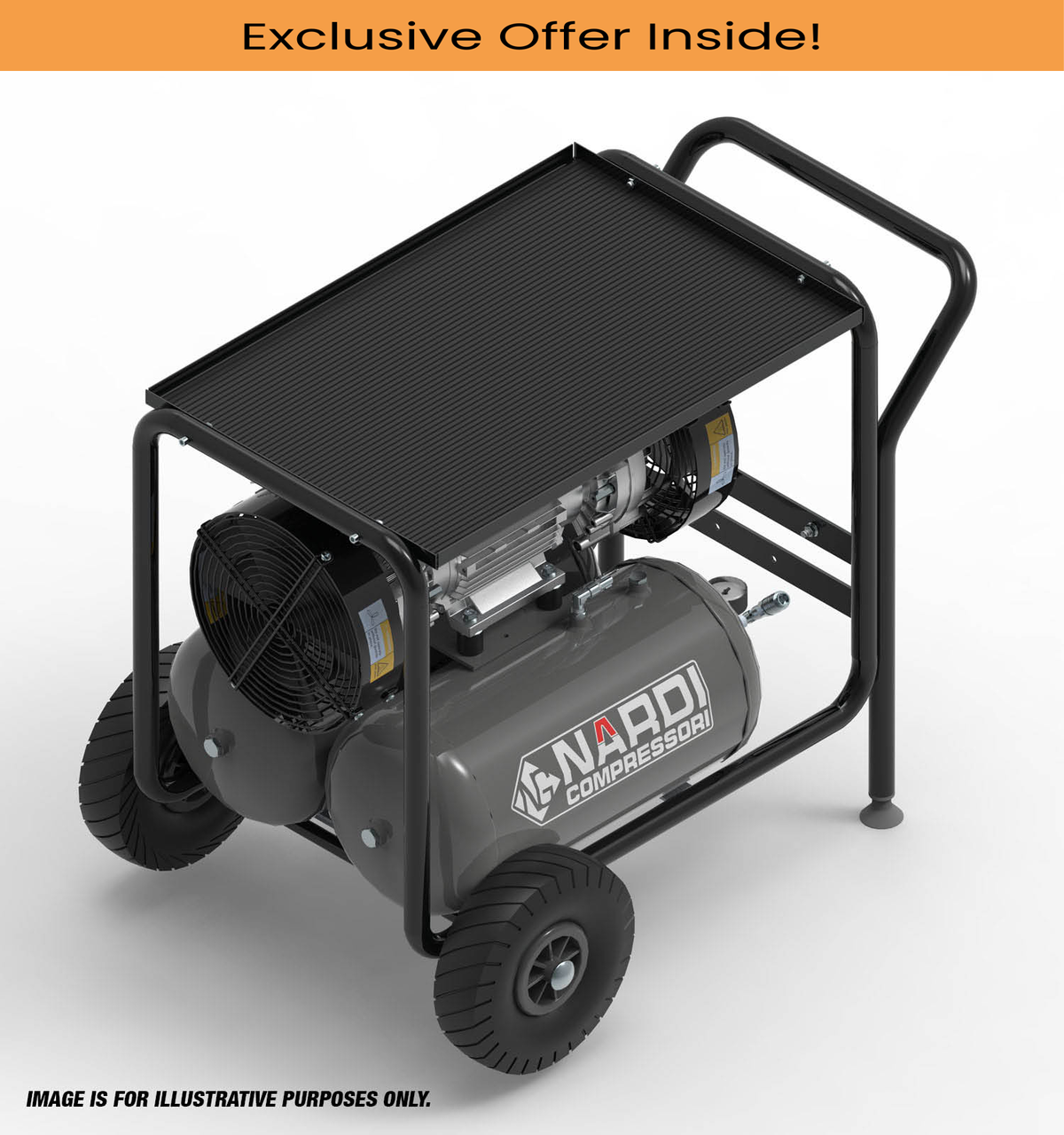

SIP EXTN50254 NARDI Extreme TN Compressor is a 2.5hp, 50L twin‑receiver direct drive unit designed for higher output 10bar tasks in trade and industrial environments. A 1.84kW 4‑pole brushless induction motor on 230v (13A) at 1400rpm drives a 4‑cylinder oil‑free pump producing 17.00CFM (480L/min) piston displacement and 11.90CFM (340L/min) Free Air Delivery at up to 145psi (10bar). Two 25L treated receivers in a wheel‑mounted frame offer a combined 50L air reserve. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion reduce wear, vibration and contamination, and fan‑shaped stainless steel valves ensure robust performance under heavy cycling. Forced‑air cooling, pressure cut‑off and adjustable regulator support long duty cycles and precise pressure settings. With a 73dB(A) noise level, Extreme TN 2.5hp is ideal for fibre blowing, multi‑tool setups and general workshop use where a compact but powerful, oil‑free 10bar system with twin tanks is required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTN50254 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.84kW (2.50hp) 4-POLE 1400rpm |
| Receiver Size | 2x 25ltr |
| Piston Displacement | 17.00CFM (480ltr/min) |
| Free Air Delivery (FAD) | 11.90CFM (340ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 4 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
A. It is a 2.50hp, 50 litre twin-receiver compressor with a four-cylinder pump for higher-flow 10bar applications.
A. It uses a 1.84kW, 2.50hp four-pole brushless induction motor at 1400rpm from a 230v, 13A single-phase supply.
A. It offers 17.00CFM piston displacement and 11.90CFM free air, about 480 and 340 litres per minute respectively.
A. It can produce up to 145psi, which equals 10bar maximum pressure.
A. With four cylinders using technopolymer piston rings and stainless valves, it provides oil-free compressed air and robust durability.
A. Two 25ltr receivers give 50 litres total, helping stabilise pressure and improve cooling when delivering high airflow.
A. They reduce vibration and mechanical strain on the crankshaft, extending pump life under continuous high-load conditions.
A. It lessens contamination in the crankcase, protecting valve plates and maintaining consistent airflow over long-term use.
A. The wheel-mounted frame keeps it mobile in workshops and on sites despite its twin receivers and higher output.
A. It allows extended runtime by managing heat from the motor and pump during demanding industrial tasks.
A. It suits low and medium pressure, high-flow applications needing mobile, oil-free air at up to 10bar.
