Product Number: EXT22254

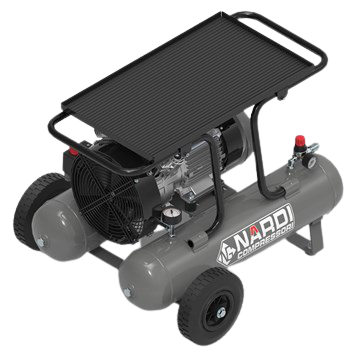

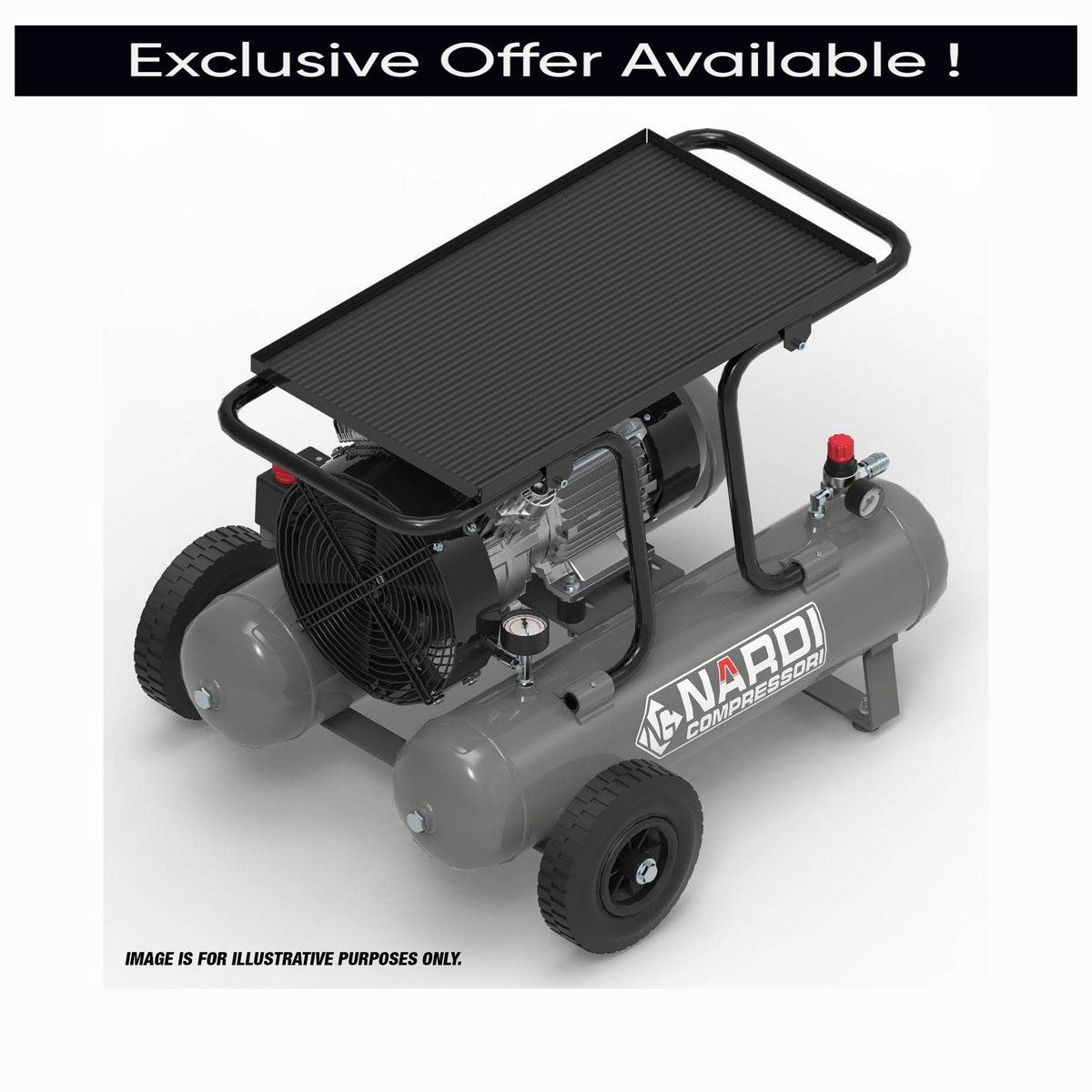

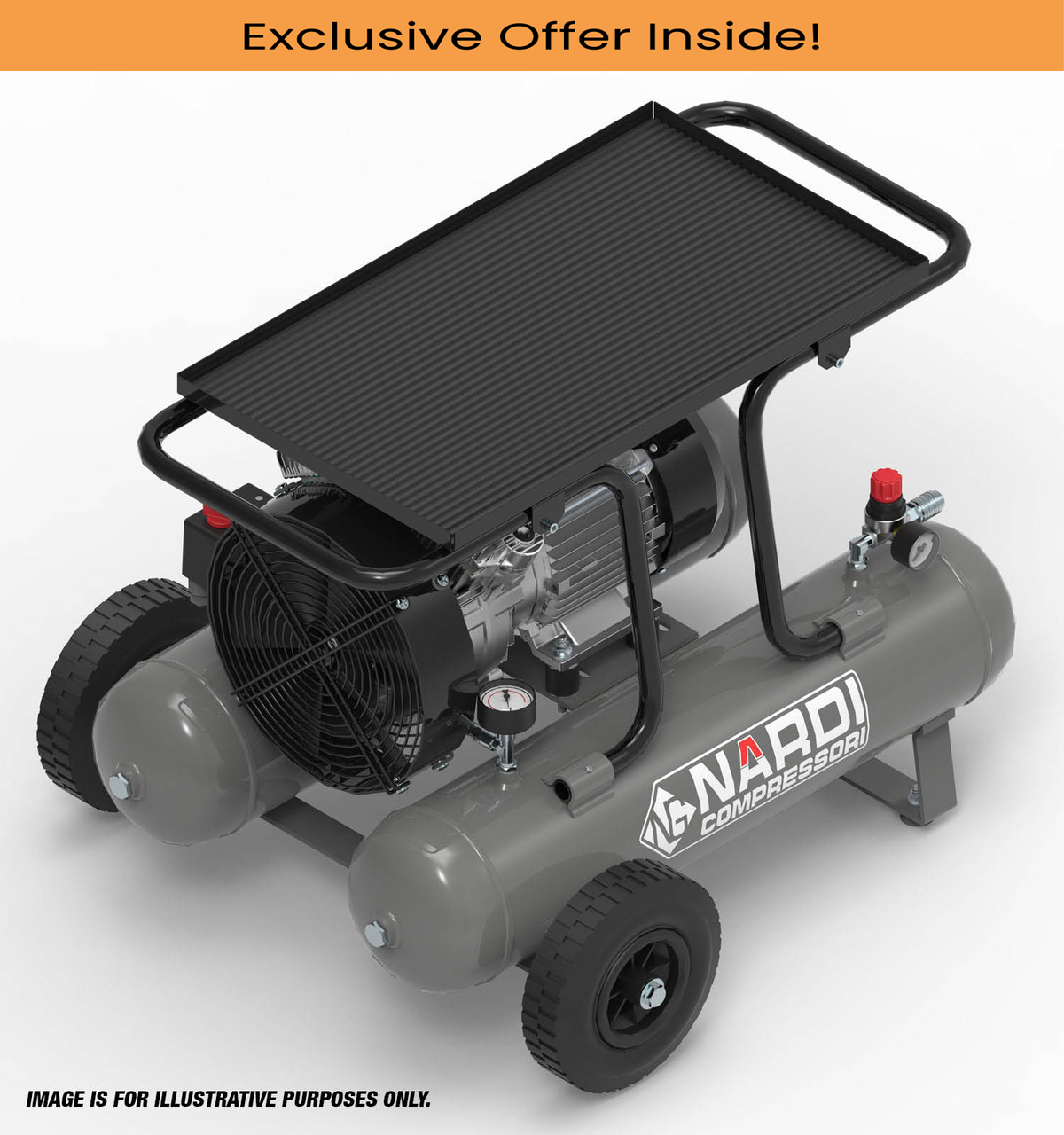

SIP EXT22254 NARDI Extreme TN Compressor is a 2.5hp, 22L twin‑receiver direct drive unit offering higher airflow for more demanding 10bar tasks. A 1.84kW 4‑pole brushless induction motor on 230v (13A) at 1400rpm drives a 4‑cylinder oil‑free pump delivering 17.00CFM (480L/min) piston displacement and 11.90CFM (340L/min) Free Air Delivery at up to 145psi (10bar). Two 11L treated receivers provide a combined 22L air store in a wheel‑mounted frame. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion keep vibration and contamination low, extending pump life, while fan‑shaped stainless steel valves provide reliable sealing even under frequent cycling. Forced‑air cooling, a pressure cut‑off switch and adjustable regulator support extended operation and precise pressure settings. With a 73dB(A) noise level, this Extreme TN 2.5hp compressor is well suited to fibre blowing, intensive workshop use and site duties that demand a compact but powerful oil‑free 10bar system.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT22254 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.84kW (2.50hp) 4-POLE 1400rpm |
| Receiver Size | 2x 11ltr |
| Piston Displacement | 17.00CFM (480ltr/min) |
| Free Air Delivery (FAD) | 11.90CFM (340ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 4 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
A. It suits low and medium pressure, higher-flow applications where 17CFM displacement and 10bar pressure from twin 11L receivers are required.
A. It uses a 1.84kW, 2.50hp four-pole brushless induction motor running at 1400rpm from a 230v, 13A single-phase supply.
A. The compressor offers 17.00CFM piston displacement and 11.90CFM free air delivery, approximately 480 and 340 litres per minute respectively.
A. Its V-Twin pump uses robust technopolymer piston rings, meaning no lubricating oil in the compression chamber and reduced maintenance requirements.
A. Two 11L receivers give 22L total storage, improving pressure stability, cooling and air availability in continuous low and medium pressure work.
A. It can deliver air up to 145psi, equivalent to 10bar, which matches many workshop, industrial and remote-site requirements.
A. They significantly reduce vibration and crankshaft loading, increasing pump life and improving smoothness during extended high-flow duties.
A. It reduces contamination inside the crankcase, enhancing valve plate life and helping maintain consistent compressed-air performance.
A. It operates at approximately 73dB(A), which is moderate for a four-cylinder, high-displacement compressor with this airflow capability.
A. Direct drive via the motor shaft cuts mechanical losses and belt maintenance, improving efficiency and reliability in demanding environments.
A. It suits professional workshops and industrial users needing mobile, oil-free, high-flow air from a compact, twin-receiver chassis.
