Product Number: EXT22154

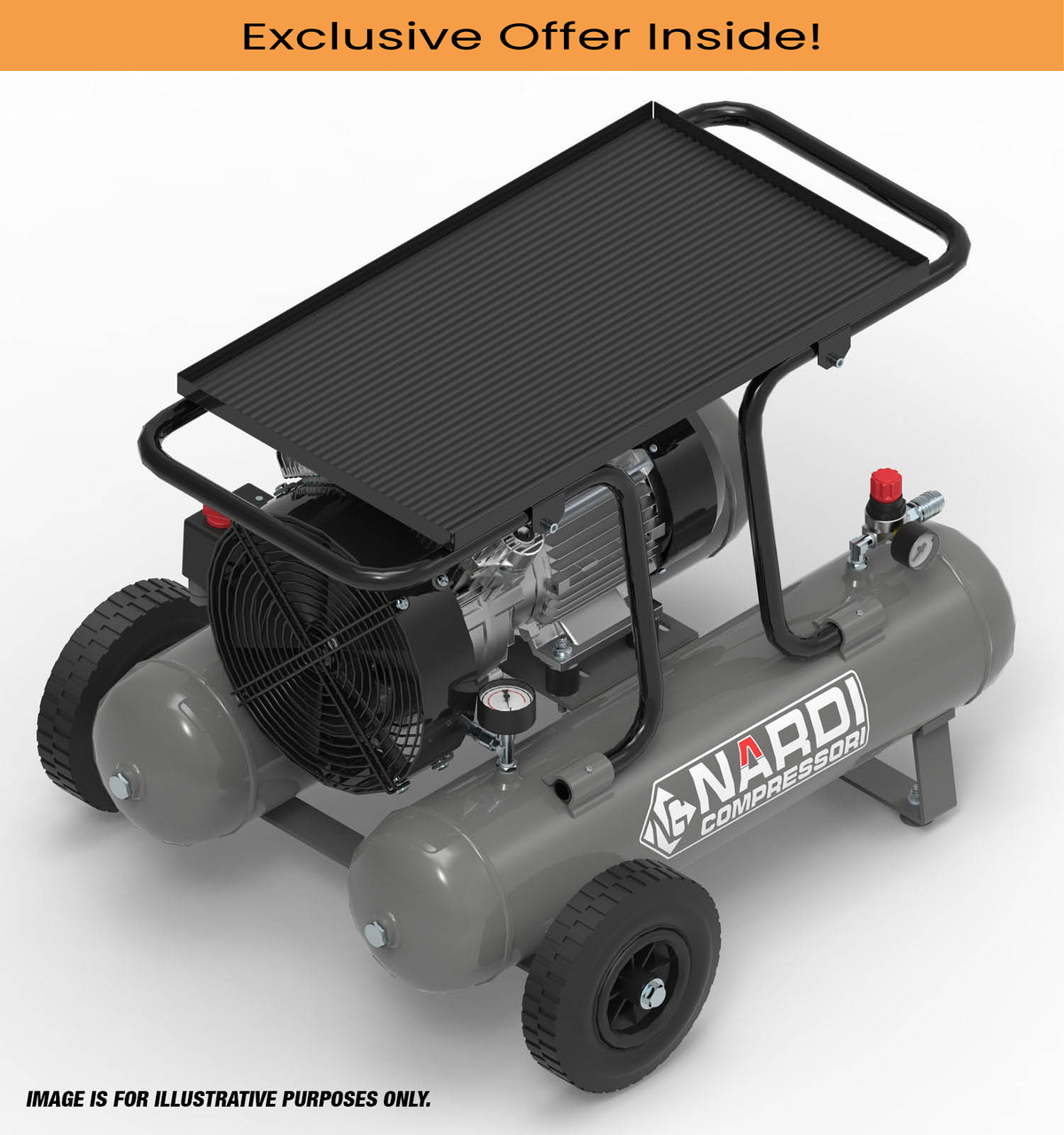

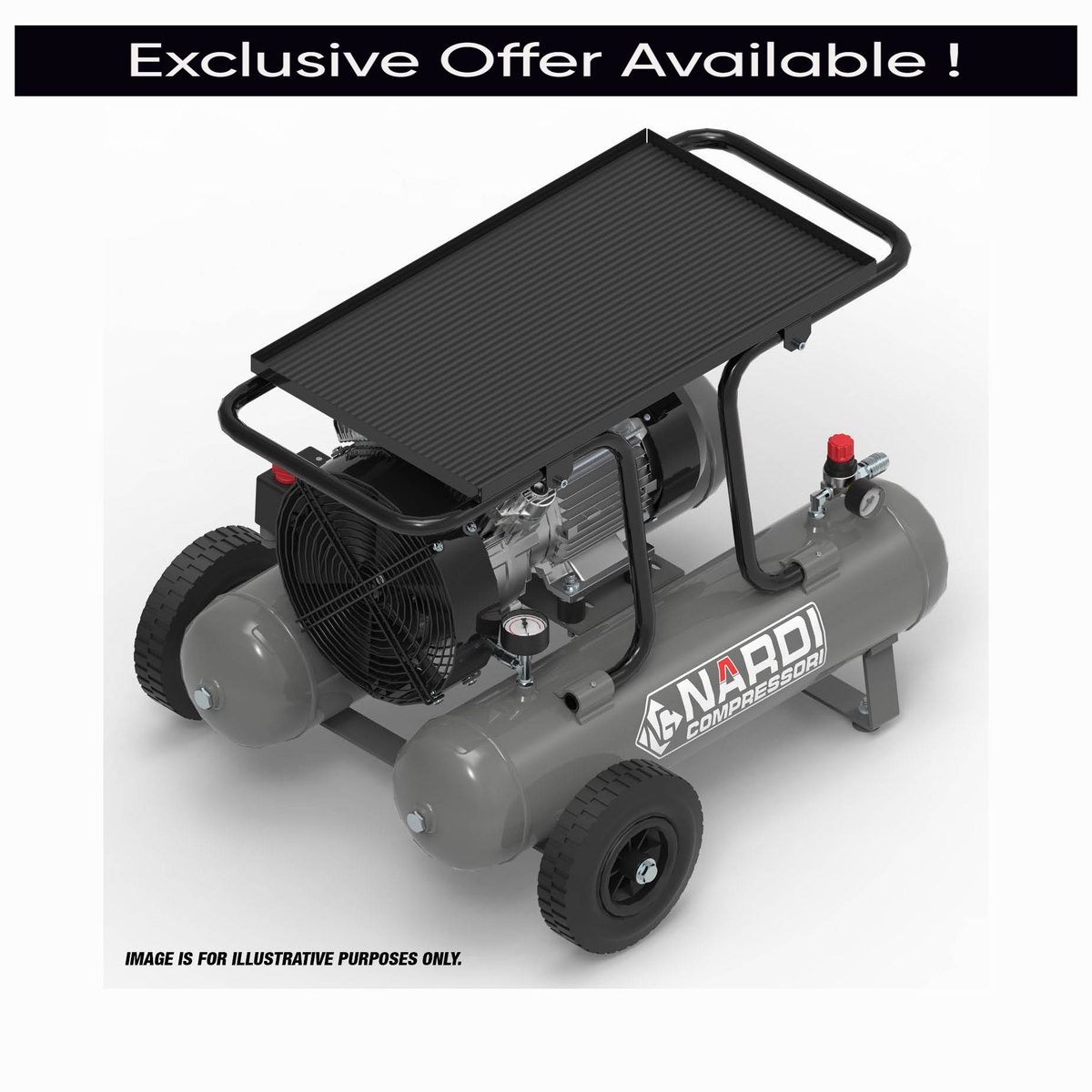

SIP EXT22154 NARDI Extreme TN Compressor is a 1.50HP 22ltr twin‑receiver direct drive unit providing higher airflow in a compact, portable format. A 1.10kW (1.50hp) 4‑pole brushless induction motor on 230v (13A) at 1400rpm powers a V‑Twin oil-free pump delivering 8.50CFM (240ltr/min) piston displacement and 5.95CFM (170ltr/min) Free Air Delivery at up to 145psi (10bar). The wheel‑mounted frame with twin 11L receivers gives a combined 22L air capacity for stable output. Concentric big end bearings, crankcase air intake particle diffusion and fan‑shaped stainless steel valves combine with technopolymer piston rings to provide low-vibration, contaminant‑resistant and long-life operation. Forced air cooling, a pressure cut-off switch and adjustable regulator enable extended runtimes and pressure control. At 72dB(A), this Extreme TN is well suited to fibre blowing, site work and workshop duties requiring a compact twin‑tank 10bar compressor with enhanced flow and portability.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT22154 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.10kW (1.50hp) 4-POLE 1400rpm |
| Receiver Size | 2x 11ltr |
| Piston Displacement | 8.50CFM (240ltr/min) |
| Free Air Delivery (FAD) | 5.95CFM (170ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT3080024 NARDI Extreme 3 30L Compressor, Tank Capacity - 30 Litre, Max. Air Pressure - 10 Bar
£1,225.08
£1,201.06
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT3080024 |
| Type | Silenced |
| Capacity (L) | 30 |
| ITEM NO | EXT3080024 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 72dB(A) |
A. It is a 1.50hp, 22 litre twin‑receiver V‑Twin compressor with 8.50CFM displacement and 10bar maximum pressure.
A. It provides 5.95CFM free air, approximately 170 litres per minute, supporting a variety of low and medium pressure tasks.
A. It operates from a 230v, 13A supply and uses a 1.10kW, 1.50hp four‑pole brushless motor at 1400rpm.
A. V‑Twin cylinders with technopolymer rings and stainless valves give oil‑free compression, reducing servicing and keeping air output clean.
A. They cut vibration and mechanical stress, extending pump life and improving running smoothness over extended use.
A. Two eleven litre tanks provide 22 litres of storage while maintaining a compact, wheel‑mounted frame for good manoeuvrability.
A. It limits particle ingress into the crankcase, enhancing valve plate longevity and consistent air performance.
A. It is ideal for low and medium pressure flow uses in workshops and remote locations, including light industrial tasks.
A. Its wheel‑mounted frame design with handle provides easy movement between work areas.
A. It runs at about 72dB(A), acceptable for many workshop and industrial environments.
A. A pressure cut‑off switch and adjustable regulator allow precise pressure management and automatic shutdown at the selected level.
