Product Number: EXT220754

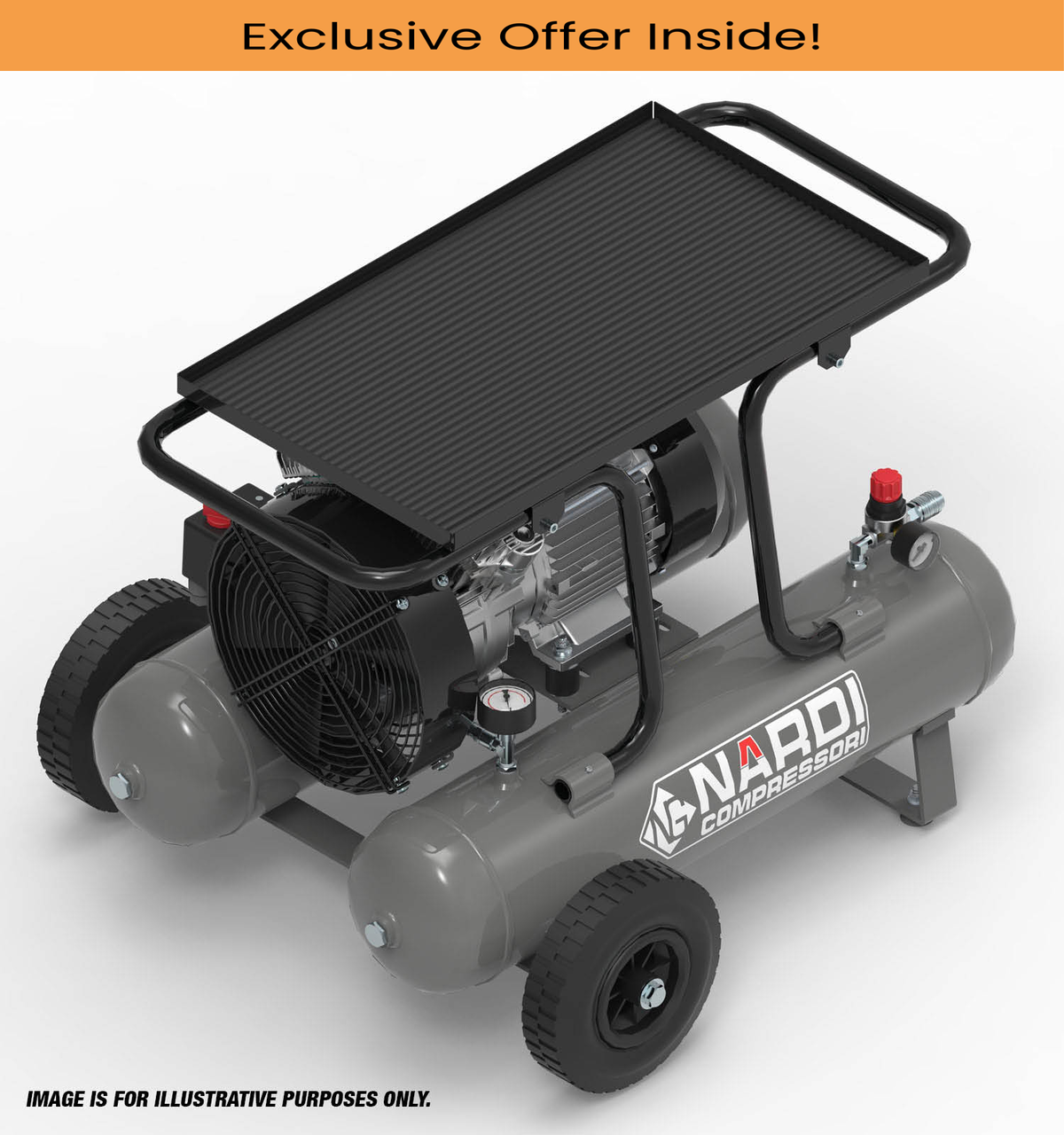

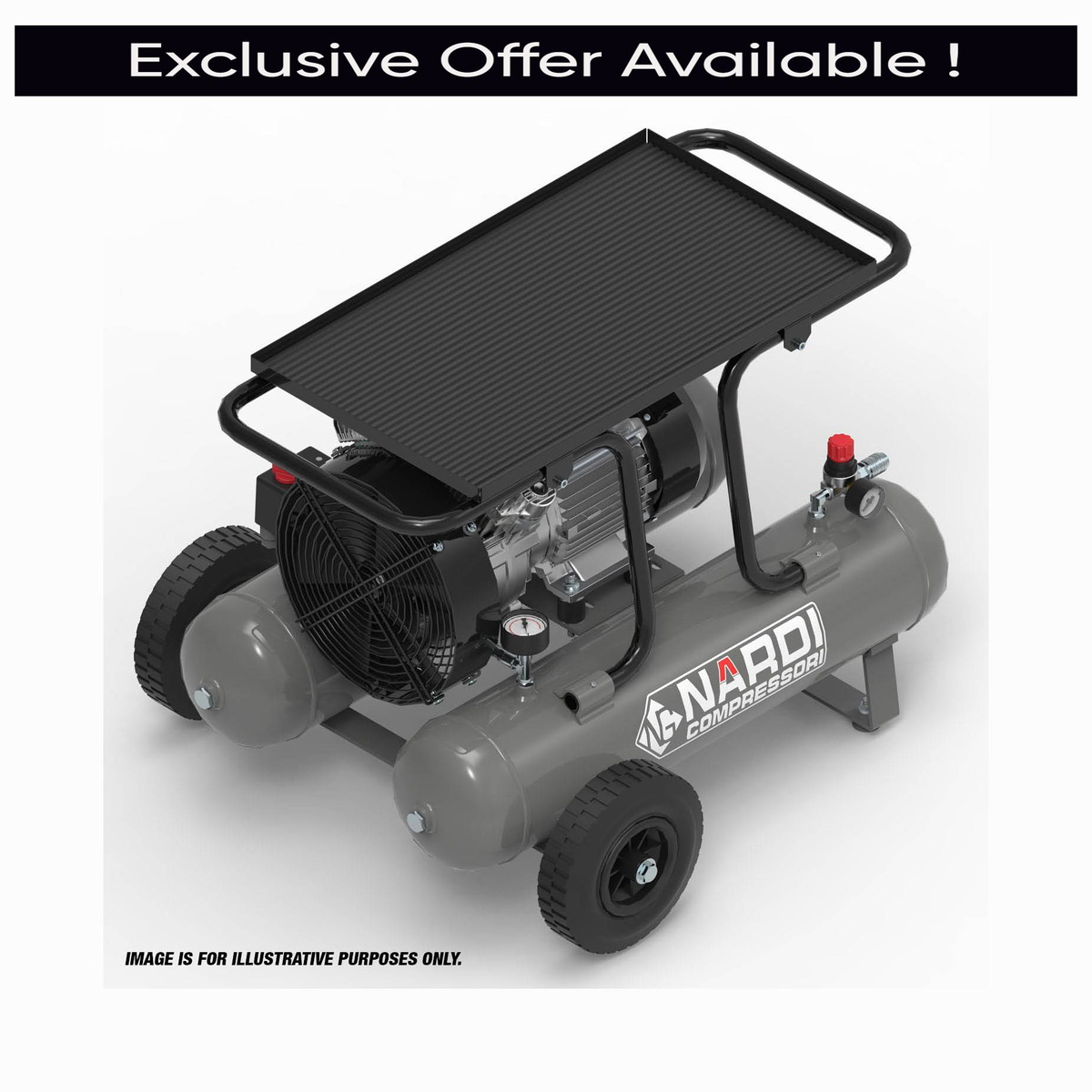

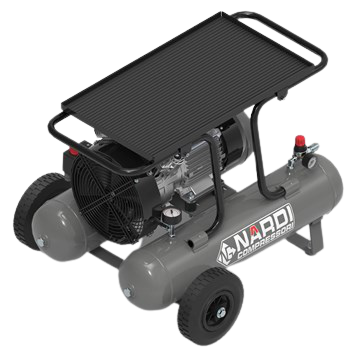

SIP EXT220754 NARDI Extreme TN Compressor is a 0.75HP 22ltr twin‑receiver direct drive unit designed for low and medium pressure applications where extended air reserve and portability are both required. A 0.55kW (0.75hp) 4‑pole brushless induction motor on 230v (13A) at 1400rpm drives a V‑Twin oil-free pump delivering 7.00CFM (200ltr/min) piston displacement and 4.90CFM (140ltr/min) FAD at up to 145psi (10bar). The wheel‑mounted frame carries two 11L receivers, providing a combined 22L air capacity. Concentric big end bearings and crankcase air intake diffusion reduce vibration and contamination, enhancing pump and valve plate life, while fan‑shaped stainless steel valves and technopolymer piston rings offer durable, low-maintenance operation. Forced air cooling, pressure cut-off and adjustable regulator support reliable performance. Running at 72dB(A), this Extreme TN 22L compressor is ideal for remote location work, fibre blowing and light industrial tasks where a compact, twin‑receiver 10bar oil-free unit is needed.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT220754 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 0.55kW (0.75hp) 4-POLE 1400rpm |
| Receiver Size | 2x 11ltr |
| Piston Displacement | 7.00CFM (200ltr/min) |
| Free Air Delivery (FAD) | 4.90CFM (140ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT3080024 NARDI Extreme 3 30L Compressor, Tank Capacity - 30 Litre, Max. Air Pressure - 10 Bar
£1,225.08
£1,201.06
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT3080024 |
| Type | Silenced |
| Capacity (L) | 30 |
| ITEM NO | EXT3080024 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 72dB(A) |
A. It is a 0.75hp, 22 litre twin‑receiver direct drive compressor with V‑Twin pump, designed for low and medium pressure flow applications.
A. It offers 7.00CFM piston displacement, about 200 litres per minute, and 4.90CFM free air, roughly 140 litres per minute.
A. It can deliver up to 145psi, equivalent to 10bar maximum working pressure.
A. The compressor uses a 230v, 13A supply and a 0.55kW, 0.75hp four‑pole brushless induction motor at 1400rpm.
A. The V‑Twin pump uses technopolymer piston rings and stainless fan valves, providing oil‑free air and reducing maintenance
A. They reduce vibration and mechanical wear on the crankshaft assemblies, significantly extending pump life and improving smoothness.
A. The wheel‑mounted frame with two eleven litre tanks provides a combined 22 litre capacity, improving storage while maintaining good portability.
A. It reduces contamination within the crankcase, prolonging valve plate life and supporting consistent air performance.
A. It is ideal for low and medium pressure and flow duties in workshops or remote locations needing compact but capable compressed air.
A. The wheel‑mounted frame and handle make it easy to move despite its twin receivers.
A. It runs at about 72dB(A), providing acceptable noise levels for workshop and industrial locations.
