Product Number: EXTMP5009021CP

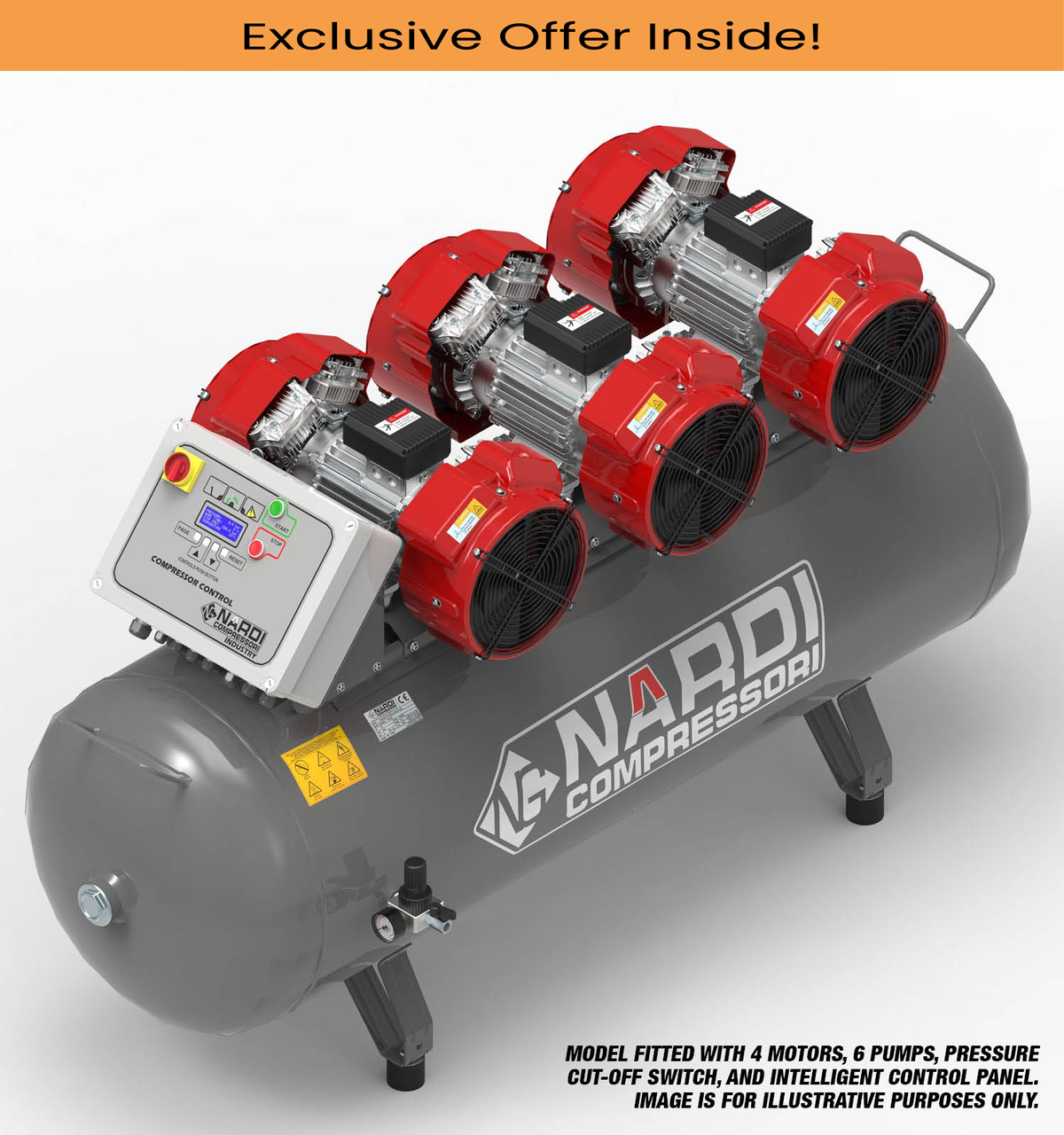

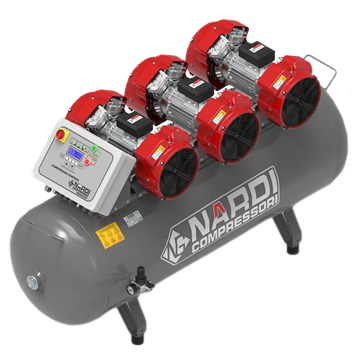

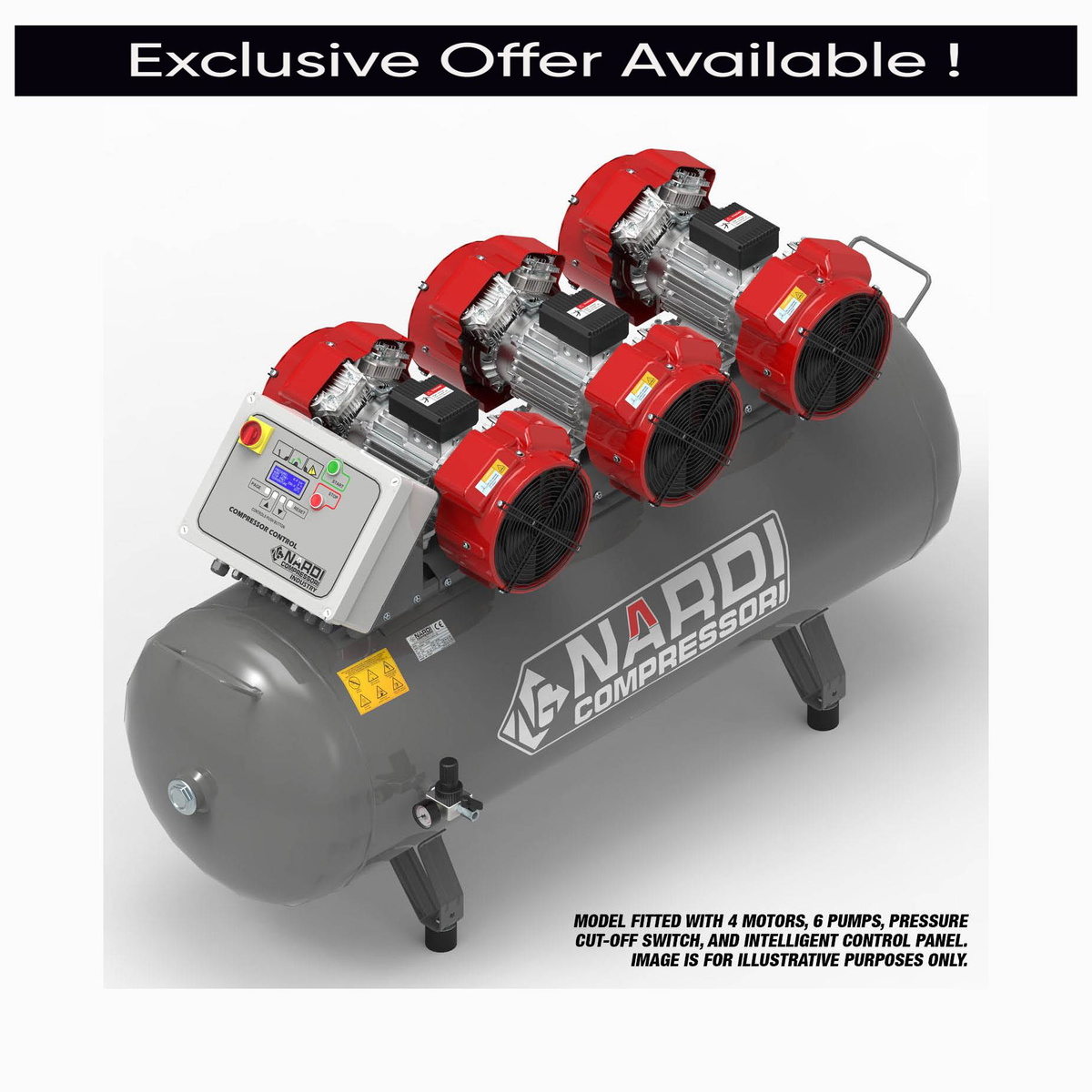

SIP EXTMP5009021CP NARDI Extreme MP CP Compressor is a 9.0hp, 500L high-pressure 21bar air station designed for large industrial users. Three 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V 3‑phase drive a 12‑cylinder oil‑free pump delivering 27.60CFM (780L/min) piston displacement and 19.32CFM (552L/min) Free Air Delivery at up to 305psi (21bar) into a 500L receiver. An intelligent CP control panel manages motor and pump operation, balancing load, sequencing start‑ups, monitoring operating hours and signalling service intervals. The pump employs technopolymer piston rings, concentric big end bearings, crankcase air intake diffusion and fan‑shaped stainless steel valves to minimise vibration, contamination and wear while delivering reliable high-pressure air. Forced‑air cooling and adjustable pressure regulation ensure extended runtime and process control, while a 75dB(A) noise rating allows installation closer to the work area. This Extreme MP CP 21bar 500L unit is ideal as a central high-pressure, oil‑free compressed air plant for demanding testing and specialist industrial processes.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP5009021CP |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 3x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 500ltr |
| Piston Displacement | 27.60CFM (780ltr/min) |
| Free Air Delivery (FAD) | 19.32CFM (552ltr/min) |
| Max. Air Pressure | 305psi (21bar) |
| No. of Cylinders | 12 cylinders |
| Noise Level | 75dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
A. It is a triple-motor, 9HP, 500 litre industrial compressor with control panel for high-volume oil-free air at 21bar.
A. It uses three 2.20kW (3.00hp) four-pole motors at 1400rpm from a 400v three-phase supply, providing 9HP in total.
A. It provides 27.60CFM piston displacement and 19.32CFM free air, around 780 and 552 litres per minute respectively.
A. It can reach 305psi, equivalent to 21bar, serving high-pressure industrial applications.
A. The integrated panel balances load across multiple pumps, monitors hours, indicates service intervals and optimises motor use based on air demands.
A. Multiple V-Twin cylinders with technopolymer piston rings and stainless valves provide oil-free compression and withstand continuous high-pressure operation.
A. They reduce vibration and mechanical stress across multiple pumps, extending service life under heavy-duty 21bar workloads.
A. It minimises contamination in the crankcases, enhancing valve plate durability and helping maintain reliable air output.
A. The 500ltr tank ensures substantial high-pressure air storage, smoothing supply and reducing cycling during peak demand.
A. It is ideal for high-volume, high-pressure industrial processes requiring intelligent multi-pump control, oil-free air and low noise.
A. Pressure is managed by adjustable regulators and cut-off, coordinated by the control panel to maintain setpoints and shut down at targets.
