Product Number: EXT50202

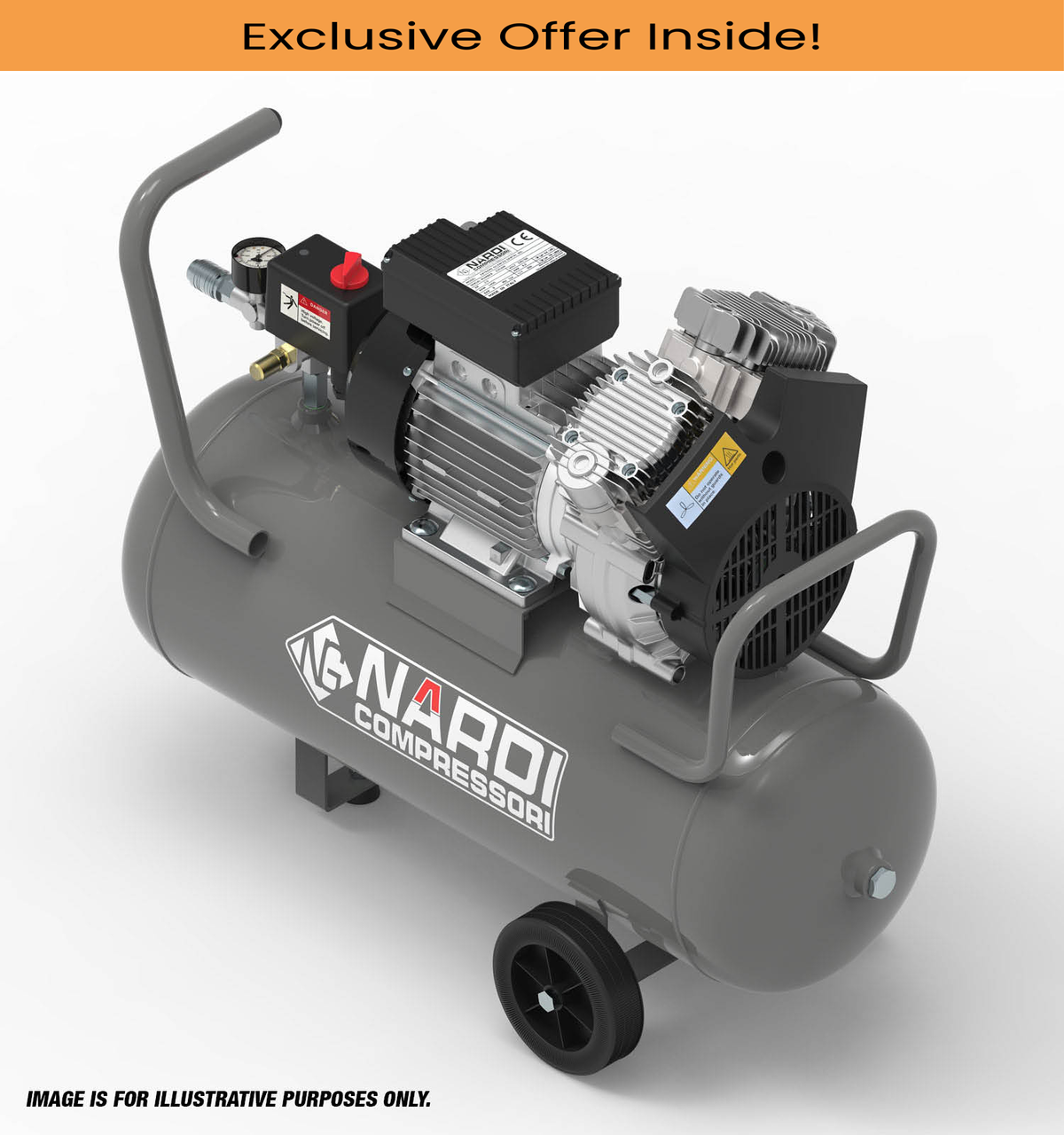

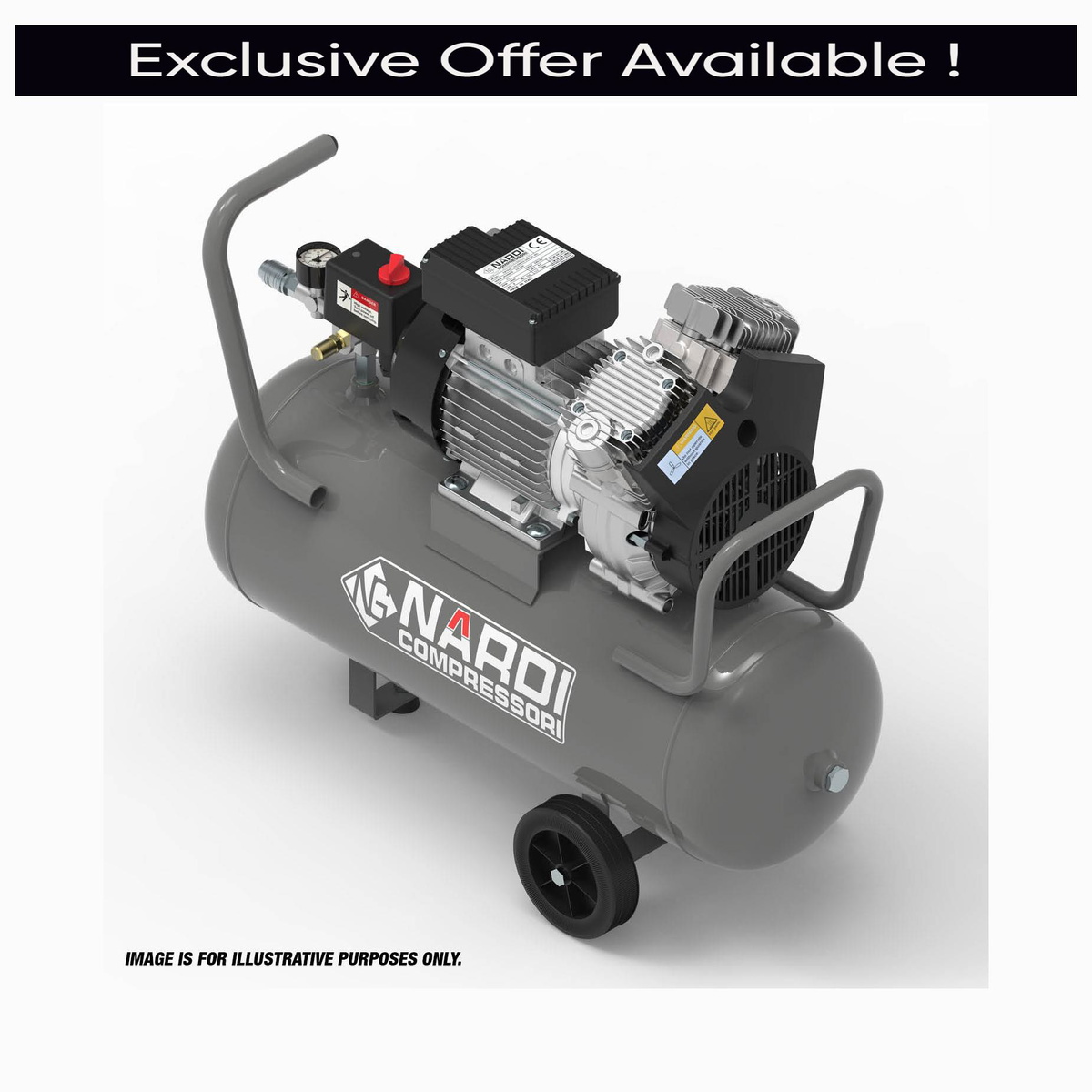

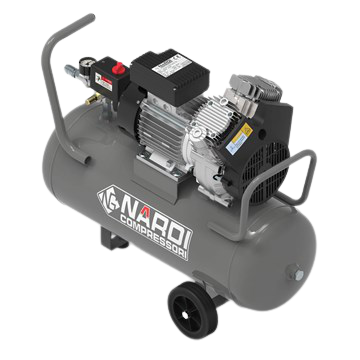

SIP EXT50202 NARDI Extreme 3 2-Pole Compressor is a high-output 2.00HP 50ltr direct drive unit for demanding low and medium pressure applications. A 1.50kW (2.00hp) 2‑pole brushless induction motor on 230v (13A) at 2800rpm drives a V‑Twin oil-free pump providing 14.10CFM (400ltr/min) piston displacement and 9.87CFM (282ltr/min) Free Air Delivery at up to 145psi (10bar). Concentric big end bearings mitigate vibration and crankcase air intake diffusion reduces contamination, protecting the valve plate and enhancing longevity. Fan-shaped stainless steel valves and technopolymer piston rings support robust, low-maintenance service. The wheel‑mounted 50L receiver offers a stable reservoir and easy transport across workshops and sites. Forced air cooling, pressure cut-off and adjustable regulator enable long duty cycles and precise pressure settings. With an 82dB(A) noise level, this Extreme 3 2‑pole compressor is suited to industrial and utility environments that need compact but powerful oil-free air for fibre blowing and general compressed air tasks.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT50202 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 2-POLE 2800rpm |
| Receiver Size | 50ltr |
| Piston Displacement | 14.10CFM (400ltr/min) |
| Free Air Delivery (FAD) | 9.87CFM (282ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 82dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT50204 NARDI Extreme 3 4-Pole Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£869.63
£852.58
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT50204 |
| Type | Silenced |
| Capacity (L) | 50 |
| ITEM NO | EXT50204 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 73dB(A) |
A. It is a 2.00hp, 50 litre V‑Twin direct drive compressor with a fast 2‑pole motor for higher flow at 10bar.
A. It provides 14.10CFM piston displacement, about 400 litres per minute, and 9.87CFM free air, around 282 litres per minute.
A. The unit can supply air up to 145psi, which is equivalent to 10bar.
A. It runs on a 230v, 13A single‑phase supply and uses a 1.50kW, 2.00hp two‑pole brushless induction motor at 2800rpm.
A. The V‑Twin pump uses technopolymer piston rings and stainless valves for oil‑free compression, reducing the need for frequent service.
A. They reduce vibration and mechanical wear, enhancing pump longevity and smoothness under heavy-duty operation.
A. It minimises contamination inside the crankcase, lengthening valve plate life and helping maintain reliable airflow.
A. It is ideal for low and medium pressure flow, remote operations and fibre blowing where high output is required from a portable compressor.
A. Wheel‑mounted design with handle allows easy relocation around sites despite its larger tank and high performance.
A. A pressure cut‑off switch and adjustable air regulator allow safe control of outlet pressure and automatic stopping at preset limits.
A. It runs at approximately 82dB(A), reflecting its high‑speed 2‑pole motor and strong airflow capability.
