Product Number: EXT500754

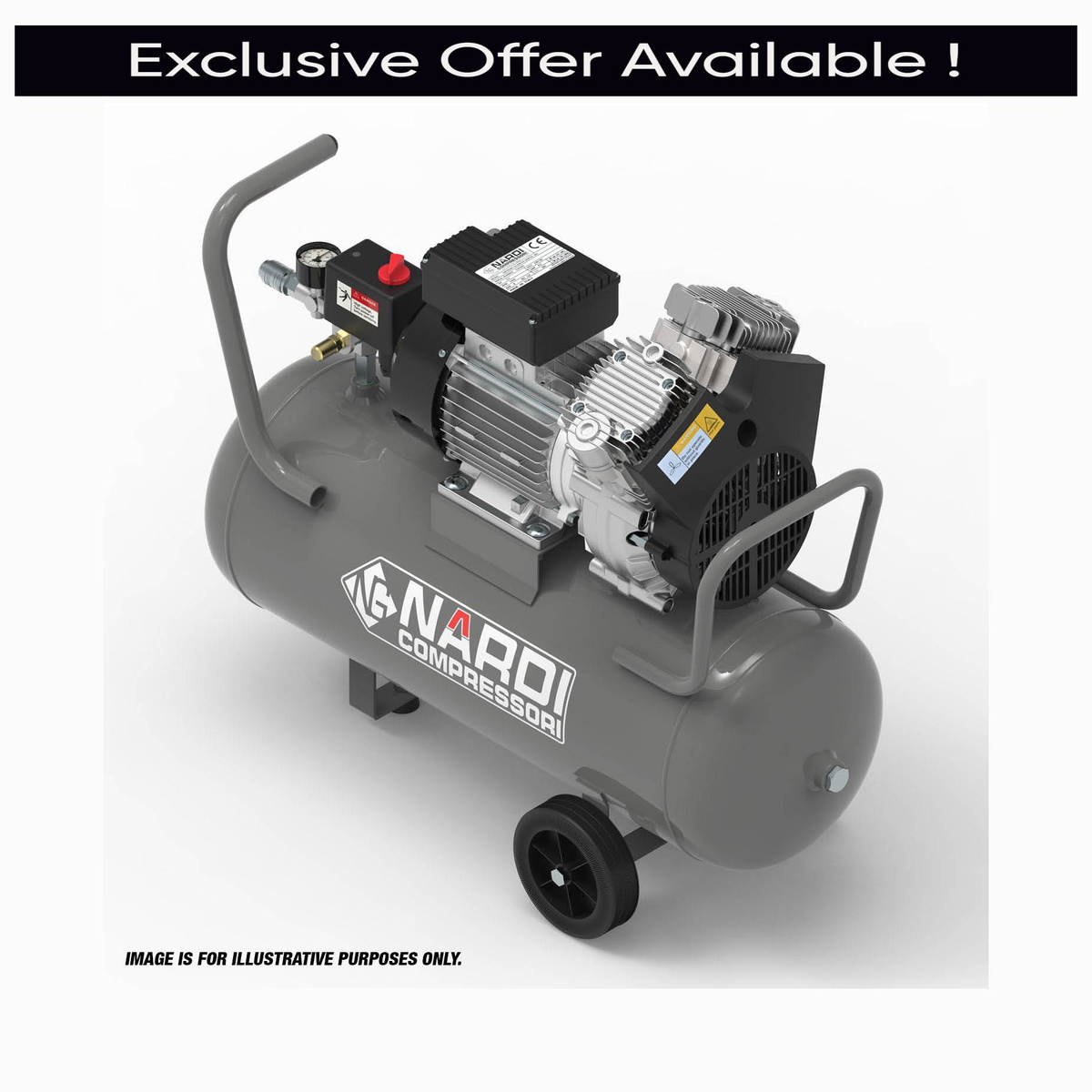

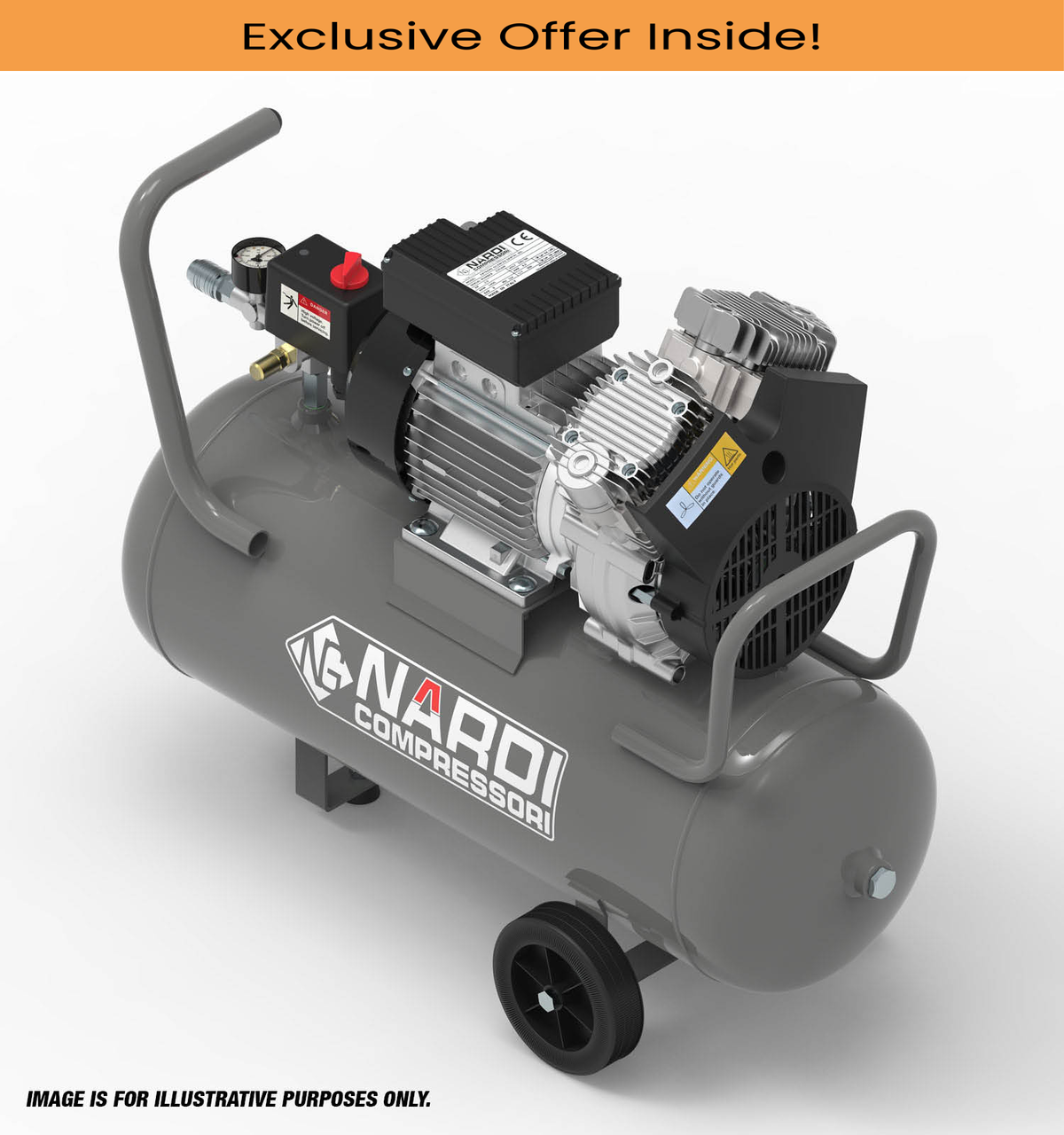

SIP EXT500754 NARDI Extreme 3 Compressor is a 0.75HP 50ltr direct drive unit combining moderate output with a larger receiver for extended tool use. A 0.55kW (0.75hp) 4‑pole brushless induction motor on 230v (13A) at 1400rpm powers a V‑Twin oil-free pump delivering 7.00CFM (200ltr/min) piston displacement and 4.90CFM (140ltr/min) Free Air Delivery at up to 145psi (10bar). Concentric big end bearings reduce vibration, and crankcase air intake diffusion lowers contamination to protect the valve plate. Fan-shaped stainless steel valves and technopolymer piston rings provide durable, low-maintenance operation. The wheel‑mounted chassis with handle and 50L receiver support easy manoeuvrability and a stable air buffer for longer jobs. Forced air cooling, pressure cut-off and adjustable regulator support extended runtime and precise pressure control. With a 72dB(A) noise level, this Extreme 3 is ideal for remote locations, fibre blowing and workshop tasks where a mobile 10bar compressor with 50L storage is required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT500754 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 0.55kW (0.75hp) 4-POLE 1400rpm |
| Receiver Size | 50ltr |
| Piston Displacement | 7.00CFM (200ltr/min) |
| Free Air Delivery (FAD) | 4.90CFM (140ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT50204 NARDI Extreme 3 4-Pole Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£869.63
£852.58
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT50204 |
| Type | Silenced |
| Capacity (L) | 50 |
| ITEM NO | EXT50204 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 73dB(A) |
A. It is a 0.75hp, 50 litre V‑Twin direct drive compressor designed for low and medium pressure duties and remote site applications.
A. It delivers 7.00CFM piston displacement, about 200 litres per minute, and 4.90CFM free air, roughly 140 litres per minute.
A. It can supply up to 145psi, equivalent to 10bar maximum working pressure.
A. It operates from a 230v, 13A input and uses a 0.55kW, 0.75hp four‑pole brushless induction motor running at 1400rpm.
A. The V‑Twin pump uses technopolymer piston rings, delivering oil‑free compressed air while minimising routine servicing needs.
A. They significantly reduce vibration and wear, increasing pump life and improving operating smoothness during extended use.
A. It reduces contamination inside the crankcase, helping to prolong valve plate life and maintain consistent airflow.
A. It is ideal for low and medium pressure flow, remote locations and fibre blowing where additional 50 litre storage is advantageous.
A. Its wheel‑mounted layout and handle enable relatively easy movement around workshops or outdoor sites despite its larger receiver.
A. A pressure cut‑off switch and adjustable air regulator provide safe pressure management and automatic stop when the set pressure is reached.
A. The compressor runs at around 72dB(A), acceptable for many industrial and workshop environments.
