Product Number: EXT2TN25204

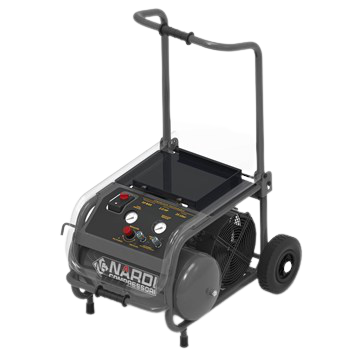

SIP EXT2TN25204 NARDI Extreme 2TN 4-Pole Compressor is a 2.0hp, 25L direct drive model that combines strong airflow with lower motor speed for smoother operation. A 1.50kW 4‑pole brushless induction motor on 230v (13A) at 1400rpm drives a V‑Twin oil‑free pump providing 12.40CFM (350L/min) piston displacement and 8.68CFM (248L/min) Free Air Delivery at up to 145psi (10bar). The wheel‑mounted frame with easy‑fold handle houses a 25L treated receiver for a stable 10bar supply. Technopolymer piston rings, concentric big end bearings and crankcase air intake particle diffusion reduce wear, vibration and contamination inside the pump, while fan‑shaped stainless steel valves offer long-lasting sealing. Forced‑air cooling, pressure cut‑off and adjustable regulator deliver extended duty capability and fine pressure control. At 73dB(A), Extreme 2TN 4‑pole is ideal for low and medium pressure work, remote locations and fibre‑blowing setups that need a compact, manoeuvrable oil‑free compressor with a balance of output and smooth running.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT2TN25204 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 4-POLE 1400rpm |
| Receiver Size | 25ltr |
| Piston Displacement | 12.40CFM (350ltr/min) |
| Free Air Delivery (FAD) | 8.68CFM (248ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT5154 NARDI Extreme 3T Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£568.11
£556.97
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT5154 |
| Type | Silenced |
| Capacity (L) | 5 |
| ITEM NO | EXT5154 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 72dB(A) |
A. It is a 2.00hp, 25 litre V-Twin oil-free compressor with a four-pole motor delivering 10bar air more quietly.
A. It uses a 1.50kW, 2.00hp four-pole brushless induction motor running at 1400rpm from a 230v, 13A input supply.
A. It provides 12.40CFM piston displacement and 8.68CFM free air, approximately 350 and 248 litres per minute respectively.
A. It is rated up to 145psi, equal to 10bar, covering many workshop and remote compressed-air needs.
A. The V-Twin pump uses technopolymer piston rings and stainless valves, delivering oil-free air and reducing regular maintenance.
A. The 25ltr tank offers sufficient storage for low and medium flow tasks while keeping the unit highly portable.
A. They reduce vibration and mechanical strain on the crankshaft, extending pump life and smoothing operation at lower motor speed.
A. It minimises internal contamination, extending valve plate life and helping maintain consistent compressed-air performance.
A. The wheel-mounted frame and folding handle make relocation around sites or workshops easy and convenient.
A. Forced cooling helps prevent overheating during extended runtime, improving reliability in continuous or frequent-duty operations.
A. It suits low and medium pressure and flow tasks where quieter, smoother four-pole operation and oil-free air are desired.
