Product Number: EXT2TN25202

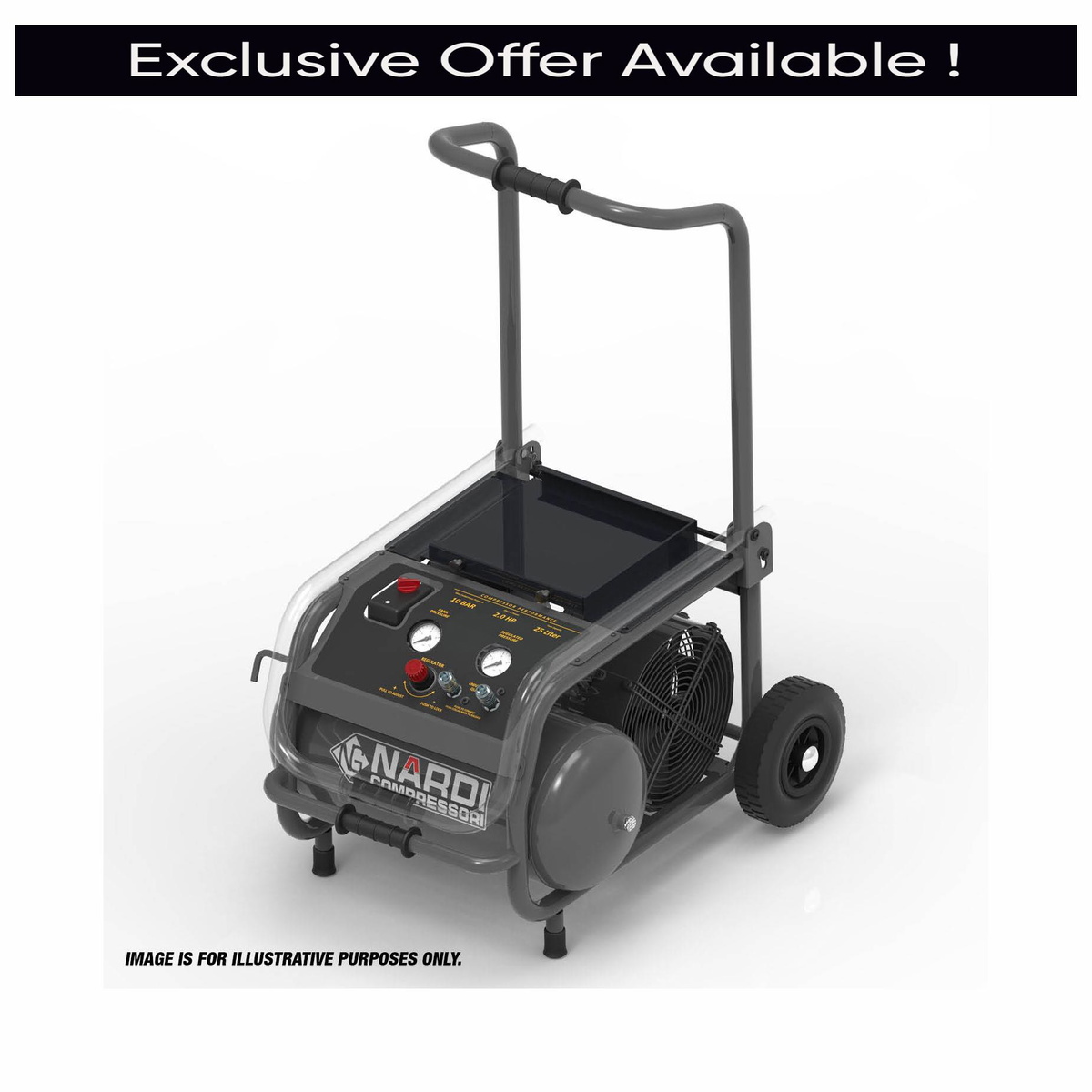

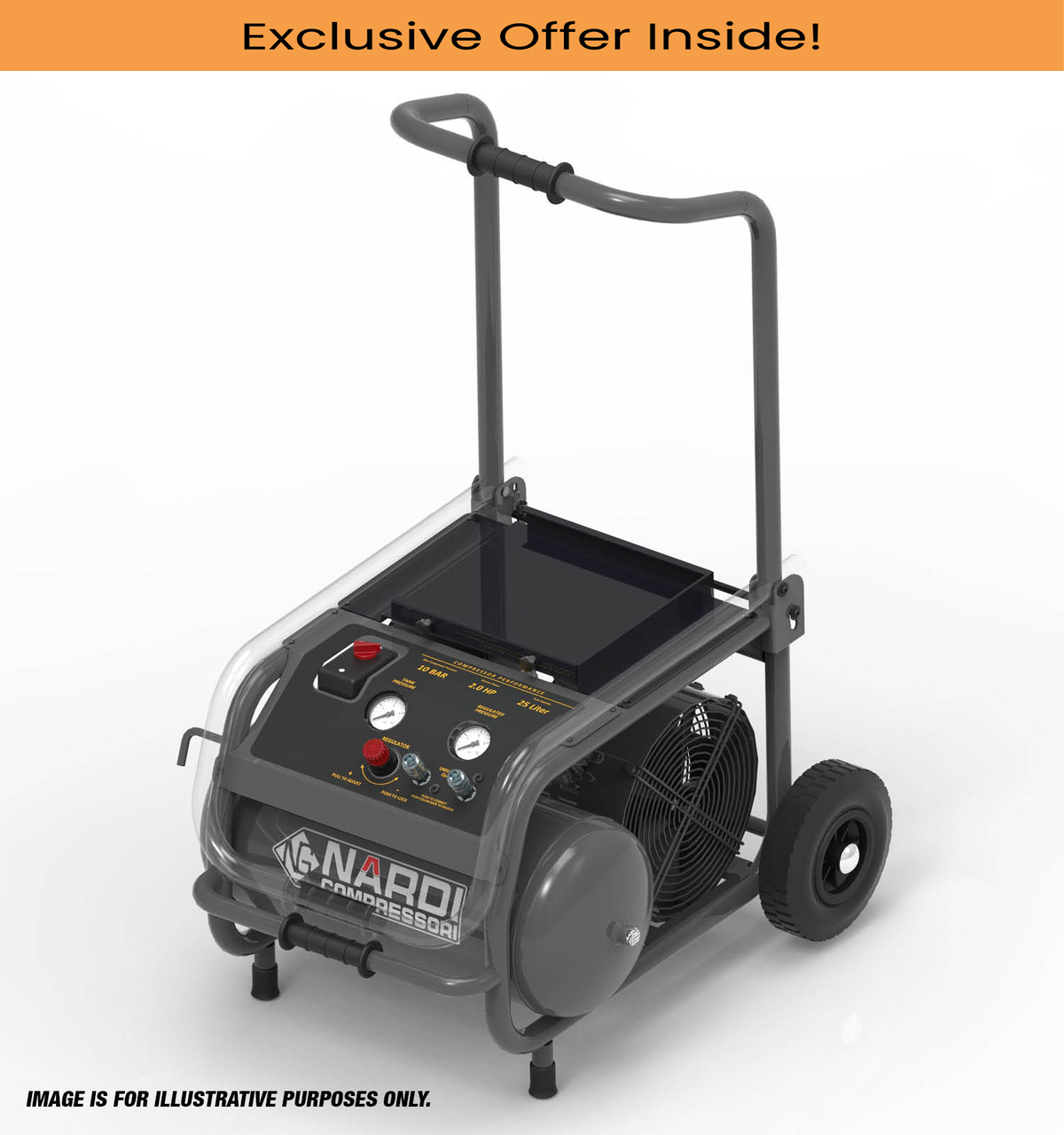

SIP EXT2TN25202 NARDI Extreme 2TN 2-Pole Compressor is a 2.0hp, 25L direct drive unit delivering higher airflow for more intensive 10bar use. A 1.50kW 2‑pole brushless induction motor on 230v (13A) at 2800rpm drives a V‑Twin oil‑free pump producing 14.10CFM (400L/min) piston displacement and 9.87CFM (282L/min) Free Air Delivery at up to 145psi (10bar). The wheel‑mounted frame with easy‑fold handle and 25L treated receiver provide both mobility and a stable air reservoir. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion help cut vibration and contamination, extending pump and valve plate life, while fan‑shaped stainless steel valves add robustness. Forced‑air cooling, pressure cut‑off and adjustable regulator support extended runtime and controlled output. With an 82dB(A) noise level, this Extreme 2TN 2‑pole compressor is best suited to industrial workshops and fibre‑blowing operations that require compact but powerful oil‑free 10bar air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT2TN25202 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 2-POLE 2800rpm |
| Receiver Size | 25ltr |
| Piston Displacement | 14.10CFM (400ltr/min) |
| Free Air Delivery (FAD) | 9.87CFM (282ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 82dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT5154 NARDI Extreme 3T Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£568.11
£556.97
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT5154 |
| Type | Silenced |
| Capacity (L) | 5 |
| ITEM NO | EXT5154 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 72dB(A) |
A. It combines a 2.00hp, high-speed two-pole motor with a 25 litre oil-free V-Twin pump for high-flow 10bar compressed air.
A. A 1.50kW, 2.00hp two-pole brushless induction motor at 2800rpm operates from a 230v, 13A single-phase supply.
A. It provides 14.10CFM piston displacement and 9.87CFM free air, roughly 400 and 282 litres per minute respectively.
A. It can produce up to 145psi, equivalent to 10bar, serving a wide range of air tools and equipment.
A. The V-Twin pump uses technopolymer piston rings, eliminating oil lubrication needs and delivering cleaner compressed air.
A. The 25ltr tank stores enough air to buffer demand peaks when tools draw large volumes at low or medium pressures.
A. They reduce vibration and crankshaft stress at high speeds, increasing pump longevity and improving operating smoothness.
A. It reduces contaminants entering the crankcase, prolonging valve plate life and preserving consistent airflow performance.
A. The wheel-mounted frame with easy-fold handle allows convenient movement between work areas despite high output capability.
A. It removes heat from the motor and pump, allowing extended running times in demanding low and medium pressure operations.
A. It suits professionals needing compact yet high-flow, oil-free compressed air for more intensive tasks.
