Product Number: 06297
Variations

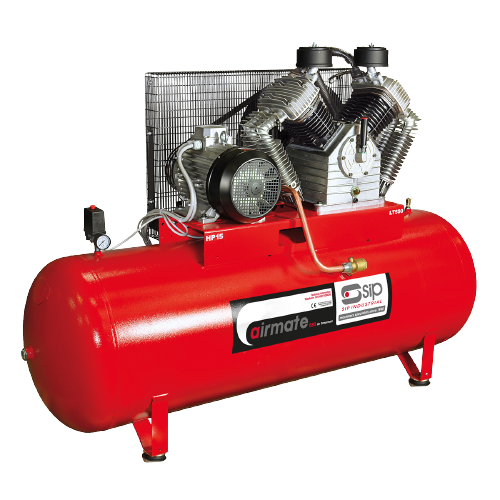

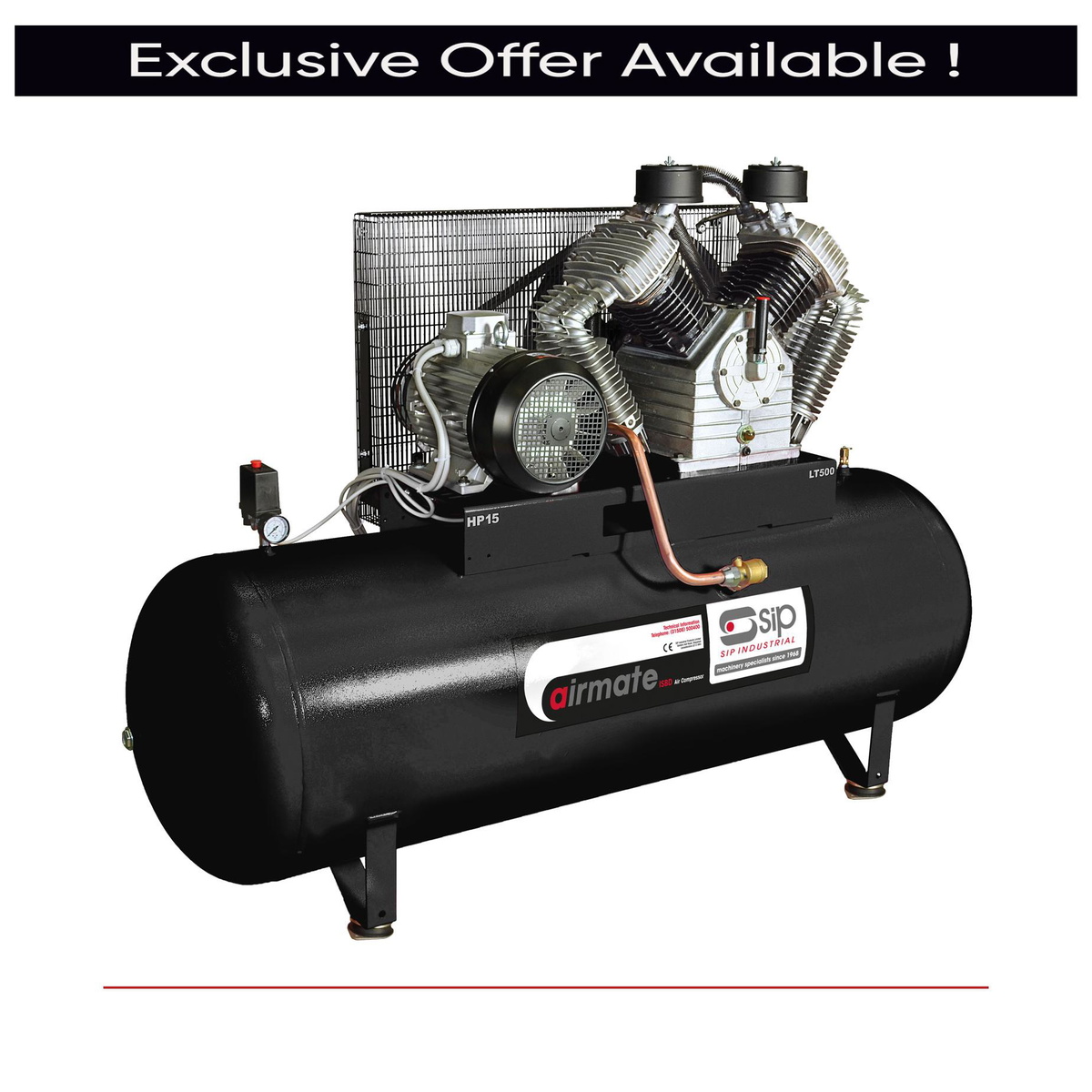

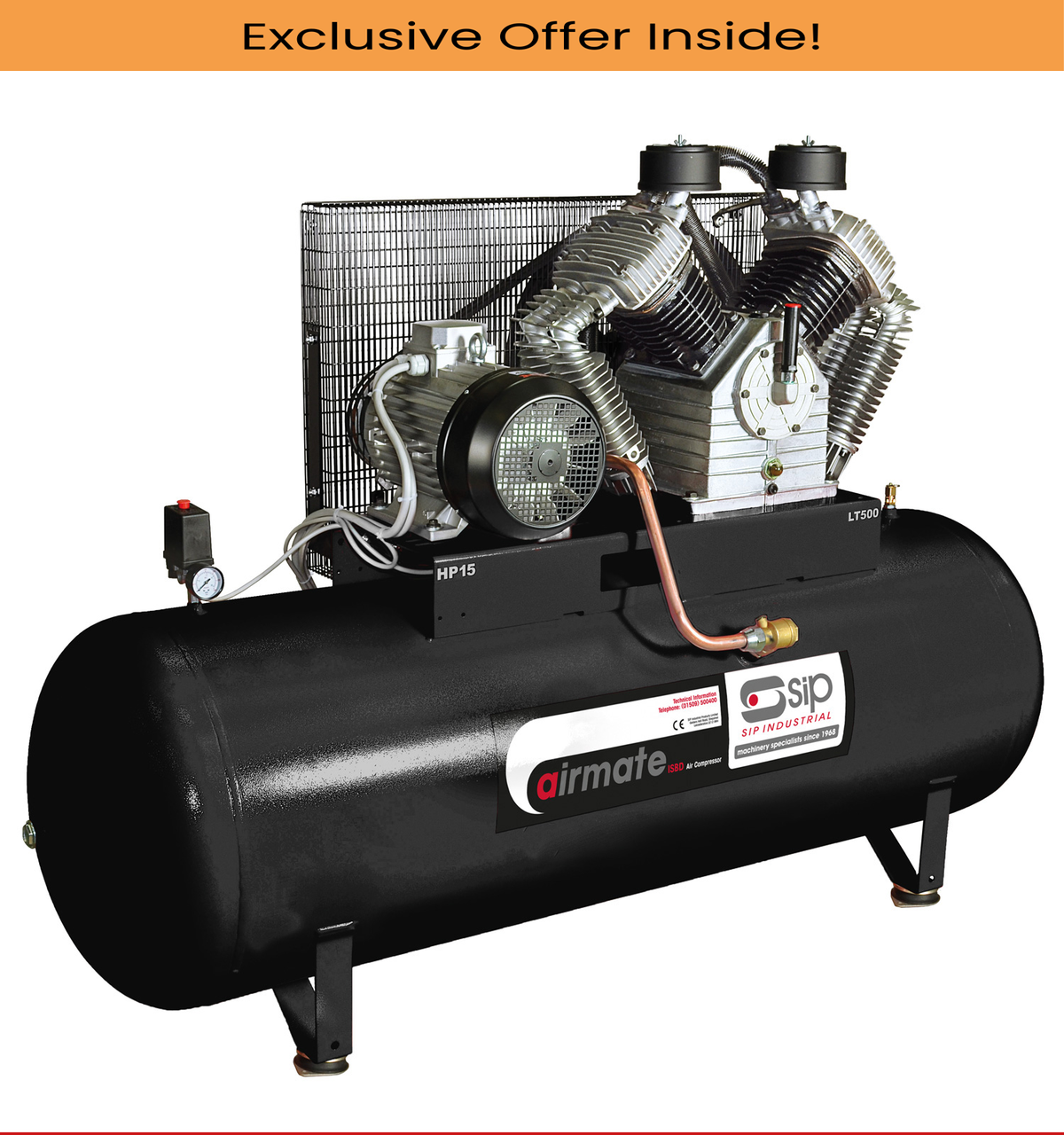

SIP 06297 ISBD15/500 Super Electric Compressor is a top-tier 15hp (11.2kW) 3-phase industrial system built for serious air demand. Running from a 400v (32A) 3-PHASE supply, it delivers 61.50CFM piston displacement and 40.70CFM FAD into a 500ltr receiver, with a maximum pressure of 160psi (11bar). The smooth V-Twin oil-lubricated belt-driven pump uses long-stroke cast iron cylinders for slower running and extended service life. Large interstage coolers enhance heat dissipation and moisture reduction, producing cooler, drier air for downstream lines and processes. Heavy-duty anti-vibration mounts and a star-delta starter help reduce vibration and current draw during startup. Supported by an SIP 10-Year Anti-Corrosion Receiver Warranty plus 2-Year Standard Silver Warranty, the ISBD15/500 is ideal as a central plant compressor in workshops, fabrication shops and small manufacturing sites with high, sustained compressed air requirements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 06297 |
|---|---|
| Input Supply | 400v (32A) 3-PHASE |
| Motor Power | 15hp (11.2kW) |
| Receiver Size | 500ltr |
| Piston Displacement | 61.50CFM (1744ltr/min) |
| Free Air Delivery (FAD) | 40.70CFM (1153ltr/min) |
| Max. Air Pressure | 160psi (11bar) |
| Working Speed | 1200rpm |
| No. of Cylinders | 4 cylinders |
| No. of Stages | 2 stages |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC55075B Air Compressor 500L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£3,317.38
£3,252.33
2% OFF
Free delivery in UK Mainland
|
Clarke SSE36C270N 30cfm 270 Litre 7.5HP Low Noise Piston Air Compressor (400V)
£2,786.42
£2,731.78
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | SAC55075B | 2246060 |
| Warranty | 12 | |
| Maximum Pressure (bar) | 10 | |
| Free AirDelivery (FAD) | 30 | |
| Tank Size | 270 | |
| Maximum Pressure (psi) | 145 | |
A. It is a 15hp, 400v three‑phase industrial compressor with a 500 litre receiver, delivering 11bar maximum pressure for demanding continuous compressed air applications.
A. It offers 61.50CFM piston displacement and 40.70CFM free air delivery, supporting multiple industrial air tools or large air systems simultaneously.
A. The compressor needs a 400v, 32A three‑phase power supply, reflecting its high‑power 15hp motor and industrial operating requirements.
A. Large interstage coolers and long‑stroke cylinders provide cooler, drier air with better pump temperature control during prolonged heavy‑duty use.
A. It features a smooth heavy‑duty V‑Twin pump with four cylinders and two compression stages, optimised for efficiency and long life.
A. A Star Delta starter system is fitted, helping lower current draw during motor start‑up on suitably equipped three‑phase supplies.
A. The compressor is supplied with heavy‑duty anti‑vibration mounts, reducing transmitted vibration to the floor and associated pipework.
A. It includes an SIP 10‑Year Anti‑Corrosion Receiver Warranty plus an SIP 2‑Year Standard Silver Warranty for broader mechanical protection.
A. Variant data lists ISBD7.5/270 06291 and ISBD10/270 06295 as related industrial compressors with smaller receivers and reduced air outputs.
A. Description targets large, demanding industrial applications where consistently high performance and superior compressed air production are essential.
A. A 1200rpm working speed with long‑stroke cast iron cylinders supports slower running and increased pump service life.
