Product Number: SAC05020
Variations

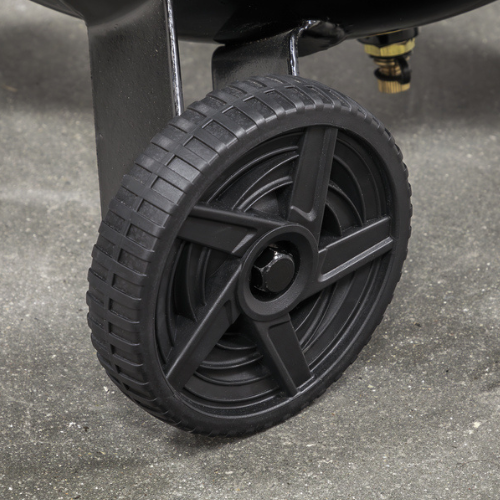

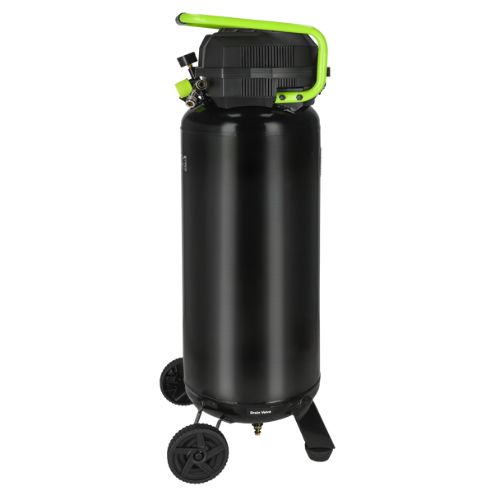

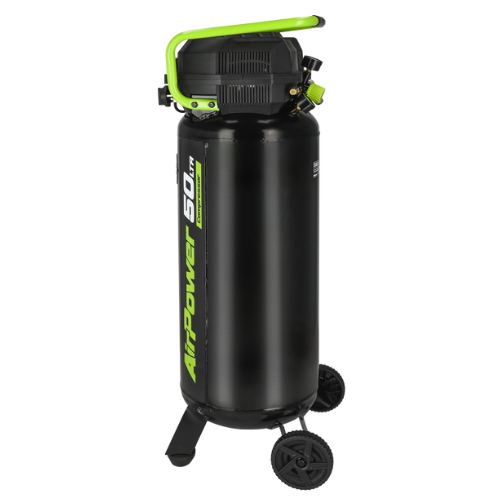

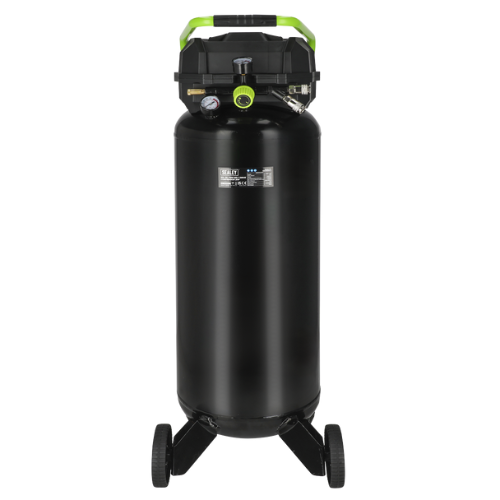

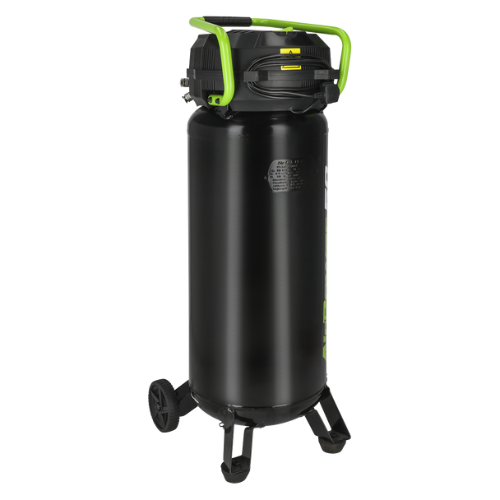

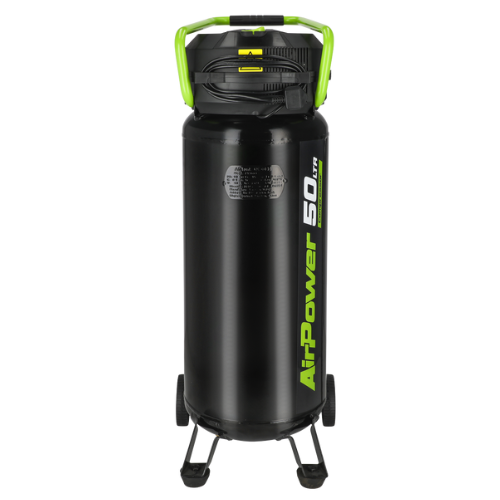

Sealey SAC05020 Compressor 50L Belt Drive 2hp Oil Free is a compact workshop compressor designed for clean, oil‑free air delivery. A 2hp motor on a 230V 13A supply belt‑drives a single piston pump with an aluminium cylinder head and cast iron lining, reducing weight while improving wear resistance. With 7.3cfm (205L/min) air displacement and 5.1cfm (145L/min) free air delivery at up to 145psi (10bar), it is suitable for a wide range of general-purpose workshop applications such as inflating, blowing down and running low‑to‑medium demand air tools. The vertical 50L receiver saves floor space around the workshop while maintaining useful air storage. A fully automatic pressure cut‑out switch, air regulator and gauge make it easy to set and monitor working pressure. Precision welded to meet Pressure Vessel Directive requirements, the tank is designed for long service life. Fitted with a quick release coupling, handle and wheels, the SAC05020 offers a portable, oil‑free belt‑drive solution for trade users needing reliable everyday compressed air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC05020 |
|---|---|
| Air Displacement cfm(L/min) | 7.3(205) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 5.1(145) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 2hp |
| Nett Weight | 23kg |
| Noise Level | 97dB(A) |

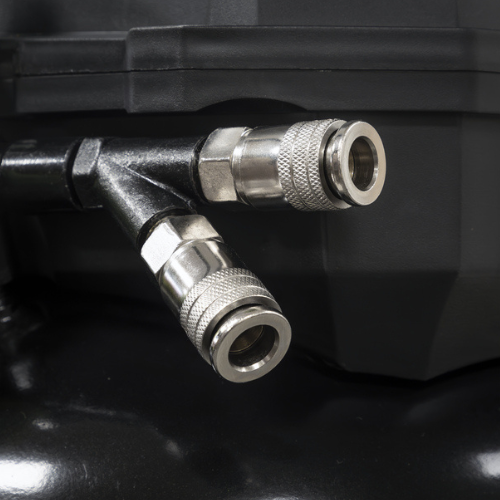

| Outlet | Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 50L |
| Size (W x D x H) | 380 x 400 x 875mm |
| Speed | n/a |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC1503B Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels
£474.67
£465.36
2% OFF
Free delivery in UK Mainland
|
Sealey SA5055 Air Compressor 50L Belt Drive Petrol Engine 5.5hp
£2,074.77
£2,034.09
2% OFF
Free delivery in UK Mainland
|
SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£934.15
£915.83
2% OFF
Free delivery in Channel Island
|
SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£1,446.27
£1,417.91
2% OFF
Free delivery in Channel Island
|
SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar
£1,291.31
£1,265.99
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC1503B | SA5055 | 06456 | 06323 | 06335 | 04444 |
| Input Supply | 230 | 415 | ||||
| Motor Power | 2.2 | 4.1 | ||||
| Warranty | 24 | 24 | 24 | |||
| Maximum Pressure (bar) | 0 | 0 | 10 | 10 | 10 | |
| Free AirDelivery (FAD) | 0 | 0 | 8.5 | 18 | 11 | |
| Noise Level | 0 | 0 | 96 | 97 | 0 | |
| Maximum Pressure (psi) | 0 | 0 | 145 | 145 | 150 | |
| Piston Displacement (CFM) | 13 | 24 | 15 | |||
| Piston Displacement (litres/min) | 368 | 680 | 425 | |||
| Show More | ||||||
A. It is a 50 litre, 2hp belt-drive, oil-free compressor with vertical tank and compact footprint.
A. It delivers 7.3cfm displacement and 5.1cfm maximum free air delivery, suitable for light workshop applications.
A. The unit operates up to 145psi, around 10bar, supporting many low-to-medium pressure air tools.
A. It reduces overall weight while improving wear resistance and durability of the pumping components.
A. Oil-free operation provides cleaner air, useful where oil contamination must be minimised and maintenance simplified.
A. The 50 litre tank is mounted vertically, reducing floor footprint and freeing up workshop space.

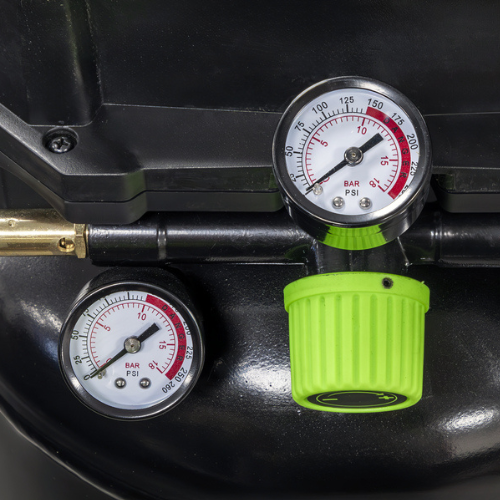

A. It includes an automatic pressure cut-out switch and air regulator with gauge for safe, controlled operation.
A. Variants include SAC05030 and SAC05030F, offering different pump configurations and outputs.
A. It runs on 230V single-phase with a 13A minimum rated supply and is fitted with a three-pin plug.
A. Belt drive permits optimised pump speed, reducing stress on the motor and pump components.

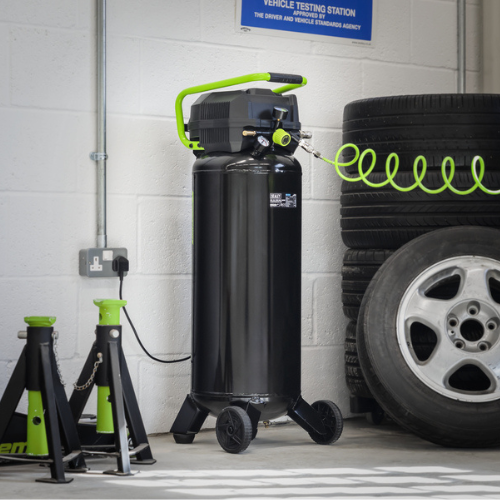

A. It suits inflation, blow-gun cleaning and occasional use of small air tools within its capacity.
