Product Number: SAC3203B3PH
Variations

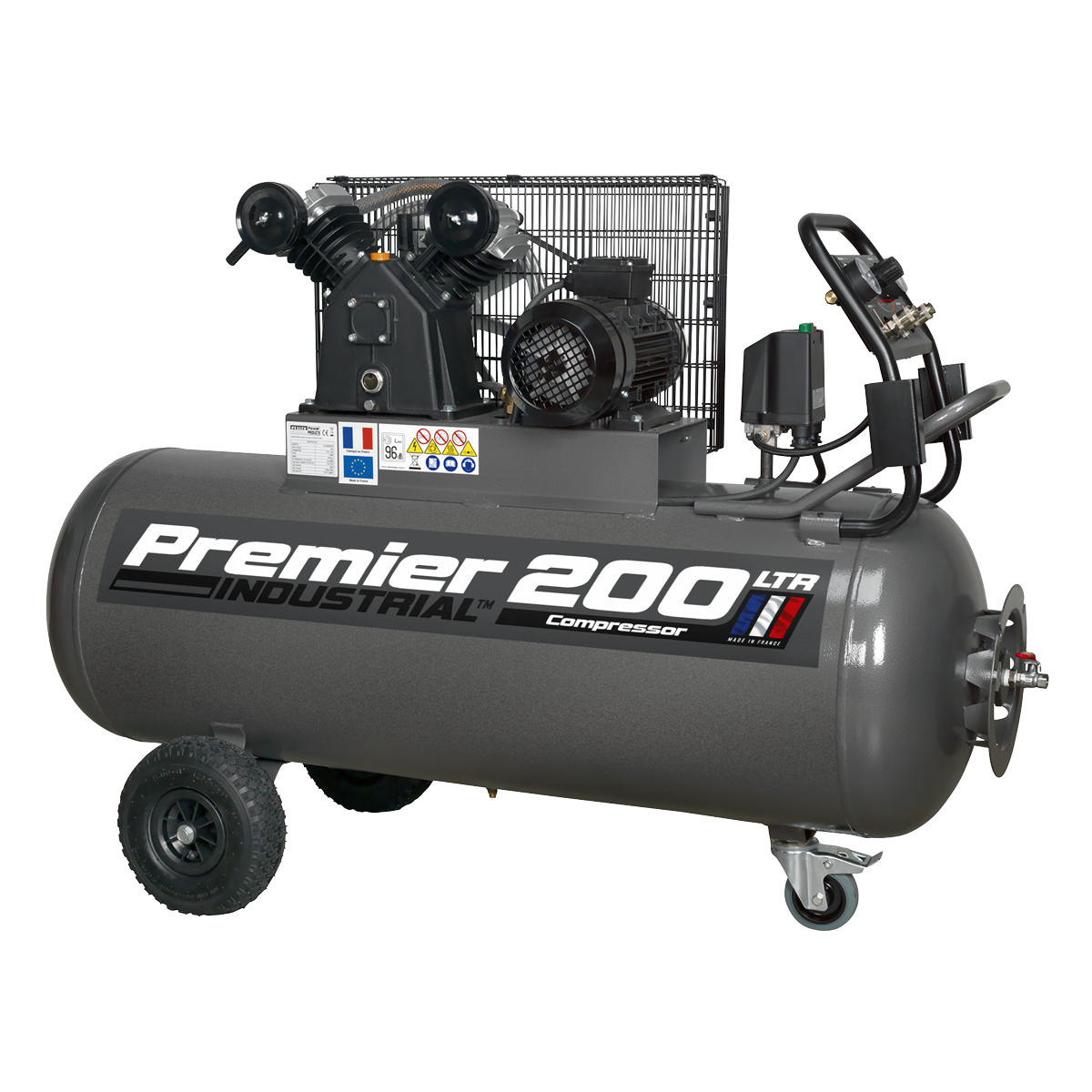

Sealey SAC3203B3PH Air Compressor 200L Belt Drive 3hp with Front Control Panel 415V 3ph is a heavy-duty three-phase unit for professional workshops. A triple-cylinder pump system coupled with a 3hp motor maximises performance while keeping running costs lower than comparable single-phase models. The full cast cylinders with alloy heads improve heat dissipation and pump life, delivering 13.4cfm (380L/min) displacement and 10.9cfm (310L/min) free air delivery at up to 145psi (10bar). A bespoke control panel gives two outlets, one regulated and one direct, via high‑flow quick release couplings. Heavy‑duty pneumatic wheels with a single front lockable castor aid manoeuvrability, and a tank‑mounted hose reel helps keep the workspace tidy. Drive guards protect the belt and flywheel, which forces cooling air over the pump, and a drain valve allows easy removal of condensate. Supplied with full CE certification and documentation, this 200L 3‑phase compressor suits demanding trade environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC3203B3PH |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Premier |
| Maximum Free Air Delivery cfm(L/min) | 10.9(310) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 32A |
| Motor Output | 3hp |
| Nett Weight | 103kg |
| Oil Capacity | 1L |
| Outlet | High-Flow Quick Release Coupling |
| Phase | 3ph |
| Receiver Capacity | 200L |
| Size (W x D x H) | 1410 x 600 x 1020mm |
| Speed | 1243rpm |
| Supply | 415V/32A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC3153B Air Compressor 150L Belt Drive 3hp with Front Control Panel
£1,049.10
£1,028.53
2% OFF
Free delivery in UK Mainland
|
Sealey SAC3103B Air Compressor 100L Belt Drive 3hp with Front Control Panel
£871.40
£854.31
2% OFF
Free delivery in UK Mainland
|
SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£778.45
£763.19
2% OFF
Free delivery in Channel Island
|
SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£891.72
£874.24
2% OFF
Free delivery in Channel Island
|
Draper 55313 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£626.24
£613.96
2% OFF
Free delivery in UK Mainland
|
SIP 05311 PX4-3/200B Belt-Driven Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£886.07
£868.70
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC3153B | SAC3103B | 05302 | 05308 | 55313 | 05311 |
| Input Supply | 230 | 400 | ||||
| Warranty | 24 | 24 | ||||
| Input current | 13A | |||||
| Phase | 3 | |||||
| Maximum Pressure (bar) | 0 | 0 | 10 | 0 | ||
| Free AirDelivery (FAD) | 0 | 0 | 8.44 | 0 | ||
| Tank Size | 0 | 0 | 200 | 0 | ||
| Noise Level | 0 | 97 | 0 | 97 | ||
| Maximum Pressure (psi) | 0 | 0 | 145 | 0 | ||
| Air displacement | 13.03 CFM | |||||
| Piston Displacement (CFM) | 18 | 18 | ||||
| Piston Displacement (litres/min) | 510 | 510 | ||||
| Show More | ||||||
A. It is a heavy-duty 200 litre, 3hp belt-drive air compressor with front control panel for professional workshops.
A. It offers 13.4cfm displacement and 10.9cfm maximum free air delivery, suitable for demanding workshop tasks.
A. The unit operates up to 145psi, around 10bar, supporting many industrial air tools.
A. The combination maximises performance and helps keep running costs lower than comparable single-stage single-phase models.
A. Heavy-duty full cast cylinders capped by alloy heads improve heat dissipation and longevity.
A. It provides two outlets, one regulated and one direct, allowing flexible use of compressed air.

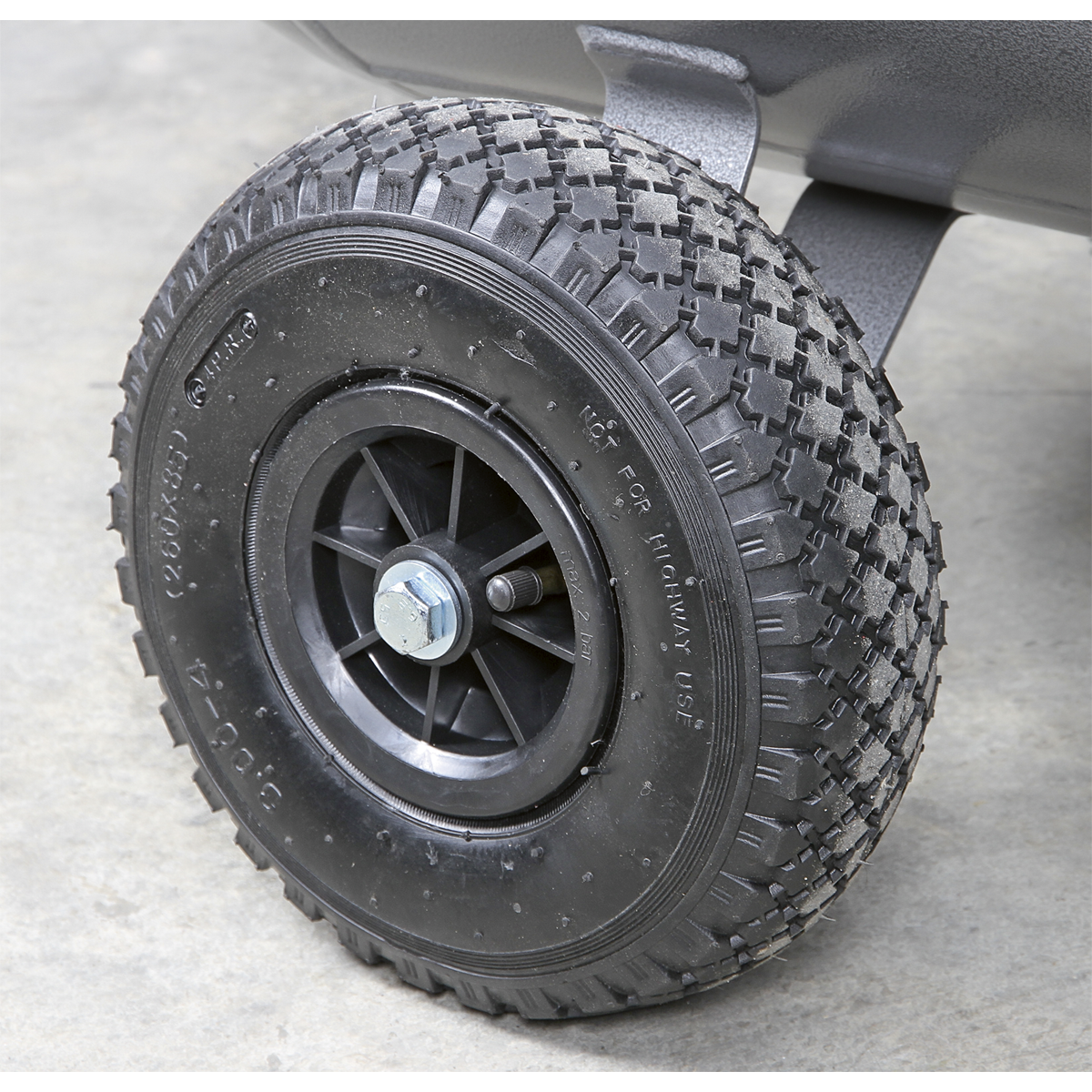

A. Heavy-duty pneumatic wheels and a single front lockable castor provide manoeuvrability when repositioning.
A. Variants include SAC42755BLN, SAC72775BLN and SACV52775B within the same professional range.
A. It comes with full CE certification, test certificates and an operating and maintenance manual.
A. It needs a 415V three-phase supply with a 32A minimum rated feed.
A. The tank-mounted hose reel keeps the hose tidy and reduces tripping hazards.
