Product Number: 1420-18038-316
Variations

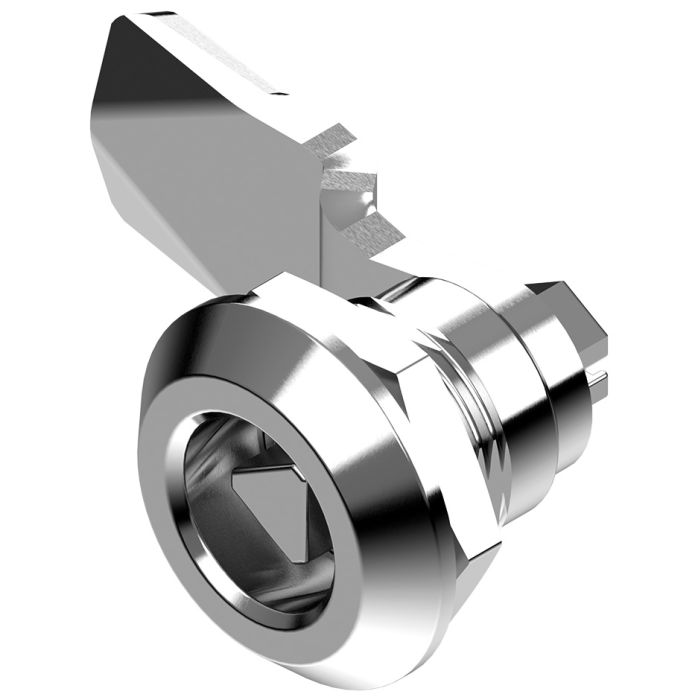

The Metrol 1420-18038-316 is a quarter turn tri-lock fastener from the 1420 series, finished in polished stainless steel 316 and designed for secure panel-mounting applications where corrosion resistance and a clean aesthetic are required. With an 8mm triangle key operation and an 18mm barrel height, this lock is suited to enclosures, cabinets, and industrial panels where reliable quarter-turn actuation is needed.
Constructed from stainless steel 316, the 1420-18038-316 offers a polished finish and is rated to IP65, making it appropriate for environments where dust ingress and low-pressure water jets are a concern. The mounting cutout requirement is 20.1 x 20.1 mm, and the fastener accommodates panel thicknesses of 1 to 8 mm, providing flexibility across a range of enclosure wall gauges. A cam option range is available within the 1420 series to suit different latching requirements.
As part of the broader 1420 series, this lock is offered in stainless steel 316 as well as zinc die variants, allowing specifiers to select the material grade appropriate to their operating environment. The 8mm triangle key drive is a widely adopted format in panel-access hardware, restricting casual access while remaining practical for authorised service personnel.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Triangle 8mm |
| Colour/Finish | Polished |
| Material | Stainless Steel 316 |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1407 Padlockable Triangle 8mm Quarter Turn Lock in Black Textured Powder Coated
£12.05
£11.81
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-038-20 | 1401-038-30 | 1401-048-30 | 1401-048-316 | 1407-220382h-20 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 8mm | 8mm | 8mm | 8mm | 8mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. This lock operates with an 8mm triangle key, a standard format widely used in panel and enclosure access hardware.
A. The 1420-18038-316 requires a 20.1 x 20.1 mm panel cutout and is compatible with panel thicknesses of 1 to 8 mm.
A. The 1420-18038-316 is rated IP65, providing protection against dust ingress and low-pressure water jets.
A. It is constructed from stainless steel 316 with a polished finish, offering strong corrosion resistance for demanding environments.
A. This model has an 18mm barrel height. The 1420 series is also available in zinc die versions, and a range of cam options is available within the series to suit different latching requirements.
A. The lock mounts through a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses of 1 to 8 mm, using standard quarter-turn installation. For specific installation guidance, refer to the manufacturer datasheet or contact us before ordering.
