Product Number: 1420-18015-20
Variations
The Metrol 1420-18015-20 is a quarter turn lock cylinder from the Model 1420 series, featuring a 5mm double bit keyway and an 18mm barrel height. Finished in black powder coat over a die cast zinc alloy body, it is suited to panel enclosures, cabinets, and industrial access applications where a secure, low-profile locking solution is required.
The lock accepts a 5mm double bit key and operates via a quarter turn action. The powder-coated black finish provides resistance to corrosion and abrasion in demanding workshop or industrial environments. It carries IP65 ingress protection, confirming resistance to dust ingress and low-pressure water jets, making it suitable for use in exposed or wash-down locations.
The 1420-18 Quarter Turn Lock 5mm Double Bit Cylinder with 18mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Double Bit 5mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |

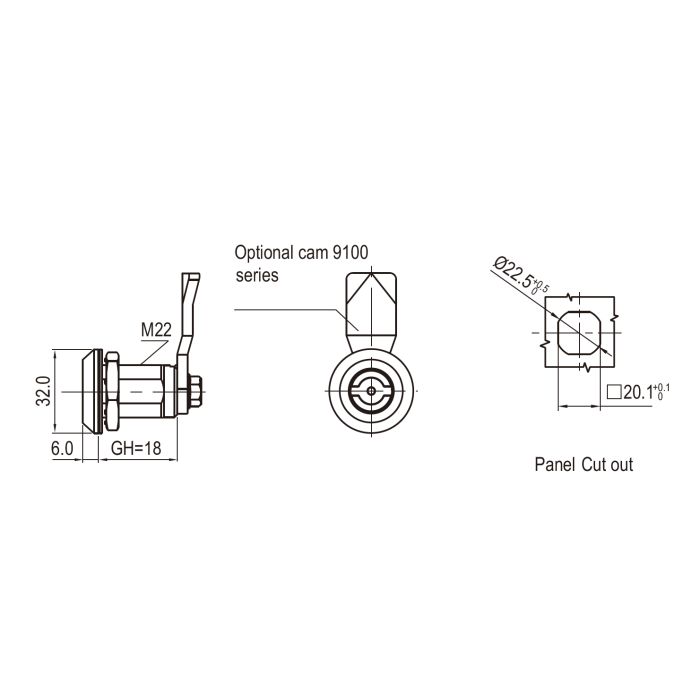

| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1407 Padlockable Double Bit 5mm Quarter Turn Lock in Black Textured Powder Coated
£12.05
£11.81
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-015-20 | 1401-015-30 | 1401-015-316 | 1407-220152h-20 | 1407-220152h-304 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 5mm | 5mm | 5mm | 5mm | 5mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | ||||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The lock uses a 5mm double bit key operating on a quarter turn action.
A. The barrel height is 18mm.
A. A panel cutout of 20.1 x 20.1mm is required.
A. The lock accommodates panel thicknesses from 1mm to 8mm.
A. The 1420-18015-20 carries an IP65 rating, providing protection against dust ingress and low-pressure water jets.
A. The lock body is constructed from die cast zinc alloy with a black powder coated finish.
A. Yes — a range of cam options is available for the Model 1420 series. Contact us with your requirements.
