Product Number: 1420-18038-20
Variations
The Metrol 1420-18038-20 is a quarter tri-turn lock featuring an 8mm triangle cylinder with an 18mm barrel height, finished in black powder coat. Manufactured under the Metrol Model 1420 series, it is suited to enclosure, cabinet, and panel fastening applications where a secure quarter-turn locking mechanism is required.

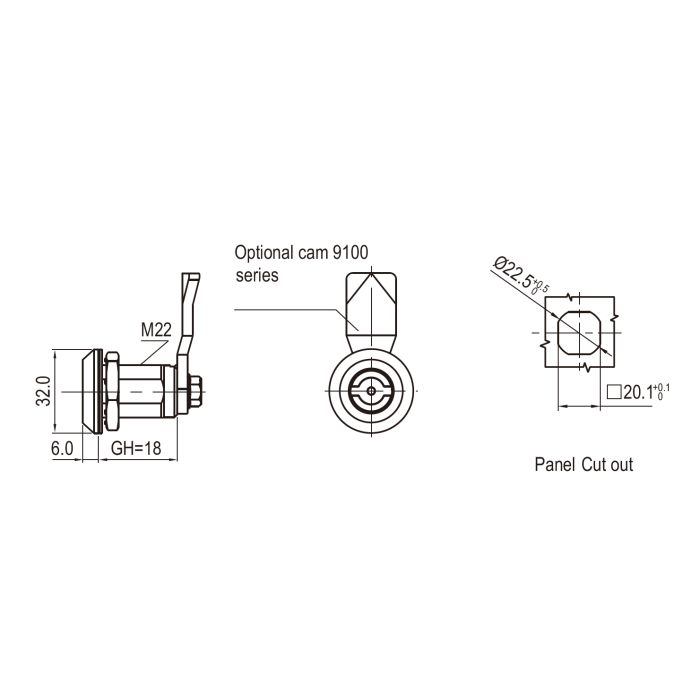

The lock body is constructed in die cast zinc with a black powder-coated finish, delivering a clean, durable appearance appropriate for professional panel and enclosure installations. It carries a sealed IP65 rating, confirming resistance to dust ingress and low-pressure water jets. The fixing aperture requirement is 20.1 x 20.1 mm, and the lock accommodates panel thicknesses from 1 mm to 8 mm.
A range of cams are offered within this series, allowing the locking configuration to be matched to the specific enclosure or panel depth in use. The barrel height of 18 mm is a defining dimensional characteristic of this variant. Material alternatives within the broader range include stainless steel 316, making the series suitable for more demanding environments where corrosion resistance is a primary consideration.
The 1420-18 Quarter Tri Turn Lock 8mm Triangle Cylinder with 18mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Triangle 8mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-038-20 | 1401-038-30 | 1401-038-316 | 1401-048-30 | 1401-048-316 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 8mm | 8mm | 8mm | 8mm | 8mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The panel cutout required is 20.1 x 20.1 mm. The lock accommodates panel thicknesses from 1 mm to 8 mm.
A. The Metrol 1420-18038-20 carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets.
A. This lock uses an 8mm triangle cylinder, operated by a matching triangle key.
A. This variant is manufactured from die cast zinc alloy with a black powder-coated finish. The broader Metrol 1420 range also includes a stainless steel 316 material option for environments requiring enhanced corrosion resistance.
A. Yes — a range of cam options is available within the Metrol 1420 series, allowing the locking configuration to be selected to suit different enclosure or panel depth requirements.
A. The barrel height of the 1420-18038-20 is 18 mm.
