Product Number: 1245-229-202
The Metrol 1245-229-202 is a key-locking lever latch finished in black powder coat, designed to securely close and hold panels, doors, and covers while still allowing quick, controlled access when needed. Suited to industrial equipment, electrical enclosures, cabinets, and machinery housings, it is built to prevent accidental opening from vibration or handling and to support repeatable day-to-day operation.
The handle, housing, and trigger are manufactured from zinc die cast alloy, with mild steel zinc plated fixing components providing corrosion resistance throughout. The latch incorporates a CH751 key cylinder with shutter, delivering controlled access security in applications where unauthorised opening must be prevented. The black powder coat finish offers both aesthetic consistency and surface durability.

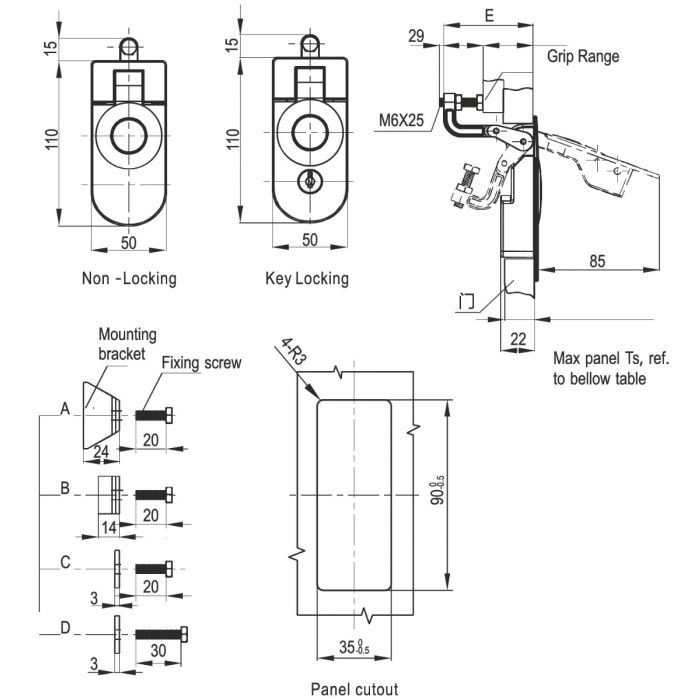

The 1245-229-202 accepts a panel cutout of 35x90mm and is suitable for panel thicknesses of 11 to 21mm, with a grip range of 14 to 29mm. It carries an IP40 ingress protection rating and has been salt spray tested to over 300 hours, confirming its suitability for demanding workshop and industrial environments. A universal panel cutout specification simplifies retrofitting into existing enclosures.
This product is guaranteed for one year. It ships by Metrol and listed here as a new addition to the PartsForMachines catalogue.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking with Shutter |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, Mild Steel Zinc Plated Fixing Components |
| Panel Cutout | 35x90mm |
| Panel Thickness | 11 - 21mm |
| Grip Range | 14-29mm |
| IP Rating | IP40 |
| Model | 1245 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1245-229-201 | 1245-229-203 | 1245-329-201 | 1245-329-202 | 1245-329-203 |
| Type | Lever Latch | Lever Latch | Lever Latch | Lever Latch | Lever Latch |
| Size | 29mm | 29mm | 29mm | 29mm | 29mm |
| Grip Range | 14-29mm | 14-29mm | 14-29mm | 14-29mm | 14-29mm |
| Panel Thickness | 1 - 11mm | 21 - 31mm | 1 - 11mm | 11 - 21mm | 21 - 31mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The handle, housing, and trigger are manufactured from zinc die cast alloy. The fixing components are mild steel with a zinc plated finish.
A. The 1245-229-202 requires a panel cutout of 35x90mm.
A. The latch is suitable for panel thicknesses of 11 to 21mm and accepts a grip range of 14 to 29mm.
A. The latch carries an IP40 ingress protection rating.
A. Yes — the Metrol 1245-229-202 has been salt spray tested to over 300 hours.
A. The latch uses a CH751 key cylinder with shutter, providing key locking with controlled access security.
A. The Metrol 1245-229-202 is guaranteed for one year.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
